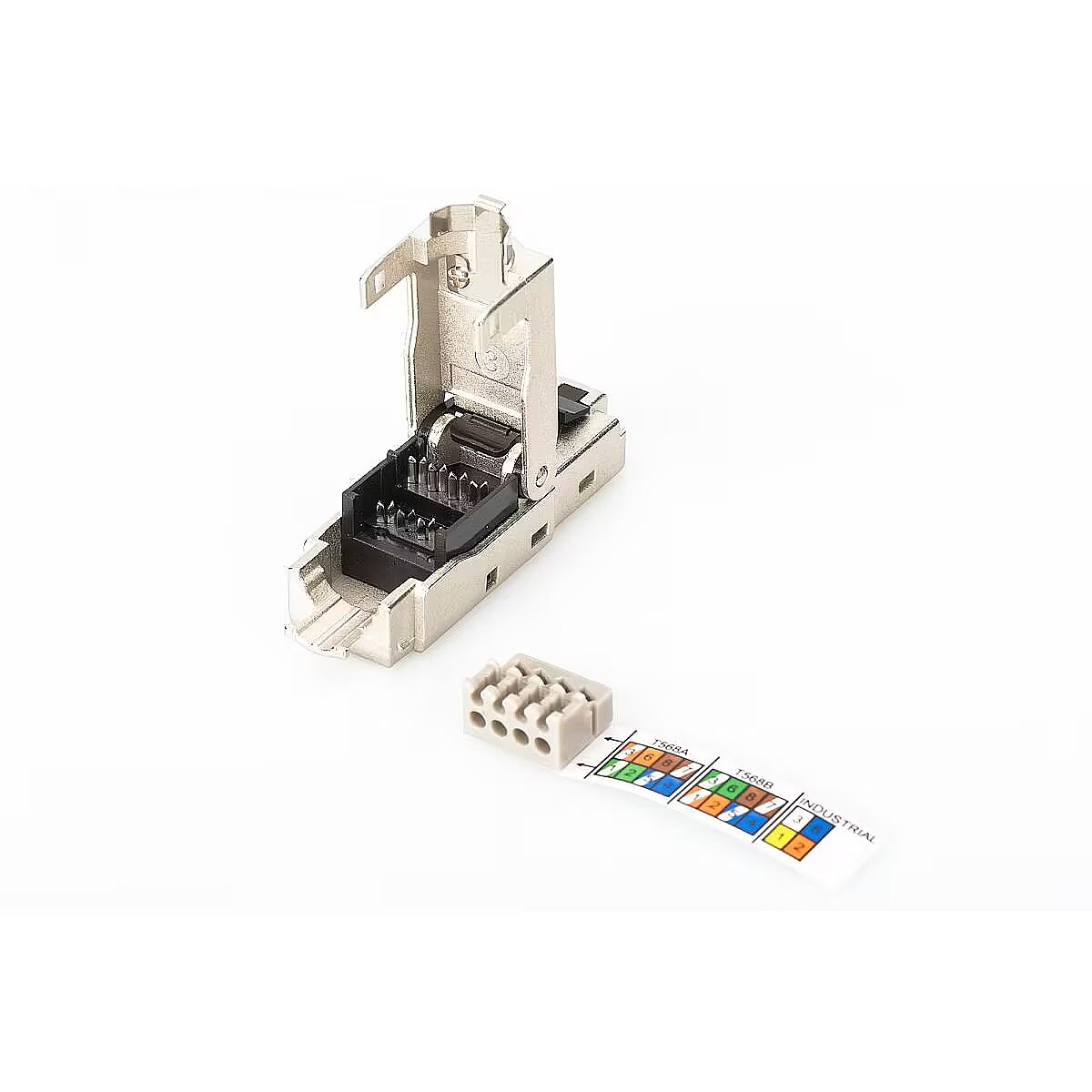

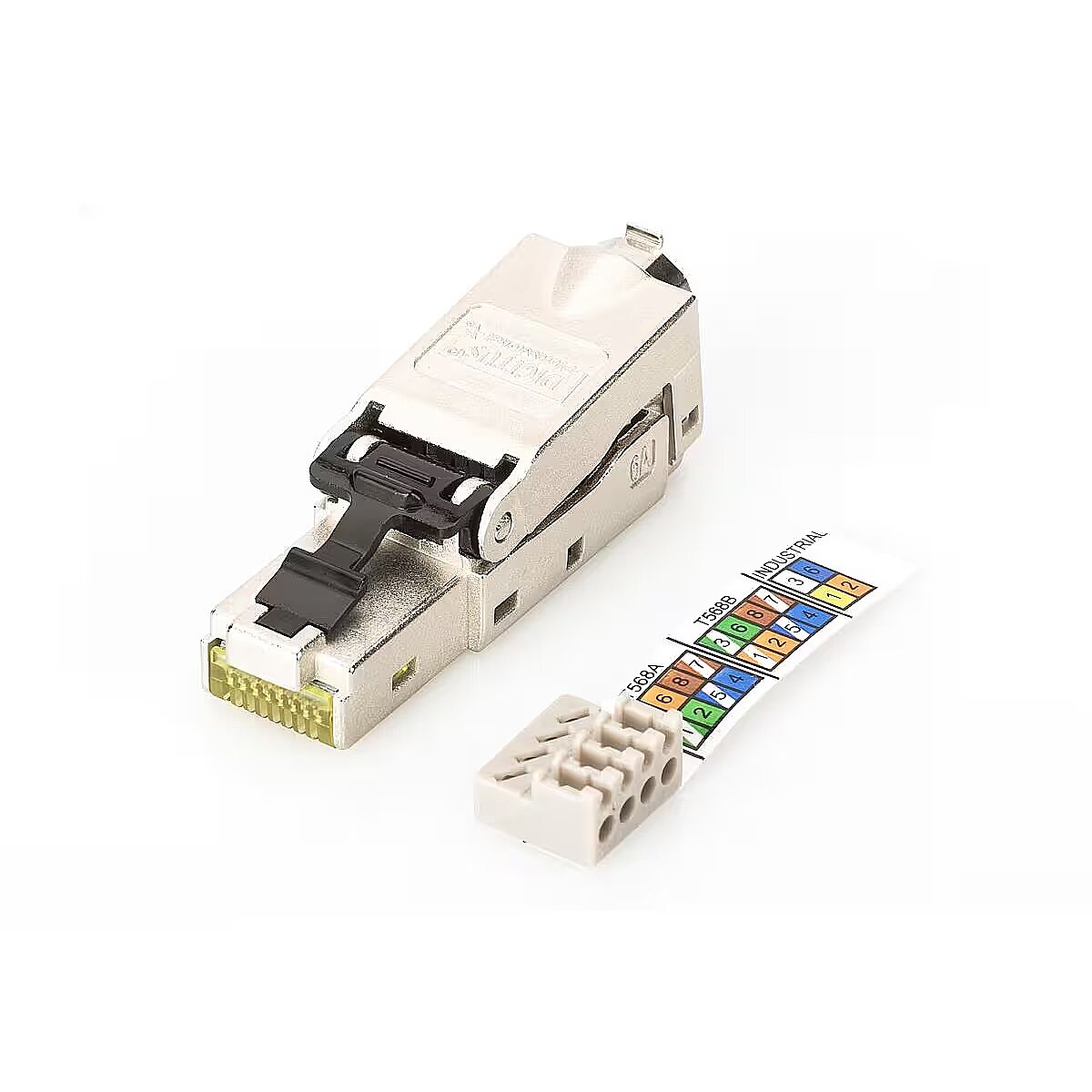

Digitus Connector for assembly Ethernet RJ45 cat.6a AWG 22-27, 10 GBit Ethernet, PoE +

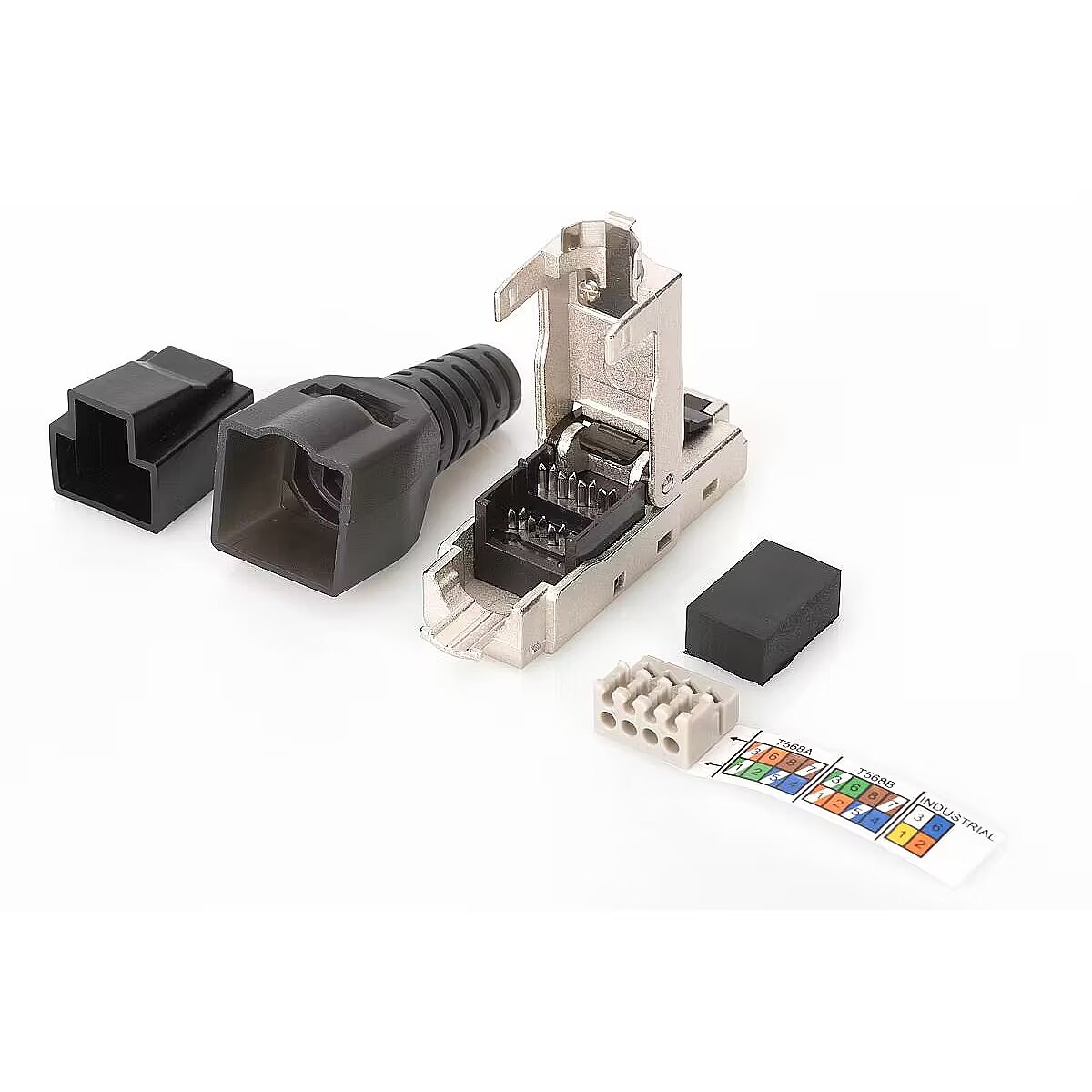

Accessories included - Plug with dust cap Strain relief with strain relief The organizer lived with information about cabling Cable tie Installation instructions
ARTIKEL1 - DIGITUS PRO SHIELDED RJ45
ARTIKEL2 - CONNECTOR FOR FIELD ASSEMBLY
Breite - 0.05
Category - Root/EXPORT
Category 1 - Kabel & Adapter
Category 2 - Netzwerk
Category 3 - Cat-Kabel
Code - DN-93631
Connector - RJ-45
Description - Connector for assembly Ethernet RJ45 cat.6a AWG 22-27, 10 GBit Ethernet, PoE +
Durable casing made of zinc die-cast 360 ° cable shield contact for better protection of electromagnetic tolerance Installation in 60 seconds without any special tools Optimized for practical applications, even in difficult conditions Reliable transmission even in the event of external interference Perfect for repairing and expanding the network Dust cap Strain relief included
Designation - CE
dimension depth - 25 mm
dimension height - 47 mm
Dimensions - Plug: 12.5 x 13.0 x 45.0 mm (width x height x depth) Diameter of conductors: 0.85 1.6 mm Outer diameter of the cable: 5.0-9.0 mm
dimension weight - 34 g
dimension width - 125 mm
EAN - 4016032392231
ean - 4016032392231
EANCode - 4016032392231
Eans - 4016032392231
GRUPPE1 - Cables
GRUPPE2 - Tools
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0.03
HSTNUMMER - DN-93631
Laenge - 0.13
Link - https://de.assmann.shop/en/Copper-Network-Technology/Plugs-and-Connectors/Plugs-Field-Fssembly/CAT-6A-Field-Termination-Plug-STP-with-dust-cap-bend-relief.html
Manufacturer - Digitus
MPN - DN-93631
Name - CAT 6A Field Termination Plug, STP with dust cap, Bend relief | DN-93631
name - Connector for assembly Ethernet RJ45 cat.6a AWG 22-27, 10 GBit Ethernet, PoE +
Name - DIGITUS Stecker RJ45 Cat6a zur Feldkonfektionierung
Name - Wtyk modularny RJ45 kat.6A, PoE+, 10GbE, STP, ekranowany, metalowy, beznarzędziowy, AWG 27-22, zaślepka
Other features - Wire cross sections AWG 27/7-22/7,AWG 24/1-22/1 Working temperature: -40 ° C to +80 ° C Current carrying capacity at 50 ° C: 1 A PoE + according to IEEE 802.3at: Adapted to Power over Ethernet + Standards: Gigabit Ethernet in accordance with IEEE 802.3, Ethernet 10 Gigabit in accordance with IEEE 802.3an: Suitable for Ethernet 10 Gigabit
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 125.00 mm
Package features > Gross height (mm) - 25.00 mm
Package features > Gross width (mm) - 45.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 12195 pc(s)
Package features > Paper/Pasteboard - 3.20 g
Package features > Plastic (No PET) - 0.80 g
Package features > Tare weight (kg) - 0.00 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
producer - Digitus
Producer - Digitus
ProducerCode - DN-93631
Quantity in unit package - 1
ShortDescription -
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.08 kg
Technical details > Producer - Digitus
Technical details > Producer product family - CAT 6A Field Termination Plug, STP with dust cap, Bend relief
Technical details > Producer product name - DN-93631
vendpn - DN-93631
Warranty - 24
Warranty - 24 month(s)
Weight - 0.02
Weight - 78 g
