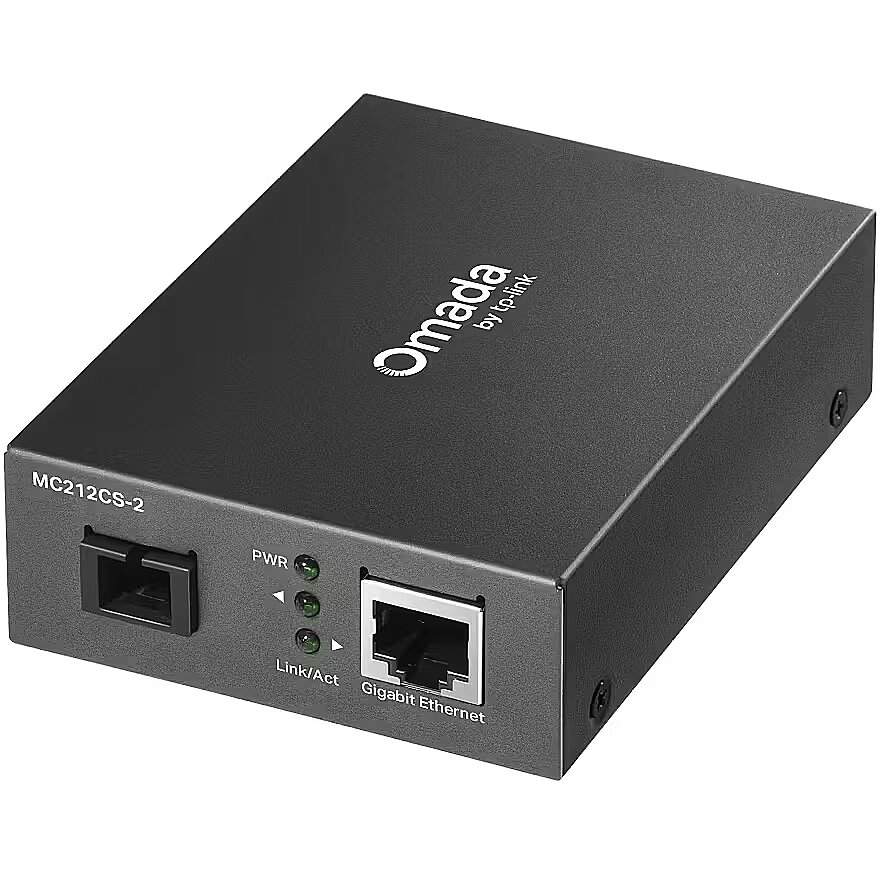

TP-LINK Omada MC212CS-2 network media converter 1000 Mbit/s 1550 nm Single-mode Black

Accessories included - MC212CS-2 Zasilacz Instrukcja instalacji
Brand - TP-Link
BrandPartCode - MC212CS-2
Category - Network Media Converters
Color - Black
Description - Gigabitowy media konwerter WDM Omada 1 port RJ45 10/100/1000 Mb/s z autonegocjacją i obsługą Auto MDI/MDI-X Autonegocjacja w trybie półdupleksu i pełnego dupleksu Obsługa technologii WDM umożliwiającej przesyłanie oraz odbieranie danych na jednym włóknie światłowodowym Zwiększenie zasięgu transmisji światłowodowej do 2km MC212CS-2 to gigabitowy media konwerter, zapewniający dostęp do gigabitowego portu RJ-45 oraz gigabitowego portu światłowodowego ze złączem SC, przetwarzający sygnały elektryczne na sygnały optyczne i odwrotnie. Urządzenie może być zatem stosowane do użytku komercyjnego, np. w celu zapewnienia długodystansowej transmisji danych na potrzeby monitorowania bezpieczeństwa parku czy w sieciach bezprzewodowych.
Designation - CE+WEEE
dimensionalWeight - 465
dimension depth - 65 mm
dimension height - 170 mm
Dimensions - 94,5 x 73 x 27 mm
dimension weight - 360 g
dimension width - 210 mm
ean - 1210002601115
Features - Internal - No
Features - LED indicators - Activity
Features - LED indicators - Activity, Link, Power
Features - LED indicators - Link
Features - LED indicators - Power
Features - Product colour - Black
GTIN - 1210002601115
guarantee - 60
guarantee_type - normal
LongDesc - MC212CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
LongProductName - Omada Gigabit WDM Media Converter, 2km
LongSummaryDescription - TP-Link Omada MC212CS-2. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 2000 m, Wavelength: 1550 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC/UPC, Connectivity technology: Wired. Input voltage: 9 V, Input current: 0.6 A
name - TP-Link MC212CS-2
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Duplex system - Full
Network - Duplex system - Full, Half
Network - Duplex system - Half
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Zasilanie: zewnętrzny zasilacz: 9 V / 0,6 A Długość fali: 1310 nm TX, 1550 nm RX Dopuszczalna temperatura pracy: -5C do 50C Dopuszczalna temperatura przechowywania: -40C do 70C Dopuszczalna wilgotność powietrza: 10% do 90% RH, bez kondensacji Dopuszczalna wilgotność przechowywania: 5% do 90% RH, bez kondensacji
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Performance - Fiber mode structure - Single-mode
Performance - Maximum transfer distance - 2000 m
Performance - Wavelength - 1550 nm
Performance - Wavelength-division multiplexing (WDM) - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SC/UPC
Ports & interfaces - Fiber ports quantity - 1
Power - Input current - 0.6 A
Power - Input voltage - 9 V
producer - TP-LINK
producerCode - MC212CS-2
ProductName - MC212CS-2
productName - TP-Link Omada MC212CS-2 network media converter 1000 Mbit/s 1550 nm Single-mode Black
productSize - Normal
ShortSummaryDescription - TP-Link Omada MC212CS-2, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, 2000 m
sizeX - 166
sizeY - 206
sizeZ - 68
Supported protocols and standards - IEEE 802.3 IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z
Title - TP-Link Omada MC212CS-2 network media converter 1000 Mbit/s 1550 nm Single-mode Black
URL - https://www.omadanetworks.com/my/business-networking/omada-accessory-media-converter/mc212cs-2/#highlights
Usage - LAN
vendpn - MC212CS-2
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 358
Weight & dimensions - Depth - 73 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 94.5 mm
