Brand - Intellinet
BrandPartCode - 545013
Category - Network Transceiver Modules
Category - Root/Electronics/Networks and communication/Network accessories/Moduły światłowodowe
Certificates - Certification - FCC Class A, CE Mark
Certificates - Compliance certificates - CE, RoHS, Federal Communications Commission (FCC)
dimensionalWeight - 28
Eans - 0766623545013
Features - Certification - FCC Class A, CE Mark
Features - Hot-Plug support - Yes
Features - Product colour - Aluminium
GTIN - 766623545013
GTIN - 0766623545013
Logistics data - Harmonized System (HS) code - 85369010

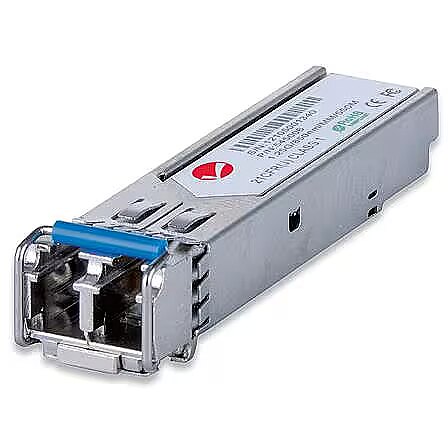

LongDesc - Gigabit Fibre SFP Optical Transceiver Module The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. Small Size for High-Density Fibre Connections The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. Compatibility Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided. Hot-Pluggable The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. Digital Diagnostics Monitoring (DDM) The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
LongProductName - Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty
LongSummaryDescription - Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Aluminium. Input voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), Certification: FCC Class A, CE Mark. Width: 14 mm, Depth: 57 mm, Height: 12 mm
Name - Intellinet Moduł mini GBIC SFP LC 545013
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Number of products included - 1 pc(s)
Performance - Duplex system - Full
Performance - Ethernet interface type - Gigabit Ethernet
Performance - Ethernet LAN - Yes
Performance - Fiber cable diameters supported (core/cladding) - 9/125 µm
Performance - Fiber optic connector - LC
Performance - Harmonized System (HS) code - 85369010
Performance - Interface type - SFP
Performance - Link budget - 14 dB
Performance - Maximum data transfer rate - 1000 Mbit/s
Performance - Maximum transfer distance - 10000 m
Performance - Networking standards - IEEE 802.3z
Performance - SFP transceiver type - Fiber optic
Performance - Single-mode fiber (SMF) supported - Yes
Performance - Tx power (max) - -3 dBmW
Performance - Tx power (min) - -8 dBmW
Performance - Wavelength - 1310 nm
Power - Input voltage - 3.3 V
Power - Power consumption (typical) - 1 W
Producer - Intellinet
producerCode - 545013
ProducerCode - 545013
productName - Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Fibre, Three Year Warranty
ProductName - Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty
productSize - Normal
ShortDescription - Moduł Mini-GBIC SFP 1000Base-LX LC jednomodowy 1310nm 10km
ShortSummaryDescription - Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty, Fiber optic, 1000 Mbit/s, SFP, LC, 9/125 µm, 10000 m
sizeX - 120
sizeY - 60
sizeZ - 20
Technical details - Sustainability certificates - RoHS
Title - Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty
URL - https://intellinetnetwork.eu/catalogsearch/result/?q=545013
WarrantyInfo - Three-Year Warranty
warrantyLength - 36
warrantyType - G
weight - 75
Weight & dimensions - Depth - 57 mm
Weight & dimensions - Height - 12 mm
Weight & dimensions - Weight - 18 g
Weight & dimensions - Width - 14 mm
