ID: 976888
Product code: PW48V-12V85W
In stock >50 units
Warranty: 2 years
(Warranty for business entities 1 year)

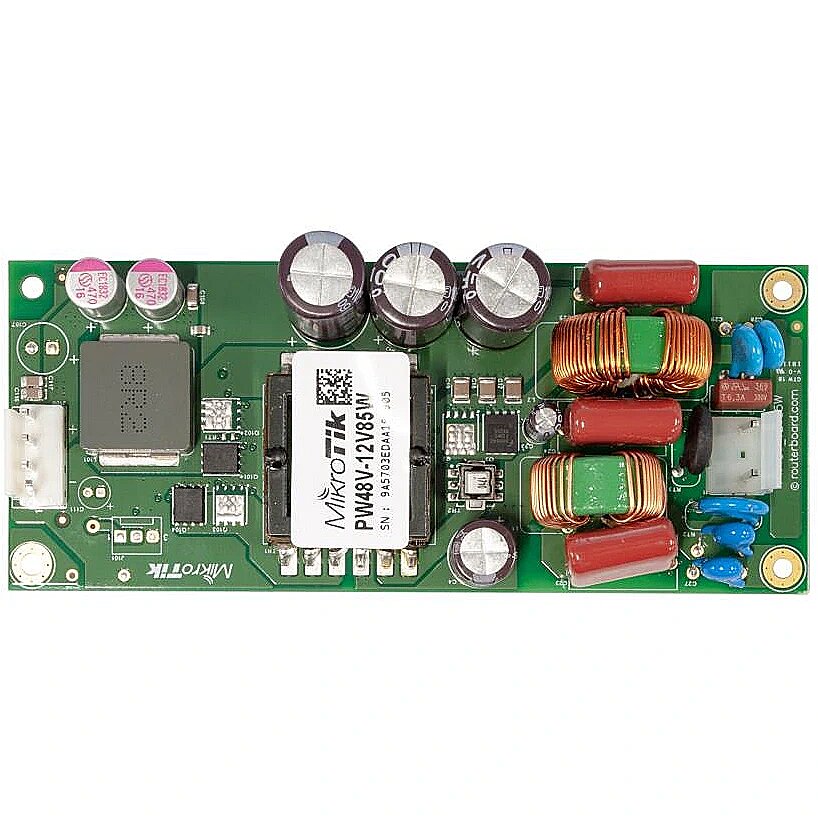

MikroTik Open Frame PSU 12V7A for CCR r2 Series
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
More detailed specification
brand - MikroTik
category - MikroTik > Barošanas bloki
Category Code - NCC
Description - ±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with Cloud Core Routers since revision "r2" or the new CCR2004-1G-12S+2XS and CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.
Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).
EAN - 4752224002518
height - 0.07 m
length - 0.18 m
mpn - PW48V-12V85W
Operating temperature range - -20...+60C
Option for Models - For use with Cloud Core Routers since revision "r2" or the new CCR2004-1G-12S+2XS and CRS326-24S+2Q+RM
Product Net Weight - 0.15 kg
title - MikroTik atvērta tipa barošanas bloks PW48V-12V85W
Unit Box Height - 0.075
Unit Box Length - 0.18
Unit Box Width - 0.055
Unit Calculated Volume - 0.0007425 cubm
Unit Calculated Weight - 0.17 kg
Units per Shipping Box - 1
Vendor Homepage - mikrotik.com/product/pw48v_12v85w
Warranty - 12 months
weight - 0.25 kg
width - 0.08 m
