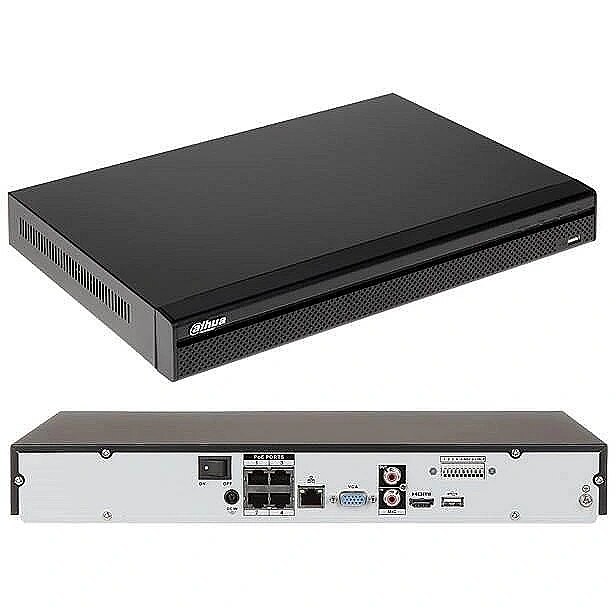

Dahua NET VIDEO RECORDER 4CH 4POE/NVR4104-P-EI

Audio formats supported Performance - G.711 A-law, G.711 μ-law, G.726, PCM
Audio RCA inputs Ports & interfaces - 1
Audio RCA outputs Ports & interfaces - 1
Backup function Performance - Yes
Browser supported System requirements - Chrome; IE9 and later; Firefox
Category Code - NVR
Certification Features - EN IEC 61000-3-2:2019+A1:2021;
EN 61000-3-3:2013+A1:2019+A2:2021; EN
55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
CnCode - 85219000
Compliance certificates Technical details - CE, Federal Communications Commission (FCC)
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 206.4 mm
Description - Series Overview NVR4000-EI series is a new generation of network recorders that offers powerful decoding capabilities, and strong bandwidth. It features high-precision face recognition, perimeter protection, and SMD (Smart Motion Detection), which can distinguish target vehicles and humans from other types in real time. When connected with select IPC cameras, Quick Pick technology becomes available, allowing human and vehicle targets to be easily searched for and picked out. This network recorder is not only cost-effective, but also compatible with a wide variety of third-party devices, making it a great choice for small and medium-sized businesses. Face Recognition Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. Perimeter Protection Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. AI Search With AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place. Heat Map by Camera Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions. ANPR by Camera With deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video. Quick Pick Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Ports & interfaces - 10,100 Mbit/s
Face detection Performance - Yes
HDD interface Hard drive - SATA
HDMI output Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 45.6 mm
Image formats supported Performance - MJPEG
Input bandwidth Performance - 80 Mbit/s
Maximum resolution Performance - 3840 x 2160 pixels
Maximum storage capacity Hard drive - 16 TB
Mobile operating systems supported System requirements - Android, iOS
Model - NVR4104-P-EI
Model name - NVR4104-P-EI
Multi-screen Performance - Yes
Networking standards Ports & interfaces - IEEE 802.3af, IEEE 802.3at
Operating relative humidity (H-H) Operational conditions - 10 - 93%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Output bandwidth Performance - 80 Mbit/s
Package depth Weight & dimensions - 96 mm
Package height Weight & dimensions - 261 mm
Package weight Weight & dimensions - 1.38 kg
Package width Weight & dimensions - 364 mm
People counting Performance - Yes
Power consumption (max) Power - 36 W
Power consumption (typical) Power - 25.5 W
Power over Ethernet (PoE) Ports & interfaces - Yes
Power over Ethernet (PoE) ports quantity Ports & interfaces - 4
Product colour Features - White
Product Net Weight ELKO Logistics Data - 0.5 kg
Rack capacity Features - 1U
Rack mounting Features - Yes
Shipping Box Depth ELKO Internal Logistics Data - 49 cm
Shipping Box Height ELKO Internal Logistics Data - 56.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 15.0500001907349 kg
Shipping Box Width ELKO Internal Logistics Data - 38.5 cm
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Dahua Technology WizSense NVR4104-P-EI. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;.... Rack capacity: 1U, Product colour: White, Certification: EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN.... Power consumption (max): 36 W, Power consumption (typical): 25.5 W
Supported network protocols Ports & interfaces - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Supported resolutions Performance - HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Unit Box Height - 0.26
Unit Box Length - 0.36
Unit Box Width - 0.1
Unit Calculated Volume ELKO Internal Logistics Data - 0.01066 cubm
Unit Calculated Weight ELKO Logistics Data - 1.51 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 10
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104-P-EI
VGA (D-Sub) output ports Ports & interfaces - 1
Video formats supported Performance - H.264, H.264+, H.265, H.265+
Video input channels Performance - 4 channels
Video recording modes Performance - 720p, 960p, 1080p
Warranty - 36 months
Weight Weight & dimensions - 500 g
Wi-Fi Wireless LAN features - No
Width Weight & dimensions - 204.6 mm
