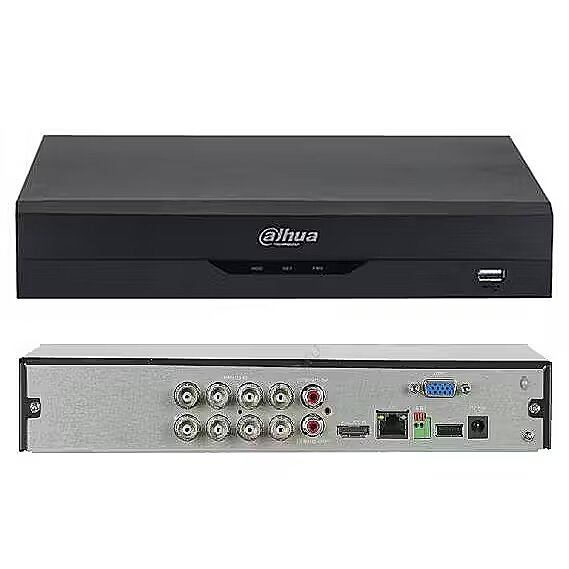

Dahua DVR 8CH HDCVI PENTABRID AI/XVR5108HS-I3/T

Brand - Dahua Technology
BrandPartCode - XVR5108HS-I3/T
Built-in processor Processor - Yes
Category - Digital Video Recorders (DVR)
Category Code - STD
Certification Performance - FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Channels quantity Performance - 8 channels
DC voltage Power - 12 V
Depth Weight & dimensions - 237.9 mm
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity. SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes. One-click Arming/Disarming
With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform. Customizable Alarm Audio
Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details Audio over Coax
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.H.265+/H.265 dual-stream video compressionSupports HDCVI/AHD/TVI/CVBS/IP video inputsMax 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidthUp to 2 channels video stream (analog channel) Perimeter ProtectionUp to 8 channels video stream (analog channel) SMD PlusUp to 1 channels video stream (analog channel ) human face recognitionIoT & POS functionalities
Dual stream support Performance - Yes
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN Network - Yes
GTIN - 6937552414952
Hard drive - HDD interface - SATA
Hard drive - Maximum HDD capacity - 16 TB
Hard drive - Number of HDDs supported - 1
HDD interface Hard drive - SATA
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 47.6 mm
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.Face RecognitionDahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity.SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.Perimeter ProtectionAutomatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.Smart Dual IlluminatorsWith Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.One-click Arming/DisarmingWith just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.Customizable Alarm AudioDesigned for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVRAI CodingCompared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle detailsAudio over CoaxThe integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
LongProductName - 8CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
LongSummaryDescription - Dahua Technology XVR5108HS-I3/T. Product colour: Black, Video compression formats: H.264, H.264+, H.265, H.265+, Channels quantity: 8 channels. Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W. Width: 260 mm, Depth: 237.9 mm, Height: 47.6 mm
Maximum HDD capacity Hard drive - 16 TB
Multi-display supported Performance - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Number of HDDs supported Hard drive - 1
Operating relative humidity (H-H) Operational conditions - 0 - 90%
Operating system installed Performance - Linux
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Package depth Packaging data - 315 mm
Package height Packaging data - 89 mm
Package weight Packaging data - 1.5 kg
Package width Packaging data - 333 mm
Packaging data - Package depth - 315 mm
Packaging data - Package height - 89 mm
Packaging data - Package weight - 1.5 kg
Packaging data - Package width - 333 mm
Performance - Certification - FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Performance - Channels quantity - 8 channels
Performance - Dual stream support - Yes
Performance - Multi-display supported - Yes
Performance - Operating system installed - Linux
Performance - Product colour - Black
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video motion detection - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - DC voltage - 12 V
Power - Power consumption (typical) - 7 W
Power - Power supply type - DC
Power consumption (typical) Power - 7 W
Power supply type Power - DC
Processor - Built-in processor - Yes
Product colour Performance - Black
ProductName - XVR5108HS-I3/T
RS-485 ports Ports & interfaces - 1
ShortSummaryDescription - Dahua Technology XVR5108HS-I3/T, Black, H.264, H.264+, H.265, H.265+, 8 channels, Linux, FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN..., HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Summary - Dahua Technology XVR5108HS-I3/T. Product colour: Black, Video compression formats: H.264, H.264+, H.265, H.265+, Channels quantity: 8 channels. Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W. Width: 260 mm, Depth: 237.9 mm, Height: 47.6 mm
Supported network protocols Network - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Title - Dahua Technology XVR5108HS-I3/T digital video recorder (DVR) Black
Unit Box Height - 0.086
Unit Box Length - 0.344
Unit Box Width - 0.282
Unit Calculated Volume - 0.0083427 cubm
Unit Calculated Weight - 1.48 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5108HS-I3/T
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5108HS-I3/T
VGA (D-Sub) output ports Ports & interfaces - 1
Video compression formats Performance - H.264, H.264+, H.265, H.265+
Video motion detection Performance - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 237.9 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Weight - 1.1 kg
Weight & dimensions - Width - 260 mm
Weight Weight & dimensions - 1.1 kg
Width Weight & dimensions - 260 mm
