Alarm input channels Security - 1
Alarm output channels Security - 1
Alert notification type Security - Push notification
Angle of rotation Camera - 360°
Audio - Audio formats supported - G.711 A-law, G.723, G.726, PCM
Audio - Built-in microphone - Yes
Audio - Number of microphones - 1
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio formats supported Audio - G.711 A-law, G.723, G.726, PCM
Auto focus Lens system - Yes
Back Light Compensation (BLC) Video - Yes
Bit rate Video - H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps
Brand - Dahua Technology
BrandPartCode - IPC-HFW3842T-ZAS-2712
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/100000 s
Camera - Camera shutter type - Electronic
Camera - Lens viewing angle, diagonal - 133 53°
Camera - Lens viewing angle, horizontal - 113 - 47°
Camera - Lens viewing angle, vertical - 60 - 26°
Camera - Minimum illumination - 0.003 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed Camera - 1/100000 s
Camera shutter type Camera - Electronic
Category - Security Cameras
Category Code - FNC
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired & Wireless
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Description - Outputs max. 8 MP (3840 × 2160) 25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in IR LED, max. IR distance: 60 mROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesSupports the AFSA (Anti-flicker Self-adaption) function, which automatically eliminates flickerIntelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionAlarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in MicSMD 4.0, AI SSA
Design - Form factor - Bullet
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Design - Weatherproof - Yes
Detect distance Lens system - 186.9 m
Detection distance Security - 189.6 m
Digital watermark Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Focal length range Lens system - 2.7 - 12 mm
Focus Lens system - Motorized
Form factor Design - Bullet
Frame rate Video - 30 fps
Gain control type Video - Auto/Manual
GTIN - 6923172597069
Height Weight & dimensions - 90.7 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal, Plastic
HTTPS encryption Security - Yes
Human and vehicle targets classification Security - Yes
Identify distance Lens system - 19 m
Image sensor - Optical sensor size - 25.4 / 1.8 mm (1 / 1.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Intrusion, Tripwire
International Protection (IP) code Design - IP67
LED type Night vision - IR/White
Length Weight & dimensions - 238.5 mm
Lens system - Auto focus - Yes
Lens system - Detect distance - 186.9 m
Lens system - Focal length range - 2.7 - 12 mm
Lens system - Focus - Motorized
Lens system - Identify distance - 19 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 75.8 m
Lens system - Recognize distance - 37.9 m
Lens system - Zoom capability - Yes
Lens viewing angle, diagonal Camera - 133 53°
Lens viewing angle, horizontal Camera - 113 - 47°
Lens viewing angle, vertical Camera - 60 - 26°
LongDesc -
LongProductName - 8MP IR Vari-focal Bullet WizSense Network Camera, 1/1.8 inch CMOS, 3840 x 2160, 56 dB, 2.7 mm–12 mm, F1.6, RJ-45 (10/100 Base-T), Basic: 3.6 W (12 VDC), 4.4 W (PoE); Max.: 8.9 W (12 VDC), 10.4 W (PoE) (WDR + IR intensity + Intelligence), IP67, 238.5 × 90.7 mm, 0.82 kg, White
LongSummaryDescription - Dahua Technology WizSense IPC-HFW3842T-ZAS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 113 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 186.9 m, Observe distance: 75.8 m, Recognize distance: 37.9 m
Management features - Web-based management - Yes
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 3840 x 2160 pixels
Microphone in Ports & interfaces - Yes
Minimum illumination Camera - 0.003 lx
Mirror Security - Yes
Motion sensor Security - Yes
Mounting type Design - Ceiling/wall
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Streaming method - Multicast
Network - Supported network protocols - IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Networking standards Network - IEEE 802.3af
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 60 m
Night vision distance Night vision - 60 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of microphones Audio - 1
Number of Privacy masking areas Camera - 4
Observe distance Lens system - 75.8 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 1.8 mm (1 / 1.8")
Package weight Packaging data - 1.09 kg
Packaging content - Number of cameras - 1
Packaging data - Package weight - 1.09 kg
Pan range Camera - 0 - 360°
Performance - Connectivity technology - Wired & Wireless
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Microphone in - Yes
Power - DC output voltage - 12
Power - Power consumption (max) - 8.9 W
Power - Power consumption (Power over Ethernet (PoE)) - 4.4 W
Power - Power consumption (typical) - 3.6 W
Power - Power source type - AC, DC
Power consumption (max) Power - 8.9 W
Power consumption (Power over Ethernet (PoE)) Power - 4.4 W
Power consumption (typical) Power - 3.6 W
Power source type Power - AC, DC
Privacy protection Security - Yes
Product colour Design - White
ProductName - IPC-HFW3842T-ZAS
Progressive scan Image sensor - Yes
RAM capacity Storage - 1000 MB
Recognize distance Lens system - 37.9 m
Remote viewing Performance - Yes
ROM capacity Storage - 128 MB
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Alert notification type - Push notification
Security - Detection distance - 189.6 m
Security - Digital watermark - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - Intelligent Video Surveillance (IVS) system features - Intrusion, Tripwire
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Privacy protection - Yes
Security - Security algorithms - HTTPS
Security - Video motion detection - Yes
Security algorithms Security - HTTPS
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense IPC-HFW3842T-ZAS, IP security camera, Indoor & outdoor, Wired & Wireless, Ceiling/wall, White, Bullet
Signal-to-Noise Ratio (SNR) Audio - 56 dB
Smart IR Video - Yes
Storage - Built-in HDD - No
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - RAM capacity - 1000 MB
Storage - ROM capacity - 128 MB
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Streaming method Network - Multicast
Summary - Dahua Technology WizSense IPC-HFW3842T-ZAS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 113 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 186.9 m, Observe distance: 75.8 m, Recognize distance: 37.9 m
Supported graphics resolutions Video - 3840 x 2160
Supported network protocols Network - IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Tilt angle range Camera - 0 - 90°

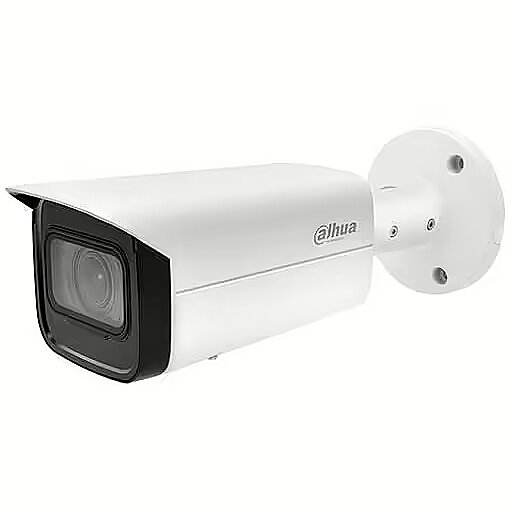

Title - Dahua Technology WizSense IPC-HFW3842T-ZAS Bullet IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Total megapixels Video - 8 MP
Type Performance - IP security camera
Unit Box Height - 0.155
Unit Box Length - 0.31
Unit Box Width - 0.145
Unit Calculated Volume - 0.006967 cubm
Unit Calculated Weight - 1.09 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/cz/products/All-Products/Network-Cameras/WizSense-Series/3-Series/8MP/IPC-HFW3842T-ZAS
Vendor Homepage - https://www.dahuasecurity.com/cz/products/All-Products/Network-Cameras/WizSense-Series/3-Series/8MP/IPC-HFW3842T-ZAS
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Smart IR - Yes
Video - Supported graphics resolutions - 3840 x 2160
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.264B, H.264H, H.265, MPEG
Video - Video formats supported - H.264+, H.265+
Video compression formats Video - H.264, H.264B, H.264H, H.265, MPEG
Video formats supported Video - H.264+, H.265+
Video motion detection Security - Yes
Warranty - 36 months
WarrantyInfo -
Weatherproof Design - Yes
Web-based management Management features - Yes
Weight & dimensions - Height - 90.7 mm
Weight & dimensions - Length - 238.5 mm
Weight & dimensions - Weight - 820 g
Weight & dimensions - Width - 90.7 mm
Weight Weight & dimensions - 820 g
White balance Camera - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 90.7 mm
Zoom capability Lens system - Yes
