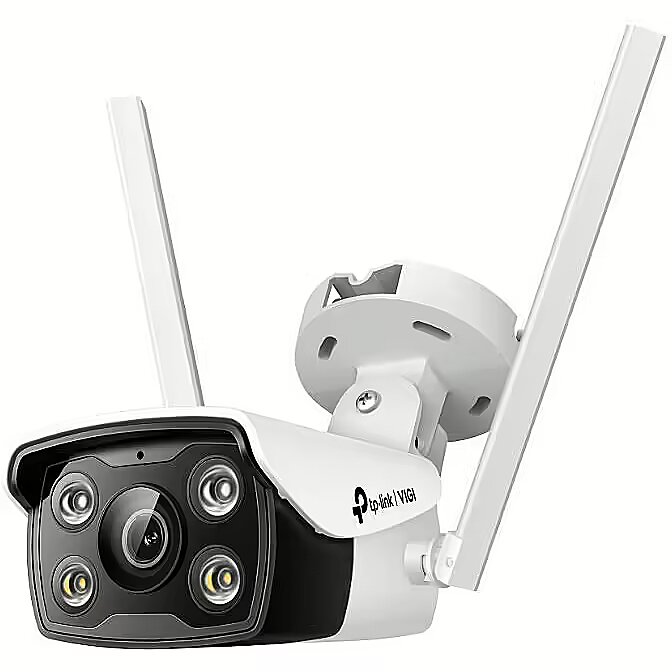

TP-LINK VIGI C340-W, 1440p, 4MP, White

Accessories included - VIGI C340-W Camera Quick installation guide Sealing parts for the cable Power supply Mounting accessories (Screws, Wall anchors, Allen key)
ARTIKEL1 - 4MP OUTDOOR FULL-COLOR WI-FI
ARTIKEL2 - BULLET NETWORK CAMERA
Audio > Audio in/out - Yes
Bluetooth Network - No
Brand - TP-Link
BrandPartCode - VIGI C340-W(4MM)
Built-in HDD Storage - No
Camera - Lens viewing angle, diagonal - 93°
Camera - Lens viewing angle, horizontal - 79°
Camera - Lens viewing angle, vertical - 43°
Camera - Minimum illumination - 0 lx
Card reader integrated Storage - Yes
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - NCI
Certification Performance - CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Code - VIGI C340-W(4mm)
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired & Wireless
Connectors - RJ-45
Depth Weight & dimensions - 173.4 mm
Description - All The Colors,
All The Time

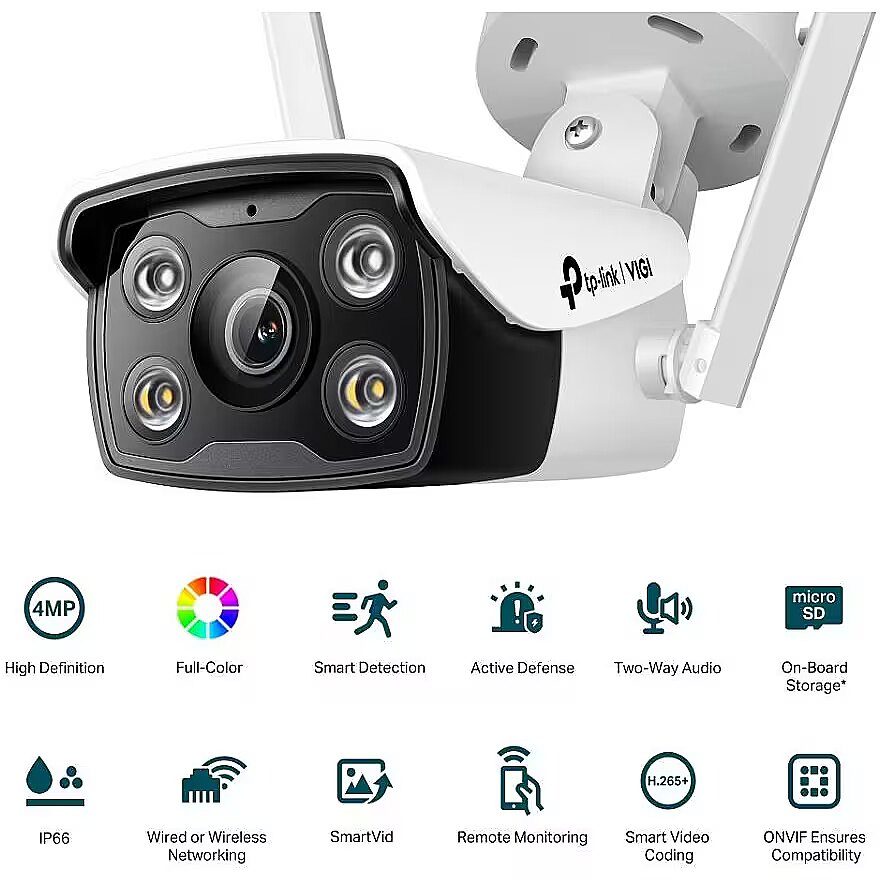

4MP Outdoor Full-Color Bullet Network Camera - High Definition
- Full-Color
- Smart Detection
- Active Defense
- Two-Way Audio
- On-Board Storage
- Wired/Wireless Networking
- SmartVid
- Remote Monitoring
- Smart Video Coding
- ONVIF Ensures Compatibility

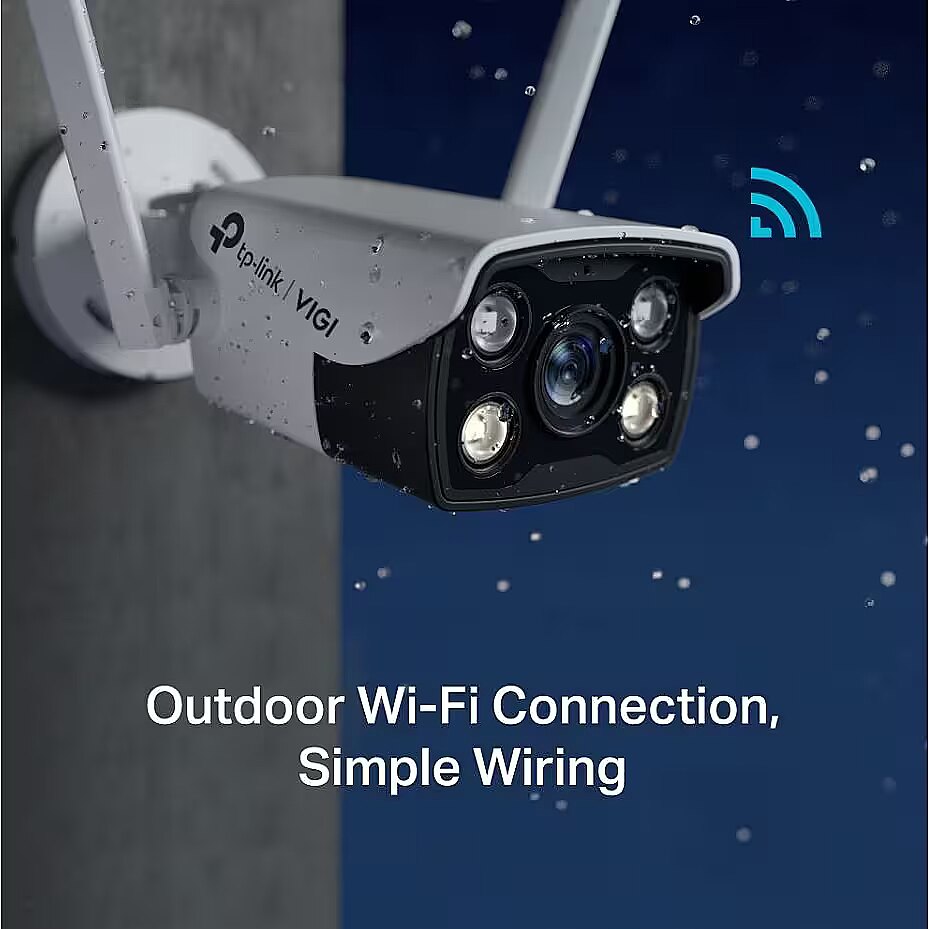

- IP66 Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protect stable performance in outdoor scenarios. Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. Motion Detection
Get instant notifications when your camera detects motion. Area Intrusion
Set customized activity zones around key areas for more focused monitoring. Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions. Camera Tampering
Receive alerts when someone obstructs the camera. Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected. Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio. Never miss a detail.
SmartVid-Smart Video Enhancement Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night. Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life. 3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion. More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Flexible Management and Storage

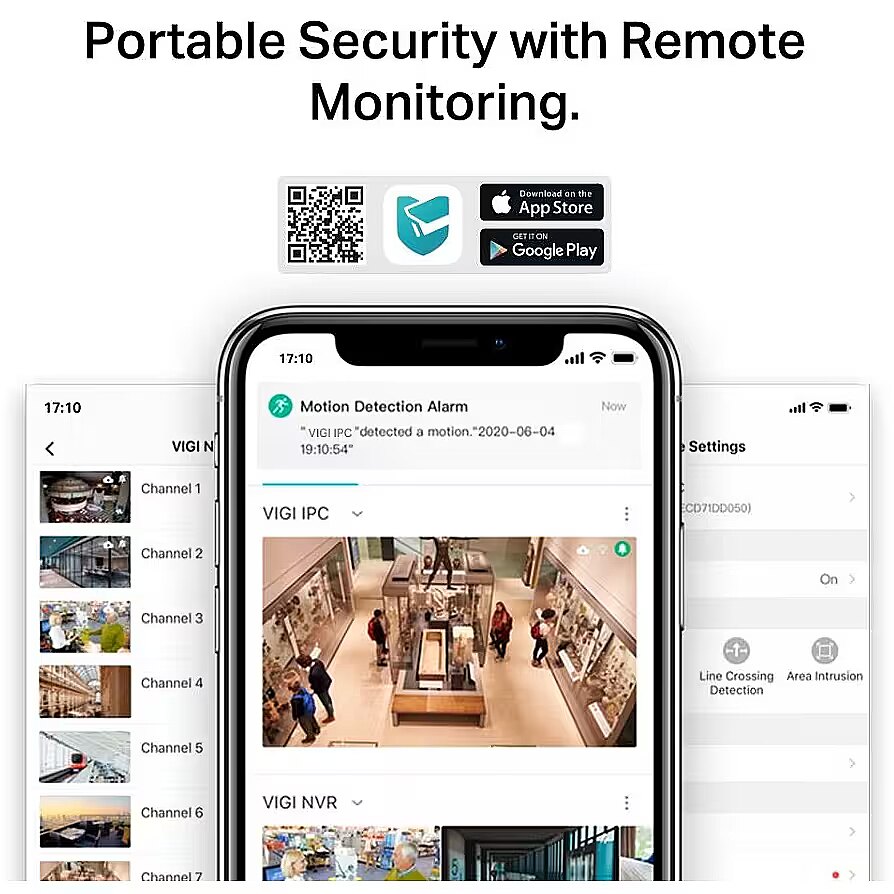

Take full control over your security via three management method, VIGI NVR, App, and Security Manger. Local storage is available for each methods, as well as on-board storage with SD card slot. Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall. One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDsWireless Outdoor Connection: Simple and quick deployment with Wi-Fi signalsWaterproof: Reliable IP66 for stable outdoor performanceSmart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the cameraH.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image qualityVIGI App: Manage your security from the palm of your hand with the VIGI app
Description - Outdoor, full-colour, 4MP VIGI Bullet network camera VIGI C340-W High quality 4MP: The camera is equipped with a 4MP sensor capable of capturing even the smallest details. Full colour for 24 hours: Full colour detail is available throughout the day, even in total darkness. This is possible thanks to the sensitive sensor and the built-in spotlight LEDs. Wireless outdoor connection: Simple and fast deployment thanks to Wi-Fi connectivity. Waterproof: Reliable IP66 rating ensures stable operation in outdoor conditions.  Smart detection (person detection, motion detection, line crossing, area intrusion, tampering): Receive alerts and see what happens when someone crosses your set boundary, enters a designated area or obstructs the camera. H.265+: Without using additional bandwidth, your cameras can transmit compressed and crystal-clear video while saving disk space, reducing network load and lowering monitoring costs without sacrificing image quality. VIGI app: Manage your security at your fingertips with the VIGI app. Wi-Fi connection outdoors. Easy connection Simply turn on the camera to start transmitting using the 2×2 MIMO antennas. The waterproof device ensures stable performance in outdoor conditions. Feel safe on your property. Intelligent detectionReceive alerts and control the situation whenever someone crosses a certain line, enters a designated area or obstructs the camera. Motion detection Receive instant notifications when the camera detects movement. Area intrusion Set your own activity zones, covering key areas, to place emphasis on monitoring these areas. Crossing a designated line Set boundaries on the monitored area and receive notifications whenever someone crosses them. Camera tampering Receive notifications when someone obscures the camera. Active protection Immediately warn and deter intruders with sound and light alarms when an unexpected event is detected. Every event is under your control The VIGI camera intelligently detects activities and informs you of them immediately. Respond automatically via Smart Detection and two-way audio transmission. Smart IR Prevents underexposure of objects that are far from the camera or overexposure of objects that are recorded close to the lens at night. Wide Dynamic Range (WDR) The function adjusts the contrast of the lighting to the conditions to minimise shadows and bring out the true depth of the image. 3D DNR The function removes excessive pixelation to capture clearer images without distortion. Greater compression. More savings. Same quality Without using additional bandwidth, your cameras can transmit compressed and crystal clear images while saving disk space, reducing network load and lowering monitoring costs without sacrificing image quality. Flexible management and storage Take full control of your security with three management methods : VIGI NVR, VIGI app and Security Manager. Local recording is available for each of these methods, as well as on the SD card in the camera. Run your business with peace of mind. TP-Link's professional surveillance system will enable you to protect your business no matter where or when. Exceptional features, trustworthy quality, simple installation and convenient management are a combination that will keep your business safe.
Design - Form factor - Box
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - LED indicators - Yes
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Design - Weatherproof - Yes
Design > Chassis type - Bullet
Design > Protection features - IP66
Designation - CE+WEEE
Digital Wide Dynamic Range (DWDR) (panoramic camera) Panoramic camera - Yes
dimensionalWeight - 878
dimension depth - 105 mm
dimension height - 150 mm
Dimensions - 80 × 70.6 × 173.4 mm
dimension weight - 600 g
dimension width - 255 mm
EAN - 4897098683675
ean - 4897098683675
EANCode - 4897098683675
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Features > Motion detection - Yes
Features > Package content - VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Power Adapter, Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Fixed focus Lens system - Yes
Form factor Design - Box
Frames per second - 30
GRUPPE1 - Security
GRUPPE2 - Camera
GTIN - 4897098681947
GTIN - 4897098683675
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 80 mm
HERSTELLER - TP-LINK
Housing material Design - Plastic
HSTNUMMER - VIGI C340-W(4MM)
Image quality adjustment Video - Brightness, Contrast, Mirror
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
International Protection (IP) code Design - IP66
LED indicators Design - Yes
Lens - Image sensor: 1/3 Progressive Scan CMOS Lens: Fixed lens (4 mm) Aperture: 4 mm: F1.6
Lens system - Fixed focus - Yes
Lens system - Maximum aperture number - 1.6
Lens system > Lens type - 4 mm
Lens viewing angle, diagonal Camera - 93°
Lens viewing angle, horizontal Camera - 79°
Lens viewing angle, vertical Camera - 43°
Link - https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c340-w/#overview
LongDesc - All The Colors,All The Time4MP Outdoor Full-Color Bullet Network Camera- High Definition- Full-Color- Smart Detection- Active Defense- Two-Way Audio- On-Board Storage- Wired/Wireless Networking- SmartVid- Remote Monitoring- Smart Video Coding- ONVIF Ensures Compatibility- IP66Outdoor Wi-Fi Connection, Simple WiringJust power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protect stable performance in outdoor scenarios.Clarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.We keep an eye on your business.Smart DetectionReceive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.Motion DetectionGet instant notifications when your camera detects motion.Area IntrusionSet customized activity zones around key areas for more focused monitoring.Line-CrossingSet a boundary and receive an alert anytime a person crosses it from either or both directions.Camera TamperingReceive alerts when someone obstructs the camera.Active DefenseWarn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.Every Event is Under Your Control.VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.Never miss a detail.SmartVid-Smart Video EnhancementSmart IRKeeps objects from being under-rendered when far away or overexposed when close to camera at night.Wide Dynamic RangeAdjusts for lighting contrast to minimize shadowing effects and renders images true to life.3D DNRRemoves abnormal pixelation to provide clearer video and eliminate distortion.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Flexible Management and StorageTake full control over your security via three management method, VIGI NVR, App, and Security Manger. Local storage is available for each methods, as well as on-board storage with SD card slot.Flexible InstallationFind the perfect vantage point by simply securing your camera to ceiling, pole or wall.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 1/3” CMOS, 4mm, 2.4 GHz, 1 RJ45 10/100M, IP66, 80 x 70.6 x 173.4 mm
LongSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m
Management, monitoring, configuration - Two streams, Mirroring, Privacy masks, Password reset via email, HTTP listening Notification communication: Start-up notification: ONVIF, HTTPS
Manual Packaging content - Yes
Manufacturer - TP-Link
Maximum aperture number Lens system - 1.6
Maximum resolution Video - 2560 x 1440 pixels
Memory > Memory slots - MicroSD
Memory card reader - Yes
Memory standard - SD
Microphone - built-in
Min. illuminance - 0 lx
Minimum illumination Camera - 0 lx
Model name - VIGI C340-W
Motion detection - Yes
Mounting type Design - Ceiling/wall
MPN - VIGI C340-W(4mm)
name - Camera outdoor 4MP Bullet VIGI C340-W
Name - TP-Link Omada IPCam VIGI C340-W(4mm) 4MP Outdoor Color
Name - TP-LINK | VIGI 4MP Outdoor Full-Color Wi-Fi Network Camera | VIGI C340-W | Bullet | 4 MP | 4 mm | IP66 | H.265+/H.265/H.264+/H.264 | MicroSD
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network - Wi-Fi - Yes
Network - Wi-Fi data rate (max) - 150 Mbit/s
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards Network - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night mode - Yes
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of sensors Image sensor - 1
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Optical sensor size Image sensor - 25.4 / 3 mm (1 / 3")
Other features - Intelligent event detection: Area intrusion detection Line crossing detection Person detection Notifications and alerts: Motion detection Camera tampering detection Exception (mistaken login) Wireless connection speeds: 11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Package depth Packaging data - 258 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 90.00 mm
Package features > Gross depth master carton - 420 mm
Package features > Gross height (mm) - 180.00 mm
Package features > Gross height master carton - 485 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Gross width master carton - 395 mm
Package features > Net weight master carton - 10.24 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 667 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Tare weight master carton - 1.368 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 111 mm
Package weight Packaging data - 600 g
Package width Packaging data - 152 mm
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Packaging data - Package depth - 258 mm
Packaging data - Package height - 111 mm
Packaging data - Package weight - 600 g
Packaging data - Package width - 152 mm
Panoramic camera - Digital Wide Dynamic Range (DWDR) (panoramic camera) - Yes
Performance - Certification - CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Performance - Connectivity technology - Wired & Wireless
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance > Video compression formats - H.265+/H.265/H.264+/H.264
Performance > Wide Dynamic Range (WDR) - DWDR
Picture quality > Camera type - Outdoor
Placement supported Performance - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Power source type - DC
Power source type Power - DC
Power supply - Power supply requirements: 12V DC +/- 5%; 5.5mm coaxial power plug
producer - TP-LINK
producerCode - VIGI C340-W(4mm)
Product colour Design - White
productName - TP-LINK VIGI C340-W(4mm) camera
ProductName - VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
productSize - Normal
Protection class - IP66
Resolution - 2560 x 1440
Security - Transmission security: Password protection, HTTPS encryption, IP address filter, Digest authentication Wireless network security: WPA/WPA2-PSK
Sensor -
Sensor type Image sensor - CMOS
ShortSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera, IP security camera, Outdoor, Wired & Wireless, CE, RCM, BSMI, VCCI, RoHS, NTRA, KC, Ceiling/wall, White
sizeX - 270
sizeY - 107
sizeZ - 152
Speakers built-in - Yes
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 9998
Stck_Pal - 0
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storno - N
Summary - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m
Supported graphics resolutions Video - 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes Video - 1080p, 1440p
System Requirements -
Technical details > Gross weight - 0.30 kg
Technical details > Net weight - 0.20 kg
Technical details > Other features - Area Intrusion Detection, Line-Crossing Detection, Human Detection, Motion Detection, Camera Tampering Detection, Exception
Technical details > Producer - TP-LINK
Technical details > Producer product family - VIGI 4MP Outdoor Full-Color Wi-Fi Network Camera
Technical details > Producer product name - VIGI C340-W
Title - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
Total megapixels Video - 4 MP
Two-way transmission - Yes
type - Fixed bullet type camera
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.26
Unit Box Width - 0.15
Unit Calculated Volume - 0.00429 cubm
Unit Calculated Weight - 0.622 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c340-w/
Vendor Homepage - https://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c340-w/
vendpn - VIGI C340-W(4mm)
Video - Image quality adjustment - Brightness, Contrast, Mirror
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Supported video modes - 1080p, 1440p
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
Video - Video streaming - Yes
Video > Maximum video resolution - 2560 x 1440 pixels
Video > Max IR distance - 30 m
Video > Megapixel - 4 MP
Video compression formats Video - H.264, H.264+, H.265, H.265+
Video recording Video - Yes
Video streaming Video - Yes
Viewing angle, horizontal - 79 °
Viewing angle, vertical - 43 °
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weatherproof Design - Yes
Weight - 0.601
Weight - 195 g
weight - 700
Weight & dimensions - Depth - 173.4 mm
Weight & dimensions - Height - 80 mm
Weight & dimensions - Weight - 195 g
Weight & dimensions - Width - 70.6 mm
Weight Weight & dimensions - 195 g
Wi-Fi data rate (max) Network - 150 Mbit/s
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Width Weight & dimensions - 70.6 mm
Wireless communication - WiFi
