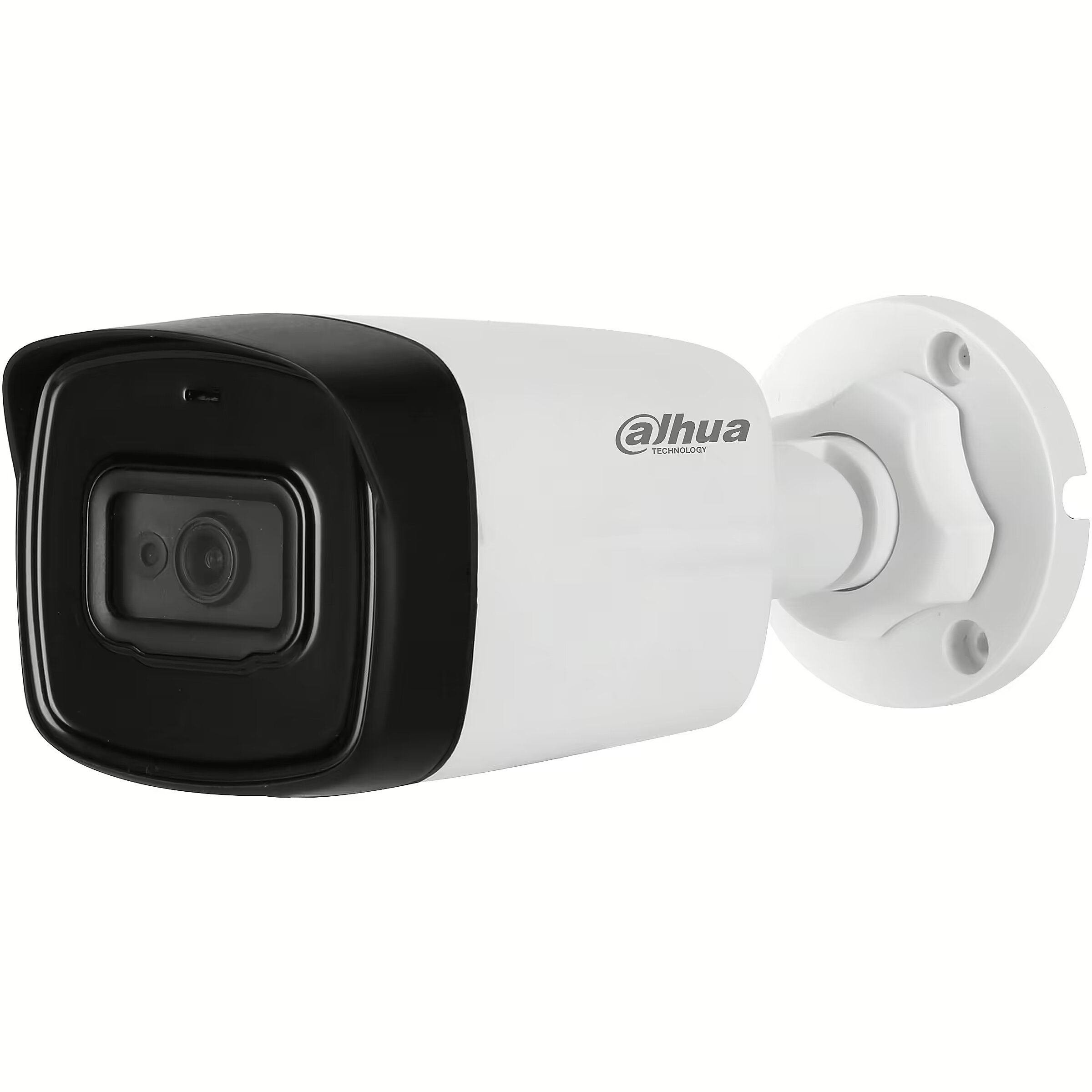

Dahua Bullet, 2160p(4K), 8MP, White

Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - HAC-HFW1800TL-A-0360B
Built-in HDD Storage - No
Camera - Minimum illumination - 0.03 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 180°
Category - Security Cameras
Category Code - HSC
Certification Performance - CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Closest focusing distance Lens system - 1 m
Connectivity technology Performance - Wired
DC output voltage Power - 12
Depth Weight & dimensions - 80.2 mm
Description - Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where both
highly reliable surveillance and construction flexibility are demanded. Max. 4K resolution, real-time video transmissionCVI/CVBS/AHD/TVI switchableBuilt-in mic (-A)Fixed lens (2.8mm; 3.6mm;6mm optional)Max. IR length 80m, Smart IRIP67, 12V±30%DC
Design - Form factor - Bullet
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Detect distance Lens system - 160 m
Digital zoom Lens system - 4x
Form factor Design - Bullet
GTIN - 6939554972867
Height Weight & dimensions - 76.2 mm
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
International Protection (IP) code Design - IP67
LED type Night vision - IR
Lens system - Closest focusing distance - 1 m
Lens system - Detect distance - 160 m
Lens system - Digital zoom - 4x
Lens system - Maximum aperture number - 2
Lens system - Observe distance - 64 m
Lens system - Recognize distance - 32 m
Lens system - Zoom capability - Yes
LongDesc - Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where bothhighly reliable surveillance and construction flexibility are demanded.
LongProductName - 1/2.7 inch CMOS, 3840 x 2160, IP67, 12 V, 198.9 x 80.2 x 76.2 mm, 280 g
LongSummaryDescription - Dahua Technology DH-HAC HAC-HFW1800TL-A-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Digital zoom: 4x, Detect distance: 160 m, Observe distance: 64 m
Maximum aperture number Lens system - 2
Maximum resolution Video - 3840 x 2160 pixels
Minimum illumination Camera - 0.03 lx
Mirror Security - Yes
Mounting type Design - Ceiling/wall
Network - Bluetooth - No
Network - Wi-Fi - No
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 80 m
Night vision - Number of illumination LEDs - 2
Night vision distance Night vision - 80 m
Night vision Night vision - Yes
Noise reduction technology Video - 2D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 2
Number of Privacy masking areas (panoramic camera) Panoramic camera - 8
Number of sensors Image sensor - 1
Observe distance Lens system - 64 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Package weight Packaging data - 420 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 420 g
Panoramic camera - Number of Privacy masking areas (panoramic camera) - 8
Pan range Camera - 0 - 360°
Performance - Certification - CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance - Connectivity technology - Wired
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Outdoor
Power - DC output voltage - 12
Power - Power consumption (max) - 6 W
Power - Power source type - DC
Power consumption (max) Power - 6 W
Power source type Power - DC
Privacy masking Video - Yes
Product colour Design - White
ProductName - HAC-HFW1800TL-A-0360B
Progressive scan Image sensor - Yes
Recognize distance Lens system - 32 m
Security - Mirror - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology DH-HAC HAC-HFW1800TL-A-0360B, IP security camera, Outdoor, Wired, CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL..., Ceiling/wall, White
Storage - Built-in HDD - No
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - Dahua Technology DH-HAC HAC-HFW1800TL-A-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Digital zoom: 4x, Detect distance: 160 m, Observe distance: 64 m
Supported graphics resolutions Video - 960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Tilt angle range Camera - 0 - 180°
Title - Dahua Technology DH-HAC HAC-HFW1800TL-A-0360B security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall
Type Performance - IP security camera
Unit Box Height - 0.111
Unit Box Length - 0.252
Unit Box Width - 0.137
Unit Calculated Volume - 0.003832 cubm
Unit Calculated Weight - 0.444 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Real-time/HAC-HFW1800TL(-A)
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Real-time/HAC-HFW1800TL(-A)
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Video - Video recording - Yes
Video recording Video - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 76.2 mm
Weight & dimensions - Weight - 280 g
Weight & dimensions - Width - 198.9 mm
Weight Weight & dimensions - 280 g
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 198.9 mm
Zoom capability Lens system - Yes
