ID: 1297384
Product code: HFW3649T1-ASPV0280BPRO-B
In stock 50 units
Warranty: 3 years

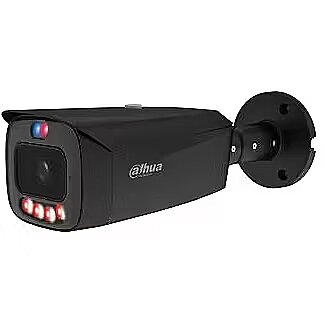

Dahua NET CAMERA 6MP BULLET/HFW3649T1-ASPV0280BPRO-B
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
All parameters
Network connections
: Ir
Use
: Indoor/Outdoor
More detailed specification
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Colour - Black
Description - 6MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera > 1/1.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3288 ×1850)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). > SMD 4.0. > Supports AI SSA and one-tap arming and disarming. > Focal Length: 2.8 mm > Field of View: 109°
Dimensions - 288.4 mm × 94.4 mm × 84.7 mm
Effective pixels - 3288(H) × 1850 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm;3.6 mm
IR Illumination - Yes
Lens Mount - M16
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Min. Illumination - 0.0001 Lux
Model - HFW3649T1-ASPV0280BPRO-B
Network Camera Type - Fixed/HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 15.1 Watts
Power supply requirements - 12 VDC/PoE+ (802.3at)
Product Net Weight - 1 kg
Resolution - 6 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/1.8" CMOS
Unit Calculated Volume - 0.00714 cubm
Unit Calculated Weight - 1.49 kg
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC-PRO-WizColor/IPC-HFW3649T1-AS-PV-PRO
Warranty - 36 months
