Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Lens viewing angle, diagonal - 114°
Camera - Lens viewing angle, horizontal - 98°
Camera - Lens viewing angle, vertical - 54°
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Wall
Design - Product colour - White
dimensionalWeight - 645
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Detect distance (wide) - 63 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance (wide) - 6 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance (wide) - 25 m
Lens system - Recognize distance (wide) - 12 m
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Number of users - 32 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package depth - 121 mm
Packaging data - Package height - 118 mm
Packaging data - Package weight - 520 g
Packaging data - Package width - 216 mm
Performance - Certification - CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - 120 dB
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 0.62 A
Power - DC output voltage - 12
Power - Power consumption (max) - 7.5 W
Power - Power consumption (Power over Ethernet (PoE)) - 9 W
Power - Power source type - DC, PoE
producerCode - DS-2CD1043G2-LIUF/SL 2.8mm PL

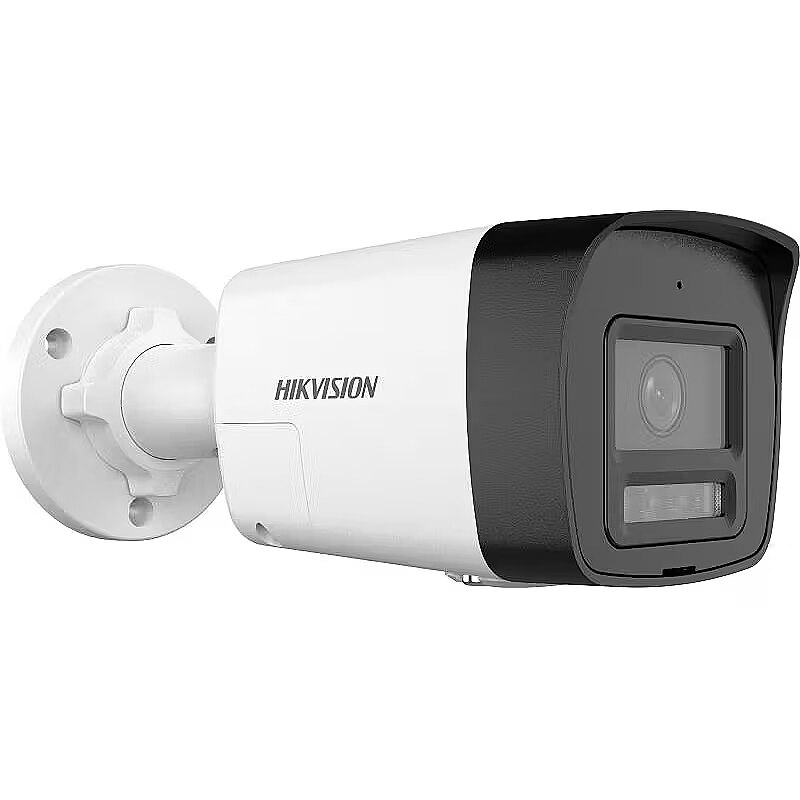

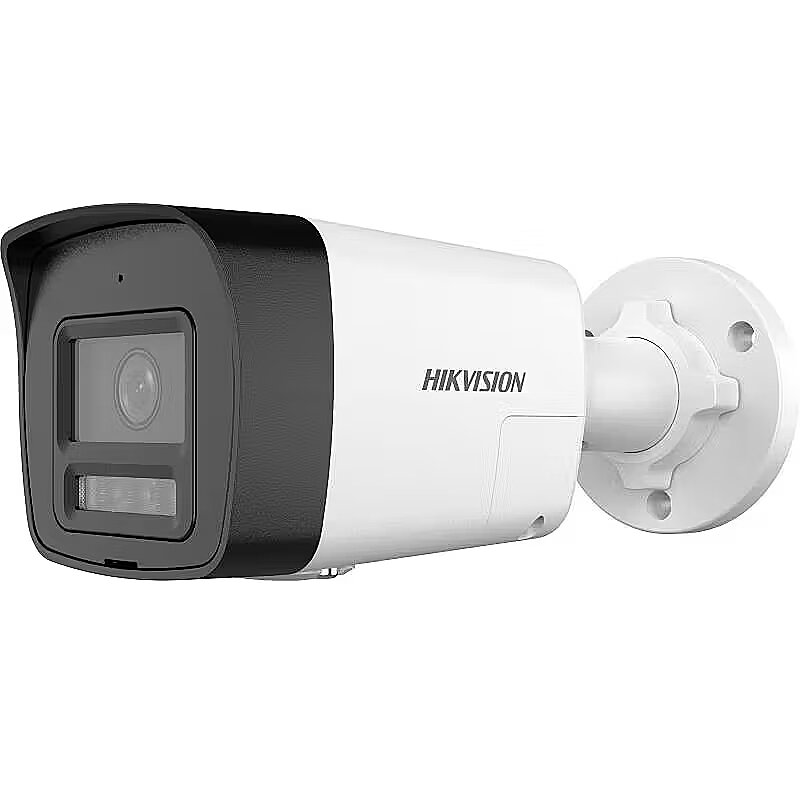

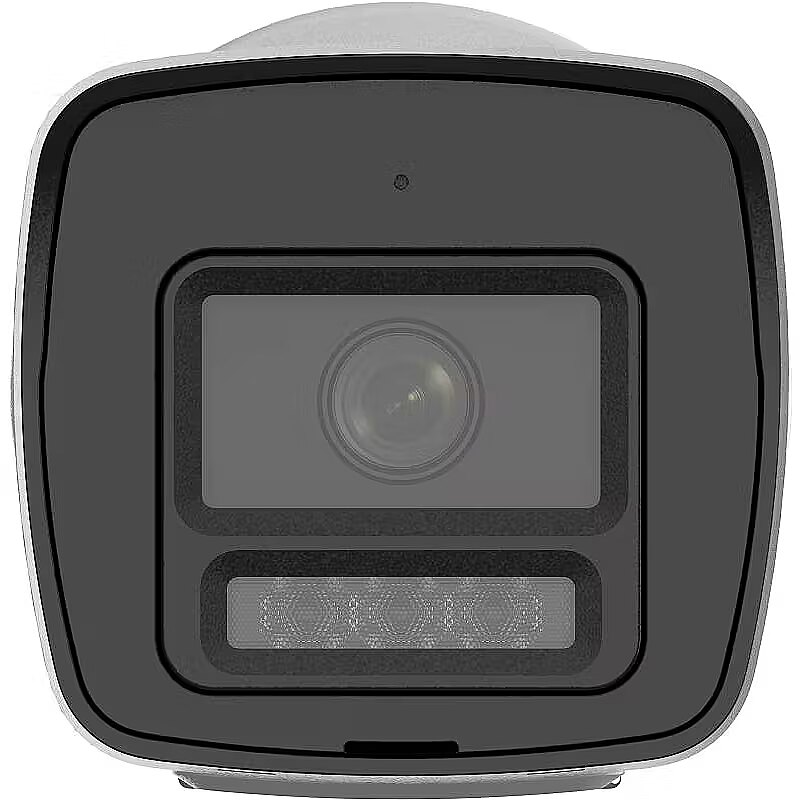

productName - HIKVISION DS-2CD1043G2-LIUF/SL 2.8MM IP CAMERA
productSize - Normal
Safety warning - Warnings - Do not expose the device to moisture or extreme temperatures.
Safety warning - Warnings - The appliance should be installed by a qualified professional.
Safety warning - Warnings - The product must be disposed of properly in accordance with local regulations for the disposal of electronics.
Security - Heartbeat - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
sizeX - 215
sizeY - 125
sizeZ - 120
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Compatible memory cards - MicroSDHC
Storage - Compatible memory cards - MicroSDXC
Storage - Maximum memory card size - 512 GB
Video - Bit rate - 32 Kbps - 8 Mbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 25 fps
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 640 x 360
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
warrantyLength - 36
warrantyType - F
weight - 460
Weight & dimensions - Depth - 67.4 mm
Weight & dimensions - Height - 69.1 mm
Weight & dimensions - Weight - 315 g
Weight & dimensions - Width - 179 mm
