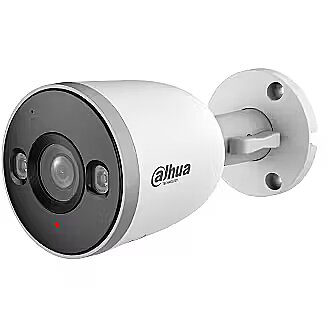

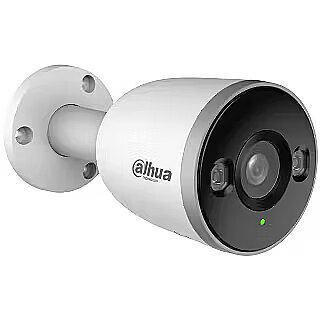

Dahua Bullet, 1620p. 5MP, White

Brand - Dahua Technology
BrandPartCode - DH-IPC-HDW1230T1-S4
Camera - Adjustment shutter speed - Auto/Manual
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3–1/100000
Camera - Camera shutter type - Electronic
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 125°
Camera - Lens viewing angle, horizontal - 105°
Camera - Lens viewing angle, vertical - 57°
Camera - Minimum illumination - 0.01 lx
Camera - Pan range - 0 - 355°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto, Manual, Natural, Outdoor
Camera design - Bullet
Category - Security Cameras
Category Code - NCI
Description - 5MP Fixed-focal Wi-Fi Bullet Network Camera Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises
Design - Form factor - Dome
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Dimensions - 158.3 mm × Φ76.8 mm
Focal length - 3.6 - 4mm
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Image sensor - Number of effective pixels (H x V) - 1920 x 1080 pixels
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens system - Closest focusing distance - 0.5 m
Lens system - Detect distance - 37.3 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 3.7 m
Lens system - Maximum aperture number - 2
Lens system - Number of lenses - 1
Lens system - Observe distance - 14.9 m
Lens system - Recognize distance - 7.5 m
LongDesc - With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
LongProductName - 1/2.7" CMOS, 2M, 1920 (H) × 1080 (V), Progressive scan, 30m IR, F2.0, RJ-45 (10/100 Base-T), 240g
LongSummaryDescription - Dahua Technology Entry DH-IPC-HDW1230T1-S4. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 105°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 37.3 m, Observe distance: 14.9 m, Recognize distance: 7.5 m
Management features - Management software - Smart PSS; DSS; DMSS
Management features - Web browser - Yes
Microphone - Built-in
Model - F5D-IL-0280B
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Supported network protocols - IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Network - Wi-Fi - No
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 370 g
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (typical) - 4.3 W
Power - Power source type - DC, PoE
ProductName - DH-IPC-HDW1230T1-S4
Product Net Weight - 0.331 kg
Resolution - 5 Mega Pixel
Security - Motion sensor - Yes
Sensor size - 1/2.7" CMOS
ShortSummaryDescription - Dahua Technology Entry DH-IPC-HDW1230T1-S4, IP security camera, Indoor & outdoor, Wired, Ceiling, White, Dome
Speakers - No
Storage - Built-in HDD - No
Storage - Internal memory - 64 MB
Storage - ROM capacity - 16 MB
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology Entry DH-IPC-HDW1230T1-S4 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Unit Calculated Volume - 0.00112 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/NEW-Channel/Outdoor-Camera/Bullet-Series/F5D-IL
Video - Back Light Compensation (BLC) - Yes
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 1920 x 1080 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video - Supported video modes - 720p, 1080p
Video - Total megapixels - 2 MP
Video - Video formats supported - H.264, H.265, M-JPEG
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Diameter - 10.9 cm
Weight & dimensions - Height - 85.5 mm
Weight & dimensions - Weight - 240 g
Wireless connections - Bluetooth/WiFi
