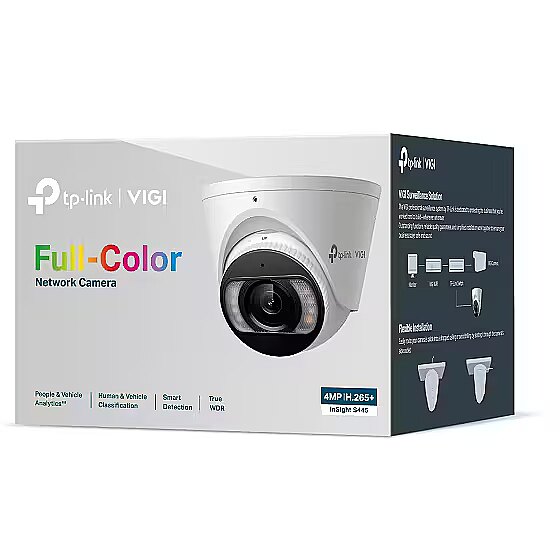

TP-LINK Turrent S445S(2.8MM), 1520p, 4MP, White

Accessories included - VIGI Network Camera Quick Start Guide Waterproof Cable Brackets Mounting Accessories
Active tampering alarm Security - Yes
Angle of rotation Camera - 360°
Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Audio compression - G.711
Audio system Audio - 2-way
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Video - Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
Brand - TP-Link
BrandPartCode - INSIGHT S445S(2.8MM)(UN)
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 - 1/10000 s
Camera - Lens viewing angle, diagonal - 118°
Camera - Lens viewing angle, horizontal - 100°
Camera - Lens viewing angle, vertical - 54°
Camera - Minimum illumination - 0.005 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 85°
Camera shutter speed Camera - 1/3 - 1/10000 s
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Certificates - CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF
Cloud-managed Management features - Yes
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Compliance certificates Sustainability - BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Connectivity technology Performance - Wired
Connectors - microSD
Connectors - RJ-45
DC output voltage Power - 12
Description - People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications. Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting. Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage. 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details. White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions. Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
4MP Super-High Definition and 24h Full-ColorPeople & Vehicle AnalyticsHuman & Vehicle ClassificationSmart DetectionSmart Video Enhancement TechnologyActive Defense and Two-Way AudioIP67 WaterproofH.265+ Compression Technology
Description - VIGI 4MP ColorPro 2.0 Turret Network Camera Color night vision with AI-ISP support for very low light 4MP Super-High Definition Person and vehicle attribute analysis Person and vehicle classification Intelligent detection Two-way audio Intelligent image enhancement technology Flexible alarm input/output device integration IP67 waterproof H.265+ compression technology
Design - Form factor - Turret
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Designation - CE+WEEE
Detect distance Lens system - 64 m
Diameter Weight & dimensions - 11.1 cm
Digest authentication Security - Yes
dimension depth - 165 mm
dimension height - 120 mm
Dimensions - (diameter): 111 × 81.4 mm
dimension weight - 817 g
dimension width - 165 mm
Dynamic range Performance - 120 dB
ean - 8885020625622
EAN - 8885020625622
Environment requirements - Operating temperature: -30 to 60°C Storage temperature: -40 to 60°C Operating humidity: 95% or less (non-condensing) Storage humidity: 95% or less (non-condensing)
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 2.8 mm
Form factor Design - Turret
Frames per second - 30
Gross Weight Kg - 1,05
GTIN - 8885020625622
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 83.7 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
HTTPS encryption Security - Yes
Identify distance Lens system - 6 m
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infra-red wavelength Night vision - 850 nm
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
International Protection (IP) code Design - IP67
IP address filtering Security - Yes
LED type Night vision - IR/White
Lens - Type: Fixed focal length lens Focal length: 2.8 mm Aperture: F1.0 Lens mount: M12 Field of view: Horizontal field of view: 112.5° Vertical field of view: 61.4° Diagonal field of view: 137° Distance of focus 2.8 mm: D: 59 m O: 25 m R: 12 m I: 6 m
Lens system - Detect distance - 64 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance - 6 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 27 m
Lens system - Recognize distance - 13 m
Lens viewing angle, diagonal Camera - 118°
Lens viewing angle, horizontal Camera - 100°
Lens viewing angle, vertical Camera - 54°
LongDesc - People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - VIGI 4MP Full-Color Turret Network Camera
LongSummaryDescription - TP-Link InSight S445. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m
Management, monitoring, configuration - Smart Event: Intrusion Detection Line Crossing Detection Area Entry Detection Area Exit Detection Object Abandonment Detection Object Removal Detection Inactivity Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection Basic Event: Motion Detection (extended with people and vehicle classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) Alarm Input Device Alarm Linkage: Video Recording from Memory Card Upload to FTP Server Alarm Output Device Push Notifications Upload to Alarm Server Active Defense: Audio Alarm Active Defense: Light Alarm Email Alarm
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web browser - Yes
Manual Packaging content - Yes
Manufacturer Code - INSIGHT S445S(2.8MM)
Manufacturer Name - TP-LINK
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 512 GB
Maximum resolution Video - 2688 x 1520 pixels
Memory card reader - Yes
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0 lx
Minimum illumination Camera - 0.005 lx
Model - InSight S445S
Motion detection - Yes
Mounting kit Packaging content - Yes
Mounting type Design - Ceiling/wall
name - TP-Link InSight S445S(2.8mm)
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Night mode - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Observe distance Lens system - 27 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Pan range Camera - 0 - 360°
Password protection Security - Yes
People counting function Performance - Yes
Performance - Connectivity technology - Wired
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - People counting function - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power source type - DC, PoE
Power source type Power - DC, PoE
Power supply - 12V DC 5%, max 15.6W, 5.5mm coaxial power plug PoE: 802.3at, Class 4, max 17.9W
Privacy protection Security - Yes
producer - TP-LINK
Product colour Design - White
ProductName - InSight S445
Progressive scan Image sensor - Yes
Protection class - IP67
Recognize distance Lens system - 13 m
Region of Interest (ROI) encoding Video - Yes
Reset button Management features - Yes
Resolution - 2688 x 1520
Security - Active tampering alarm - Yes
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Security - IP address filtering - Yes
Security - Password protection - Yes
Security - Privacy protection - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
Short description - TP-LINK VIGI 4MP ColorPro Turret Network Camera InSight S445S(2.8mm)
ShortSummaryDescription - TP-Link InSight S445, IP security camera, Indoor & outdoor, Wired, 120 dB, Ceiling/wall, White
Signal-to-Noise Ratio (SNR) Audio - 52 dB
Smart IR Video - Yes
Speakers built-in - Yes
Standards - 802.3at
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - TP-Link InSight S445. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m
Supported graphics resolutions Video - 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported network protocols Network - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Sustainability - Compliance certificates - BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Tilt angle range Camera - 0 - 85°
Title - TP-Link InSight S445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
Total megapixels Video - 4 MP
Two-way transmission - Yes
Type Performance - IP security camera
Unit Box Height - 0.116
Unit Box Length - 0.161
Unit Box Width - 0.16
Unit Calculated Volume - 0.002988 cubm
Unit Calculated Weight - 0.82 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.vigi.com/sg/business-networking/vigi-network-camera/insight-s445/
Vendor Homepage - https://www.vigi.com/sg/business-networking/vigi-network-camera/insight-s445/
vendpn - InSight S445S(2.8mm)
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2688 x 1520 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video compression formats Video - H.264, H.264+, H.265, H.265+
Video motion detection Security - Yes
Video streaming Video - Yes
Viewing angle, horizontal - 112 °
Viewing angle, vertical - 61 °
Visual angle diagonal - 137 °
Warranty - 36 months
WarrantyInfo -
Web browser Management features - Yes
Weight - 0.55 kg
Weight & dimensions - Diameter - 11.1 cm
Weight & dimensions - Height - 83.7 mm
Weight & dimensions - Weight - 480 g
Weight Weight & dimensions - 480 g
Wide Dynamic Range (WDR) Performance - Yes
