ID: 1257165
Product code: IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK
In stock 2 units
Warranty: 3 years

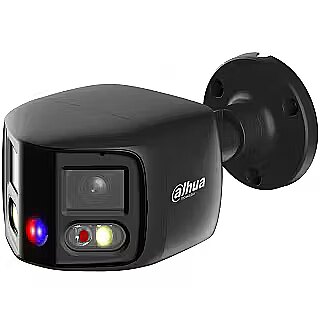

Dahua Bullet, 4096x1860p, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
All parameters
Aperture
: F1.4
Atmiņas kartes ligzda
: microSD
Colour
: Melna
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 25
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -40
Resolution
: 4096x1860
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 180°
Water resistance
: IP67
Weight (g)
: 700
More detailed specification
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - FNC
Colour - Black
Description - > Outputs 180° wide angle splicing image. > Outputs max. 8 MP (4096 × 1860)@20 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m. > ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Sound and light alarm (red and blue lights). > EPTZ: Enlarge and track the targets of intelligent alarms. > SMD 4.0. > One-tap arming/disarming through alarm input. > Focal Length 2.8 mm > Field of View 180°
Dimensions - 183.1 mm × 99.0 mm × 78.0 mm
Effective pixels - 4096 (H) × 1860 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Focal Length - 2.8 mm
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 8 Mega Pixel
Power consumption - 10.3 Watts
Power options - PoE
Power supply requirements - 12 VDC (±30%); PoE (802.3af)
Product Net Weight - 0.695 kg
RJ45 Input/Output connectors - 1
Sensor size - Dual 1/2.7" CMOS
Unit Box Height - 0.11
Unit Box Length - 0.24
Unit Box Width - 0.15
Unit Calculated Volume - 0.00396 cubm
Unit Calculated Weight - 0.86 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-PFW3849S-A180-AS-PV
Warranty - 36 months
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - FNC
Colour - Black
Description - > Outputs 180° wide angle splicing image. > Outputs max. 8 MP (4096 × 1860)@20 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m. > ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Sound and light alarm (red and blue lights). > EPTZ: Enlarge and track the targets of intelligent alarms. > SMD 4.0. > One-tap arming/disarming through alarm input. > Focal Length 2.8 mm > Field of View 180°
Dimensions - 183.1 mm × 99.0 mm × 78.0 mm
Effective pixels - 4096 (H) × 1860 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Focal Length - 2.8 mm
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 8 Mega Pixel
Power consumption - 10.3 Watts
Power options - PoE
Power supply requirements - 12 VDC (±30%); PoE (802.3af)
Product Net Weight - 0.695 kg
RJ45 Input/Output connectors - 1
Sensor size - Dual 1/2.7" CMOS
Unit Box Height - 0.11
Unit Box Length - 0.24
Unit Box Width - 0.15
Unit Calculated Volume - 0.00396 cubm
Unit Calculated Weight - 0.86 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-PFW3849S-A180-AS-PV
Warranty - 36 months
