ID: 1245561
Product code: DH-IPC-HDBW3849E-AS-IL-0280B
In stock 24 units
Warranty: 3 years

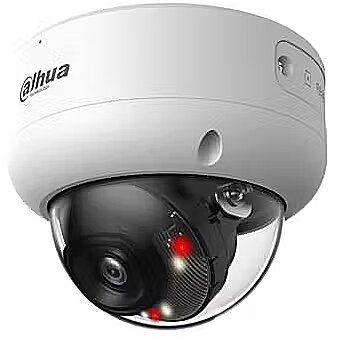

Dahua NET CAMERA 8MP DOME/HDBW3849E-AS-IL-0280B
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
All parameters
Network connections
: Ir
Use
: Indoor/Outdoor
More detailed specification
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio - Audio formats supported - G.711, G.723, G.726, PCM
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Bit rate range - 3 - 8192 Kbit/s
Audio - Built-in microphone - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Brand - Dahua Technology
BrandPartCode - IPC-HDBW3849EP-AS-IL-0280B
Camera - Adjustment shutter speed - Auto/Manual
Camera - Angle of rotation - 355°
Camera - Camera shutter speed - 1/3 s–1/100,000
Camera - Minimum illumination - 0.007 lx
Camera - Number of Privacy masking areas - 8
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 75°
Camera - Vertical field of view (thermal module) - 58°
Camera - White balance - Auto, Custom modes, Lamp, Manual, Natural, Outdoor
Camera design - Dome
Category - Security Cameras
Category Code - FNC
CnCode - 85258900
Colour - White
Description - > 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 8 MP (3840 2160)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image). > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic. > 12 VDC/PoE power supply. > IP67 and IK10 protection. > SMD 4.0. > Supports AI SSA. > SMD area can be set in warm light areas that support triggering alarms. > Focal Length 2.8 mm. Field of View 110°
Design - Form factor - Dome
Design - Housing material - Metal
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Dimensions - 89.1 mm 111.7 mm
Effective pixels - 3840 (H) 2160 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
GTIN - 6939554920189
Image sensor - Number of effective pixels (H x V) - 3840 x 2160 pixels
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens Mount - M12
Lens system - Auto focus - Yes
Lens system - Closest focusing distance - 1.5 m
Lens system - Detect distance (tele) - 257.4 m
Lens system - Detect distance (wide) - 89.9 m
Lens system - Fixed focus - Yes
Lens system - Focal length range - 2.8 - 3.6 mm
Lens system - Focus - Motorized/Manual
Lens system - Identify distance (tele) - 25.7 m
Lens system - Identify distance (wide) - 19 m
Lens system - Maximum aperture number - 1
Lens system - Number of lenses - 1
Lens system - Observe distance (tele) - 103 m
Lens system - Observe distance (wide) - 36 m
Lens system - Recognize distance (tele) - 51.5 m
Lens system - Recognize distance (wide) - 18 m
LongDesc - 8MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
LongProductName - 3840 × 2160, 30 fps, 8-MP 1/2.7" CMOS, 30 m, H.264+, WDR, 3D NR, HLC, BLC, 512 GB Micro SD, 12 VDC/PoE, IP67, IK10, 56 dB, 0°–355°, 0.007 lux, 89.1 x 111.7 mm, 528 g
LongSummaryDescription - Dahua Technology WizSense IPC-HDBW3849EP-AS-IL-0280B. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 355°, Vertical field of view (thermal module): 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 3840 x 2160 pixels. Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Management features - Firmware upgradeable - Yes
Management features - Management software - Smart PSS; DSS; DMSS
Microphone - Built-in
Min. Illumination - 0 Lux
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.1x, IEEE 802.3af
Network - Number of users - 20 user(s)
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Network - User access level - User
Network - Wi-Fi - No
Network Camera Type - Fixed Dome/HDTV/Megapixel/Outdoor
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 50 m
Night vision - Number of illumination LEDs - 2
Operating temperature range - -40 C to +60 C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 40 - 60 °C
Operational conditions - Storage temperature (T-T) - 40 - 60 °C
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Packaging data - Package weight - 690 g
Panoramic camera - Signal-to-Noise Ratio (SNR) (panoramic camera) - 56 dB
Performance - Certification - CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Maximum operating distance - 30 m
Performance - Placement supported - Indoor & outdoor
Performance - Type - CCTV security camera
Performance - Wide Dynamic Range (WDR) - Yes
Pixel Resolution - 8 Mega Pixel
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 6.2 W
Power - Power consumption (Power over Ethernet (PoE)) - 8.2 W
Power - Power consumption (typical) - 3.7 W
Power - Power source type - DC, PoE
Power consumption - 8 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
ProductName - IPC-HDBW3849EP-AS-IL-0280B
Product Net Weight - 1 kg
RJ45 Input/Output connectors - 1
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Digest authentication - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor size - 1/2.7"
ShortSummaryDescription - Dahua Technology WizSense IPC-HDBW3849EP-AS-IL-0280B, CCTV security camera, Indoor & outdoor, Wired, 30 m, 120 dB, CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storage - RAM capacity - 1024 MB
Storage - ROM capacity - 256 MB
Supports card capacities up to - 512GB
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology WizSense IPC-HDBW3849EP-AS-IL-0280B security camera Dome CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Unit Box Height - 0.135
Unit Box Length - 0.135
Unit Box Width - 0.125
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 1 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3849E-AS-IL
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3849E-AS-IL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.265
Video - Video streaming - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Height - 111.7 mm
Weight & dimensions - Weight - 528 g
Weight & dimensions - Width - 89.1 mm
