ID: 1245365
Product code: IPC-HDW1839T-A-IL-0280B-S6-B
In stock 15 units
Warranty: 3 years

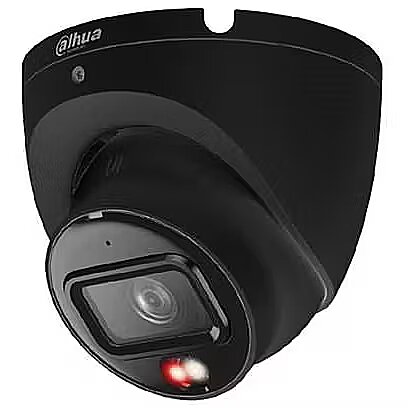

Dahua Eyeball, 2160p(4K), 8MP, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
All parameters
Aperture
: F1.6
Atmiņas kartes ligzda
: N/A
Colour
: Melna
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 55
Operating temperature MIN (°C)
: -40
Resolution
: 3840x2160
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 110°
Water resistance
: IP67
Weight (g)
: 350
More detailed specification
Camera design - Eyeball
Category Code - FNC
Colour - Black
Description - > 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8mm. Field of View 110°
Dimensions - 85.6 mm × Φ94.0 mm
Effective pixels - 3840 (H) × 2160 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8mm
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0008 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +55 °C
Power consumption - 5.8 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
Product Net Weight - 0.35 kg
Resolution - 8 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Unit Box Height - 0.105
Unit Box Length - 0.11
Unit Box Width - 0.11
Unit Calculated Volume - 0.00127 cubm
Unit Calculated Weight - 0.45 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1839T-A-IL_S6_datasheet_20240415.pdf
Warranty - 36 months
Category Code - FNC
Colour - Black
Description - > 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8mm. Field of View 110°
Dimensions - 85.6 mm × Φ94.0 mm
Effective pixels - 3840 (H) × 2160 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8mm
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0008 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +55 °C
Power consumption - 5.8 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
Product Net Weight - 0.35 kg
Resolution - 8 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Unit Box Height - 0.105
Unit Box Length - 0.11
Unit Box Width - 0.11
Unit Calculated Volume - 0.00127 cubm
Unit Calculated Weight - 0.45 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1839T-A-IL_S6_datasheet_20240415.pdf
Warranty - 36 months
