Audio - Audio formats supported - G.711 A-law
Audio - Audio formats supported - G.711 μ-law
Audio - Audio formats supported - G.722.1
Audio - Audio formats supported - G.726
Audio - Audio formats supported - MP2L2
Audio - Audio formats supported - PCM
Audio - Bit rate range - 16 - 160 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1 - 1/30000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 115.1 - 36.3°
Camera - Lens viewing angle, horizontal - 96.7 - 31.6°
Camera - Lens viewing angle, vertical - 51.1 - 17.7°
Camera - Minimum illumination - 0 lx
Camera - Number of Privacy masking areas - 24
Camera - Pan preset speed - 60 °/sec
Camera - Pan range - 0 - 350°
Camera - Pan speed - 60 °/sec
Camera - Preset programs quantity - 300
Camera - Tilt angle range - 0 - 90°
Camera - Tilt preset speed - 60 °/sec
Camera - Tilt speed - 50 °/sec
Design - Fog proof - Yes
Design - Form factor - Spherical
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling
Design - Product colour - Black
Design - Product colour - White
Design - Protection features - Waterproof
dimensionalWeight - 1994
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Auto focus - Yes
Lens system - Detect distance - 180 m
Lens system - Digital zoom - 16x
Lens system - Focal length range - 2.8 - 12 mm
Lens system - Focus - Motorized/Manual
Lens system - Identify distance - 18 m
Lens system - Maximum aperture number - 1.5
Lens system - Number of lenses - 1
Lens system - Observe distance - 71.4 m
Lens system - Optical zoom - 4x
Lens system - Proportional zoom - Yes
Lens system - Recognize distance - 36 m
Lens system - Zoom capability - Yes
Lens system - Zoom speed - 2 s
Management features - Web-based management - Yes
Network - Bluetooth - No
Network - Client interoperability - iVMS-4200, HikCentral, Hik-Connect
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Number of simultaneous live view channels - 20 channels
Network - Number of users - 32 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Supported network protocols - IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Network - User access level - Administrator, Operator, User
Network - Wi-Fi - No
Night vision - B/W night vision distance - 6 m
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 50 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 65 °C
Other features - Browser supported - IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
Other features - I/O ports - line in, line out
Packaging content - Number of cameras - 1
Performance - Alarm input/output - Yes
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Preset freezing function - Yes
Performance - PTZ control - Yes
Performance - PTZ modes - Preset point
Performance - PTZ status display - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 3.33 A
Power - DC output voltage - 12
Power - Power consumption (max) - 14 W
Power - Power source type - DC, PoE
producerCode - DS-2DE3A404IWG-E

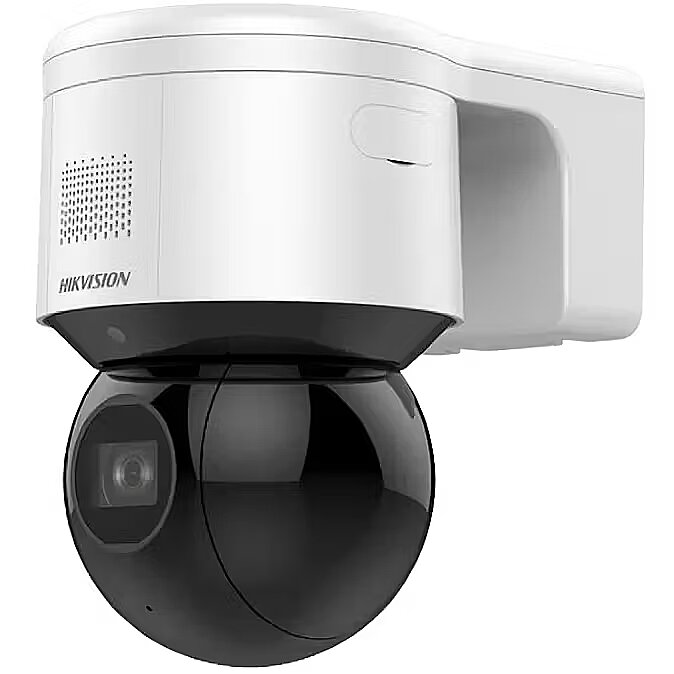

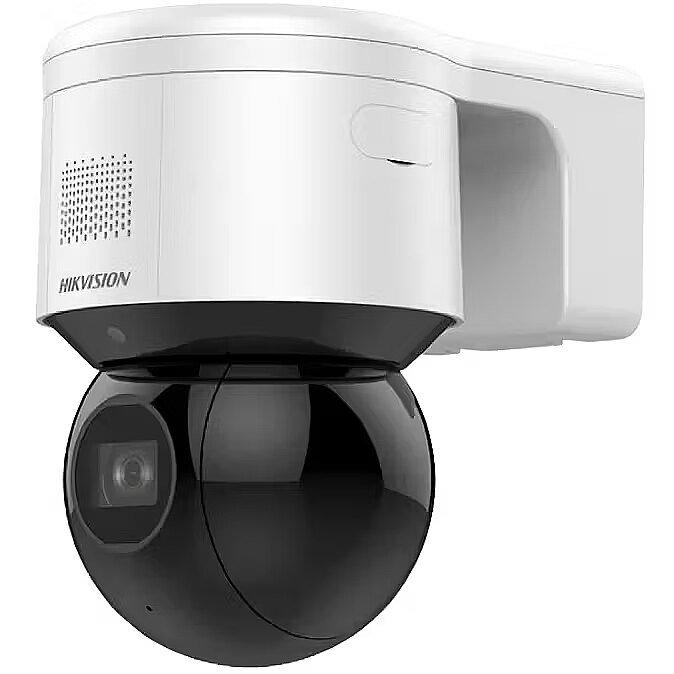

productName - Hikvision DS-2DE3A404IWG-E security camera Spherical IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
productSize - Normal
Security - Active tampering alarm - Yes
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Audit log - Yes
Security - Automatic Network Replenishment (ANR) - Yes
Security - Digest authentication - Yes
Security - Digital watermark - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Crossing line
Security - Intelligent Video Surveillance (IVS) system features - Face detection
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Region entrance detection
Security - Intelligent Video Surveillance (IVS) system features - Region exiting detection
Security - IP address filtering - Yes
Security - Password protection - Yes
Security - Privacy protection - Yes
Security - Security algorithms - EAP-LEAP
Security - Security algorithms - EAP-MD5
Security - Security algorithms - EAP-TLS
Security - Video motion detection - Yes
sizeX - 230
sizeY - 255
sizeZ - 170
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Compatible memory cards - MicroSDHC
Storage - Compatible memory cards - MicroSDXC
Storage - Maximum memory card size - 256 GB
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32 Kbps - 16 Mbps
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 480
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 960
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
warrantyLength - 24
warrantyType - F
weight - 1830
Weight & dimensions - Depth - 179.3 mm
Weight & dimensions - Height - 182 mm
Weight & dimensions - Weight - 1.12 kg
Weight & dimensions - Width - 12.5 mm
