Alarm In Input/Output connectors - 2
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Dome
Category Code - FNC
Description - 1/1.8” CMOS, 2688 × 1520 @ 30FPS Minimum illumination: 0.0007 lux @ F1.8 (Color, 30 IRE); 0.0004 lux @ F1.8 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, EIS, Defog Motorized zoom lens 2.7 mm–12.0 mm (115°–47°) Up to 40 meters Smart IR Illumination H.265,H.264,H.264B,H.264H, MJPEG, Smart H.265+/ Smart H.264+, ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O, With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Dome design, metal shell, IP67, IK10, -30°C~+60°C Power ePoE / PoE / 12VDC, 11.7W max Free IP monitoring software available
Dimensions - Φ159.1 mm × 118.1 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.7 mm–12.0 mm
IR Illumination - Yes
Min. Illumination - 0.0007 Lux

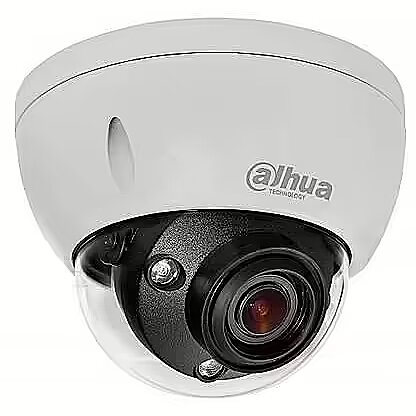

Model - IPC-HDBW5442E-ZE-2712-S3
Network Camera Type - Fixed Dome/HDTV/Megapixel/Outdoor
Operating temperature range - –30 °C to +60 °C
Power consumption - 5.4 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/24 VAC/PoE (802.3af)/ePoE
Product Net Weight - 0.91 kg
Resolution - 4 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/1.8”
Supports card capacities up to - 512GB
Unit Box Height - 0.15
Unit Box Length - 0.19
Unit Box Width - 0.185
Unit Calculated Volume - 0.005273 cubm
Unit Calculated Weight - 1.26 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDBW5442E-ZE=S3
Warranty - 36 months
