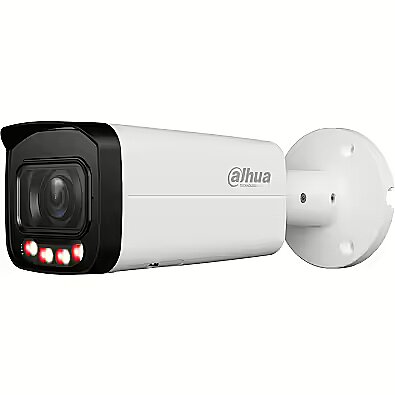

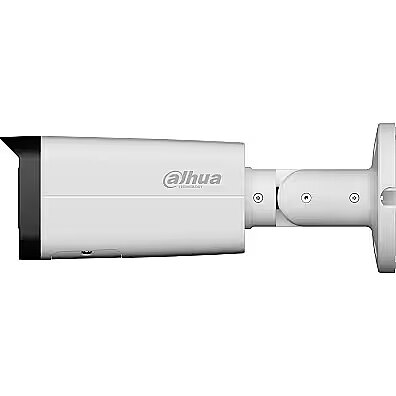

Dahua Bullet, 1520p, 4MP, White

Alarm input channels Security - 1
Alarm output channels Security - 1
Alert notification type Security - Push notification
Angle of rotation Camera - 360°
Audio - Audio formats supported - G.711 A-law
Audio - Audio formats supported - G.711 A-law, G.726, PCM
Audio - Audio formats supported - G.726
Audio - Audio formats supported - PCM
Audio - Built-in microphone - Yes
Audio - Number of microphones - 1
Audio - Signal-to-Noise Ratio (SNR) - 65 dB
Audio formats supported Audio - G.711 A-law/G.726/PCM
Auto focus Lens system - Yes
Back Light Compensation (BLC) Video - Yes
Bit rate Video - H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Brand - Dahua Technology
BrandPartCode - IPC-HFW2449T-ZAS-IL-27135
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/100000 s
Camera - Camera shutter type - Electronic
Camera - Lens viewing angle, diagonal - 117 - 32°
Camera - Lens viewing angle, horizontal - 97 - 28°
Camera - Lens viewing angle, vertical - 52 - 16°
Camera - Minimum illumination - 0.006 lx
Camera - Number of Privacy masking areas - 8
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera - White balance - Manual
Camera - White balance - Natural
Camera - White balance - Outdoor
Camera - White balance - Regional custom
Camera - White balance - Street lamp
Camera shutter speed Camera - 1/100000 s
Camera shutter type Camera - Electronic
Category - Security Cameras
Category Code - FNC
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired & Wireless
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance. Smart Dual Light Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently. SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced. Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Full-color With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details. Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic
Design - Form factor - Bullet
Design - Housing material - Metal
Design - Housing material - Metal, Plastic
Design - Housing material - Plastic
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Design - Weatherproof - Yes
Detect distance Lens system - 210 m
Detection distance Security - 210 m
Digital watermark Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
dimensionalWeight - 820
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Focal length range Lens system - 2.7 - 13.5 mm
Focus Lens system - Motorized
Form factor Design - Bullet
Frame rate Video - 20 fps
Gain control type Video - Auto/Manual
GTIN - 6939554923562
Height Weight & dimensions - 90.7 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal/Plastic
HTTPS encryption Security - Yes
Human and vehicle targets classification Security - Yes
Identify distance Lens system - 21 m
IK code Design - IK10
Image sensor - Optical sensor size - 25.4 / 2.9 mm (1 / 2.9")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Intrusion/Tripwire
International Protection (IP) code Design - IP67
LED type Night vision - IR/White
Length Weight & dimensions - 238.5 mm
Lens system - Auto focus - Yes
Lens system - Detect distance - 210 m
Lens system - Focal length range - 2.7 - 13.5 mm
Lens system - Focus - Motorized
Lens system - Identify distance - 21 m
Lens system - Maximum aperture number - 1.5
Lens system - Number of lenses - 1
Lens system - Observe distance - 84 m
Lens system - Recognize distance - 42 m
Lens system - Zoom capability - Yes
Lens viewing angle, diagonal Camera - 117 - 32°
Lens viewing angle, horizontal Camera - 97 - 28°
Lens viewing angle, vertical Camera - 52 - 16°
LongDesc - Launched by Dahua Technology, WizSense is a series of AI productsand solutions that adopt independent AI chip and deep learningalgorithm. It focuses on human and vehicle with high accuracy,enabling users to fast act on defined targets. Based on Dahua'sadvanced technologies, WizSense provides intelligent, simple andinclusive products and solutions.With advanced deep learning algorithm, Dahua WizSense 2 Seriesnetwork camera supports intelligent functions, such as perimeterprotection and smart motion detection. With starlight technology, thisseries camera provides a better image effect in the condition of lowilluminance.Smart Dual LightDahua Smart Dual Light technology adopts smart algorithm to detecttargets. Usually, the IR illuminator is on at night; when the targetappears in the monitoring area, the white light is on, and the camerarecords the full-color video and information of key events. That is,the camera links snapshot and video with full-color image. When thetarget is out of the monitoring area, the white light is off and the IRilluminator is on, which reduces light pollution efficiently.SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technologycan categorize the targets that trigger motion detection and filter themotion detection alarm triggered by non-concerned targets to realizeeffective and accurate alarm.Perimeter ProtectionWith deep learning algorithm, Dahua Perimeter Protection technologycan recognize human and vehicle accurately. In restricted area(such as pedestrian area and vehicle area), the false alarms ofintelligent detection based on target type (such as tripwire, intrusion,fast moving, parking detection, loitering detection and gatheringdetection) are largely reduced.Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smartencoding technology realizes the higher encoding efficiency thanH.265 and H.264, provides high-quality video, and reduces the cost ofstorage and transmission.Full-colorWith high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environmentof ultra-low illuminance. With this photosensitivity technology, thecamera can capture more available light, and display more colorfulimage details.Protection (IP67, Wide Voltage)IP67: The camera passes a series of strict test on dust and soak. It hasdust-proof function, and the enclosure can work normally aftersoaking in 1 m deep water for 30 minutes. Wide voltage: The cameraallows ±30% (for some power supplies) input voltage tolerance (widevoltage range), and it is widely applied to outdoor environment withinstable voltage
LongProductName - 4MP Smart Dual Light Vari-focal Bullet WizSense Network Camera, 1/2.9 inch CMOS, 2688 x 1520, 56 dB, 2.7 mm–13.5 mm, F1.5, RJ-45 (10/100 Base-T), Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity), IP67, IK10, 238.5 × 90.7 mm, 0.76 kg, White
LongSummaryDescription - Dahua Technology WizSense IPC-HFW2449T-ZAS-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 97 - 28°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 210 m, Observe distance: 84 m, Recognize distance: 42 m
Management features - Web-based management - Yes
Maximum aperture number Lens system - 1.5
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2688 x 1520 pixels
Microphone in Ports & interfaces - Yes
Minimum illumination Camera - 0.006 lx
Mirror Security - Yes
Model - IPC-HFW2449T-ZAS-IL-27135
Motion sensor Security - Yes
Mounting type Design - Ceiling/wall
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Streaming method - Multicast
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Networking standards Network - IEEE 802.3af
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 60 m
Night vision distance Night vision - 60 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of microphones Audio - 1
Number of Privacy masking areas Camera - 8
Observe distance Lens system - 84 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.9 mm (1 / 2.9")
Package weight Packaging data - 950 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 950 g
Pan range Camera - 0 - 360°
Performance - Connectivity technology - Wired & Wireless
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Microphone in - Yes
Power - DC output voltage - 12
Power - Power consumption (max) - 10.2 W
Power - Power consumption (Power over Ethernet (PoE)) - 3.1 W
Power - Power consumption (typical) - 2.6 W
Power - Power source type - AC, DC
Power consumption (max) Power - 10.2 W
Power consumption (Power over Ethernet (PoE)) Power - 3.1 W
Power consumption (typical) Power - 2.6 W
Power source type Power - AC, DC
Privacy protection Security - Yes
producerCode - IPC-HFW2449T-ZAS-IL-27135
Product colour Design - White
productName - Dahua Technology WizSense IPC-HFW2449T-ZAS-IL Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
ProductName - IPC-HFW2449T-ZAS-IL
productSize - Normal
Progressive scan Image sensor - Yes
RAM capacity Storage - 128 MB
Recognize distance Lens system - 42 m
Remote viewing Performance - Yes
ROM capacity Storage - 128 MB
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Alert notification type - Push notification
Security - Detection distance - 210 m
Security - Digital watermark - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Intrusion, Tripwire
Security - Intelligent Video Surveillance (IVS) system features - Tripwire
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Privacy protection - Yes
Security - Security algorithms - HTTPS
Security - Video motion detection - Yes
Security algorithms Security - HTTPS
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense IPC-HFW2449T-ZAS-IL, IP security camera, Indoor & outdoor, Wired & Wireless, Ceiling/wall, White, Bullet
Signal-to-Noise Ratio (SNR) Audio - 65 dB
sizeX - 285
sizeY - 120
sizeZ - 120
Smart IR Video - Yes
Storage - Built-in HDD - No
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - RAM capacity - 128 MB
Storage - ROM capacity - 128 MB
Storage temperature (T-T) Operational conditions - -30 - 60 °C
Streaming method Network - Multicast
Summary - Dahua Technology WizSense IPC-HFW2449T-ZAS-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 97 - 28°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 210 m, Observe distance: 84 m, Recognize distance: 42 m
Supported graphics resolutions Video - 2880 x 1620
Supported network protocols Network - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Tilt angle range Camera - 0 - 90°
Title - Dahua Technology WizSense IPC-HFW2449T-ZAS-IL Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
Total megapixels Video - 4 MP
Type Performance - IP security camera
Unit Box Height - 0.12
Unit Box Length - 0.29
Unit Box Width - 0.12
Unit Calculated Volume - 0.004985 cubm
Unit Calculated Weight - 0.95 kg
Units per Pallet - 0
URL - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2449T-ZAS-IL
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2449T-ZAS-IL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 20 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2688 x 1520 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Smart IR - Yes
Video - Supported graphics resolutions - 2880 x 1620
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264, H.264B, H.264H, H.265, MPEG
Video - Video compression formats - H.264B
Video - Video compression formats - H.264H
Video - Video compression formats - H.265
Video - Video compression formats - MPEG
Video - Video formats supported - H.264+
Video - Video formats supported - H.264+, H.265+
Video - Video formats supported - H.265+
Video compression formats Video - H.264/H.264B/H.264H/H.265/MPEG
Video formats supported Video - H.264+/H.265+
Video motion detection Security - Yes
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
Weatherproof Design - Yes
Web-based management Management features - Yes
weight - 950
Weight & dimensions - Height - 90.7 mm
Weight & dimensions - Length - 238.5 mm
Weight & dimensions - Weight - 760 g
Weight & dimensions - Width - 90.7 mm
Weight Weight & dimensions - 760 g
White balance Camera - Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 90.7 mm
Zoom capability Lens system - Yes
