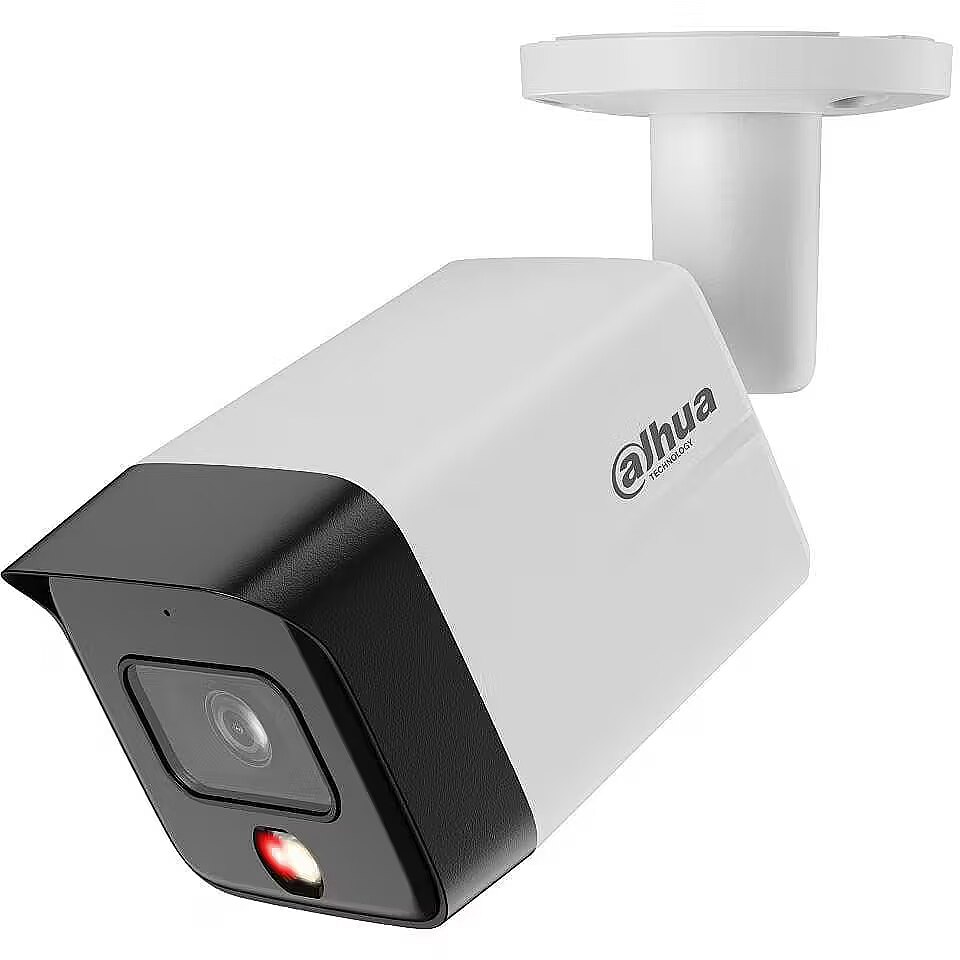

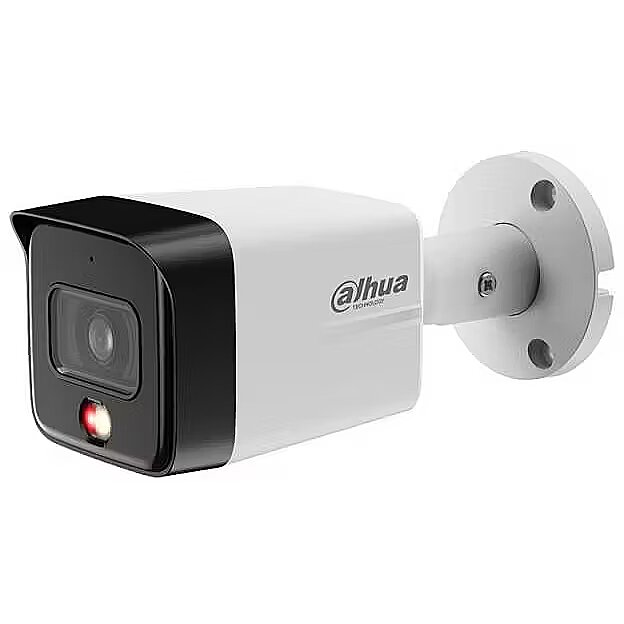

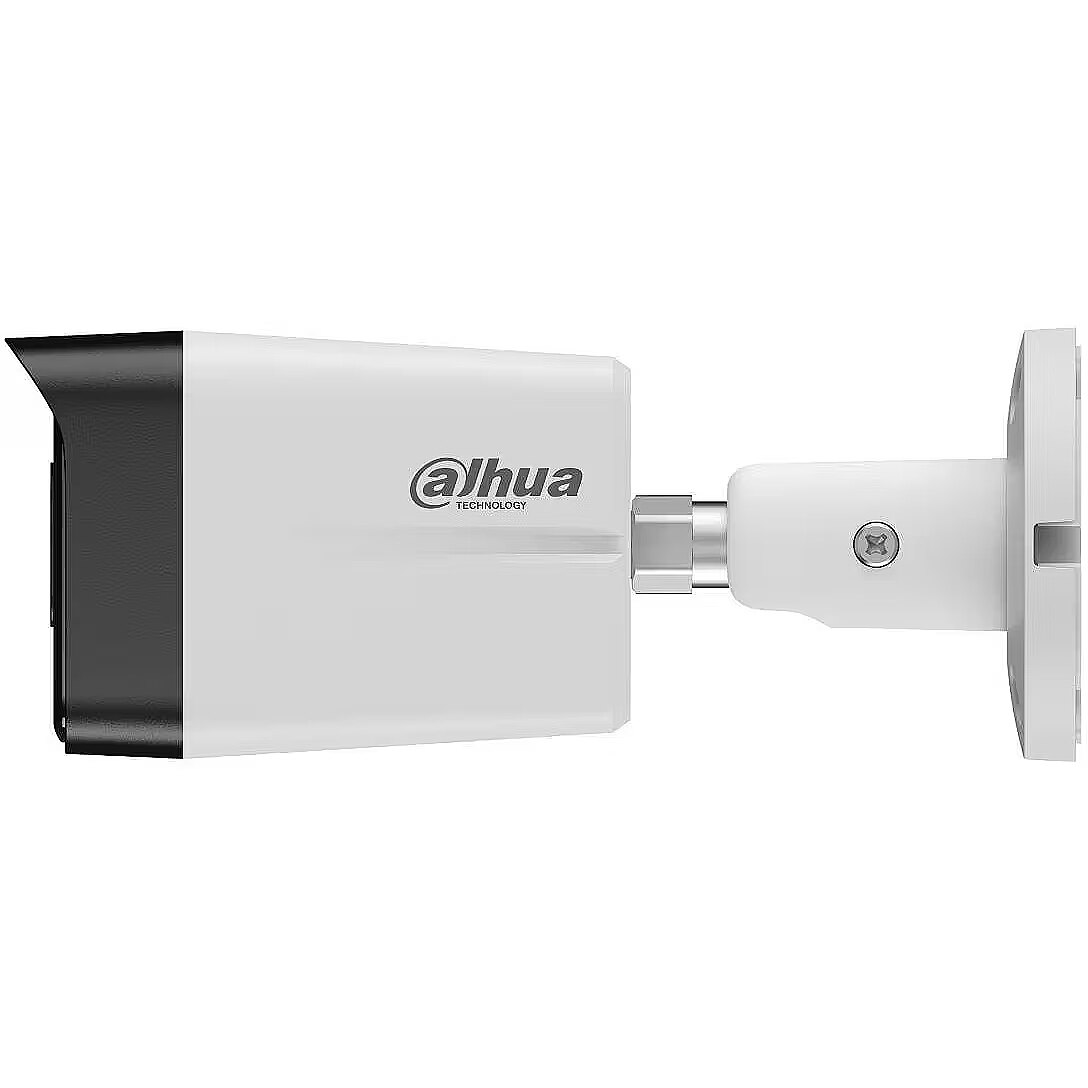

Dahua KAMERA IP DAHUA IPC-HFW1639TC-A-IL-0280B-S6

Accessories included -
Adjustment shutter speed Camera - Auto/Manual
Audio - Audio detection - Yes
Audio - Built-in microphone - Yes
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio - Voice codecs - G.711a
Audio - Voice codecs - G.711Mu
Audio - Voice codecs - G.726
Audio - Voice codecs - PCM
Audio compression - G.711a
Audio compression - G.711Mu
Audio compression - G.726
Audio compression - PCM
Camera - Adjustment shutter speed - Auto/Manual
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Lens - Permanent
Camera - Number of Privacy masking areas - 4
Camera - Observe distance - 30 m
Camera - Viewing angle - 110°
Camera shutter speed Camera - 1/3 s–1/100,000 s s
Category - Root/Electronics/Networks and communication/Monitoring/Monitoring IP
Category Code - FNC
Certificates - CE (LVD - EN 62368-1) CE (EMC - Directive 2014/30/EU) RoHS
Color - White
Connectors - RJ-45
Data Act - Link
Depth Weight & dimensions - 70 mm
Description - 6MP Entry Smart Dual Light Fixed-focal Bullet Network Camera > 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection.
Description - Camera IP IPC-HFW1639TC-A-IL-0280B-S6 Smart Dual Light - At night, the camera can use infrared illumination and automatically switch on white light when an object is detected, providing a full-colour image. Human Detection - Reduces false alarms triggered by other moving objects. Built-in Microphone - Enables audio recording. PoE (Power over Ethernet) - Allows data transmission and power supply through a single Ethernet cable. IP67 Protection Rating - Provides protection against dust and the effects of temporary immersion in water under conditions specified by the standard.
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 462
dimension depth - 210 mm
dimension height - 100 mm
Dimensions - 70 x 70 x 173,3 mm
dimension weight - 450 g
dimension width - 110 mm
ean - 6937552427785
Eans - 6923172563354
Environment requirements - Operating Temperature: -40°C to +60°C  Operating Humidity: Maximum 95% RH, non-condensing Storage Temperature: -40°C to +60°C  Storage Humidity: Maximum 95% RH, non-condensing
Form factor Design - Bullet
Frames per second - 30
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 70 mm
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens - 2,8 mm
Lens mount interface Technical details - M12
Management, monitoring, configuration -
Management features - Web-based management - Yes
Management features - Web browser - Yes
Memory card reader - No
Memory standard - Not applicable
Microphone - Yes
Min. illuminance - 0.007 lx
Minimum illuminance - 0 lx
Mobile support - Android
Mobile support - iOS
Model - IPC-HFW1639TCAIL0280BS6
Motion detection - Yes
Name - Dahua IPC-HFW1639TC-A-IL-0280B-S6
name - IP camera IPC-HFW1639TC-A-IL-0280B-S6
Name - NET CAMERA 6MP IR BULLET/IPC-HFW1639TCAIL0280BS6 DAHUA
Network - Ethernet - One 10/100Mbps RJ45 port
Network - Ethernet interface type - Fast Ethernet
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Network - Wi-Fi - No
Network protocols - IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP DHCP DNS DDNS NTP Multicast ICMP IGMP P2P
Night mode - Yes
Night mode range - 30 m
Night vision - LED type - 1 IR LED + white light LED
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Number of effective pixels (H x V) Image sensor - 3200 (H) × 1800 (V) pixels
Operating temperature (T-T) Operational conditions - –40 °C to +60 °C °C
Operational conditions - Ambient temperature - -40°C ~ +60°C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature - -40°C ~ +60°C
Optical sensor size Image sensor - 1/2.7" CMOS "
Other features - Frame Rate: 20 fps at 6 MP; 25/30 fps at 2688 × 1520 pixels Czułość: 0.007 [email protected] (Color, 30 IRE); 0.0007 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Placement supported - External / Internal
Performance - Regulatory Approvals - CE-LVD: EN62368-1; CE-EMC: Dyrektywa Kompatybilności Elektromagnetycznej 2014/30/EU
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Power - Power consumption (max) - 4 W
Power - Power consumption (typical) - 2.9 W
Power - Power source type - DC, PoE
Power requirements Other features - 12 VDC/PoE (802.3af)
Power supply - 12 VDC/PoE (802.3af)
producer - Dahua
Producer - Dahua Technology
producerCode - IPC-HFW1639TC-A-IL-0280B-S6
ProducerCode - IPC-HFW1639TC-A-IL-0280B-S6
Product colour Design - White
productName - IP CAMERA DAHUA IPC-HFW1639TC-A-IL-0280B-S6
Product Net Weight ELKO Verified Logistics Data - 0.44 kg
productSize - Normal
Protection class - IP67
Resolution - 3200 x 1800
Safety warning - Warnings - Avoid direct contact with water to prevent electrical damage.
Safety warning - Warnings - Ensure that the product is properly installed and protected against falling.
Safety warning - Warnings - The product contains electronic components; do not dispose of with the normal household waste.
Security - Video Encryption Encryption Configuration WSSE Account Lockout IP/MAC Filtering Security Logs X.509 Certificate Generation and Import HTTPS 802.1X Trusted Execution Trusted Update
Security - Active tampering alarm - Yes
Security - Video motion detection - Yes
Sensor - 1/2.7" CMOS
Sensor type Image sensor - CMOS
Shipping Box Depth ELKO Internal Logistics Data - 55 cm
Shipping Box Height ELKO Internal Logistics Data - 22 cm
Shipping Box Weight ELKO Internal Logistics Data - 12.3 kg
Shipping Box Width ELKO Internal Logistics Data - 42.5 cm
ShortDescription -
sizeX - 100
sizeY - 110
sizeZ - 210
Speakers built-in - No
Special functions - Dzień / Noc: automatyczny (ICR) / kolor / czarno-biały Kompensacja tła: BLC / HLC / DWDR Kontrola wzmocnienia: automatyczna (AGC), ręczna Redukcja szumów: 3D NR Balans bieli: automatyczny (AWB) / zewnętrzny / ręczny / światło naturalne / lampa uliczna / region Obszar zainteresowania (Roi): 4 obszary Inteligentne oświetlenie Obrót obrazu 0°, 90°, 180°, 270° (wsparcie 90°, 270° dla rozdzielczości 2688x1520 i niższej) Lustrzane odbicie: wsparcie Strefy prywatności: wł. / wył. (4 obszary) Współpraca z Smart NVR do dokładnego inteligentnego wyszukiwania, wyodrębnianie zdarzeń i scalanie w filmy ze zdarzeń Wykrycie ruchu Wykrywanie dźwięku Odłączenie od sieci Nielegalny dostęp Konflikt adresów IP Błąd pamięci SMD człowiek
Standards - IPv4
Standards - IPv6
Storage - Built-in HDD - No
Storage - RAM - 256 MB
Storage - ROM - 128 MB
Suitable for outdoor use Technical details - Yes
System Requirements -
Total megapixels Video - 6 MP
Two-way transmission - No
type - Fixed bullet type camera
Unit Box Height - 0.095
Unit Box Length - 0.205
Unit Box Width - 0.105
Unit Calculated Volume ELKO Internal Logistics Data - 0.002571 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.615 kg
Unit Depth ELKO Verified Logistics Data - 20.5 cm
Unit Height ELKO Verified Logistics Data - 9.5 cm
Units per Shipping Box ELKO Verified Logistics Data - 20
Unit Width ELKO Verified Logistics Data - 10.5 cm
Vendor Homepage - www.dahuasecurity.com/la/products/All-Products/Network-Cameras/Entry-Series/6MP/IPC-HFW1639TC-A-IL=S6
vendpn - IPC-HFW1639TC-A-IL-0280B-S6
Video - Bitrate - H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Video - Frame rate - 25 / 30 fps
Video - Maximum resolution - 3200 x 1800 pixels
Video - Noise reduction technology - 3D NR
Video - Supported graphics resolutions - 352 x 240
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 480
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 960
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2048 x 1536 (QXGA)
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2688 x 1520
Video - Supported graphics resolutions - 2880 x 1620
Video - Supported graphics resolutions - 3200 x 1800
Video - Supported graphics resolutions - 3840 x 2160
Video - Total megapixels - 6 MP
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
Video compression - H.264
Video compression - H.264B
Video compression - H.264H
Video compression - H.265
Video compression - MJPEG
Viewing angle, horizontal - 110 °
Viewing angle, vertical - 58 °
Visual angle diagonal - 132 °
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 440 g
weight - 560
Weight & dimensions - Depth - 70 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Weight - 440 g
Weight & dimensions - Width - 173 mm
Weight Weight & dimensions - 440 g
Width Weight & dimensions - 173.3 mm
Wireless communication - No
