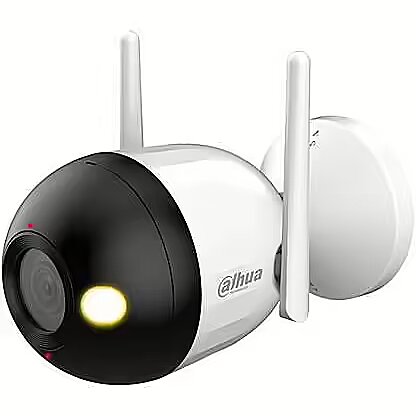

Dahua F4C-PV(2.8mm), 2560p, 4MP, Black/White

Audio - Audio formats supported - G.711 A-law, G.726, PCM
Audio - Audio formats supported - G.711a
Audio - Audio formats supported - G.711Mu
Audio - Audio formats supported - G.726
Audio - Audio formats supported - PCM
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio formats supported Audio - G.711 A-law, G.726, PCM
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - DH-F4C-PV
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 –1/100000
Camera - Detect distance - 61,2 m
Camera - Identify distance - 6.1 m
Camera - Minimum illumination - 0.0005 lx
Camera - Minimum illumination - 0.005 lx
Camera - Number of Privacy masking areas - 4
Camera - Observe distance - 24,5 m
Camera - Pan range - 0 - 360°
Camera - Recognize distance - 12.2 m
Camera - Tilt angle range - -60 - 40°
Camera - Viewing angle, diagonal - 115°
Camera - Viewing angle, horizontal - 98°
Camera - Viewing angle, vertical - 55°
Camera - White balance - Auto
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera - White balance - Custom modes
Camera - White balance - Manual
Camera - White balance - Natural
Camera - White balance - Outdoor
Camera - White balance - Regional custom
Camera - White balance - Street lamp
Camera shutter speed Camera - 1/3 –1/100000
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - NCI
CnCode - 85258900
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired & Wireless
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 131 mm
Description - With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises. Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Day/Night
Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes. Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app. Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.· 4-MP 1/3" CMOS image sensor, low luminance, and high definitionimage· Outputs max. 4 MP (2560 ×1440)@25/30 fps· H.265 codec, high compression rate, ultra-low bit rate· Built-in warm light and IR LED, and the max. illumination distance is30 m· SMART H.264+/H.265+, flexible coding, applicable to various bandwidthand storage environments· DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to variousmonitoring scenes· Abnormality detection: Motion detection, video tampering, audiodetection, no SD card, SD card full, SD card error, networkdisconnection, IP conflict, illegal access and SMD(human)· Supports max.256 G Micro SD card; built in Mic· 12 VDC power supply· IP67 protection· Supports human detection
Design - Form factor - Bullet
Design - Housing material - Metal
Design - Housing material - Metal, Plastic
Design - Housing material - Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Wall
Design - Product colour - Black
Design - Product colour - Black, White
Design - Product colour - White
Digital Wide Dynamic Range (DWDR) Video - Yes
dimensionalWeight - 493
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Form factor Design - Bullet
Gain control type Video - Auto
GTIN - 6939554914522
Height Weight & dimensions - 97.2 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal, Plastic
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
International Protection (IP) code Design - IP67
LED type Night vision - IR/White
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
LongDesc - With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.Day/NightDahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes.Two-way TalkWith its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.Smart Dual LightDahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
LongProductName - 4MP Smart Dual Light Active Deterrence Fixed-focal Wi-Fi Bullet Network Camera
LongSummaryDescription - Dahua Technology DH-F4C-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Tilt angle range: -60 - 40°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m, LED type: IR/White
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2560 x 1440 pixels
Minimum illumination Camera - 0.0005 lx
Mirror Security - Yes
Mobile operating systems supported System requirements - Android, iOS
Model - F4C-PV 2.8MM
Mounting type Design - Wall
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Number of users - 20 user(s)
Network - Supported network protocols - IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Number of users Network - 20 user(s)
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Optical sensor size Image sensor - 25.4 / 3 mm (1 / 3")
Package weight Packaging data - 503 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 503 g
Pan range Camera - 0 - 360°
Performance - Connectivity technology - Wired & Wireless
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Placement supported Performance - Indoor & outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 6.6 W
Power - Power consumption (typical) - 2.2 W
Power - Power management - DC 12 V
Power - Power source type - DC
Power consumption (max) Power - 6.6 W
Power consumption (typical) Power - 2.2 W
Power source type Power - DC
producerCode - F4C-PV-0280B
Product colour Design - Black, White
productName - Dahua Technology DH-F4C-PV security camera Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels Wall
ProductName - DH-F4C-PV
Product Net Weight ELKO Logistics Data - 0.2545 kg
productSize - Normal
RAM capacity Storage - 128 MB
Region of Interest (ROI) encoding Video - Yes
ROM capacity Storage - 16 MB
Security - Digest authentication - Yes
Security - Mirror - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
Shipping Box Depth ELKO Internal Logistics Data - 53.5 cm
Shipping Box Height ELKO Internal Logistics Data - 46.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 17.45 kg
Shipping Box Width ELKO Internal Logistics Data - 34.5 cm
ShortSummaryDescription - Dahua Technology DH-F4C-PV, IP security camera, Indoor & outdoor, Wired & Wireless, Wall, Black, White, Bullet
Signal-to-Noise Ratio (SNR) Audio - 56 dB
sizeX - 220
sizeY - 102
sizeZ - 110
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - RAM capacity - 128 MB
Storage - ROM capacity - 16 MB
Storage temperature (T-T) Operational conditions - -30 - 60 °C
Summary - Dahua Technology DH-F4C-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Tilt angle range: -60 - 40°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m, LED type: IR/White
Supported network protocols Network - IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Tilt angle range Camera - -60 - 40°
Title - Dahua Technology DH-F4C-PV security camera Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels Wall
Total megapixels Video - 4 MP
Type Performance - IP security camera
Unit Box Height - 0.1
Unit Box Length - 0.22
Unit Box Width - 0.11
Unit Calculated Volume ELKO Internal Logistics Data - 0.002861 cubm
Unit Calculated Weight ELKO Logistics Data - 0.582 kg
Units per Shipping Box ELKO Logistics Data - 30
URL - https://www.dahuasecurity.com/
Vendor Homepage - https://www.dahuasecurity.com/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Gain control type - Auto
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Noise reduction technology - 3D NR
Video - Region of Interest (ROI) encoding - Yes
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264, H.264B, H.264H, H.265
Video - Video compression formats - H.264B
Video - Video compression formats - H.264H
Video - Video compression formats - H.265
Video - Video streaming - Yes
Video compression formats Video - H.264, H.264B, H.264H, H.265
Video motion detection Security - Yes
Video streaming Video - Yes
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 550
Weight & dimensions - Depth - 131 mm
Weight & dimensions - Height - 97.2 mm
Weight & dimensions - Weight - 254.5 g
Weight & dimensions - Width - 78.4 mm
Weight Weight & dimensions - 254.5 g
White balance Camera - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Width Weight & dimensions - 78.4 mm
