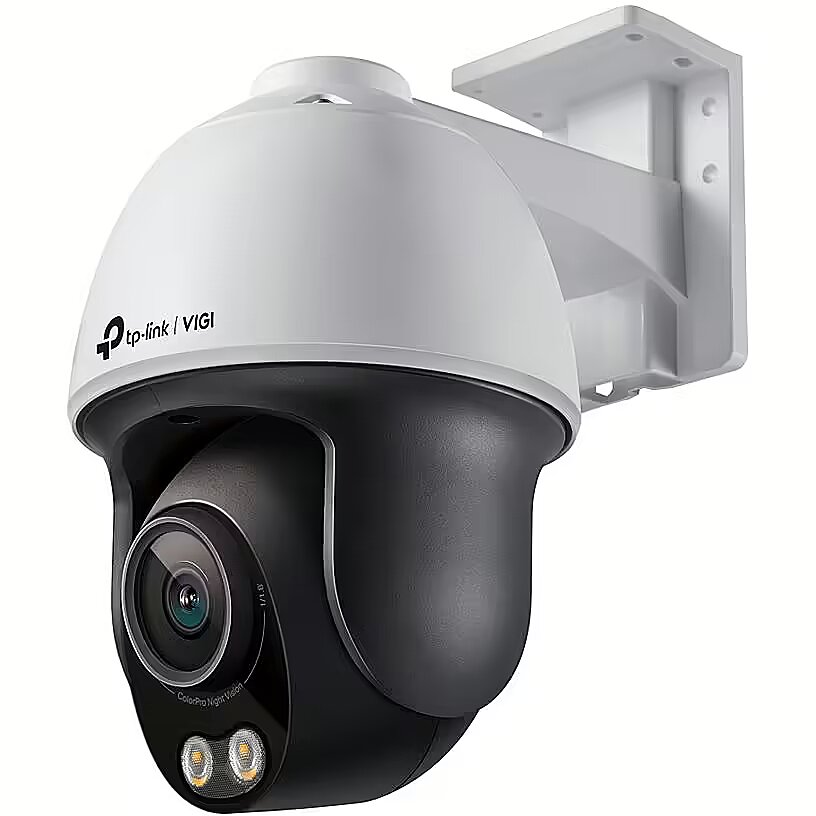

TP-LINK VIGI C540S ColorPro, 1520p, 4MP, White

Accessories included - VIGI C540S Quick installation guide Cable sealing elements Mounting accessories
ARTIKEL1 - 4MP PAN/TILT NETWORK CAMERA
ARTIKEL2 - COLORPRO
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Sample rates - 0 - 8 kHz
Audio > Audio in/out - Yes
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Audio system Audio - 2-way
Back Light Compensation (BLC) Video - Yes
Behavior analysis Management features - Intrusion detection,Line crossing detection,Region exiting detection
Bit rate range Audio - 0 - 64 Kbit/s
Bit rate Video - 256 Kbps - 6 Mbps
Bluetooth Network - No
Brand - TP-Link
BrandPartCode - VIGI C540S(4MM)
Breite - 0
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 127°
Camera - Lens viewing angle, horizontal - 104°
Camera - Lens viewing angle, vertical - 55°
Camera - Pan range - 0 - 348°
Camera - Pan speed - 44 °/sec
Camera - Tilt angle range - 0 - 105°
Camera - Tilt speed - 44 °/sec
Camera pan control Camera - Yes
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category - Root/Electronics/Networks and communication/Monitoring/Monitoring IP
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Certificates - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Certification Performance - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Code - VIGI C540S(4mm)
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Connectors - RJ-45
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 172 mm
Description - See Vivid Colors, Even in Darkness.
4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera VIGI ColorPro Night Vision
VIGI’s industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail. By adopting this best-in-class technology, VIGI C540S can provide 4MP high resolution and capture more vivid full-color images in extreme low-light conditions. Better than the Naked Eye
Featuring high low-light sensitivity, VIGI’s ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in ultra-low light conditions, which can’t be achieved with natural eyesight.** Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI’s ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.** Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution. Core Technology Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly. Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications. Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage. Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios. Set customized activity zones around key areas for more focused monitoring. Face Recognition
VIGI’s advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.* People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes. People Analytics
Filter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.* Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.* Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene. Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. PoE Connection, IP66 Weatherproof
PoE technology makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance. Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB). Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client. Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal. Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs. Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more. Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience. One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights360° Monitoring: Cover every corner and eliminate blind spotsFace Recognition*: Efficiently enhances access management and attendance control while better protecting privacy.*People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notificationsSmart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantlyTrue WDR Technology§: Enable crystal-clear images in high contrast scenesActive Defense: Warn potential intruders instantly with sound and light when abnormal eventsTwo-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhereH.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk spaceIP66 Waterproof: Reliable IP66 for stable outdoor performance*Face Recognition and People & Vehicle Analytics can't be turned on simultaneously.
§When Face Recognition s is enabled, only DWDR is supported.
†Micro SD card is not included in the package.
**VIGI ColorPro Night Vision image was captured by VIGI C340S.
△This value is compared with the traditional F2.0 aperture, 1/3" target surface sensor.
‡Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
Description - VIGI 4MP outdoor rotatable network camera with ColorPro night vision Color Night Vision in Low Light Conditions: Capture 24/7 images in 4MP resolution and full color, even in very low light conditions, without the use of additional lighting. 360° monitoring: Monitor every place and eliminate blind spots. Facial recognition: Effectively improves access management and attendance control while protecting privacy. People and Vehicles Analysis: Quickly find the people and vehicles you are interested in using numerous attribute filters to increase search efficiency. People and Vehicle Classification: Distinguishing people and vehicles from other objects allows you to receive more accurate event notifications. Smart Detection: Actively detects unexpected events, such as intrusion and crossing lines, and sends instant notifications. WDR technology: Crystal clear image in high contrast scenes. Active Protection: Instantly warn potential intruders with sound and light when detecting unexpected events. Two-way audio transmission: Voice intercom support enables two-way communication while viewing the camera stream. H.265+: Compresses video size without loss of quality, reduces network load and saves disk space. IP66 tightness class: Reliable operation in outdoor conditions thanks to the tight housing. VIGI ColorPro night vision VIGI ColorPro's industry-leading Night Vision technology enables cameras to overcome the darkness at night and see everything in precise detail. Thanks to this solution, the VIGI C540S camera can offer high-resolution 4MP images and vivid colors, even in very low light conditions. Better than human vision Thanks to its high light sensitivity, VIGI ColorPro Night Vision captures unparalleled colors, along with extremely sharp details, even in low light conditions, which is unattainable for natural human vision. Over Infrared and Full Color Images recorded by infrared (IR) cameras and regular full-color cameras will lose quality due to noise and fewer details. VIGI cameras with ColorPro Night Vision are able to capture excellent image details, even in conditions of extreme darkness. Less light pollution Bright lighting is required for regular full color cameras to be able to capture images when it is dark. VIGI cameras with ColorPro Night Vision deliver true colors and bright images, even in very low light conditions. By eliminating the need to use floodlights, VIGI ColorPro cameras significantly reduce light pollution in the environment. Effective pan and tilt Monitor every place with the VIGI rotating camera. Customize patrol routes to provide more accurate and faster monitoring of key areas (up to 8 points per route) and reduce the cost of manually adjusting camera angles and tilts. Classification of people and vehicles Integrated AI systems support advanced algorithms that distinguish people and vehicles from other objects. You can flexibly adapt alarm rules to suit your monitoring needs and receive more accurate event notifications. Automatic tracking The camera automatically tracks people or vehicles of interest and provides smooth and long recordings. This way you will know exactly what is happening and you will not waste time on irrelevant recordings. Smart detection is the basis for efficient monitoring By setting detection rules in advanced AI-powered VIGI cameras, you can accurately detect many unexpected events. This helps significantly reduce false alarms and meet your monitoring needs in a variety of applications. Face recognition Built-in facial recognition algorithms enable the VIGI camera to intelligently capture faces, extract facial features and create unique facial data. Comparing face data with the face library and quickly matching it significantly reduces the risk of unauthorized access. Intelligent H.265+ video encoding Your cameras can transmit compressed and crystal-clear images without using additional bandwidth, saving disk space, reducing network load and lowering monitoring costs, all without sacrificing image quality. Run your business with peace of mind The professional TP-Link monitoring system will enable you to protect your company regardless of the place and time. Unique functions, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.
Design - Form factor - Turret
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/wall
Design - Product colour - Black, White
Designation - CE+WEEE
Detect distance Lens system - 63 m
Digest authentication Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
dimension depth - 165 mm
dimension height - 240 mm
Dimensions - 120 × 172 × 203 mm
dimension weight - 920 g
dimension width - 210 mm
EAN - 4895252503098
ean - 4895252503098
EANCode - 4895252503098
Eans - 4895252503098
Environment requirements - Permissible operating temperature: -30-60 degrees Celsius Permissible storage temperature: -40-60 degrees Celsius Permissible air humidity: 95% or less (non-condensing) Allowable storage humidity: 95% or less (non-condensing)
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Form factor Design - Turret
Frame rate Video - 30 fps
Frames per second - 30
Gross Weight Kg - 1,05
GRUPPE1 - Network
GRUPPE2 - Network Camera
GTIN - 4895252503098
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 203 mm
HERSTELLER - TP-LINK
Highlight Compensation (HLC) Video - Yes
Hoehe - 0
Housing material Design - Plastic
HSTNUMMER - VIGI C540S(4MM)
HTTPS encryption Security - Yes
Human and vehicle targets classification Security - Yes
Identify distance Lens system - 6 m
Image quality adjustment Video - Brightness/Contrast/DNR/Mirror/Saturation/Sharpness
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
Intelligent Video Surveillance (IVS) system features Security - Abandoned object/Human detection/Vehicle detection
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
Laenge - 0
LED type Night vision - IR
Lens - Type: Fixed focal length lens Focal length: 4 mm Aperture: F1.0+/-5%
Lens diameter Lens system - 4 mm
Lens system - Detect distance - 63 m
Lens system - Identify distance - 6 m
Lens system - Lens diameter - 4 mm
Lens system - Number of lenses - 1
Lens system - Observe distance - 26 m
Lens system - Recognize distance - 13 m
Lens system > Lens type - Fixed Focal Lens
Lens viewing angle, diagonal Camera - 127 °
Lens viewing angle, horizontal Camera - 104 °
Lens viewing angle, vertical Camera - 55 °
Link - https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540s/
Live view Network - Yes
LongDesc - See Vivid Colors, Even in Darkness.4MP Outdoor ColorPro Night Vision Pan Tilt Network CameraVIGI ColorPro Night VisionVIGI’s industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail. By adopting this best-in-class technology, VIGI C540S can provide 4MP high resolution and capture more vivid full-color images in extreme low-light conditions.Better than the Naked EyeFeaturing high low-light sensitivity, VIGI’s ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in ultra-low light conditions, which can’t be achieved with natural eyesight.**Beyond IR, Beyond Full-ColorImages captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI’s ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.**Less Light PollutionBright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.Core TechnologyPowerful Pan TiltCover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Automatic TrackingAutomatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.Comprehensive AI Detection with Pre-Set Rules SupportedBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.Set customized activity zones around key areas for more focused monitoring.Face RecognitionVIGI’s advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.*People & Vehicle AnalyticsQuickly find people and vehicles of interest using a series of attributes.People AnalyticsFilter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.*Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.*Active DefenseWarn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere.Smart Video Coding by H.265+Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.PoE Connection, IP66 WeatherproofPoE technology makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.Flexible StorageLocal storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.Live Views and Real-Time AlertsEasily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.Easy & Smart PlaybackQuickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.Customized Monitoring PatternsBased on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.Four-Way ManagementFlexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - VIGI 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera
LongSummaryDescription - TP-Link VIGI C540S(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 104°, Lens viewing angle, vertical: 55°, Lens viewing angle, diagonal: 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 26 m, Recognize distance: 13 m
Management, monitoring, configuration - Smart Events Classification of people and vehicles Intrusion detection Line crossing detection People detection Vehicle detection Zone entry detection Zone exit detection Object abandonment detection Object deletion detection Vagrant detection Scene Change Detection Smart Frame Basic events Motion detection Video manipulation detection Exception (failed login) Alarm call Video recording to memory card Push notifications Audible warning Flashing white light Outgoing notification Push notification
Management features - Behavior analysis - Intrusion detection, Line crossing detection, Region exiting detection
Management features - Reset button - Yes
Management features - Smartphone/tablet remote support - Yes
Management features - Web browser - Yes
Manufacturer - TP-Link
Manufacturer Code - VIGI C540S(4MM)
Manufacturer Name - TP-LINK
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2688 x 1520 pixels
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - Yes
Mirror Security - Yes
Model - VIGI C540S
Motion detection - Yes
Mounting type Design - Ceiling/wall
MPN - VIGI C540S(4mm)
name - Network Camera VIGI C540S(4mm) 4MP Pan/Tilt
Name - TP-Link Omada IPCam VIGI C540S(4mm) 4MP ColorPro
Name - TP-Link VIGI C540S(4mm)
Name - TP-LINK | Network Camera | VIGI 4MP Outdoor ColorPro Night Vision Pan Tilt | Fixed Focal Lens | Power over Ethernet (PoE)
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Number of simultaneous live view channels - 3 channels
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Networking > Power over Ethernet (PoE) - Yes
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night mode - No
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Number of simultaneous live view channels Network - 3 channels
Observe distance Lens system - 26 m
Operating relative humidity (H-H) Operational conditions - 0 - 95 %
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 1/3 "
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 243.00 mm
Package features > Gross height (mm) - 163.00 mm
Package features > Gross width (mm) - 213.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 205 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Number of cameras - 1
Pan range Camera - 0 - 348 °
Pan speed Camera - 44 °/sec
Password protection Security - Yes
Performance - Certification - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Preset points - Yes
Performance - PTZ control - Yes
Performance - PTZ modes - Auto scan, Preset point
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Performance > Alarm input/output - No
Performance > Wide Dynamic Range (WDR) - Yes
Picture quality > Camera type - Outdoor
Placement supported Performance - Indoor & outdoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 13.13 W
Power - Power consumption (Power over Ethernet (PoE)) - 16.47 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 13.13 W
Power consumption (Power over Ethernet (PoE)) Power - 16.47 W
Power source type Power - DC,PoE
Power supply - 12V DC +/- 5%, Max 13.13W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16.47 W
Preset points Performance - Yes
Privacy masking Video - Yes
producer - TP-LINK
Producer - TP-Link
ProducerCode - VIGI C540S(4mm)
Product colour Design - Black/White
ProductName - VIGI C540S(4mm)
Protection class - IP66
PTZ control Performance - Yes
PTZ modes Performance - Auto scan/Preset point
Recognize distance Lens system - 13 m
Region of Interest (ROI) encoding Video - Yes
Reset button Management features - Yes
Resolution - 2688 x 1520
Sample rates Audio - 0 - 8 kHz
Security - Password Protection, HTTPS Encryption, IP Filter, Digest Authorization
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Human detection, Vehicle detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Sensor - 1/1.79 Progressive Scan CMOS
Sensor type Image sensor - CMOS
ShortDescription -
Short description - TP-LINK 4MP IP-Cam (4mm Lens) VIGI C540S(4mm) ColorPro Pan/Tilt Network Camera
ShortSummaryDescription - TP-Link VIGI C540S(4mm), IP security camera, Indoor & outdoor, Wired, Auto scan, Preset point, CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, Ceiling/wall
Smartphone/tablet remote support Management features - Yes
Speakers built-in - Yes
Special functions -
Stck_Kart - 9998
Stck_Pal - 0
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage relative humidity (H-H) Operational conditions - 0 - 95 %
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Storno - N
Summary - TP-Link VIGI C540S(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 104°, Lens viewing angle, vertical: 55°, Lens viewing angle, diagonal: 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 26 m, Recognize distance: 13 m
Supported graphics resolutions Video - 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Supported network protocols Network - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
System Requirements -
Technical details > Gross weight - 1.10 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - Network Camera
Technical details > Producer product name - VIGI 4MP Outdoor ColorPro Night Vision Pan Tilt
Tilt angle range Camera - 0 - 105 °
Tilt speed Camera - 44 °/sec
Title - TP-Link VIGI C540S(4mm) Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
Total megapixels Video - 4 MP
Two-way transmission - Yes
type - fixed camera
Type Performance - IP security camera
Unit Box Height - 0.24
Unit Box Length - 0.21
Unit Box Width - 0.16
Unit Calculated Volume - 0.008064 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/in/business-networking/vigi-network-camera/vigi-c540s/
Vendor Homepage - https://www.tp-link.com/in/business-networking/vigi-network-camera/vigi-c540s/
vendpn - VIGI C540S(4mm)
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 256 Kbps - 6 Mbps
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, DNR, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2688 x 1520 pixels
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Video > Maximum video resolution - 2688 x 1520 pixels
Video compression formats Video - H.264/H.264+/H.265/H.265+
Video streaming Video - Yes
Viewing angle, horizontal - 104 °
Viewing angle, vertical - 55 °
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Web browser Management features - Yes
Weight & dimensions - Depth - 172 mm
Weight & dimensions - Height - 203 mm
Weight & dimensions - Width - 120 mm
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 120 mm
Wireless communication - No
