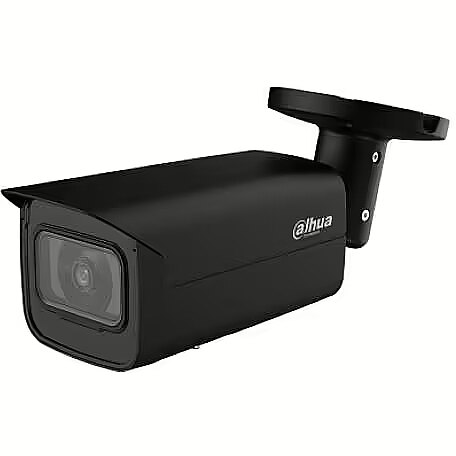

Dahua BULLET/HFW5541T-ASE-0280B-S3-B, 1668p, 5MP, Black

Alarm input/output Performance - Yes
Angle of rotation Camera - 360 °
Audio - Audio formats supported - AAC
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Voice codecs - G.711Mu, G.711a, G.723, G.726
Audio formats supported Audio - AAC
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Video - 32- 8192Kbps, 19- 8192Kbps
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - IPC-HFW5541T-ASE
Built-in HDD Storage - No
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera shutter type - Electronic, Mechanical
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, horizontal - 84°
Camera - Lens viewing angle, vertical - 58°
Camera - Minimum illumination - 0 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto, Manual, Natural, Outdoor
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/3 - 1/100000 s
Camera shutter type Camera - Electronic/Mechanical
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Certification Performance - CE-LVD:EN60950-1
CE-EMC
2014/30/EU
FCC:47 CFR FCC 15, B
UL/CUL:
UL60950-1
CAN/CSA C22.2 No.60950-1-07
Closest focusing distance Lens system - 1.6 m
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 75.9 mm
Description - Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way 1/2.7” 5Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 20fps@2592×1944 WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm, 6mm, 8mm, 12mm optional) 1/1 Alarm in/out, 1/1 audio in/out Max. IR LEDs Length 78m Micro SD memory, IP67
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Detect distance Lens system - 80 m
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 3.6 mm
Flip & mirror Video - Yes
Form factor Design - Bullet
Frame rate Video - 30 fps
Gain control type Video - Auto/Manual
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
Identify distance Lens system - 8 m
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Intrusion/People counting/Scene change/Tripwire
Internal memory Storage - 512 MB
International Protection (IP) code Design - IP67
LED type Night vision - IR
Length Weight & dimensions - 244.1 mm
Lens system - Closest focusing distance - 1.6 m
Lens system - Detect distance - 80 m
Lens system - Fixed focal length - 3.6 mm
Lens system - Identify distance - 8 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 32 m
Lens system - Recognize distance - 16 m
Lens viewing angle, horizontal Camera - 84 °
Lens viewing angle, vertical Camera - 58 °
LongDesc - Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way
LongProductName - DH-IPC-HFW5541T-ASE, 5 MP, 1/2.7" CMOS, 2592x1944, 3.6mm, IR, RJ-45, Micro SD, DC 12V, PoE, IP67, 244.1x79x75.9 mm
LongSummaryDescription - Dahua Technology Pro DH-IPC-HFW5541T-ASE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 32 m, Recognize distance: 16 m
Management features - Web-based management - Yes
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2592 x 1944 pixels
Minimum illumination Camera - 0 lx
Mirror Security - Yes
Mobile operating systems supported System requirements - Android/iOS
Model - IPC-HFW5541T-ASE-0280B-S3-B
Mounting type Design - Ceiling/wall
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Number of users - 20 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Streaming method - Multicast, Unicast
Network - Supported network protocols - HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Network - Wi-Fi - No
Networking standards Network - IEEE 802.3af
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 78 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 78 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Number of users Network - 20 user(s)
Observe distance Lens system - 32 m
Operating relative humidity (H-H) Operational conditions - 10 - 95 %
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - 5 - 40 °C
Optical sensor size Image sensor - 1/2.7 "
Package weight Packaging data - 1080 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 1.08 kg
Pan range Camera - 0 - 360 °
Performance - Alarm input/output - Yes
Performance - Certification - CE-LVD:EN60950-1
CE-EMC
2014/30/EU
FCC:47 CFR FCC 15, B
UL/CUL:
UL60950-1
CAN/CSA C22.2 No.60950-1-07
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 7.1 W
Power - Power consumption (Power over Ethernet (PoE)) - 8.4 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 7.1 W
Power consumption (Power over Ethernet (PoE)) Power - 8.4 W
Power source type Power - DC,PoE
Privacy masking Video - Yes
Product colour Design - Black
ProductName - DH-IPC-HFW5541T-ASE
Progressive scan Image sensor - Yes
Quality of Service (QoS) support Network - Yes
Recognize distance Lens system - 16 m
ROM capacity Storage - 128 MB
Security - Intelligent Video Surveillance (IVS) system features - Intrusion, People counting, Scene change, Tripwire
Security - Mirror - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology Pro DH-IPC-HFW5541T-ASE, IP security camera, Outdoor, Wired, CE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2..., Ceiling/wall, White
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Internal memory - 512 MB
Storage - Maximum memory card size - 256 GB
Storage - ROM capacity - 128 MB
Storage relative humidity (H-H) Operational conditions - 10 - 95 %
Storage temperature (T-T) Operational conditions - 5 - 40 °C
Streaming method Network - Multicast/Unicast
Summary - Dahua Technology Pro DH-IPC-HFW5541T-ASE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 32 m, Recognize distance: 16 m
Supported graphics resolutions Video - 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2592 x 1944/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported network protocols Network - HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Supported video modes Video - 1080p/720p
System requirements - Mobile operating systems supported - Android, iOS
Tilt angle range Camera - 0 - 90 °
Title - Dahua Technology Pro DH-IPC-HFW5541T-ASE Bullet IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall
Total megapixels Video - 5 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Calculated Volume - 0.00396 cubm
Unit Calculated Weight - 1.2 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/
Vendor Homepage - https://www.dahuasecurity.com/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32- 8192Kbps, 19- 8192Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Flip & mirror - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2592 x 1944 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
Video - Supported video modes - 720p, 1080p
Video - Total megapixels - 5 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+, M-JPEG
Video - Video streaming - Yes
Video compression formats Video - H.264/H.264+/H.265/H.265+/M-JPEG
Video motion detection Security - Yes
Video streaming Video - Yes
Voice codecs Audio - G.711a/G.711Mu/G.723/G.726
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Depth - 75.9 mm
Weight & dimensions - Length - 244.1 mm
Weight & dimensions - Weight - 815 g
Weight & dimensions - Width - 79 mm
Weight Weight & dimensions - 815 g
White balance Camera - Auto/Manual/Natural/Outdoor
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 79 mm
