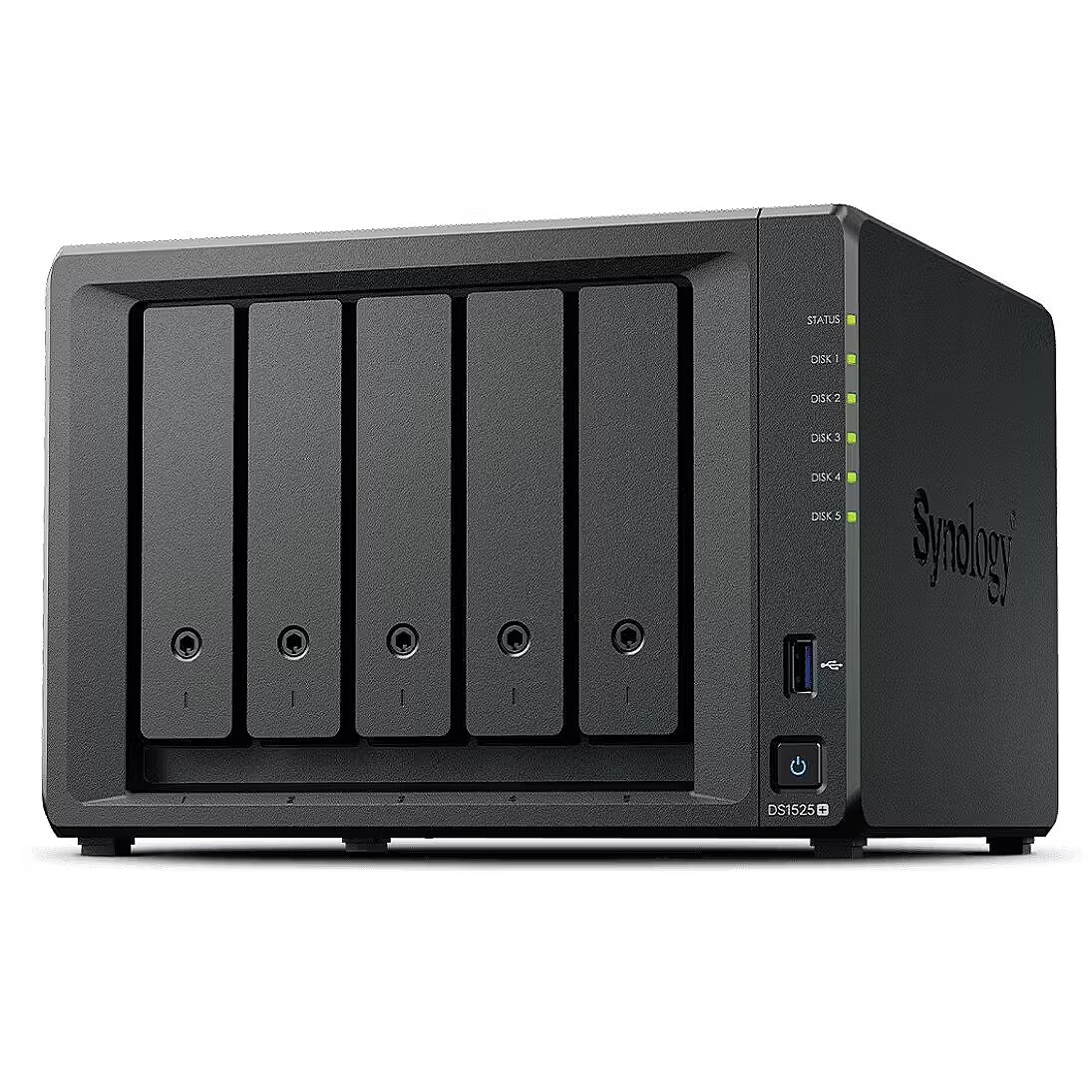

Synology Server DS1525+ V1500B 2,2Ghz 1x8GB DDR4 2x2,5GbE 3Y

Access Control List (ACL) Performance - Yes
Accessories included - Main unit Accessory kit AC power adapter AC power cord 2 x RJ-45 LAN cables
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Additional information - The Quick Repair service is an initiative by Synology and authorized Polish distributors, allowing Synology partners to provide customers with a working device without long downtime in the event of a failure. Thanks to local spare parts inventories, partners should receive a functioning device within a maximum of 3 days. * This service is free of charge. Repair times are not guaranteed, as they depend on the current availability of spare parts and may be extended in certain cases.
Backup features Performance - Cloud, iSCSI LUN
Backup function Performance - Yes
Browser supported Performance - Chrome,Firefox,Edge,Safari
Built-in RAM memory - 8 GB
Cables included Packaging content - AC, LAN (RJ-45)
Category - Root/Electronics/Networks and communication/NAS - file servers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Code - DS1525+
Compliance certificates Other features - RoHS
Cooling type Design - Active
Dane techniczne: Całkowita liczba gniazd pamięci - 2 szt.
Dane techniczne: Częstotliwość procesora - 2200 MHz
Dane techniczne: Format szerokości dysku twardego - 2.5 cala
Dane techniczne: Format szerokości dysku twardego - 3.5 cala
Dane techniczne: Format szerokości dysku twardego - M.2 NVMe (2280)
Dane techniczne: Grupa produktowa - NAS - serwery plików Synology
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Głośność pracy - 22.6 dB
Dane techniczne: Ilość pamięci RAM - 8 GB
Dane techniczne: Interfejs dysku twardego - M.2
Dane techniczne: Interfejs dysku twardego - Serial ATA III
Dane techniczne: Interfejs LAN - 2 x 2.5GbE LAN
Dane techniczne: Maks. ilość dysków twardych - 7 (5 x SATA | 2 x M.2)
Dane techniczne: Maks. pojemność dysków twardych - 20480 GB
Dane techniczne: Maks. rozmiar pamięci - 32 GB
Dane techniczne: Obsługiwany typ RAID - Basic
Dane techniczne: Obsługiwany typ RAID - JBOD
Dane techniczne: Obsługiwany typ RAID - RAID 0
Dane techniczne: Obsługiwany typ RAID - RAID 1
Dane techniczne: Obsługiwany typ RAID - RAID 5
Dane techniczne: Obsługiwany typ RAID - RAID 6
Dane techniczne: Obsługiwany typ RAID - RAID 10
Dane techniczne: Obsługiwany typ RAID - Synology Hybrid RAID
Dane techniczne: Obudowa - wolnostojąca
Dane techniczne: Procesor - AMD Ryzen V1500B
Dane techniczne: Producent - Synology
Dane techniczne: Typ pamięci - SO-DIMM (DDR4 ECC)
Dane techniczne: Waga - 2.7 kg
Dane techniczne: Wymiana dysków hot-swap - tak
Dane techniczne: Wymiary - 166 x 230 x 223 mm
Dane techniczne: Zasilanie - zasilacz zewnętrzny
Dane techniczne: Zastosowanie - kopie zapasowe
Dane techniczne: Zastosowanie - serwer iTunes
Dane techniczne: Zastosowanie - serwer plików
Dane techniczne: Zastosowanie - serwer VPN
Dane techniczne: Zastosowanie - stacja monitoringu
Dane techniczne: Zastosowanie - stacja pobierająca dane
Dane techniczne: Złącza zewnętrzne - 2 x RJ-45
Dane techniczne: Złącza zewnętrzne - 2 x USB 3.2 Gen 1 Type-C
Data Act - Link
Depth Weight & dimensions - 223 mm
Description - A storage solution that can adapt with your evolving needs 5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2 High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4 Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sitesUp to 1,181 MB/s sequential read and 1,180 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple usersTwo 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilitiesSupport for 10GbE networking via 10GbE RJ-45 Network Upgrade Module provides versatility and futureproofingSupports 5 2.5" SATA SSD and 3.5" SATA HDD.8 Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliabilityExpandable to 15 drives for up to 300 TB of raw storage with twoSynology DX525 expansion unitsTwo built-in M.2 slots provide SSD caching capability without occupying drive bays
Description - DiskStation DS1525+ Flexible Data Management Platform for Multiple Applications
The Synology DS1525+ is a versatile 5-bay NAS that adapts to your needs, supporting storage expansion, 10GbE networking, and SSD caching. Built-in 2.5GbE networking delivers excellent performance straight out of the box. Powered by Synology DiskStation Manager (DSM), it offers a flexible, all-in-one solution for file sharing, synchronization, backup, and surveillance. Reliable Performance
Sequential read/write speeds of up to 1,181/1,180 MB/s ensure fast and stable data transfers. Fast Networking
Built-in 2.5GbE ports provide high-speed connectivity with support for 10GbE networking via an upgrade module. Versatile Network Storage
Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions. Expandable Capacity
Add up to 10 additional drives with two DX525 expansion units, for a maximum of 300 TB raw storage. Extendable Product Support
Backed by a 3-year limited hardware warranty, extendable to 5 years in select markets. Comprehensive Storage for Any Purpose
The DS1525+ provides intuitive file management, media organization, and backup options out of the box. Its performance, compact design, and versatile configuration options make it ideal for IT enthusiasts, creative professionals, and businesses of all sizes-from small offices to large enterprises-as an edge device for branch offices or retail locations. High-Speed File Sharing Up to 1,181 MB/s sequential read and 1,180 MB/s sequential write for fast file sharing, syncing, streaming, and backups for multiple users. Two 2.5GbE ports with Link Aggregation support failover and load balancing. 10GbE network support via optional RJ-45 upgrade module for future-proof connectivity. Supports 5 x 2.5" SATA SSDs and 3.5" SATA HDDs. Synology drives are designed for seamless integration and exceptional reliability. Expandable up to 15 drives (300 TB raw) with two DX525 expansion units. Two built-in M.2 slots for SSD caching without occupying drive bays. Ease of Use and Security Quick access via any browser through QuickConnect. Adaptive Multi-Factor Authentication (AMFA) triggers for suspicious external logins. Customizable delegation roles allow admins to assign roles while limiting access to critical system settings. Active Insight monitors your fleet in the cloud, using machine learning to detect malware and malicious activity while automatically creating immutable snapshots to protect data. Collaboration, Communication, and Organization Synology Drive centralizes file storage and organization, with detailed sharing permissions and customizable security. Synology Photos offers complete photo and video management, suitable for personal or professional use. Synology Office enables real-time collaboration on documents, spreadsheets, and presentations, with versioning and password protection. Synology Chat connects teams via one-to-one, group chats, and encrypted private channels. Synology MailPlus provides a secure, reliable, private email server. Synology Calendar helps teams track priorities through shared calendars. Synology Hybrid Share enhances multi-site collaboration with global hybrid cloud file systems, combining cloud scalability with fast local access. Reliable Virtualization and Containerization Use Synology as storage for virtual machines or as an alternative host for containers and VMs, fully certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack. Synology Storage Console for VMware or Windows allows VM storage management directly from the hypervisor. VMware VAAI and Windows ODX integration accelerate storage operations and data transfer. Host lightweight containers and VMs for testing, sandboxing, or disaster recovery with Container Manager and Synology Virtual Machine Manager, supporting Windows, Linux, and virtual DSM instances. Private Video Surveillance Synology Surveillance Station transforms any Synology system into a powerful Network Video Recorder (NVR). Supports over 8,700 camera models and ONVIF for broader compatibility. Private, license-free recording storage. Access via web browsers, desktop clients, and mobile apps. Event-based rules to trigger specific actions. Notifications via email, SMS, and push. Simultaneous cloud recording with C2 Backup for Surveillance provides an additional layer of protection and easier sharing.
Design - Cooling type - Active
Design - Drive bay locking - Yes
Design - Fan diameter - 9.2 cm
Design - Fan diameter 2 - 9.2 cm
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design > Chassis type - Tower
Design > Colour of product - Black
Designation - CE+WEEE
Device class Performance - Home & Home Office
dimensionalWeight - 5854
dimension depth - 290 mm
dimension height - 295 mm
Dimensions - 166 x 230 x 223 mm
dimension weight - 4500 g
dimension width - 285 mm
Disk type - HDD
Disk type - SSD
Drive bay locking Design - Yes
EAN - 4711174726011
ean - 4711174726011
Eans - 4711174726011
ECC Memory - Yes
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Network - 2500 Mbit/s
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 2
External power adapter Packaging content - Yes
Fan - 9.2 cm
Fan diameter 2 Design - 9.2 cm
Fan diameter Design - 9.2 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Form factor (width) - M.2 2280
Gross Weight Kg - 3,5
guarantee - 36
guarantee_type - normal
HDD interface - NVMe
HDD interface - SATA
Height Weight & dimensions - 166 mm
Hot-swap drive bays Storage - Yes
Hot-swapping support - Yes
Housing - Desktop
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB (Type C)
I/O connectors - 2 x USB 3.2 Type-A Gen 1
Installed storage drive type Storage - No
Internal memory Memory - 8 GB
Internal memory type Memory - DDR4
LED indicators Design - Yes
Link - https://www.synology.com/en-sg/products/DS1525+
Manufacturer - Synology
Manufacturer Code - DS1525+
Manufacturer Name - Synology
Max. number of disks - 5
Maximum RAM supported Memory - 32 GB
Maximum supported storage capacity Storage - 300 TB
Max memory size - 32 GB
Memory - ECC - Yes
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory form factor Memory - SO-DIMM
Memory slots Memory - 2
Memory type - SODIMM DDR4
Model - DS1525+
Model name - DS1525+
MPN - DS1525+
Multilingual support Performance - Yes
Name - 5-Bay Synology DS1525+
name - Server DS1525+ V1500B 2,2Ghz 1x8GB DDR4 2x2,5GbE 3Y
Name - Synology DiskStation | DS1525+ | AMD Ryzen | V1500B | 8 GB | DDR4 | Black
Name - Synology DS1525+
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, sesje Kerberized NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Noise level Performance - 22.6 dB
Number of available memory slots - 1
Number of fans - 2
Number of fans Design - 2 fan(s)
Number of HDDs installed - 0
Number of M.2 (M & B) slots Storage - 2
Number of memory slots used - 1
Number of storage drives supported Storage - 15
Number of users Performance - 1024 user(s)
On/off switch Performance - Yes
Operating altitude Operational conditions - 0 - 5000 m
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters - Maximum number of drive bays with optional (2 x DX525) expansion unit: 15
Other features - Compliance certificates - RoHS
Other features - Warranty period - 3 year(s)
Other features > Drive bays - 5
Other features > Ethernet LAN (RJ-45) ports - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 42 pc(s)
Package features > Paper/Pasteboard - 530.00 g
Package features > Tare weight (kg) - 0.53 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - External power adapter - Yes
Packaging content - Power cables quantity - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Chrome,Firefox,Edge,Safari
Performance - Device class - Home & Home Office
Performance - Multilingual support - Yes
Performance - Noise level - 22.6 dB
Performance - Number of users - 1024 user(s)
Performance - On/off switch - Yes
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - Web-based management - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (HDD standby) - 13.63 W
Power - Power consumption (typical) - 44.56 W
Power - Power supply location - External
Power - Power supply unit (PSU) capacity - 120 W
Power cables quantity Packaging content - 1
Power consumption (HDD standby) Power - 13.63 W
Power consumption (typical) Power - 44.56 W
Power supply - Power supply voltage: AC 100V to 240V AC Power supply frequency: 50/60 Hz, single-phase
Power supply location Power - External
Power supply unit (PSU) capacity Power - 120 W
Processor - AMD Ryzen V1500B
Processor - Processor cores - 4
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 2.2 GHz
Processor - Processor generation - AMD Ryzen Embedded V1000 Series
Processor - Processor manufacturer - AMD
Processor - Processor model - V1500B
Processor - Processor threads - 8
Processor > Processor family - AMD Ryzen
Processor > Processor model - V1500B
Processor cores Processor - 4
Processor family Processor - Ryzen Embedded
Processor frequency Processor - 2.2 GHz
Processor generation Processor - AMD Ryzen Embedded V1000 Series
Processor manufacturer Processor - AMD
Processor model Processor - V1500B
Processor threads Processor - 8
Producent: Nazwa producenta / importera - Synology
Synology GmbH
Grafenberger Allee 295
40237 Düsseldorf

producer - Synology
Producer - Synology
ProducerCode - DS1525+
producerCode - Synology DS1525+
Product colour Design - Black
productName - Synology DiskStation DS1525+ NAS/storage server Ryzen Embedded V1500B 8 GB DDR4 0 TB Black
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - Basic
RAID levels - JBOD
RAID levels Storage - 0, 1, 5, 6, 10, JBOD
RAID support Storage - Yes
ShortDescription -
Short description - Synology NAS Disk Station DS1525+ (5 Bay)
sizeX - 315
sizeY - 295
sizeZ - 315
Snapshot Performance - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Maximum supported storage capacity - 300 TB
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 15
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drive capacity - 0 GB
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5
Storage - Storage drive sizes supported - M.2
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - FAT32
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - M.2, Serial ATA
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 0 TB
Storage drive capacity Storage - 0 GB
Storage drives installed Storage - No
Storage drive sizes supported Storage - 3.5,M.2,2.5
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Synology DiskStation DS1525+. Type: NAS, Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB
Supported file systems Storage - BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces Storage - M.2, Serial ATA
Supported storage drive types Storage - HDD & SSD
System log Performance - Yes
Technical details > Gross weight - 3.20 kg
Technical details > Net weight - 2.67 kg
Technical details > Producer - Synology
Technical details > Producer product family - DiskStation
Technical details > Producer product name - DS1525+
Total installed storage capacity Storage - 0 TB
Total number of memory slots - 2
Type Performance - NAS
Unit Box Height - 0.3
Unit Box Length - 0.32
Unit Box Width - 0.29
Unit Calculated Volume - 0.02784 cubm
Unit Calculated Weight - 4.8 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.synology.com/en-sg/products/DS1525+#specs
vendpn - DS1525+
Wake-on-LAN ready Network - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
Warranty period Other features - 3 year(s)
warrantyType - F
Web-based management Performance - Yes
Weight - 2.67 kg
Weight - 4.765
weight - 4800
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 166 mm
Weight & dimensions - Weight - 2.67 kg
Weight & dimensions - Width - 230 mm
Weight Weight & dimensions - 2.67 kg
Width Weight & dimensions - 230 mm
