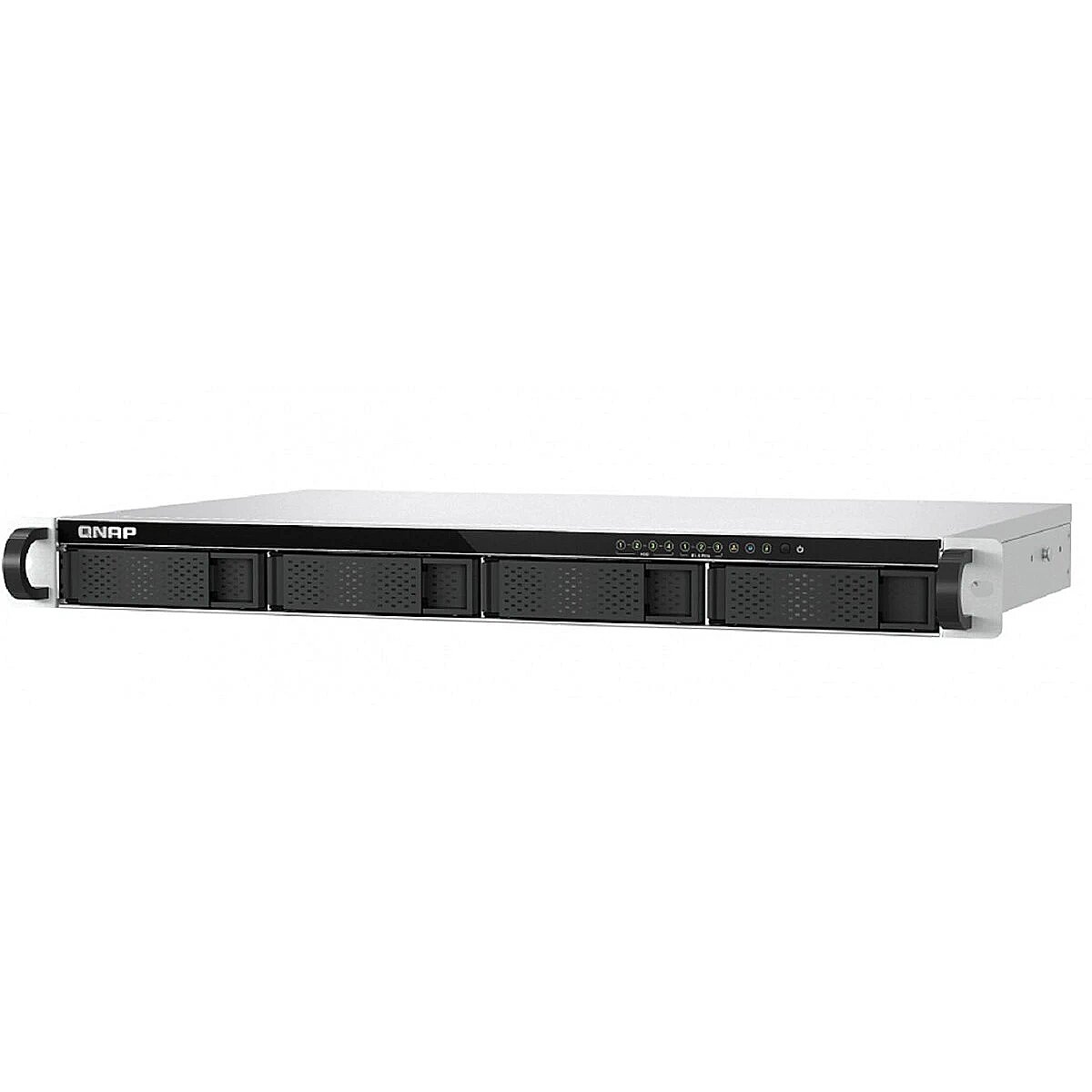

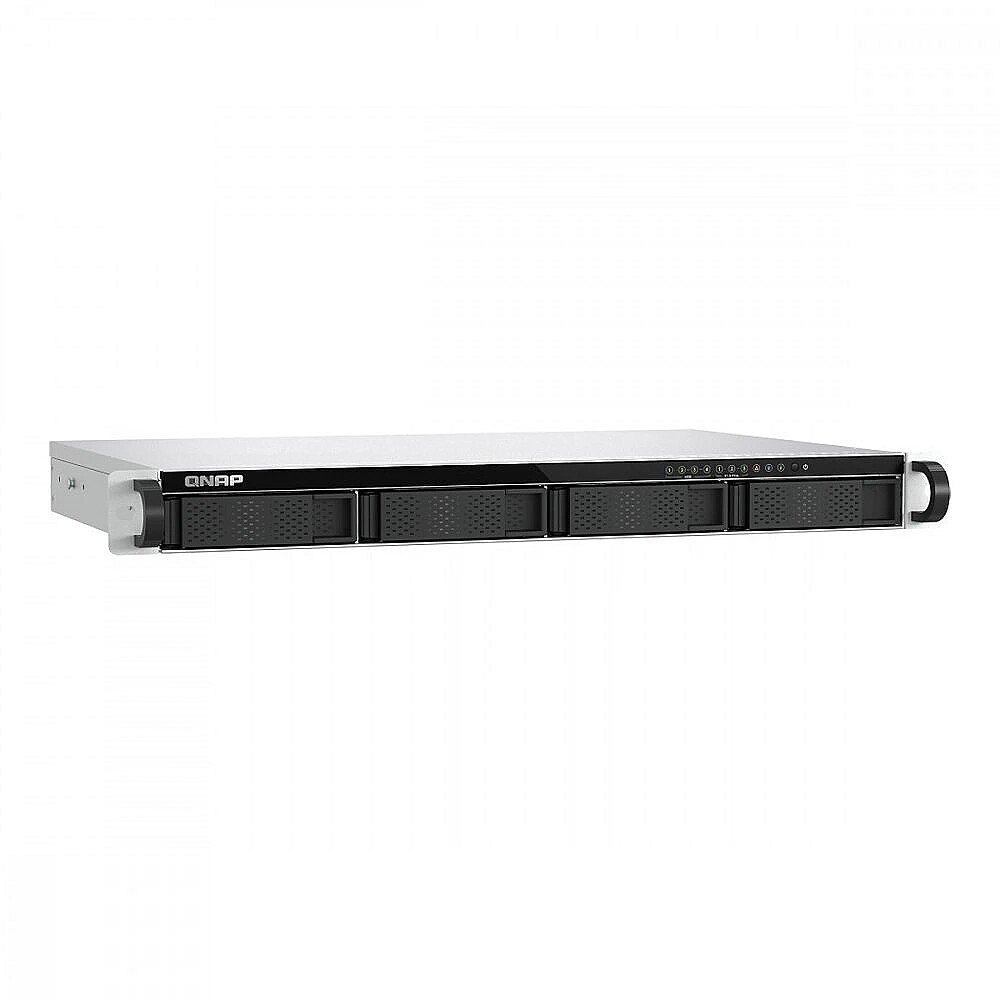

Qnap TS-765eU-8G, 4-Bay, 1U

Accessories included - TS-h765eU 1 x Ethernet cable Power cord 16 x flat-head screws (for 3.5" hard drives) 12 x flat-head screws (for 2.5" hard drives) Installation guide 2 x hangers 2 x brackets
Brand - QNAP
BrandPartCode - TS-H765EU-8G
Built-in flash memory - 8 GB
Built-in RAM memory - 8 GB
Category - NAS & Storage Servers
Category - Root/EXPORT/AKCESORIA EXP
Code - TS-h765eU-8G
Description - TS-h765eU
Compact 1U Rack-mount NAS with Short Depth E1.S/M.2 PCIe NVMe Slots and 10GbE Expansion
This 1U rack-mount NAS is designed for space-constrained environments, offering a high-performance and reliable storage solution for a variety of needs. Powered by the latest Intel Atom x7000C series processor, the TS-h765eU features four 3.5-inch drive bays and three E1.S/M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high-performance, multitasking applications. The TS-h765eU runs the ZFS-based QuTS hero operating system, ensuring data integrity and WORM protection for data immutability.
Space-Saving
The 1U slim depth of just 292.1mm facilitates installation in small racks or wall-mounted network cabinets and various space-constrained environments, including factories, small offices, surveillance rooms, audiovisual rooms, and vehicle applications.
DDR5 RAM
The built-in, high-performance, and energy-efficient DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB of RAM can be installed.
Standard Dual 2.5GbE Ports
Get faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Long-Term Power Supply
The TS-h765eU will be available and supported by QNAP for an extended period until 2031.
Design - Chassis type - Rack (1U)
Design - Cooling type - Active
Design - Fan diameter - 4 cm
Design - LED indicators - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black, Grey
Design > Chassis type - Rack
Designation - CE+WEEE
dimension depth - 170 mm
dimension height - 580 mm
Dimensions - 43 × 430 × 292.1 mm
dimension weight - 6300 g
dimension width - 460 mm
Disk type - HDD
Disk type - SSD
EAN - 4711103085721
ean - 4711103085721
Eans - 4711103085721
Expansion slots - 3 x M.2
Fan - 4 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
GTIN - 4711103085721
guarantee - 36
guarantee_type - normal
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
Hot-swapping support - Yes
Housing - Rack 1U
I/O connectors - 1 x USB 2.0
I/O connectors - 1 x USB 3.0
Link - https://www.qnap.com/en/product/ts-h765eu/specs/hardware
LongDesc - TS-h765eUCompact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandabilityThe 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
LongProductName - 4 x 3.5" SATA 6Gb/s, Intel Atom x7405C, 8 GB SODIMM DDR5, 2.5 Gigabit Ethernet, 150W, 43 x 430 x 292.1 mm
LongSummaryDescription - QNAP TS-h765eU. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Intel Atom®. Internal memory: 8 GB, Internal memory type: DDR5. Operating system installed: QuTS hero
Management, monitoring, configuration -
Max. number of disks - 3
Max memory size - 16 GB
Memory - Flash memory - 8000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR5
Memory - Maximum RAM supported - 16 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 1
Memory > Internal memory type - SODIMM DDR5
Memory > Internal RAM - 8 GB
Memory type - SODIMM DDR5
Name - QNAP 1U Short-depth Rackmount NAS | TS-h765eU-8G | Intel Atom | x7405C | 8 GB | SODIMM DDR5
Name - Qnap TS-h765eU-8G
name - TS-h765eU-8G 1U 7x0HDD Int.Atomx7405C 4-cor 8G
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of available memory slots - 1
Number of fans - 3
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - 20 - 70 °C
Other disk parameters -
Other features -
Other features > Drive bays - 7
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 297.40 mm
Package features > Gross height (mm) - 88.60 mm
Package features > Gross width (mm) - 432.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 76 pc(s)
Package features > Paper/Pasteboard - 1300.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Disk scan - Yes
Performance - On/off switch - Yes
Performance - Password authentication - Yes
Performance - Remotely operated - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Snapshot - Yes
Performance - Type - NAS
Ports & interfaces - Concurrent connections - 1500
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 150 W
Power supply - Power supply unit: 150 W, 100-240 V
Processor - Intel Atom x7405C 4-core, up to 3.4GHz
Processor - Number of processors supported - 1
Processor - Processor boost frequency - 3.4 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel Atom®
Processor - Processor manufacturer - Intel
Processor > Processor family - Intel Atom
Processor > Processor model - x7405C
producer - QNAP
Producer - Qnap
ProducerCode - TS-h765eU-8G
ProductName - TS-h765eU
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - JBOD
ShortDescription -
ShortSummaryDescription - QNAP TS-h765eU, NAS, Rack (1U), Intel Atom®, 8 GB, DDR5, QuTS hero
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Operating system installed - QuTS hero
Software - Operating system version - h5.2.3
Software - Other operating systems supported - IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Software - Windows operating systems supported - Windows 10, Windows 11, Windows 7, Windows 8
Storage - Auto-rebuild - Yes
Storage - Bad block scan - Yes
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 4
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 3.5,E1.S
Storage - Supported file systems - FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 9.60 kg
Technical details > Net weight - 8.10 kg
Technical details > Producer - QNAP
Technical details > Producer product family - 1U Short-depth Rackmount NAS
Technical details > Producer product name - TS-h765eU-8G
Title - QNAP TS-h765eU NAS Rack (1U) Intel Atom® 8 GB DDR5 QuTS hero Black, Grey
Total number of memory slots - 2
URL - https://www.qnap.com/en/product/ts-h765eu
vendpn - TS-h765eU-8G
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3-year
Weight - 4.51 kg
Weight & dimensions - Depth - 292.1 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Weight - 4.51 kg
Weight & dimensions - Width - 430 mm
