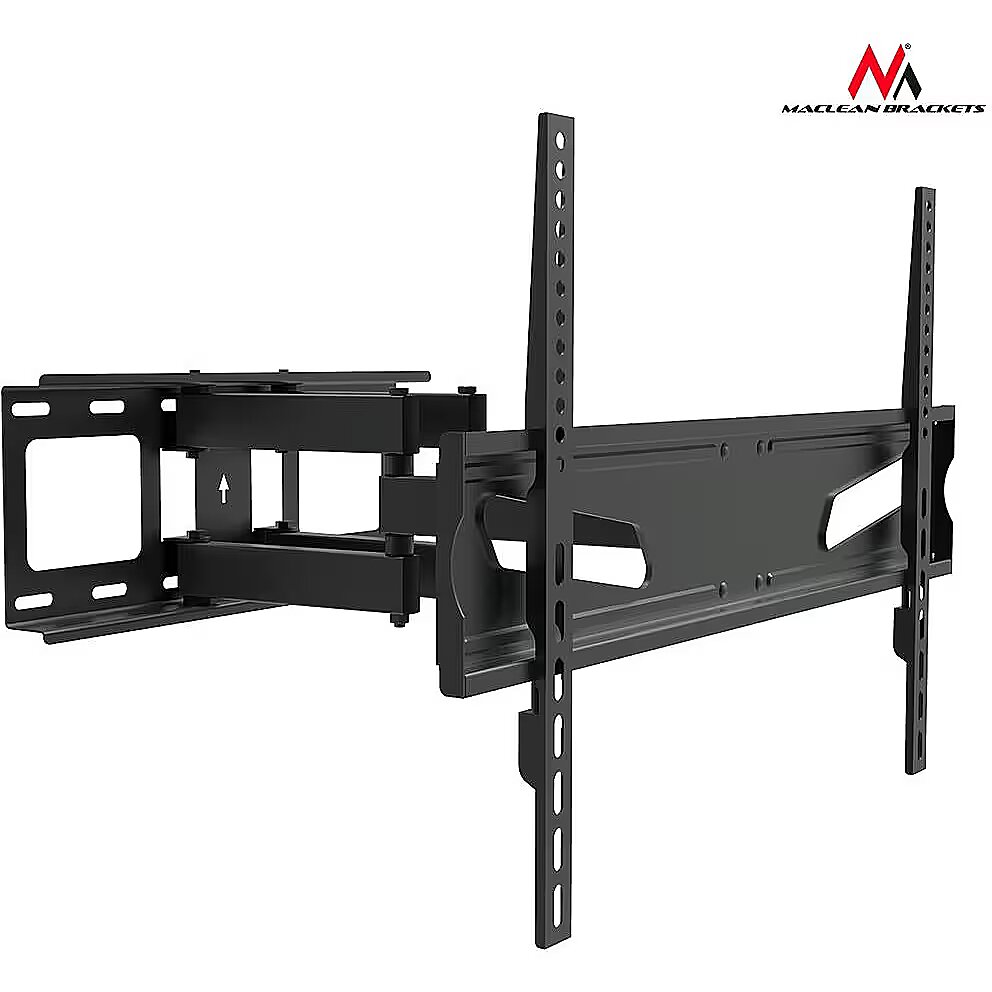

Maclean MC-723, Bracket for TV, 37-80"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product. This image was created with the help of AI and is for illustrative purposes. The appearance, colours, dimensions, lighting and arrangement of the components may differ from the actual product. The image may include parts and accessories that are not included with the product.
ID: 230892 Product code: MC-723
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Maximum load (1 screen), kg: 45.00
  • Maximum screen diagonal, inches: 70
  • Minimum screen diagonal, inches: 37
Similar Products
This product Maclean MC-723, Bracket for TV, 37-80"
Maclean MC-748A, TV Mount, 32-70"
Maclean MC-759, TV or monitor wall mount, 13-55"
Maclean Ultra slim wall mount for TV, 37-80"
Hama Motion XL TV Wall Bracket, 37-75"
Show similar specs. Hide similar specs.
36.43 € €
2,902.79 € € w/o VAT
19.13 € €
15.24 € € w/o VAT
21.43 € €
17.08 € € w/o VAT
29.31 € €
23.36 € € w/o VAT
38.19 € €
30.43 € € w/o VAT
Colour Black Black Black Black Black
Maximum load (1 screen), kg 45.00 45.00 30.00 75.00 60.00
Maximum screen diagonal, inches 70 70 55 80 75
Minimum screen diagonal, inches 37 32 13 37 37
Model MC-723 MC-748A MC-759 MC-481 108719
Notebook holder There isn't There isn't There isn't There isn't There isn't
Number of supported screens 1 1 1 1 1
Rotation Not Not Not Not Not
Swivel Is There isn't Is There isn't There isn't
Tilt Is Not Is Not Is
Type of attachment Walls Walls Walls Walls Walls
VESA support 75 x 75 75 x 100 75 x 200 100 x 100 100 x 150 100 x 200 120 x 120 150 x 100 150 x 150 200 x 100 200 x 200 200 x 300 200 x 400 300 x 100 300 x 200 300 x 300 300 x 400 350 x 350 400 x 100 400 x 200 400 x 300 400 x 400 440 x 330 440 x 400 500 x 200 500 x 300 500 x 400 600 x 100 600 x 200 600 x 300 600 x 400 100 x 100 100 x 150 100 x 200 150 x 100 150 x 150 200 x 100 200 x 200 200 x 300 200 x 400 300 x 200 300 x 300 300 x 400 400 x 200 400 x 300 400 x 400 600 x 200 75 x 75 100 x 100 200 x 100 200 x 200 400 x 200 400 x 400 200 x 200 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 600 x 400 50 x 50 75 x 75 75 x 100 75 x 200 100 x 50 100 x 100 100 x 150 100 x 200 120 x 120 150 x 100 150 x 150 200 x 100 200 x 200 200 x 300 200 x 400 300 x 100 300 x 200 300 x 300 300 x 400 350 x 350 400 x 100 400 x 200 400 x 300 400 x 400 440 x 330 440 x 400 500 x 200 500 x 300 500 x 400 600 x 100 600 x 200 600 x 300 600 x 400 680 x 300 700 x 400 800 x 200 800 x 400
All parameters
Colour : Black
Maximum load (1 screen), kg : 45.00
Maximum screen diagonal, inches : 70
Minimum screen diagonal, inches : 37
Model : MC-723
Notebook holder : There isn't
Number of supported screens : 1
Rotation : Not
Swivel : Is
Tilt : Is
Type of attachment : Walls
VESA support : 75 x 75, 75 x 100, 75 x 200, 100 x 100, 100 x 150, 100 x 200, 120 x 120, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 350 x 350, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 440 x 330, 440 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 100, 600 x 200, 600 x 300, 600 x 400
More detailed specification
Accessories included - A set of screws to the wall and screw the TV Manual instructions
Color - Black
Corner mount - No
Description - Bracket for TV 37-80 45kg universal MC-723 max VESA 600x400 black
Wall mount is used for mounting LCD, LED and plasma screens, and different brands of weighing up to 45kg and with a diagonal measurement of the screen from 37 "to 80" Given the size of the screen is only a proposal. On the handle can be mounted more TV when it does not exceed the maximum weight and within the specified standard VESA.
Design - Housing material - Steel
Design - Product colour - Black
Designation - Kosz zgodnie z zasadami recyklingu
dimensionalWeight - 2049
dimension depth - 85 mm
dimension height - 690 mm
Dimensions -
dimension weight - 5600 g
dimension width - 200 mm
ean - 5902211104735
Ergonomics - Angle of rotation - 120°
Ergonomics - Distance to the wall (max) - 46 cm
Ergonomics - Distance to the wall (min) - 7 cm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -10 - 20°
guarantee - 24
guarantee_type - external
Load (max) - 45 kg
Mounting - Maximum screen size - 2.03 m (80")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 45 kg
Mounting - Minimum screen size - 94 cm (37")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Panel mounting interface - 75 x 75 mm
Mounting - Panel mounting interface - 100 x 100 mm
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 300 x 300 mm
Mounting - Panel mounting interface - 400 x 200 mm
Mounting - Panel mounting interface - 400 x 300 mm
Mounting - Panel mounting interface - 400 x 400 mm
Mounting - Panel mounting interface - 600 x 400 mm
Mounting - Suitable for computer monitor - Yes
name - Bracket for TV 37-80 45kg universal MC-723B max VESA 600x400 black
Number of supported monitors - 1

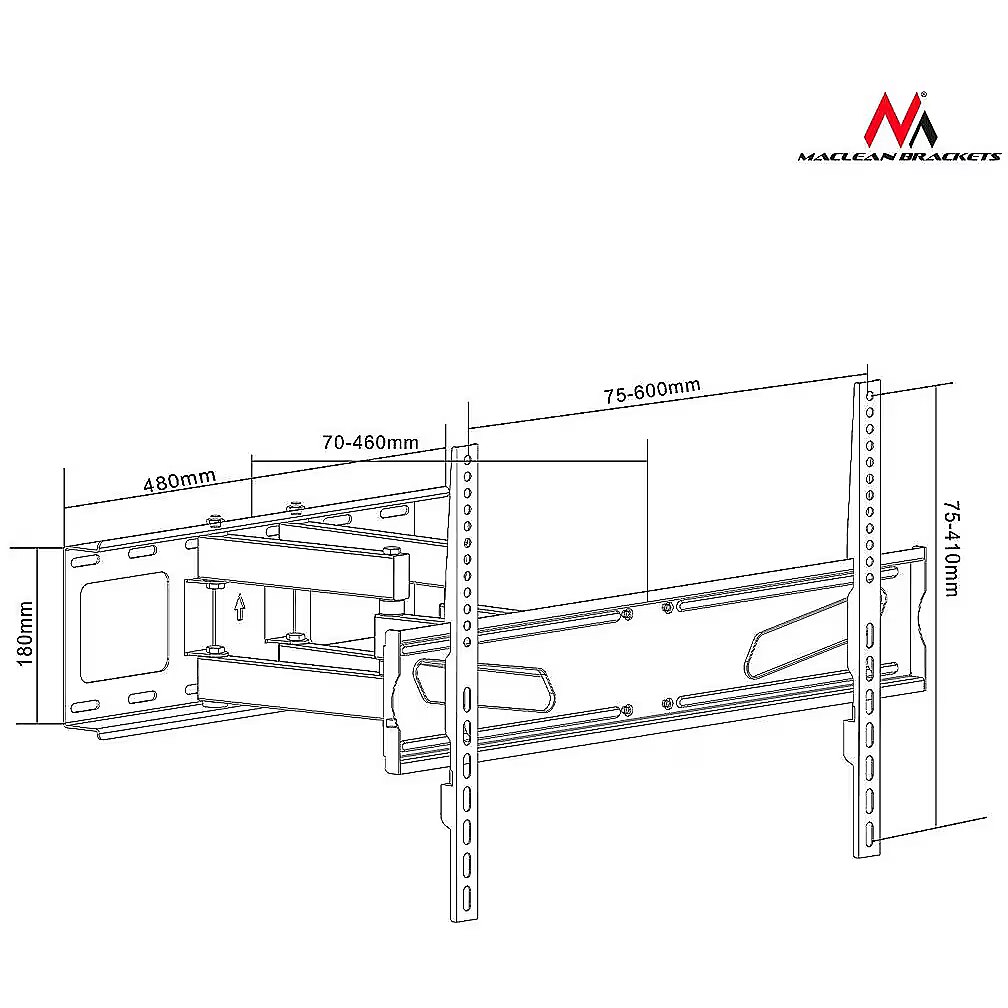

Other features - Minimum / Maximum spacing horizontally: 75/600 mm Minimum / Maximum vertical spacing: 75/400 mm Rotation: 120 degrees Adjust the degree of inclination: -10 ° ~ + 20 ° Surface finish: powder painting
Packaging content - Mounting kit - Yes
Packaging data - Package type - Box
producer - Maclean
producerCode - MC-723
productName - Maclean MC-723 TV mount 177.8 cm (80") Black
productSize - Normal
Range (max) - 460 mm
Range (min) - 70 mm
Range adjustment - Yes
Safety warning - Warnings - Do not exceed the maximum user weight recommended by the manufacturer.
Screen size (max) - 80 ''
Screen size (min) - 37 ''
sizeX - 690
sizeY - 198
sizeZ - 75
Stuff - Steel
Type - Wall
Usage - Monitors
Usage - TV
vendpn - MC-723
VESA - 75 x 75
VESA - 100 x 100
VESA - 200 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 600 x 400
warrantyLength - 24
warrantyType - F
weight - 5085
Weight & dimensions - Depth (max) - 46 cm
Weight & dimensions - Depth (min) - 7 cm
