Neomounts Wall mount | WL35-750BL18 Heavy duty wall mount | Adjustable Height, Tilt | 43-98 " | Maximum weight (capacity) 125 kg | Black

Brand - Neomounts
BrandPartCode - WL35-750BL18
Category - TV Mounts & Stands
Code - WL35-750BL18
Design - Housing material - Steel
Design - Product colour - Black
Design > Colour of product - Black
Design > VESA mounting - Yes
EAN - 8717371443375
Ergonomics - Cable management - Yes
Ergonomics - Distance to the wall (max) - 9.3 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 10 mm

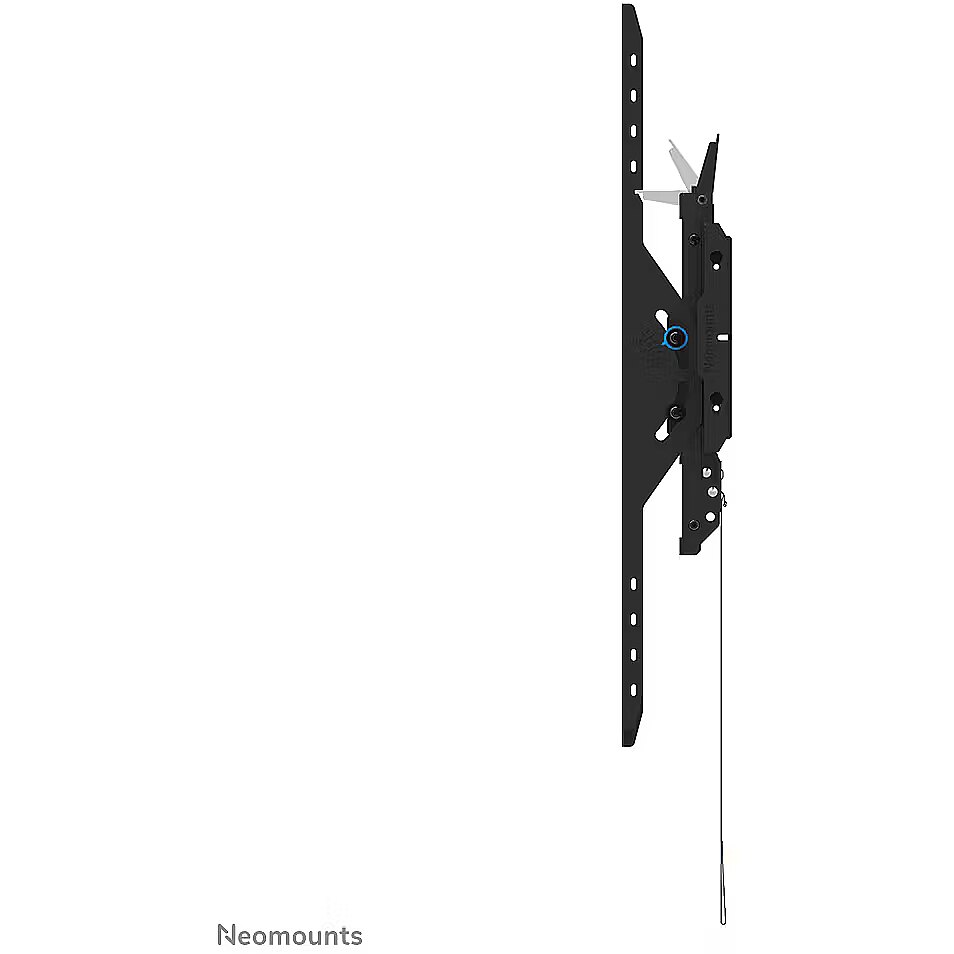

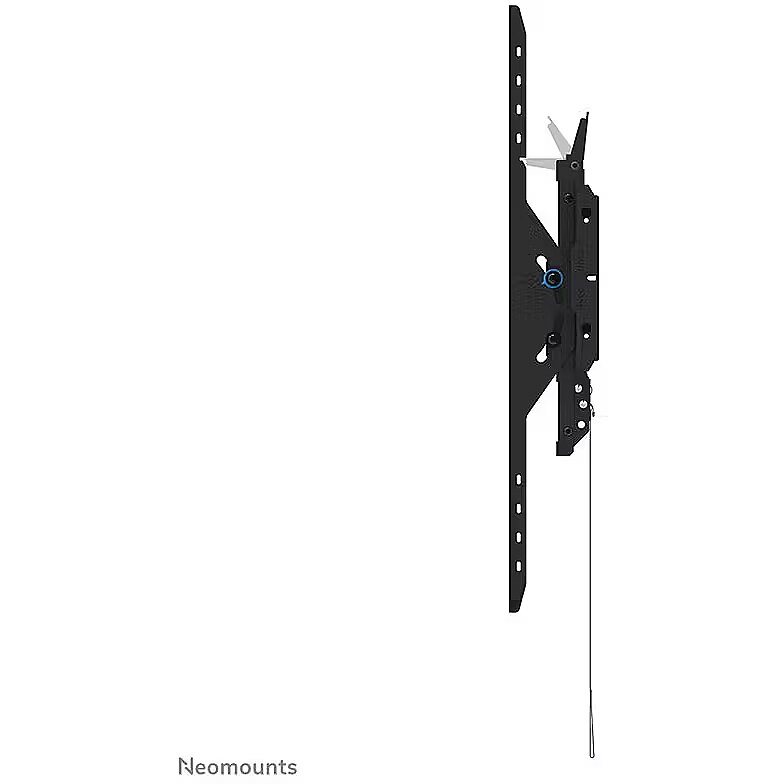

Ergonomics - Tilt adjustment - Yes

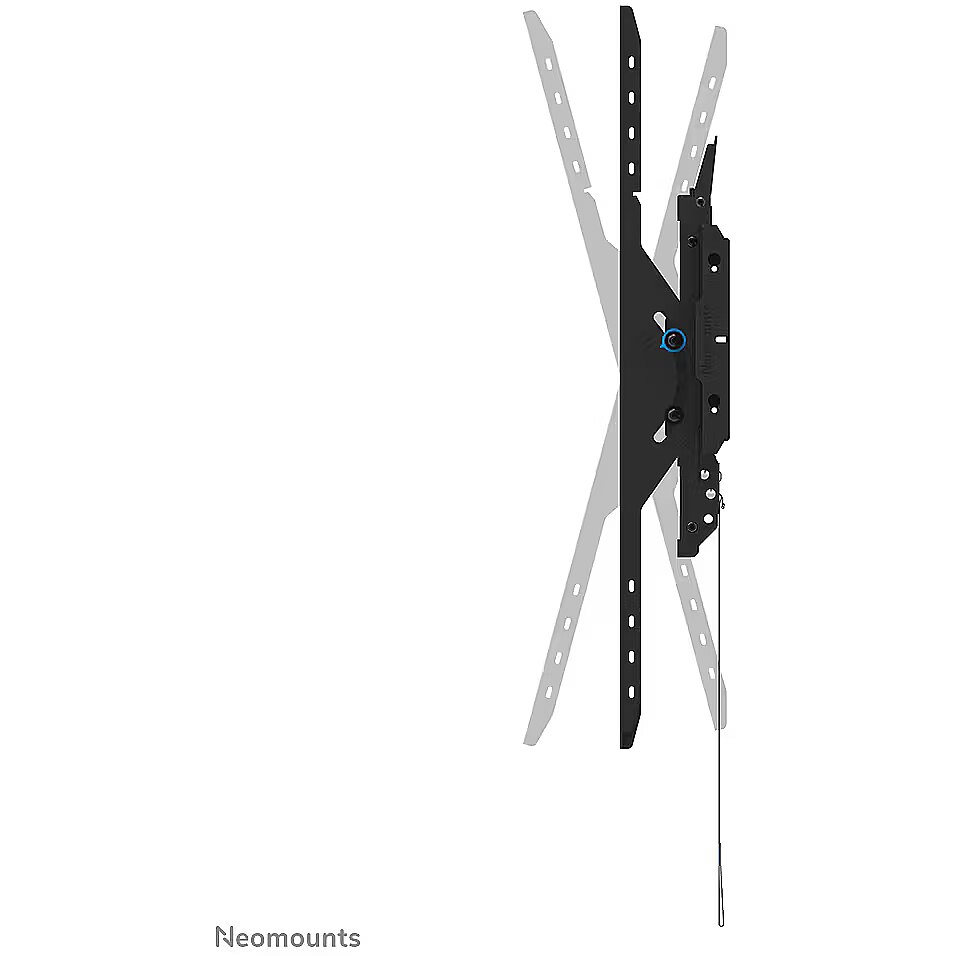

Ergonomics - Tilt angle range - -15 - 15°
GTIN - 8717371443375
Link - https://www.neomounts.com/wall/tv-monitor-mounts/wl35-750bl18-neomounts-wl35-750bl18-heavy-duty-wall-mount-43-98/
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 26.3 kg
Logistics data - Master (outer) case height - 324 mm
Logistics data - Master (outer) case length - 227 mm
Logistics data - Master (outer) case net weight - 20.4 kg
Logistics data - Master (outer) case width - 946 mm
Logistics data - Products per master (outer) case - 3 pc(s)
Logistics data - Products per pallet (EU) - 39 pc(s)

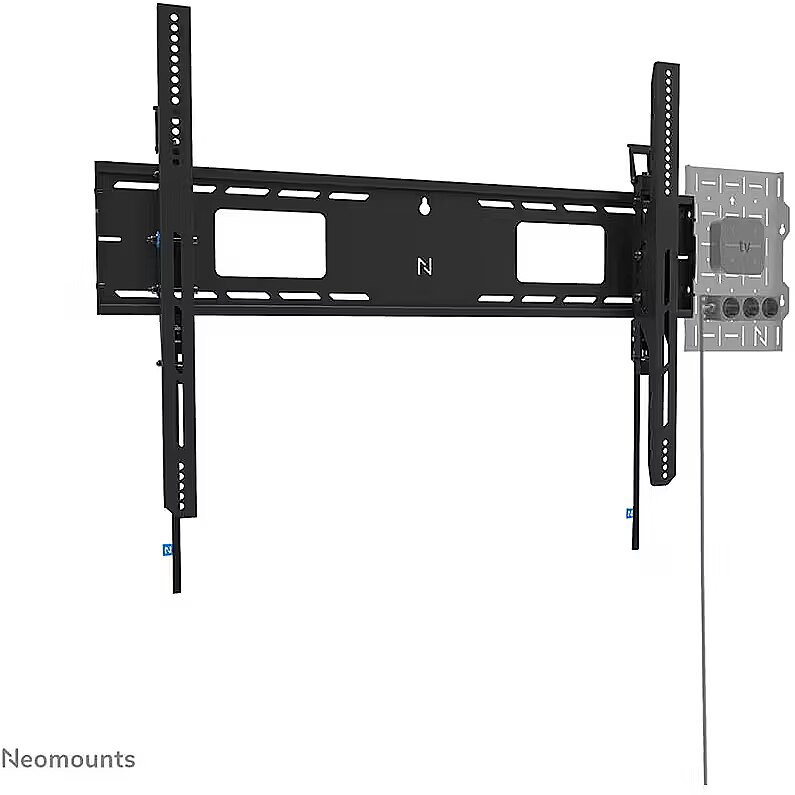

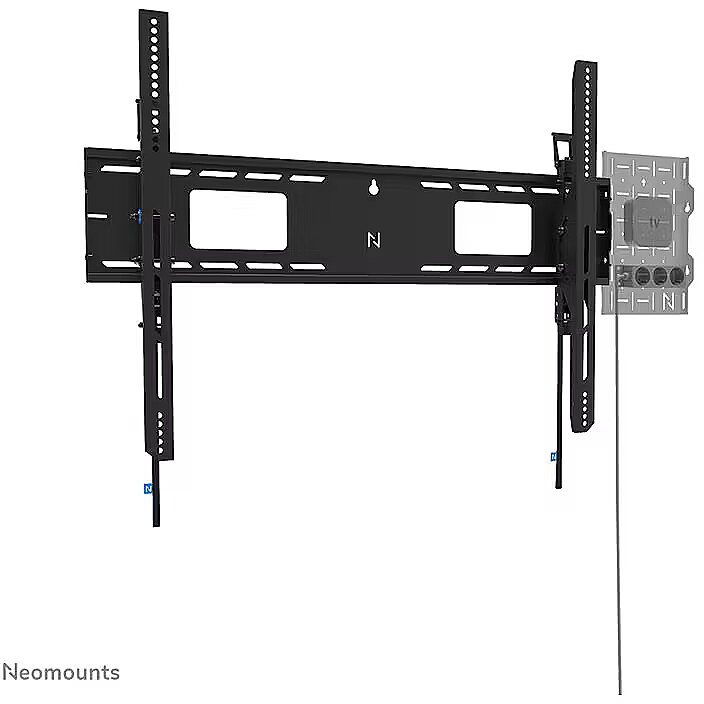

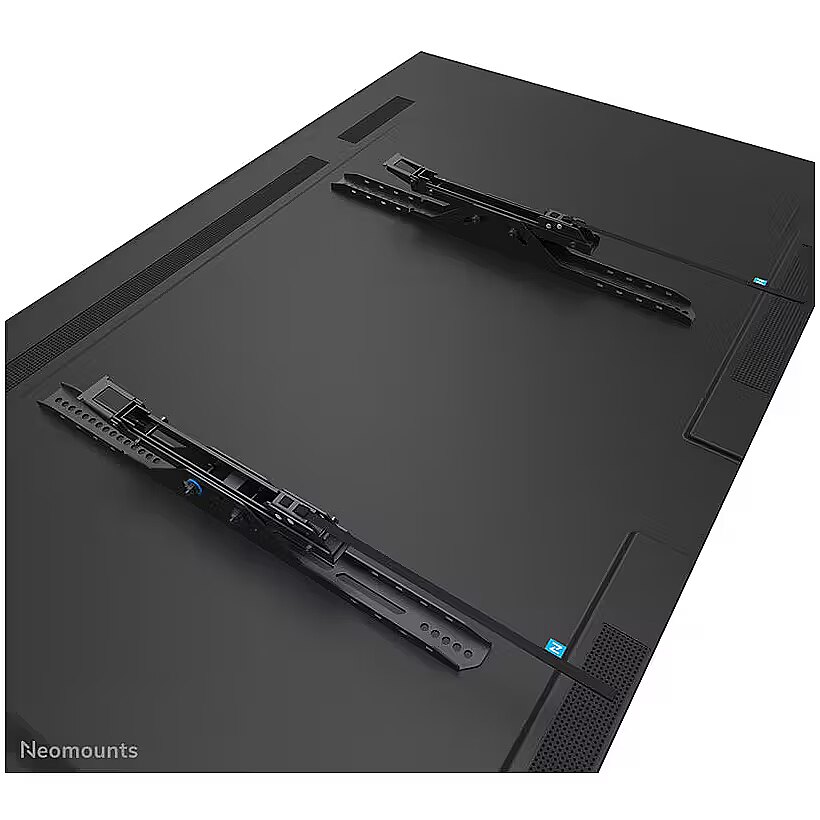

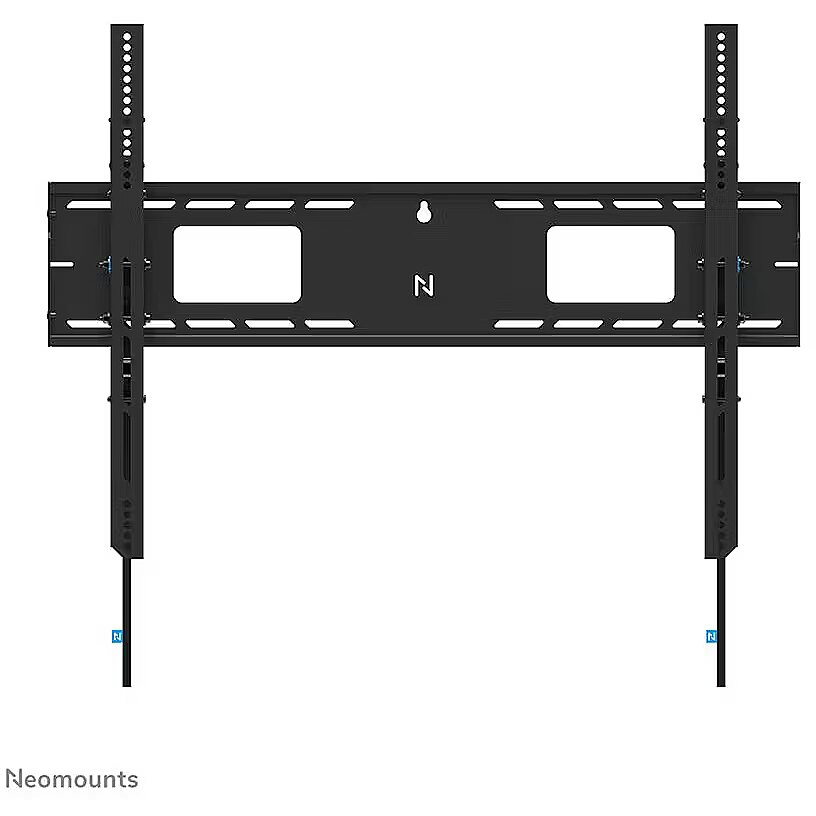

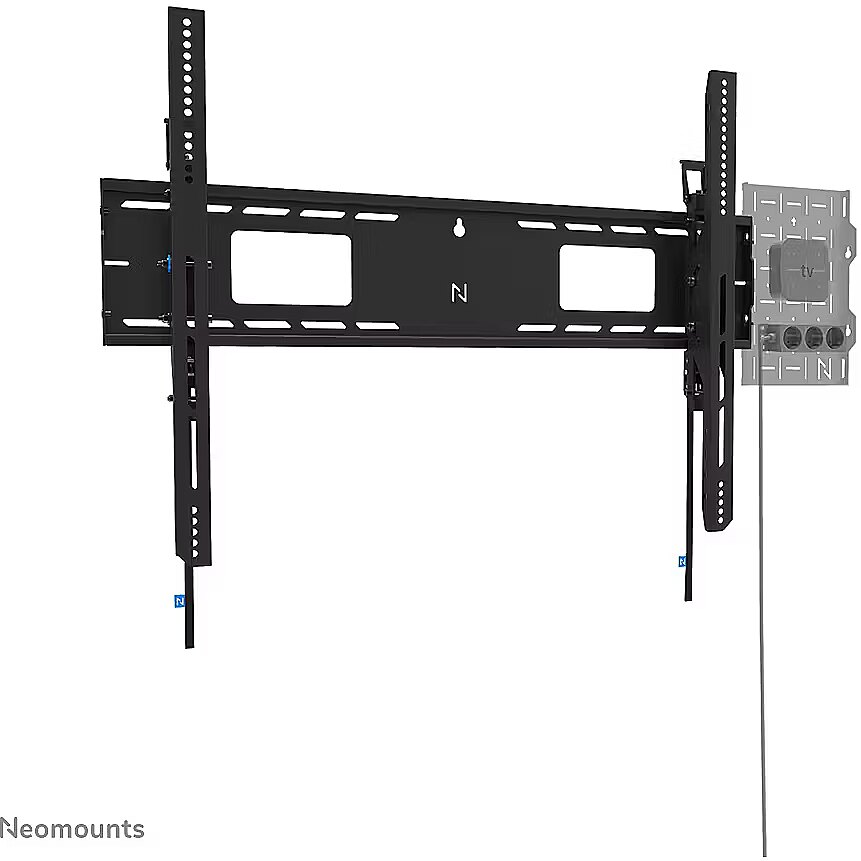

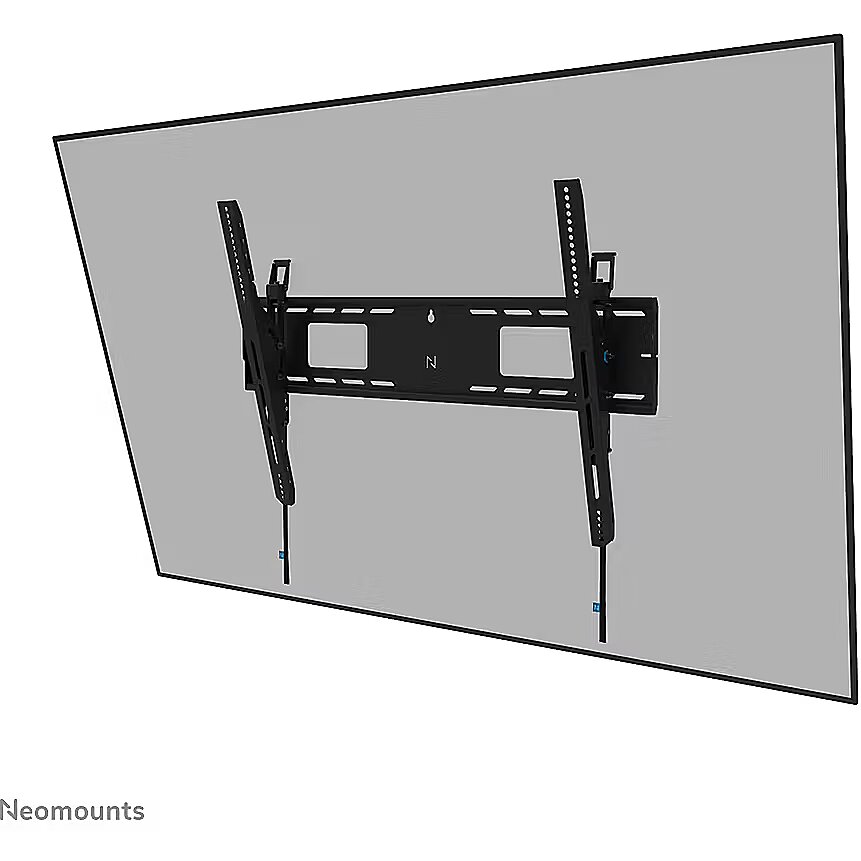

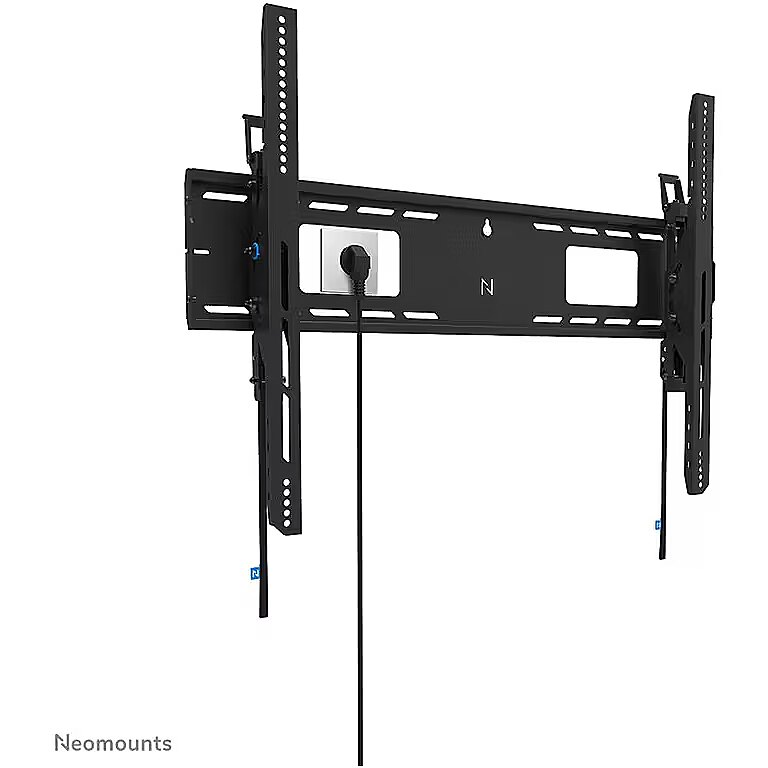

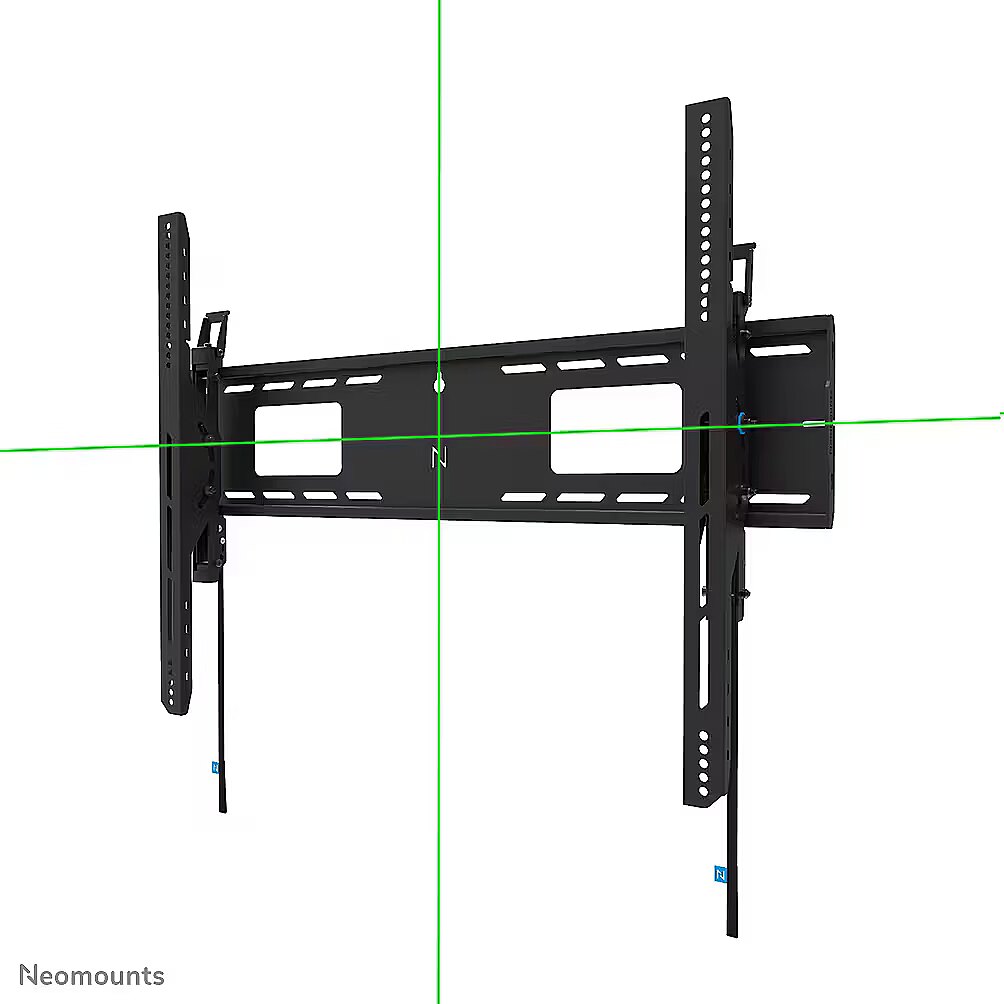

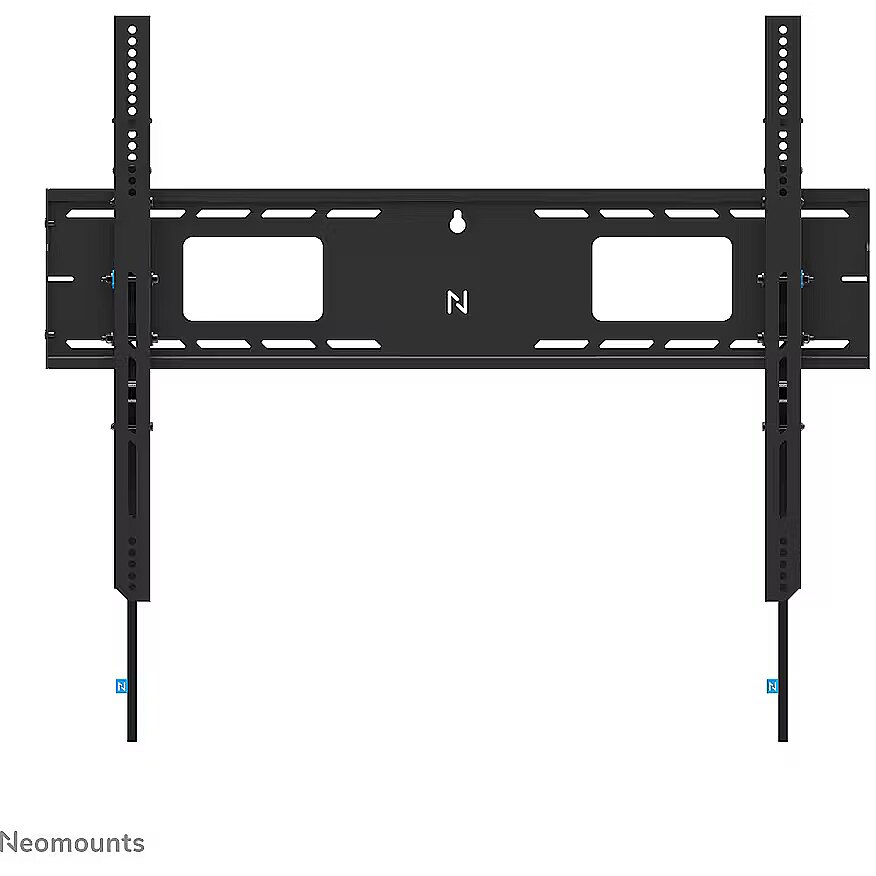

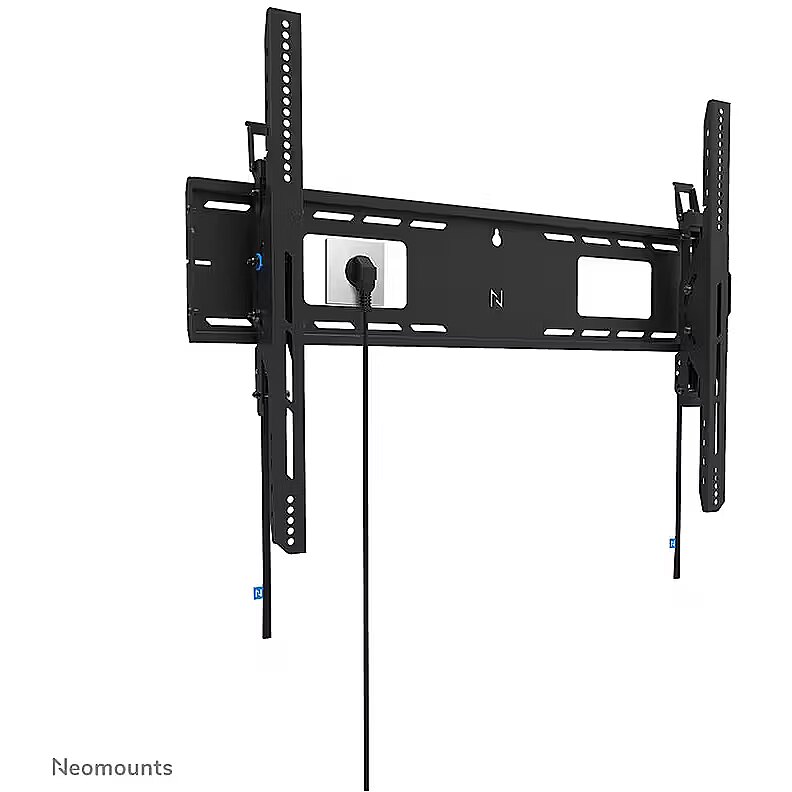

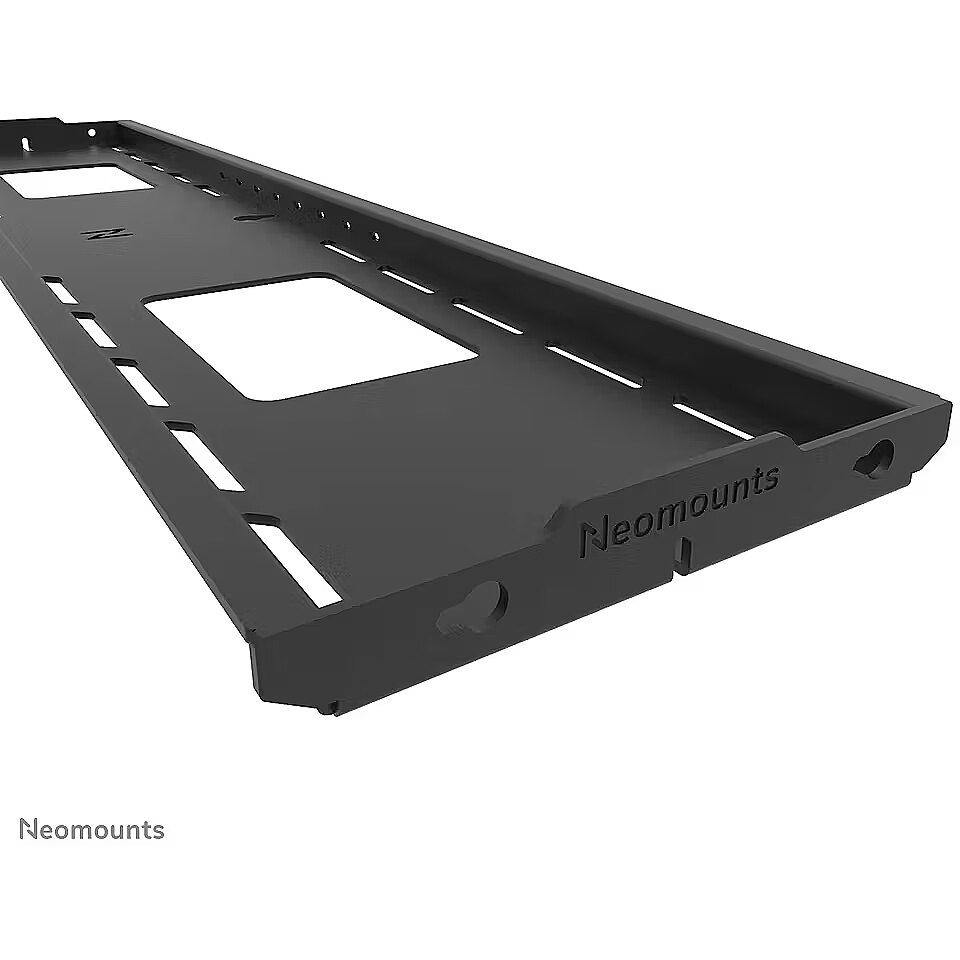

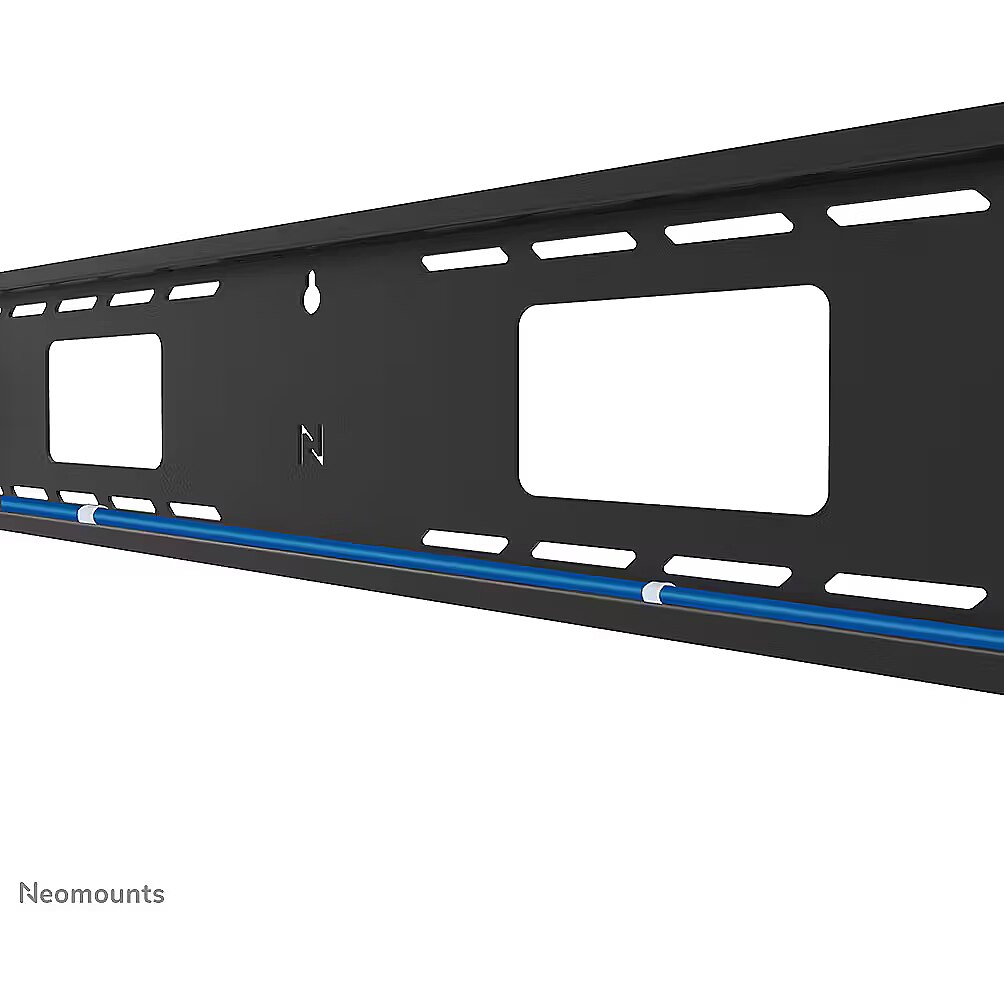

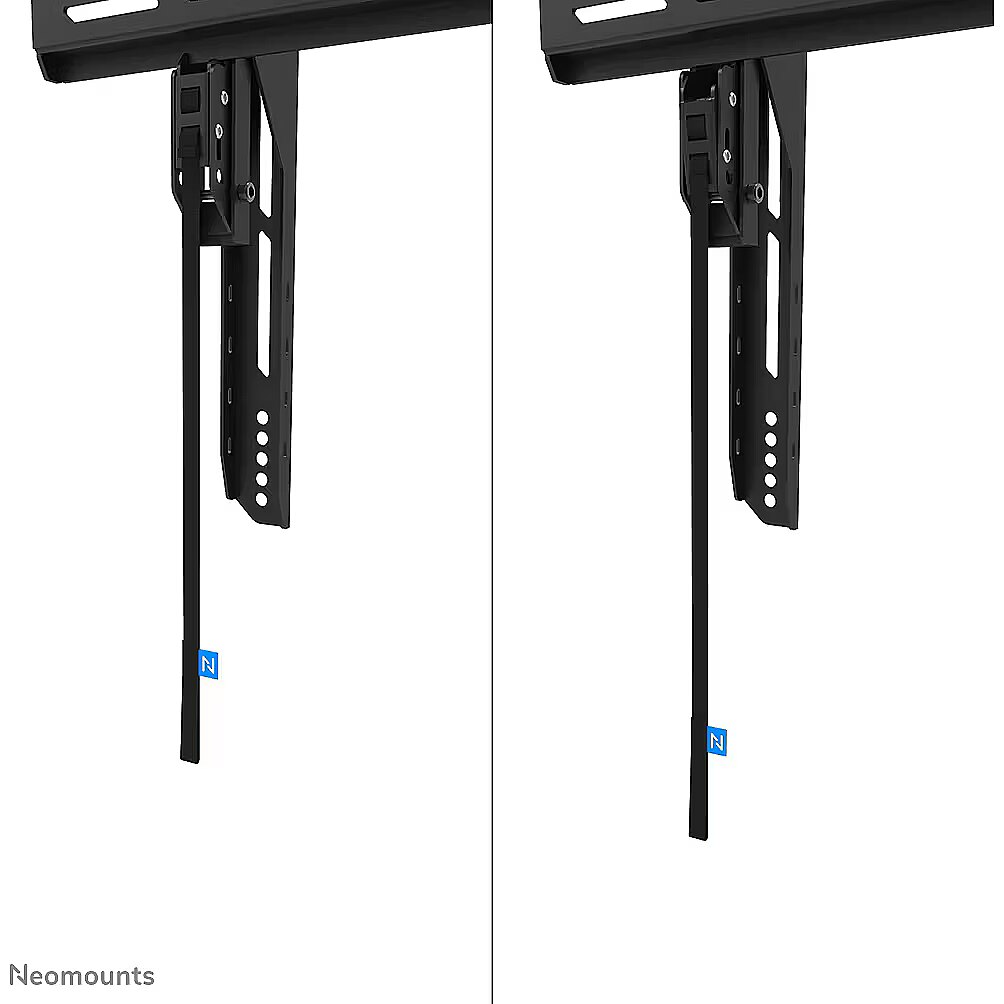

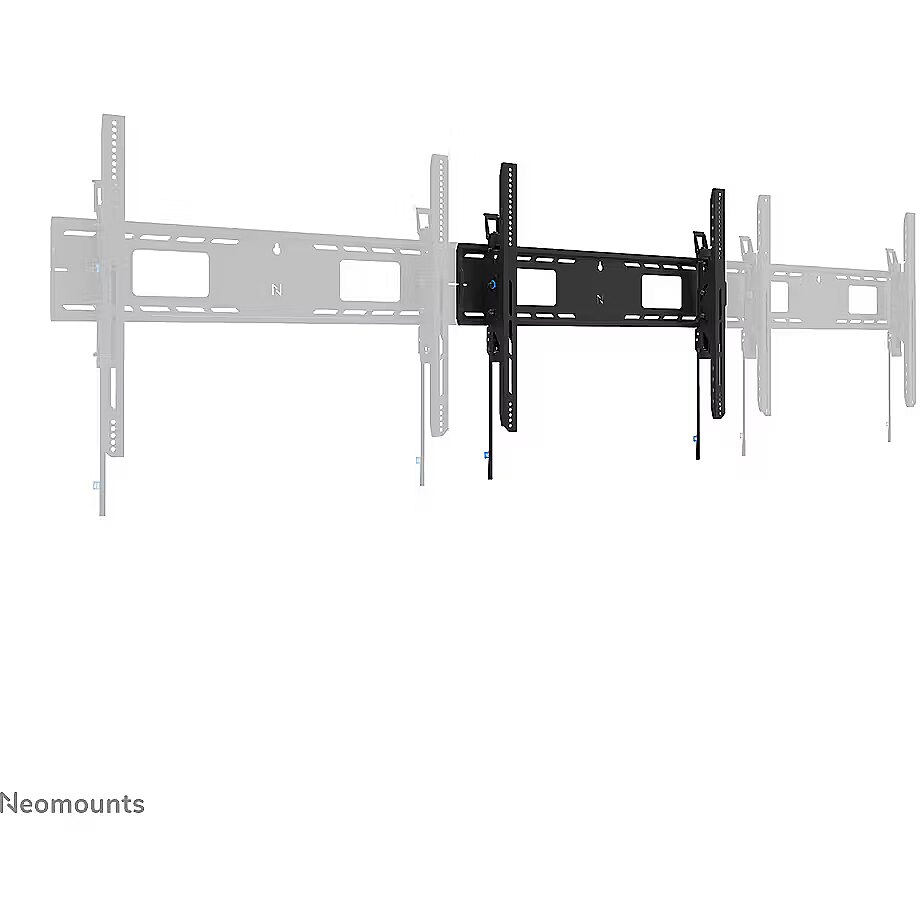

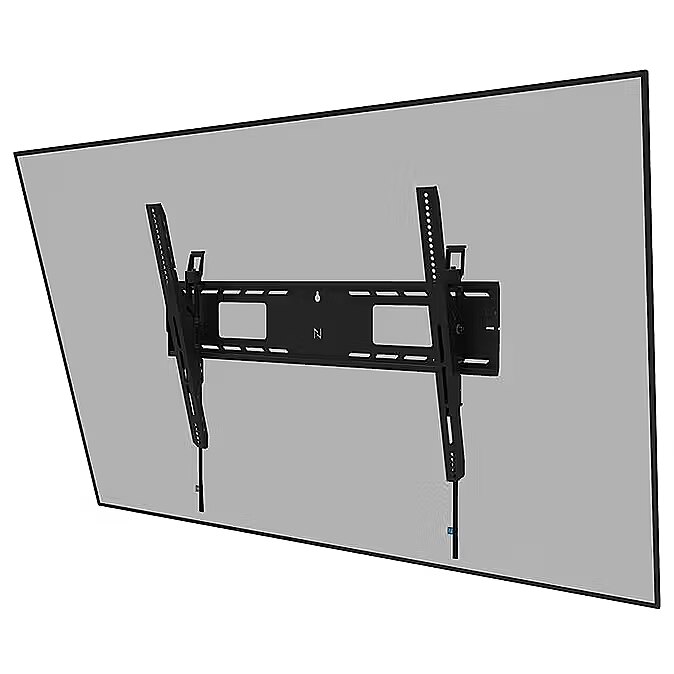

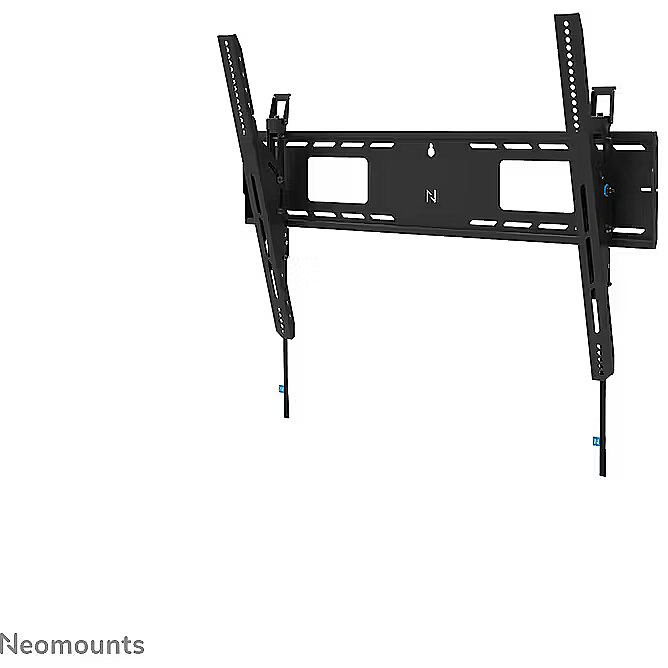

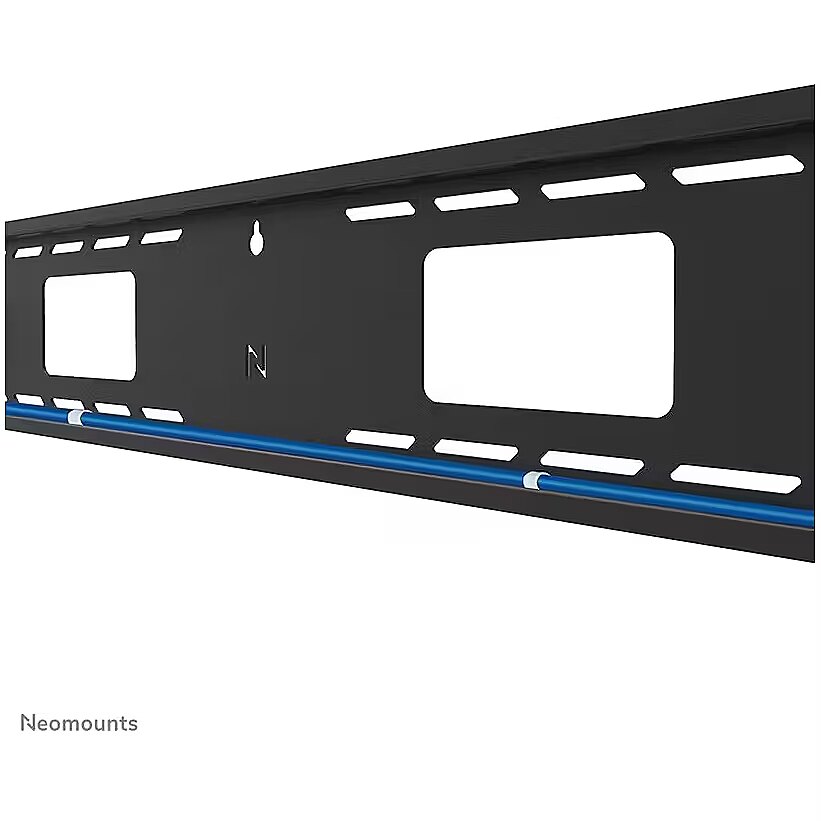

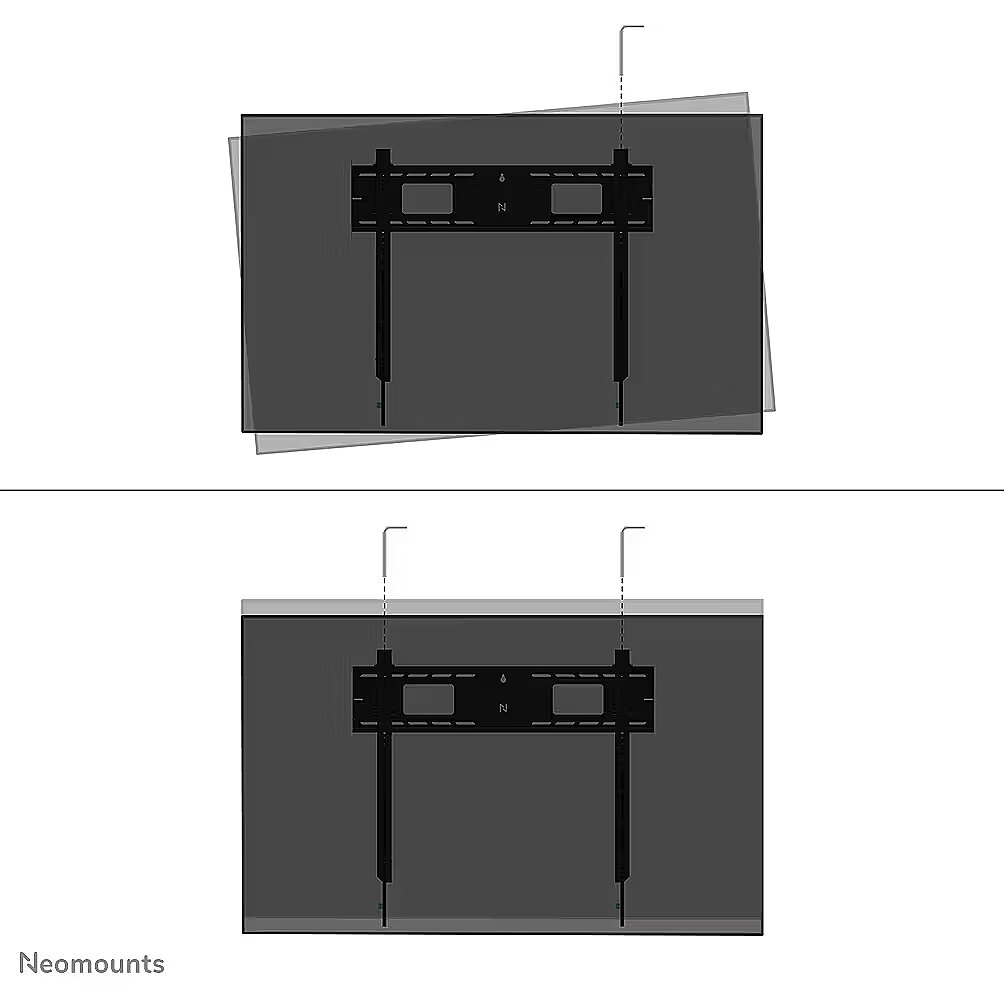

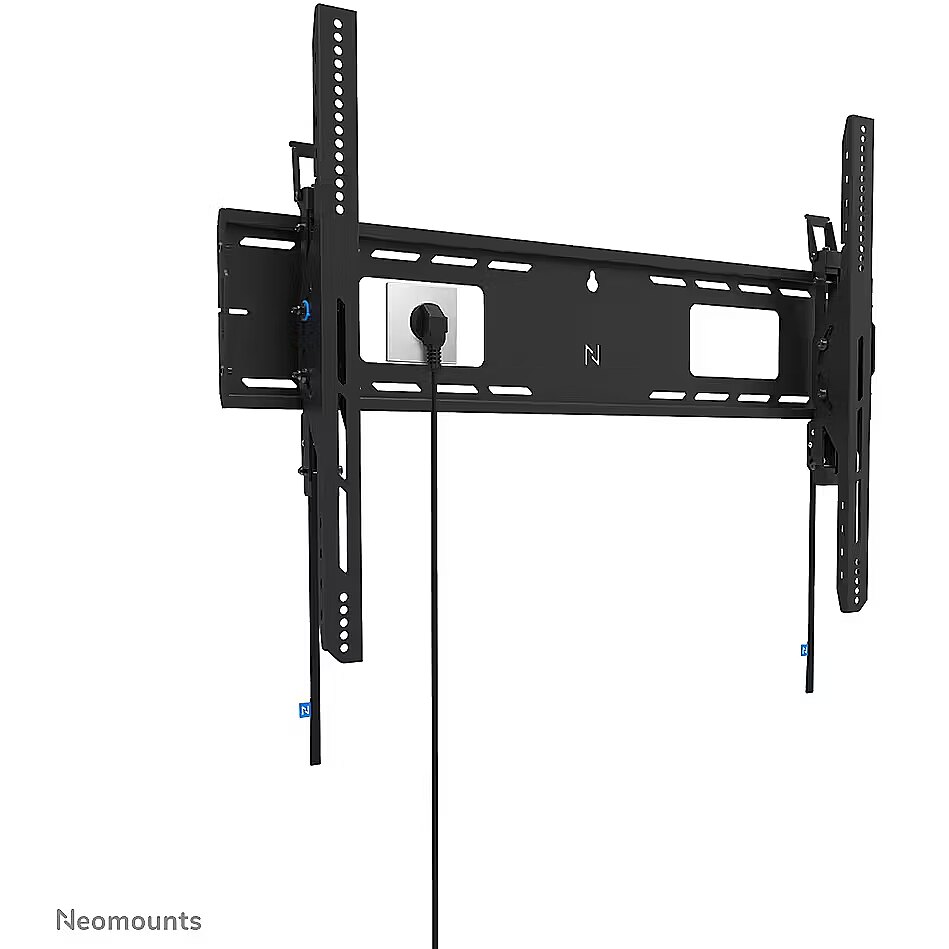

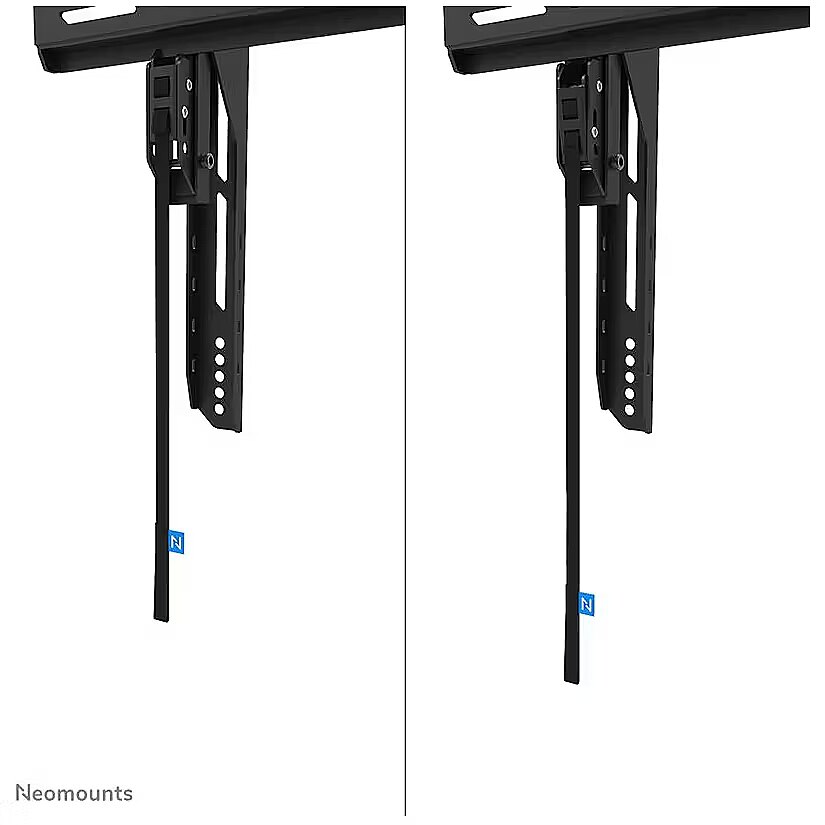

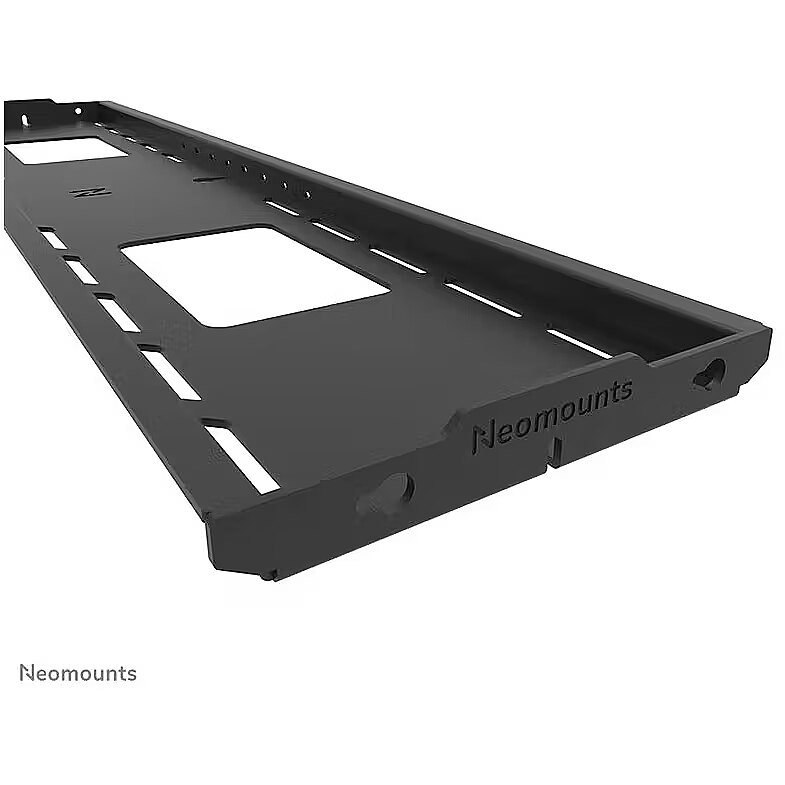

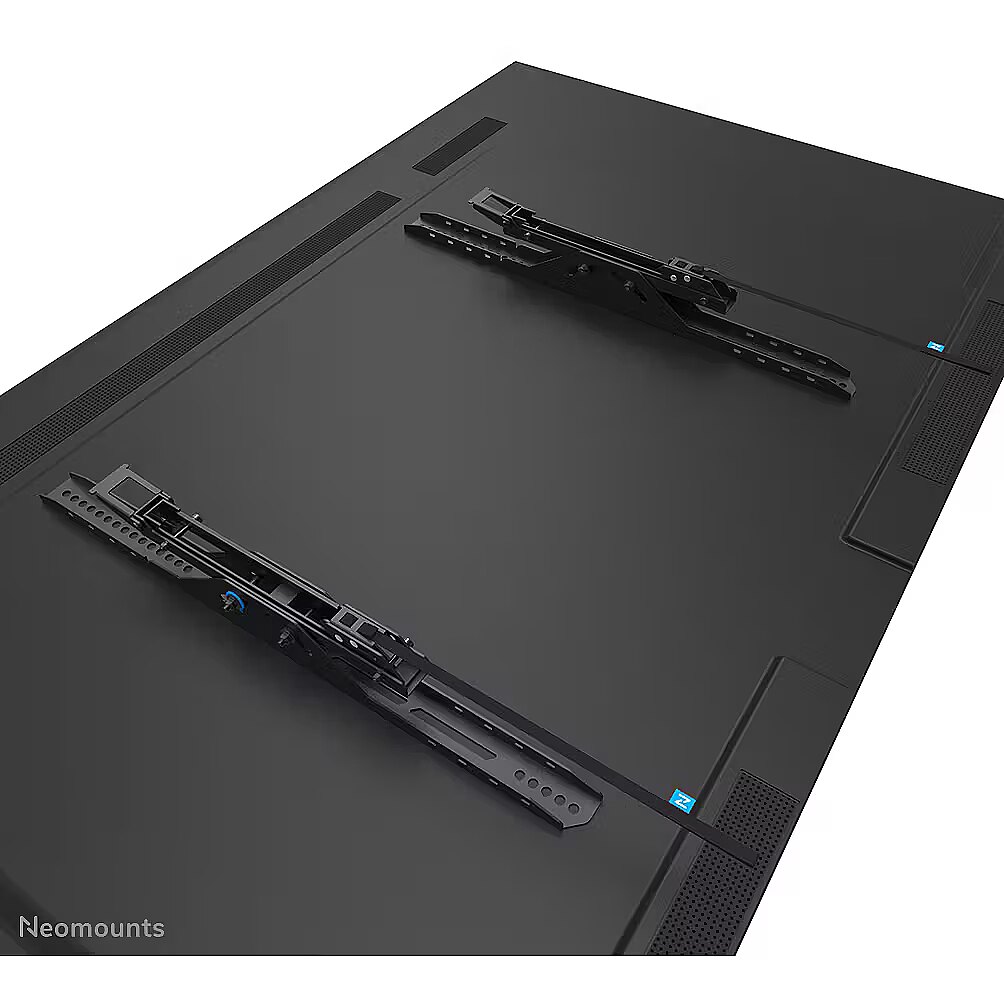

LongDesc - The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it. The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security. For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
LongProductName - Neomounts LEVEL-750 WL35-750BL18 Tiltable heavy duty wall mount - 55-98" screen - max 125 kg - VESA 100x100-800x600 - d 9,3 cm - level adjustment - lockable (excl. lock) - TÜV certified - Rapid Install-model - Tilt Guard - black
LongSummaryDescription - Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 - 10 mm, Tilt angle range: -15 - 15°, Distance to the wall (max): 9.3 cm. Product colour: Black
Mounting - Maximum screen size - 2.49 m (98")
Mounting - Maximum VESA mount - 800 x 600 mm
Mounting - Maximum weight capacity - 125 kg
Mounting - Maximum weight capacity (per display) - 125 kg
Mounting - Minimum screen size - 139.7 cm (55")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 200,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 300,200 x 400,300 x 100,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 450,800 x 500
Mounting > Maximum screen size compatibility - 98 "
Mounting > Maximum weight (capacity) - 125 kg
Mounting > Mounting interface compatibility (max) - 800x600 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100, 100x150, 100x200, 120x120, 150x200, 200x100, 200x150, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 400x500, 400x600, 440x400, 500x400, 500x500, 600x200, 600x300, 600x400, 600x500, 600x600, 680x300, 700x400, 800x200, 800x400, 800x450, 800x500, 800x600 mm
Name - Neomounts Wall mount | WL35-750BL18 Heavy duty wall mount | Adjustable Height, Tilt | 43-98 " | Maximum weight (capacity) 125 kg | Black
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 9.30 mm
Package features > Gross height (mm) - 68.40 mm
Package features > Gross width (mm) - 88.60 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 1280.00 g
Package features > Plastic (No PET) - 320.00 g
Package features > Tare weight (kg) - 1.60 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package depth - 102 mm
Packaging data - Package height - 209 mm
Packaging data - Package weight - 8.4 kg
Packaging data - Package width - 928 mm
ProductName - Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV
ShortSummaryDescription - Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV, 2.49 m (98"), 100 x 100 mm, 800 x 600 mm, -15 - 15°, Steel, Black
Technical details - Country of origin - China

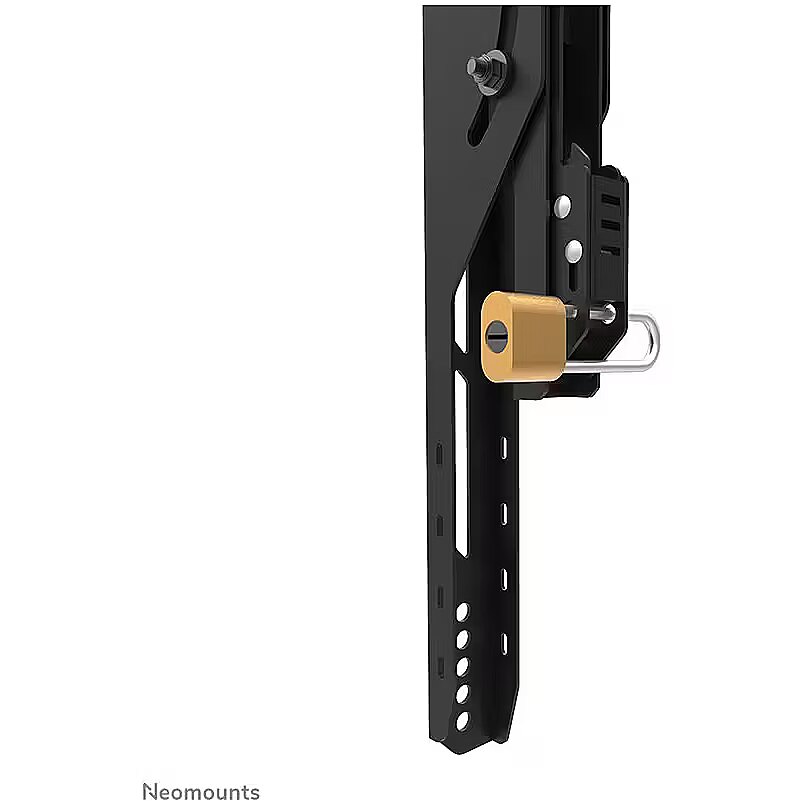

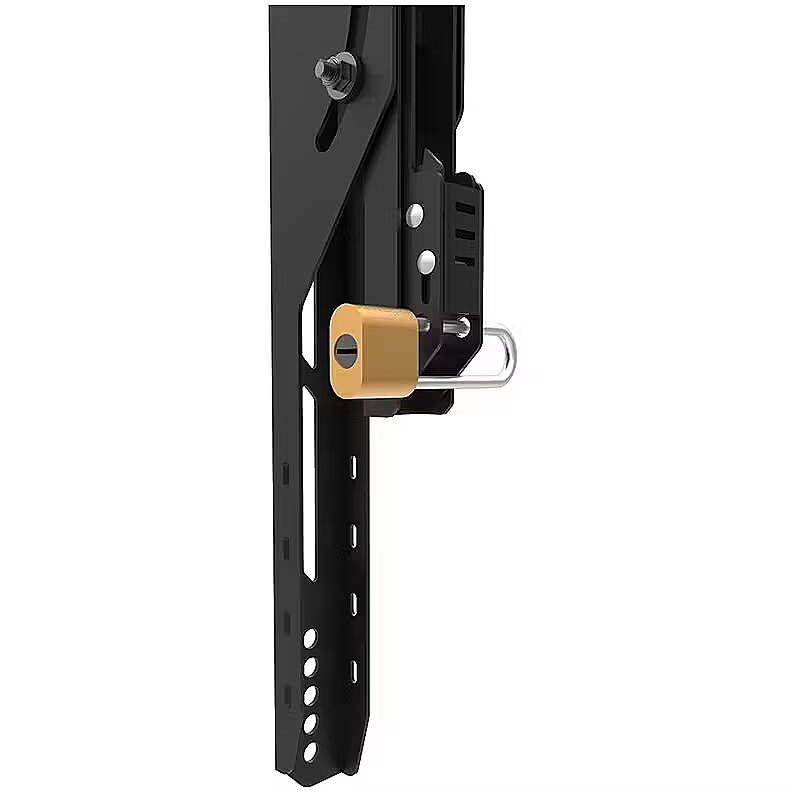

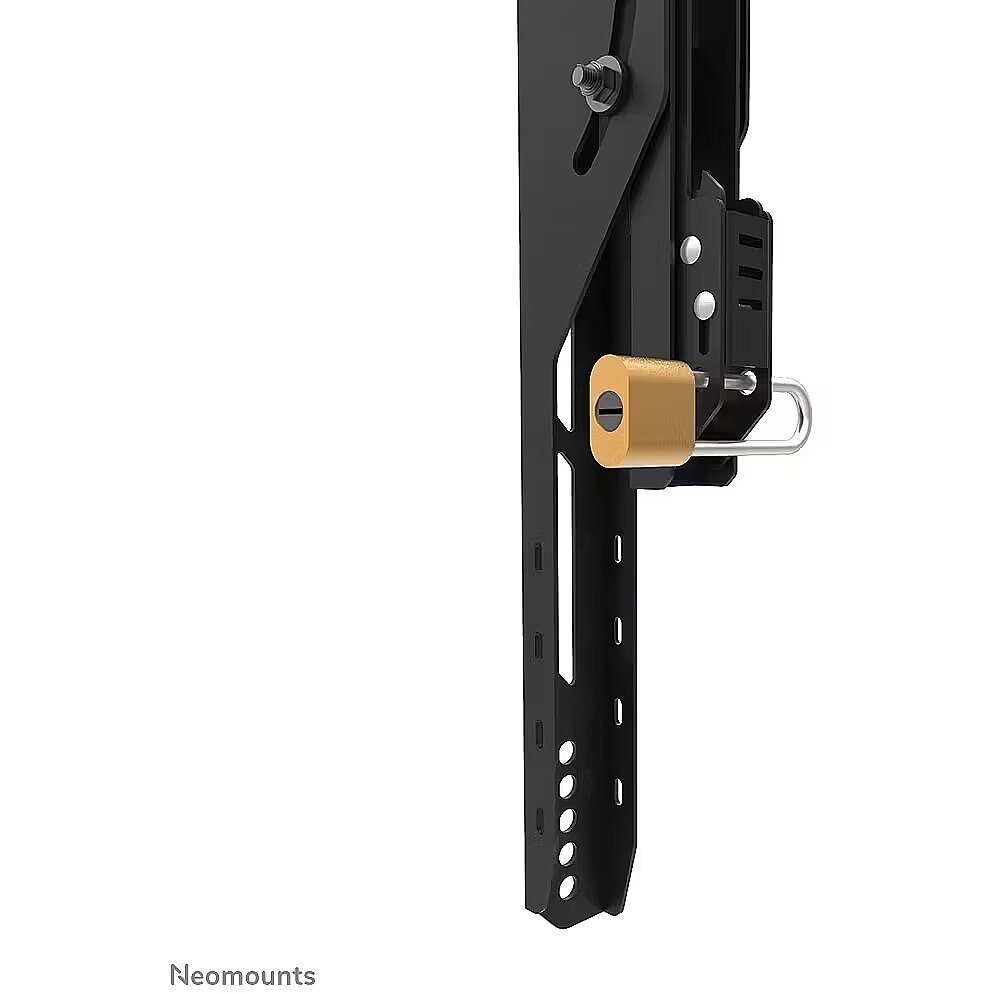

Technical details - Lockable - Padlock not included
Technical details > Functions - Adjustable Height, Tilt
Technical details > Gross weight - 8.40 kg
Technical details > Net weight - 6.80 kg
Technical details > Placement - Wall mount
Technical details > Producer - Neomounts
Technical details > Product name - WL35-750BL18 Heavy duty wall mount
Technical details > Screen size compatibility - 43-98 "
Title - Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL35-750BL18
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - 5 year

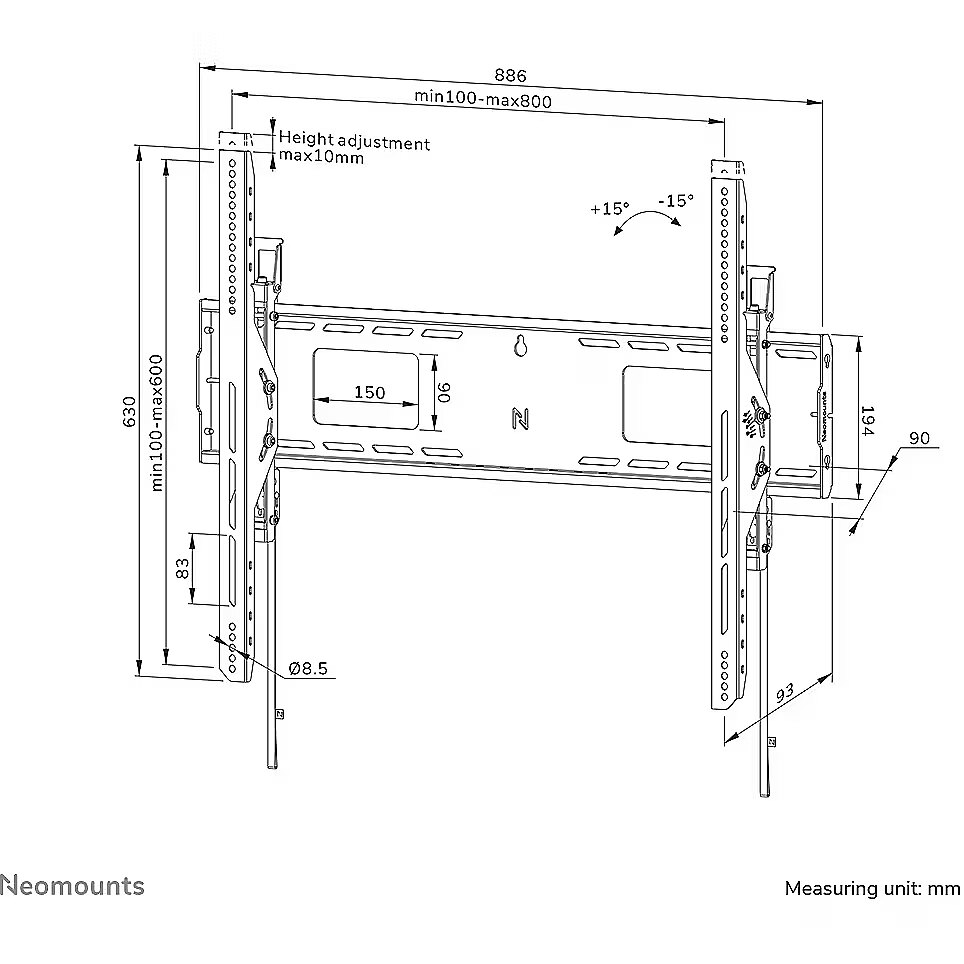

Weight & dimensions - Depth - 93 mm
Weight & dimensions - Depth (max) - 9.3 cm
Weight & dimensions - Height - 684 mm
Weight & dimensions - Weight - 6.8 kg
Weight & dimensions - Width - 886 mm
