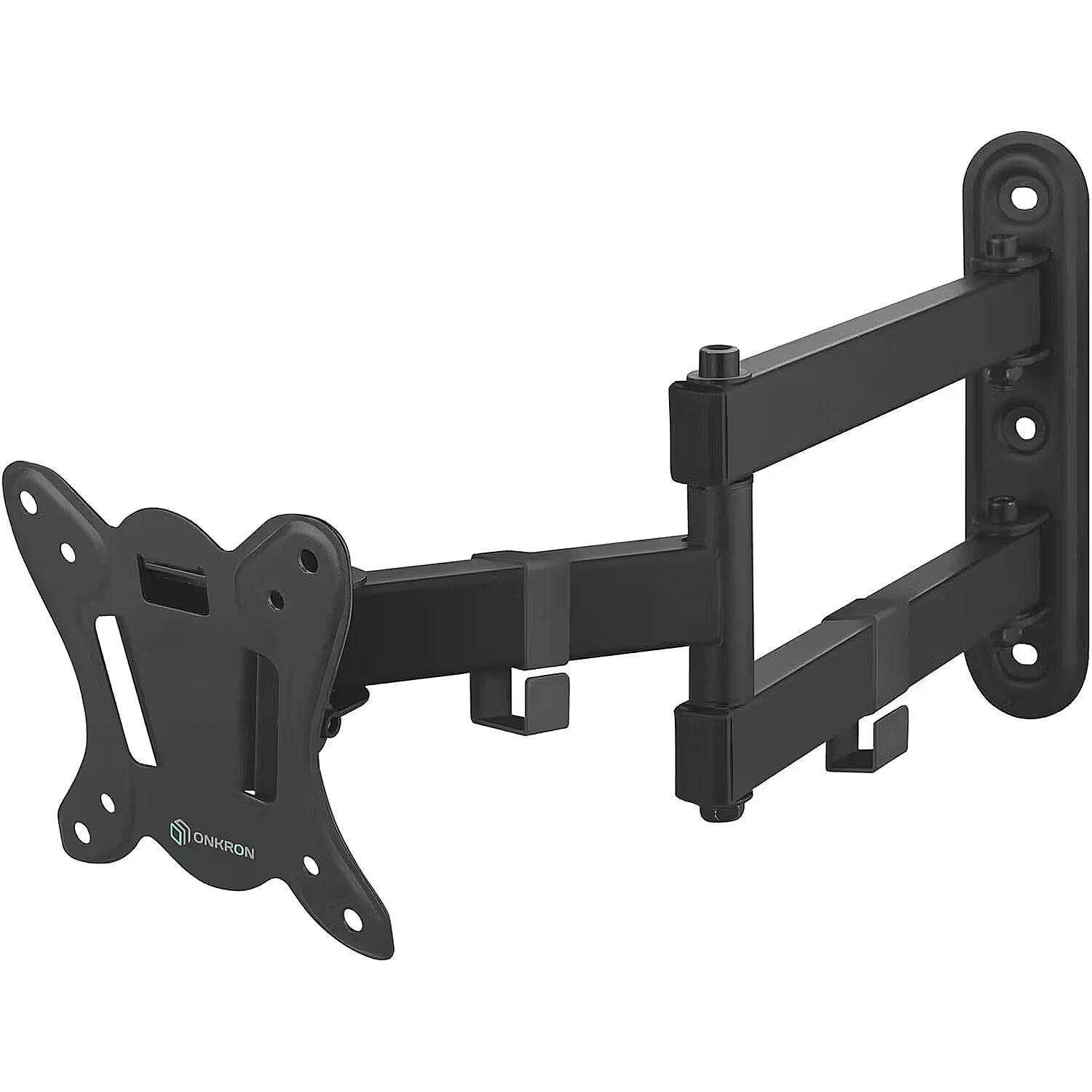

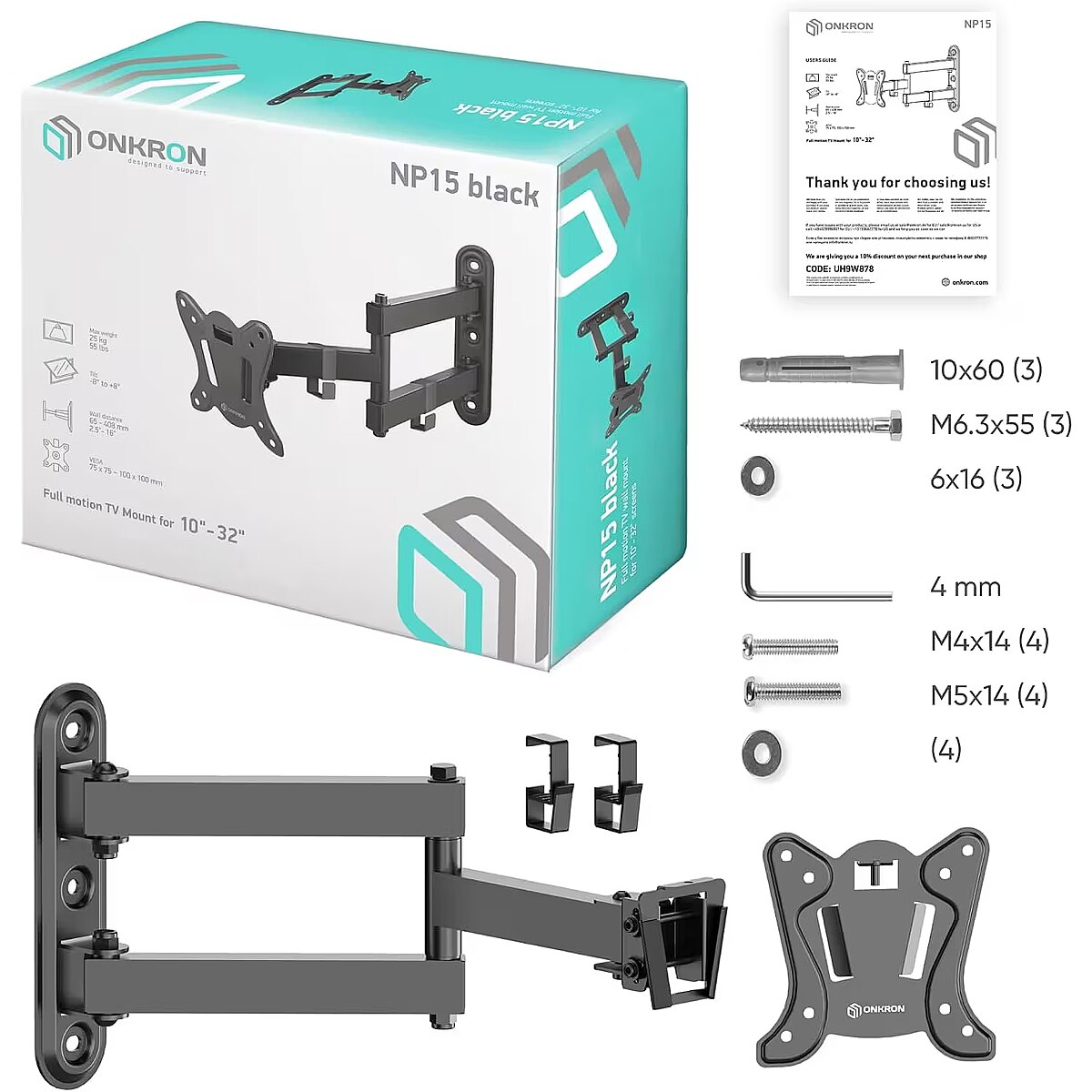

Onkron Wall mount, 10-32"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1286610 Product code: NP15-B
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Maximum load (1 screen), kg: 25.00
  • Maximum screen diagonal, inches: 32
  • Minimum screen diagonal, inches: 10
Similar Products
This product Onkron Wall mount, 10-32"
Onkron Tilting and swiveling wall bracket, 10-35"
Onkron Tilting and swiveling wall bracket, 10-35"
Onkron TV Wall Mount, 17-43"
Onkron TV Wall Mount, 17-43"
Show similar specs. Hide similar specs.
27.28 €
17.59 €
31.17 €
20.33 €
28.03 €
Colour Melna Melna Melna Melna Melna
Maximum load (1 screen), kg 25.00 20.00 20.00 35.00 35.00
Maximum screen diagonal, inches 32 35 35 43 43
Minimum screen diagonal, inches 10 10 10 17 17
Model NP15-B R3-B R4-B NP23-B NP24-B
Notebook holder Nav Nav Nav Nav Nav
Number of supported screens 1 1 1 1 1
Rotation Not Is Is Not Not
Swivel Ir Ir Ir Ir Ir
Tilt Is Is Is Is Is
Type of attachment Sienas Sienas Sienas Sienas Sienas
VESA support 75 x 75 100 x 100 75 x 75 100 x 100 75 x 75 100 x 100 75 x 75 100 x 100 100 x 200 200 x 100 200 x 200 75 x 75 100 x 100 200 x 100 200 x 200
All parameters
Colour : Melna
Maximum load (1 screen), kg : 25.00
Maximum screen diagonal, inches : 32
Minimum screen diagonal, inches : 10
Model : NP15-B
Notebook holder : Nav
Number of supported screens : 1
Rotation : Not
Swivel : Ir
Tilt : Is
Type of attachment : Sienas
VESA support : 75 x 75, 100 x 100
More detailed specification
Additional information in manufacturers website Onkron Wall mount, 10-32"
Angle of rotation Ergonomics - 180°
Category Code - TMS
Distance to the wall (max) Ergonomics - 40.8 cm
Distance to the wall (min) Ergonomics - 6.5 cm
Housing material Design - Plastic, Steel
Maximum screen size Mounting - 81.3 cm (32")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight capacity (per display) Mounting - 25 kg
Maximum weight capacity Mounting - 25 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Model - NP15
Mounting type Mounting - Wall
Number of displays supported Mounting - 1
Package depth Packaging data - 248 mm
Package height Packaging data - 80 mm
Package weight Packaging data - 1.7 kg
Package width Packaging data - 245 mm
Panel mounting interface Mounting - 75 x 75,100 x 100 mm
Product colour Design - Black
Quantity per pack Packaging data - 1 pair(s)
Summary - ONKRON NP15-B. Maximum weight capacity: 25 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -8 - 8°, Angle of rotation: 180°, Distance to the wall (min): 6.5 cm, Distance to the wall (max): 40.8 cm. Product colour: Black
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -8 - 8°
Unit Box Height - 0.075
Unit Box Length - 0.24
Unit Box Width - 0.235
Unit Calculated Volume - 0.004922 cubm
Unit Calculated Weight - 1.57 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - onkron.com/
Warranty - 60 months
