Newstar Full motion desk monitor arm, 17-35"

Accepts padlock Design - No
Accessories included -
Adjustable depth Ergonomics - Yes
Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - DS70-250WH1
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
Color - White
Colour of product - orange / off-white
Corner mount - No
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 70 - 525 mm
Depth Weight & dimensions - 580 mm
Description - NEOMOUNTS DS70-250WH1 FULL MOTION MONITOR ARM DESK MOUNT FOR 17-35" SCREENS - WHITE
Description - Neomounts DS70-250WH1 pełnoruchowy uchwyt biurkowy na ramię monitora do ekranów 17-35" -biały Neomounts DS70-250WH1 NEXT Slim to w pełni ruchomy uchwyt na biurko przeznaczony do ekranów o przekątnej do 35 cali i charakteryzujący się maksymalnym udźwigiem 9 kg, odpowiedni zarówno dla płaskich, jak i zakrzywionych wyświetlaczy. Wszechstronne nachylenie (90°), obrót (360°) i obrotowej (180°) umożliwia płynne ustawienie dowolnego kąta widzenia, aby w pełni zoptymalizować możliwości ekranu. Dzięki regulacji wysokości (21,5-49,5 cm) i głębokości (7-52,5 cm) za pomocą sprężyny gazowej, uchwyt można łatwo dopasować do swoich potrzeb. odpowiadać Twoim potrzebom ergonomicznym.

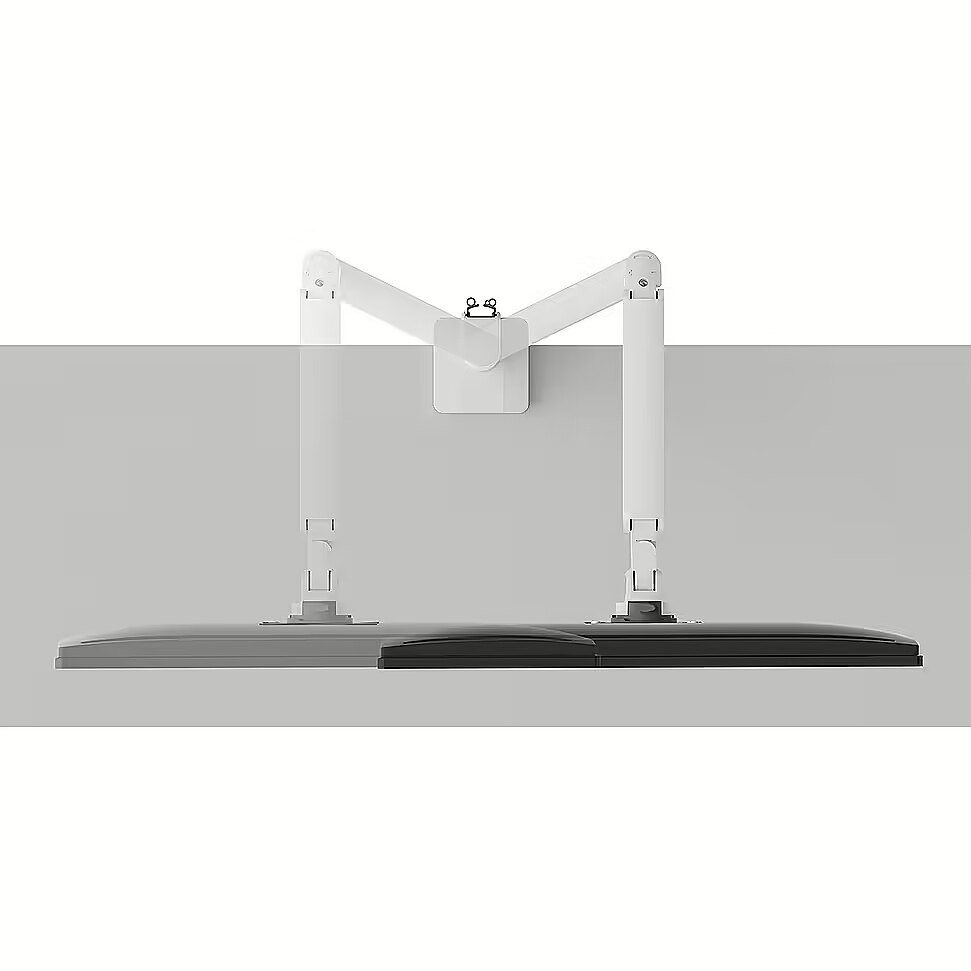

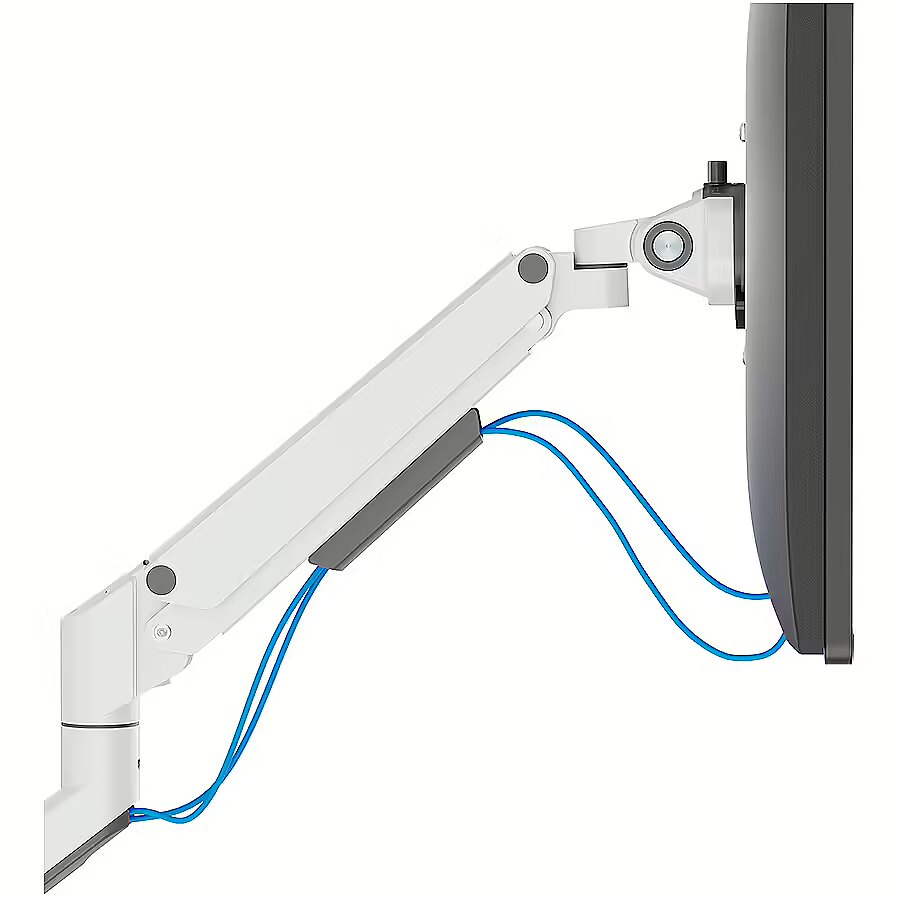

Ramię monitora DS70-250WH1 jest wyposażone w sprytny mechanizm zatrzymujący 180°, który zapobiega kontaktowi uchwytu ze ścianą lub panelem oddzielającym, gdy jest zainstalowany w pobliżu, a zintegrowany system zarządzania kablami pozwala zachować porządek na biurku.
Eleganckie czarne płytki VESA NEXT Slim idealnie pasują do Twojego ekranu, obsługując standardowe wzory VESA 75x75 lub 100x100 mm. W przypadku niestandardowych układów otworów firma Neomounts oferuje różne opcjonalne płyty adaptera VESA. System Quick-release VESA umożliwia łatwą konfigurację, a zacisk lub przelotka Topfix zapewnia szybką i prostą instalację.

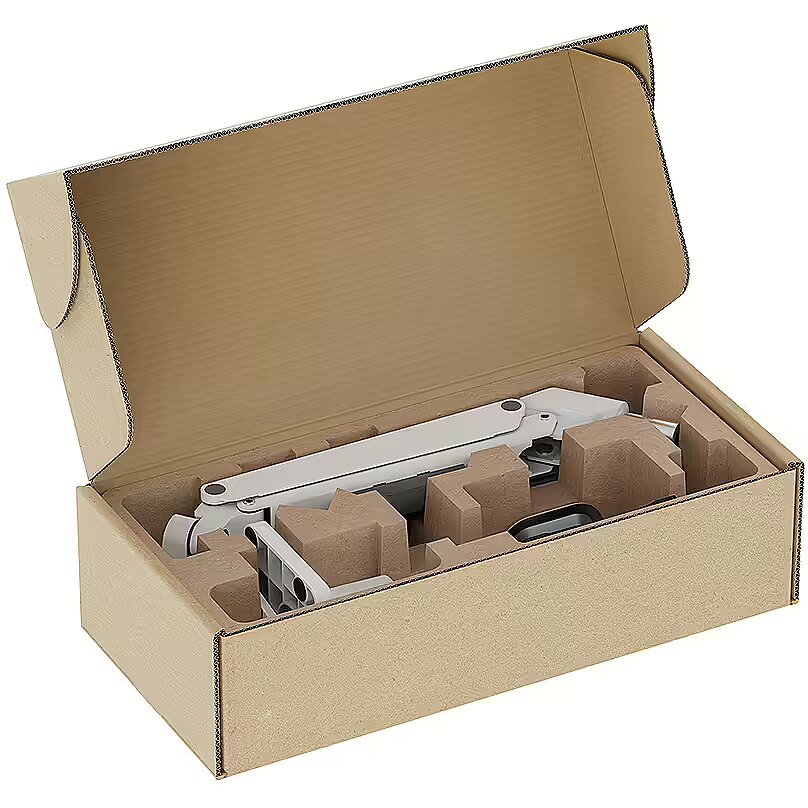

Dbając o zrównoważony rozwój, opakowanie uchwytów biurkowych NEXT Slim jest w 100% wolne od plastiku i w całości wykonane z tektury i papieru nadającego się do recyklingu.

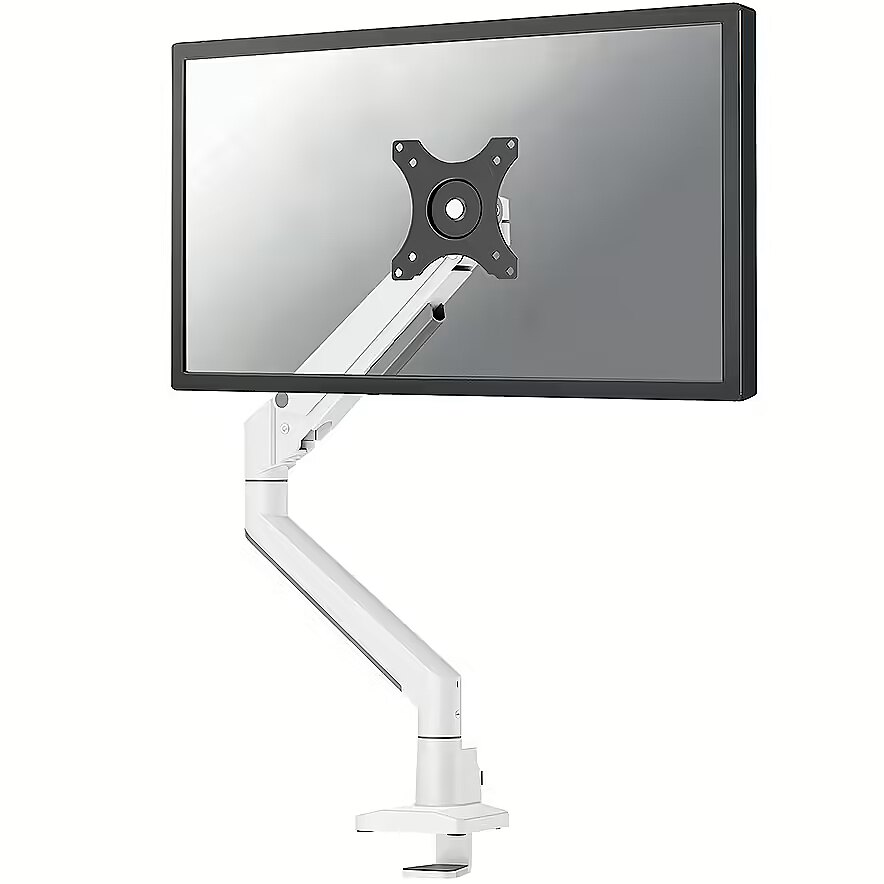

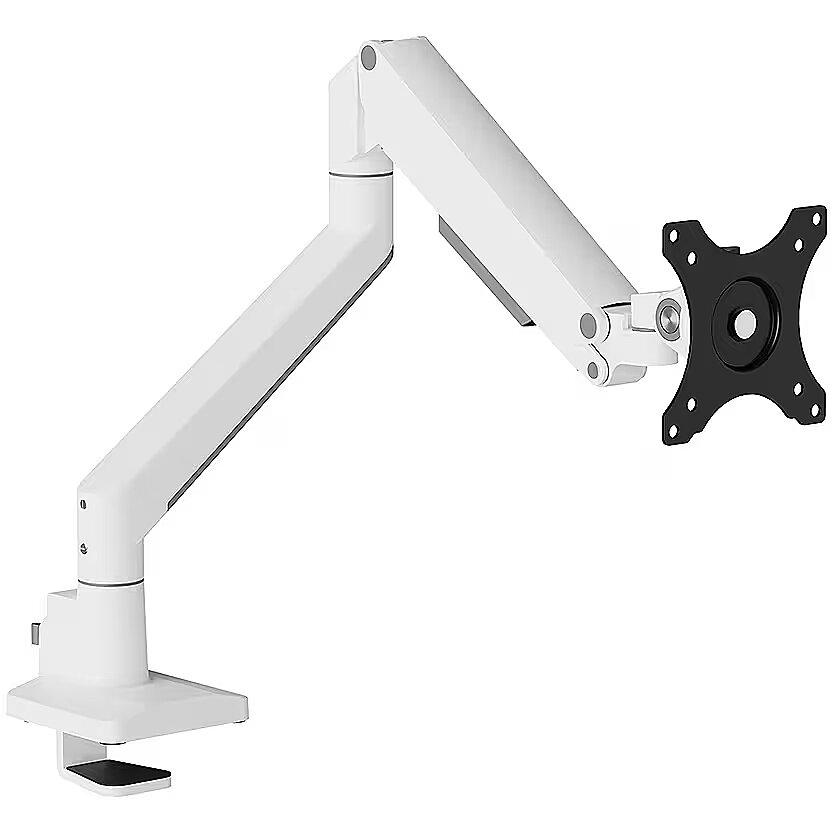

Description - The Neomounts DS70-250WH1 NEXT Slim is a full motion desk mount designed for screens up to 35", boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen?s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs. The DS70-250WH1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk. The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation. Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Design - Accepts padlock - No
Design - Housing material - Aluminium
Design - Product colour - White
Designation - CE+WEEE
Desk thickness (max) Mounting - 5 cm
Desk thickness (min) Mounting - 1 cm
dimension depth - 440 mm
dimension height - 110 mm
Dimensions - 552 x 114 x 580 mm
Dimensions W x D x H, mm - 114 x 580 x 552
dimension weight - 3000 g
dimension width - 200 mm
Distance to the wall (max) Mounting - 58 cm
Distance to the wall (min) Mounting - 12.5 cm
ean - 8717371443016
EAN - 8717371443016
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 70 - 525 mm
Ergonomics - Height adjustment - Yes

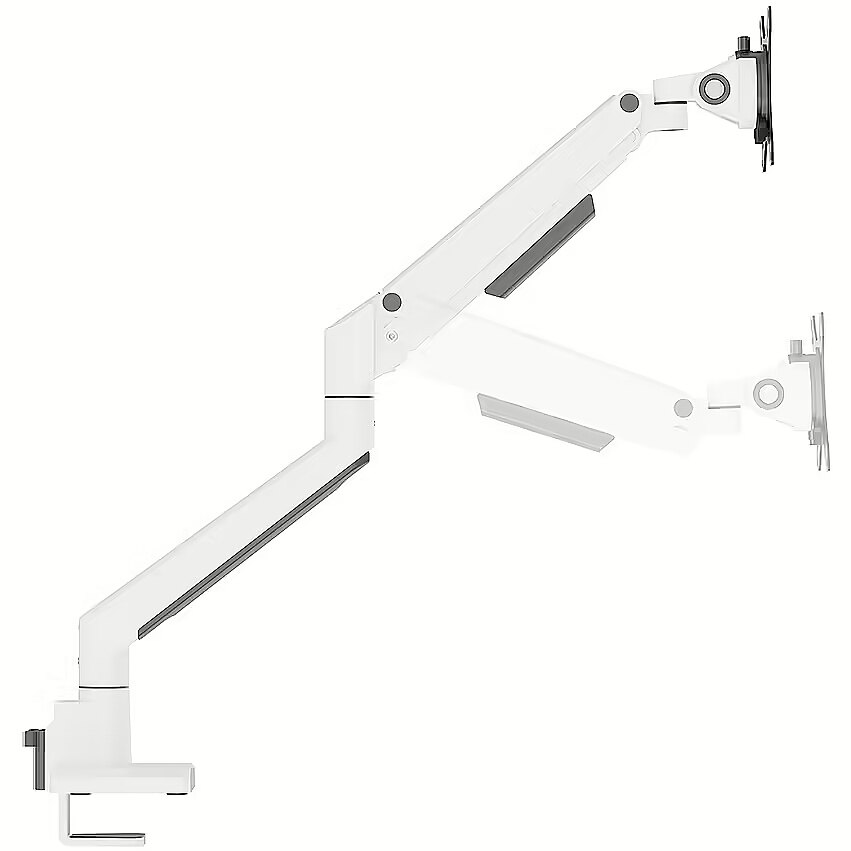

Ergonomics - Height adjustment range - 215 - 495 mm
Ergonomics - Height adjustment type - Gas spring

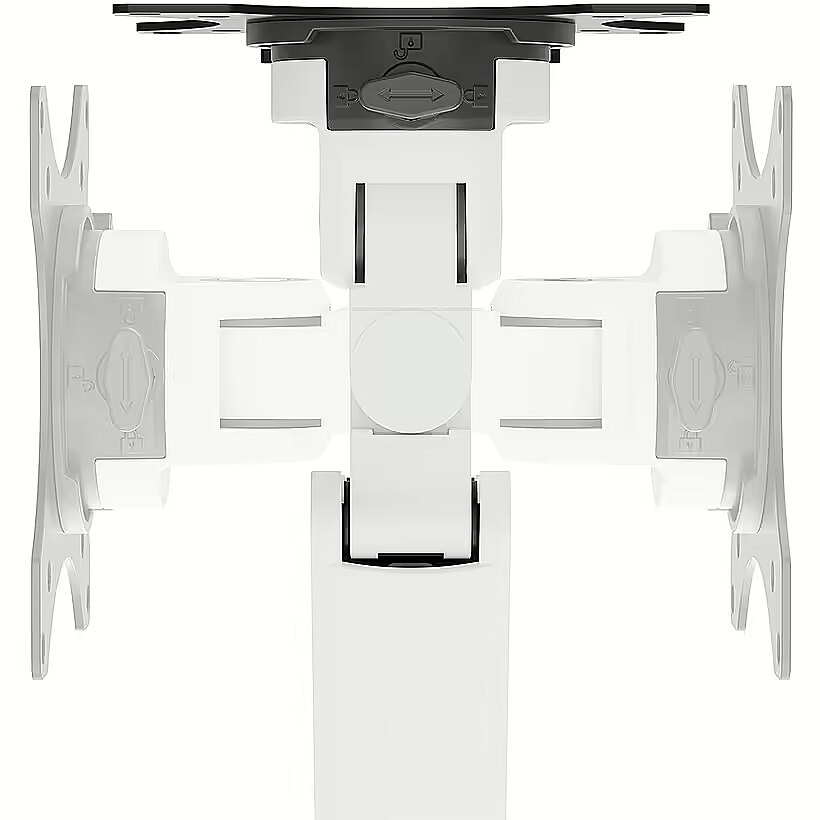

Ergonomics - Pivot angle - -180 - 180°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes

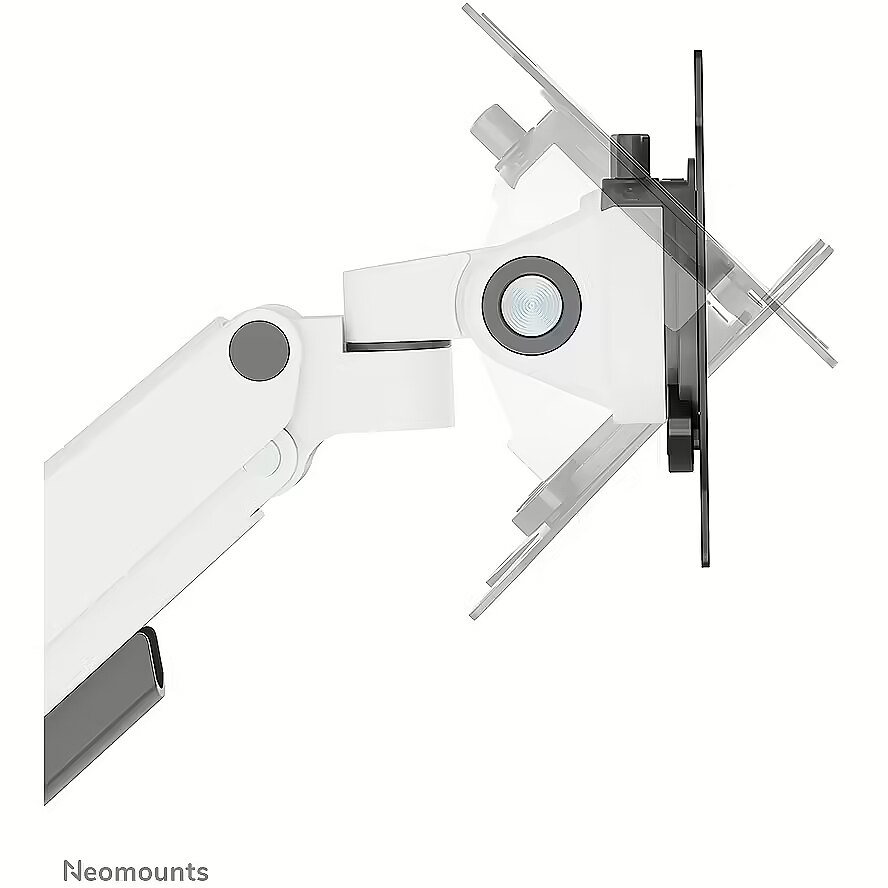

Ergonomics - Tilt angle range - -45 - 45°
Ergonomics - Width adjustment - 91 cm
GTIN - 8717371443016
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 7616991099
Height - 110.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 215 - 495 mm
Height adjustment type Ergonomics - Gas spring
Height Weight & dimensions - 552 mm
Horizontal adjustment - 90 °
Housing material Design - Aluminium
Length - 426.000000
Load (max) - 9 kg
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7616991099
Logistics data - Master (outer) case gross weight - 18.3 kg
Logistics data - Master (outer) case height - 445 mm
Logistics data - Master (outer) case length - 345 mm
Logistics data - Master (outer) case net weight - 13.8 kg
Logistics data - Master (outer) case width - 410 mm
Logistics data - Products per master (outer) case - 6 pc(s)
Logistics data - Products per pallet (EU) - 84 pc(s)
LongDesc - The Neomounts DS70-250WH1 NEXT Slim is a full motion desk mount designed for screens up to 35", boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen?s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.The DS70-250WH1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk. The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation. Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
LongProductName - Neomounts NEXT Slim DS70-250WH1 Single monitor arm - 17-35" - 1-9 kg (curved 8 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
LongSummaryDescription - Neomounts DS70-250WH1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Manufacturer - Neomounts
Manufacturer - Newstar
ManufacturerPartNumber - DS70-250WH1
Master (outer) case gross weight Logistics data - 18.3 kg
Master (outer) case height Logistics data - 445 mm
Master (outer) case length Logistics data - 345 mm
Master (outer) case net weight Logistics data - 13.8 kg
Master (outer) case width Logistics data - 410 mm
Material - Aluminium
Maximum screen size Mounting - 88.9 cm (35")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight (capacity), kg - 9
Maximum weight capacity (per curved/ultra-wide display) Mounting - 8 kg
Maximum weight capacity (per display) Mounting - 9 kg
Maximum weight capacity Mounting - 9 kg
Minimum screen size Mounting - 43.2 cm (17")
Minimum VESA mount Mounting - 75 x 75 mm
Minimum weight Other features - 1 kg
Model - DS70-250WH1
Motorized - No
Mounting - Desk thickness (max) - 5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Distance to the wall (max) - 58 cm
Mounting - Distance to the wall (min) - 12.5 cm
Mounting - Maximum screen size - 88.9 cm (35")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 9 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 8 kg
Mounting - Maximum weight capacity (per display) - 9 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
MPN - DS70-250WH1
name - DS70-250WH1 desk desk monitor arm 17-35 inch 9kg
Name - MONITOR ACC DESK MOUNT 17-35"/DS70-250WH1 NEOMOUNTS
Name - Neomounts DS70-250WH1 Tischhalterung für Monitore bis 89cm 35" 9KG Weiß
Number of displays supported Mounting - 1
Number of supported monitors - 1
Other features - Odległość od ściany: 12,5-58 cm Regulacja wysokości: 21,5-49,5 cm Regulacja szerokości: 91cm Regulacja głębokości: 7-52,5 cm
Other features - Minimum weight - 1 kg
Other features - Warranty period - 5 year(s)
Other features - Width adjustment range - 0 - 910 mm
Package depth Packaging data - 108 mm
Package height Packaging data - 428 mm
Package weight Packaging data - 2.9 kg
Package width Packaging data - 198 mm
Packaging data - Package depth - 108 mm
Packaging data - Package height - 428 mm
Packaging data - Package weight - 2.9 kg
Packaging data - Package width - 198 mm
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Pivot angle Ergonomics - -180 - 180°
producer - Neomounts
Product colour Design - White
ProductName - Neomounts DS70-250WH1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
Product Net Weight ELKO Logistics Data - 2.7 kg
Products per master (outer) case Logistics data - 6 pc(s)
Products per pallet (EU) Logistics data - 84 pc(s)
Range (max) - 495 mm
Range (min) - 215 mm
Range adjustment - No
Rotating Ergonomics - Yes
rotation - 180 °
Rotation, ° - 90
Screen size (max) - 35 ''
Screen size (min) - 17 ''
Screen size compatibility, " - 17-35
Shipping Box Depth ELKO Internal Logistics Data - 43 cm
Shipping Box Height ELKO Internal Logistics Data - 11 cm
Shipping Box Weight ELKO Internal Logistics Data - 2.8 kg
Shipping Box Width ELKO Internal Logistics Data - 20 cm
Short summary - Neomounts NEXT Slim DS70-250WH1 Single monitor arm - 17-35" - 1-9 kg (curved 8 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
ShortSummaryDescription - Neomounts DS70-250WH1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 9 kg, 43.2 cm (17"), 88.9 cm (35"), 100 x 100 mm, White
Stand/mount type - Table
Stuff - Aluminum
Summary - Neomounts DS70-250WH1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Swivel angle range Ergonomics - -90 - 90°
Swivelling Ergonomics - Yes
Tilt - Yes
Tilt adjustment, ° - 45
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -45 - 45°
Title - Neomounts DS70-250WH1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
Turn - Yes
Turn, ° - 180
Type - Desk
Unit Box Height - 0.11
Unit Box Length - 0.43
Unit Box Width - 0.2
Unit Calculated Volume ELKO Internal Logistics Data - 0.00946 cubm
Unit Calculated Weight ELKO Logistics Data - 2.8 kg
Unit Depth ELKO Logistics Data - 43 cm
Unit Height ELKO Logistics Data - 11 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 20 cm
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-250WH1
Usage - Monitors
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-250WH1
vendpn - DS70-250WH1
Vertical adjustment - 45 °
VESA - 75 x 75
VESA - 100 x 100
VESA-standard, mm - 75 x 75
VESA-standard, mm - 75 x 100
VESA-standard, mm - 100 x 75
VESA-standard, mm - 100 x 100
Video -
Warranty - 60 months
WarrantyInfo - 5 year
Warranty period Other features - 5 year(s)
Weight - 2.84
Weight - 2.810000
Weight & dimensions - Depth - 580 mm
Weight & dimensions - Height - 552 mm
Weight & dimensions - Weight - 2.3 kg
Weight & dimensions - Width - 114 mm
Weight Weight & dimensions - 2.3 kg
Wheels - No
Width - 202.000000
Width adjustment Ergonomics - 91 cm
Width adjustment range Other features - 0 - 910 mm
Width Weight & dimensions - 114 mm
