category - Cases & Modding
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
code - Q540-MGNN-S00
Color - Iron
Compatible power supply standard - ATX
Compatible power supply standard - SFX
Computer case backlight - No

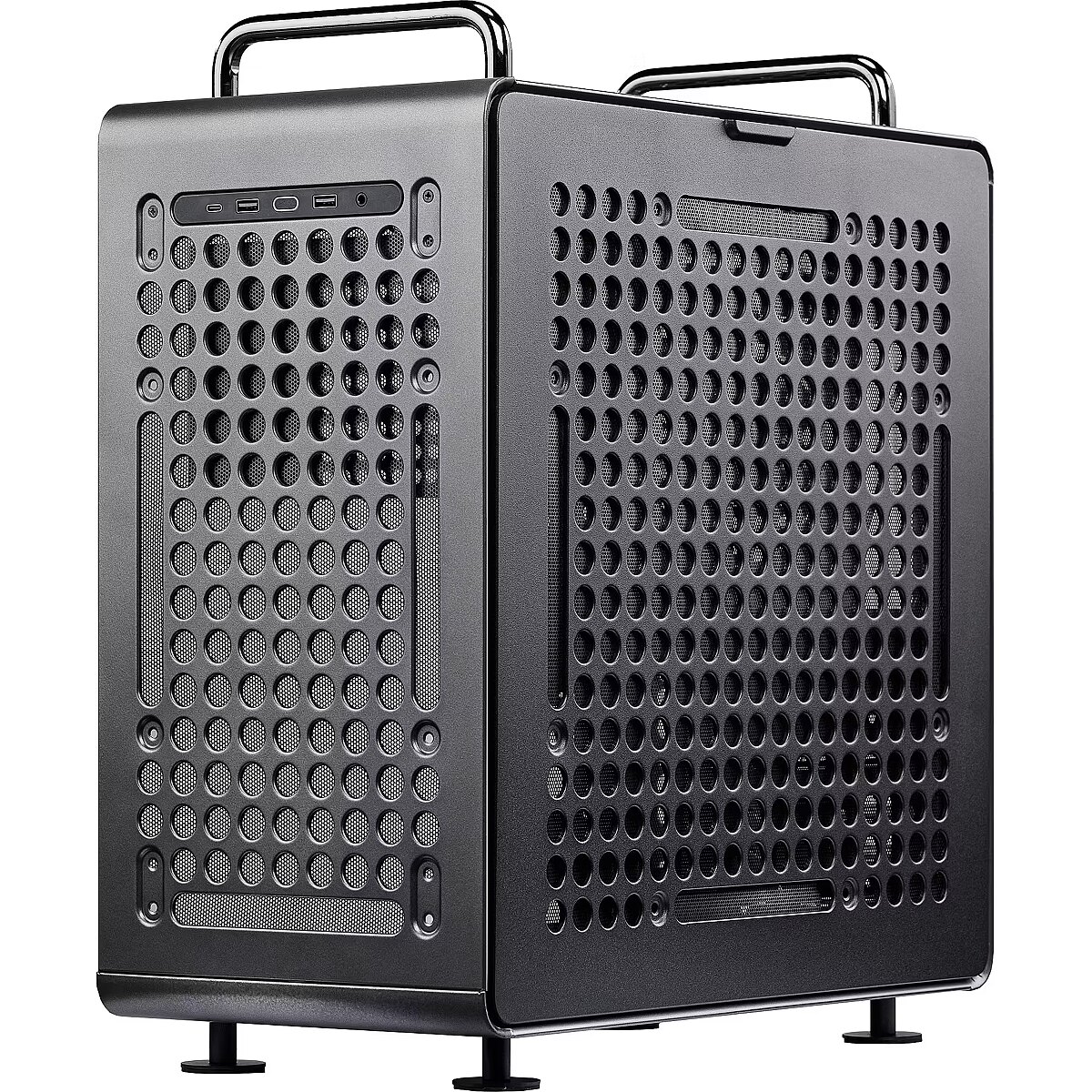

Description - Compact Case, Unlimited Creativity QUBE 540 Designed for creators, gamers, and DIY builders.
Perfect for small apartments, dorm rooms, and creators on the move, the QUBE 540 fits your life as well as your PC. Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components. Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it. Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way. Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them. Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts. Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
Designation - CE+WEEE
dimension depth - 315 mm
dimension height - 540 mm
Dimensions - 438.5 x 225 x 492.1 mm
dimension weight - 8750 g
dimension width - 520 mm
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' intern. - 1
ean - 4719512162064
EAN_code - 4719512162064
Fans installed - 1 x 120 mm (back)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - ITX
Form-factor - Micro ATX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.2 Gen 2x2 Type-C
Front panel connectors - 2 x USB 3.2 Gen1
guarantee - 24
guarantee_type - normal
Manufacturer - Cooler Master
Manufacturer_code - Q540-MGNN-S00
Maximum CPU cooling height - 172 mm
Maximum length of the graphics card - 415 mm
Maximum length of the power supply - 200 mm
Maximum number of fans - 10
name - Case Qube 540 Stardust Iron
name - Cooler Master QUBE 540 PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass - Stardust Iron
Name - Cooler Master QUBE 540 Stardust Iron (black, tempered glass)
No. of drive bays - 3
Number of fans installed - 1
Number of slots for expansion cards - 7
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 140 mm (bottom)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 140 mm (top)
Ooptional water cooling - 1 x 280 mm (bottom)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (bottom)
Ooptional water cooling - 1 x 360 mm (front)
Ooptional water cooling - 1 x 360 mm (top)
Optional fans - 1 x 120 mm (back)
Optional fans - 3 x 120 mm lub 2 x 140 mm (bottom)
Optional fans - 3 x 120 mm lub 2 x 140 mm (front)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Power supply - Failure
producer - Cooler Master
Side panel - Tempered Glass
vendpn - Q540-MGNN-S00
Weight - 8,80
