ID: 1383449
Product code: 90YV0NQ0-M0NB00
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

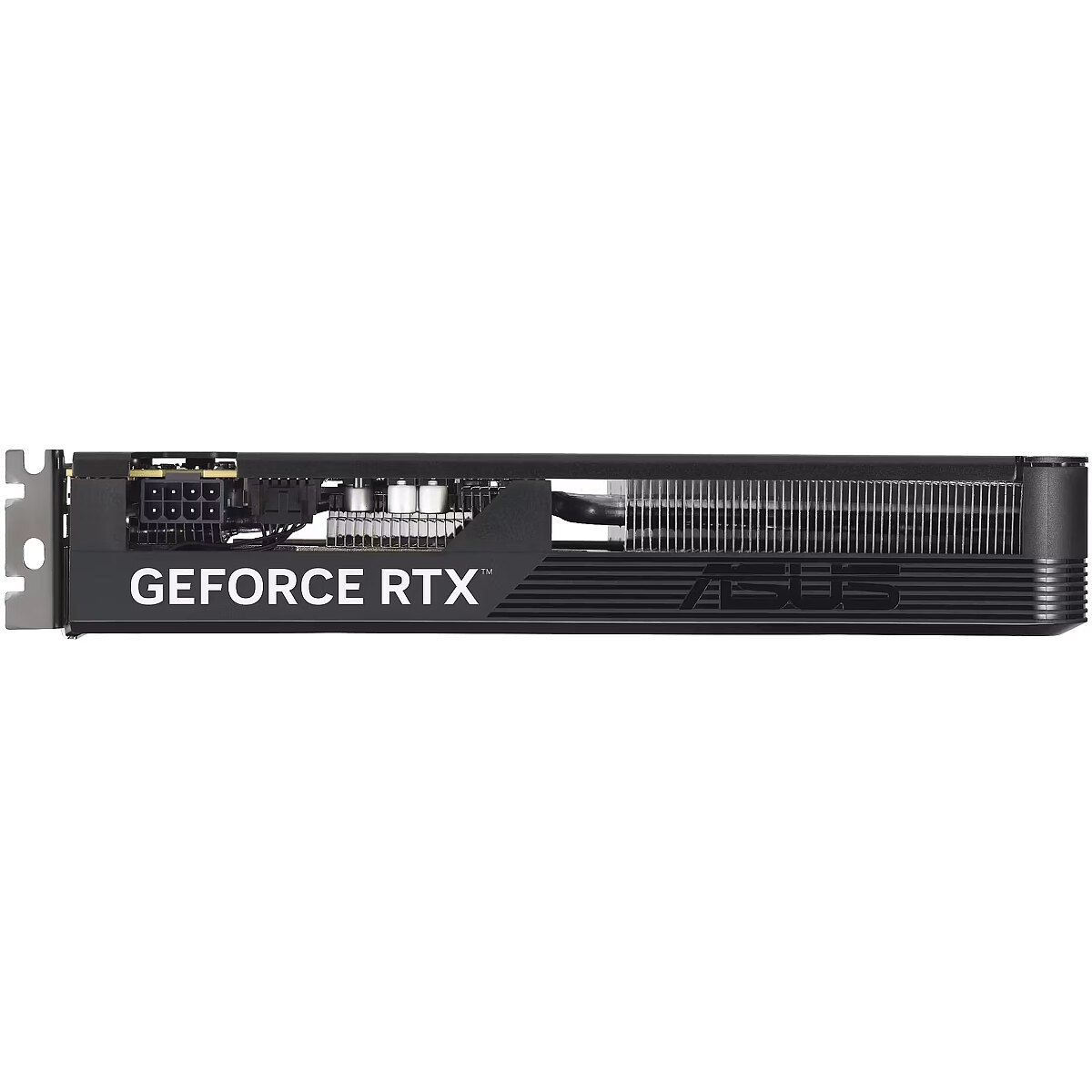

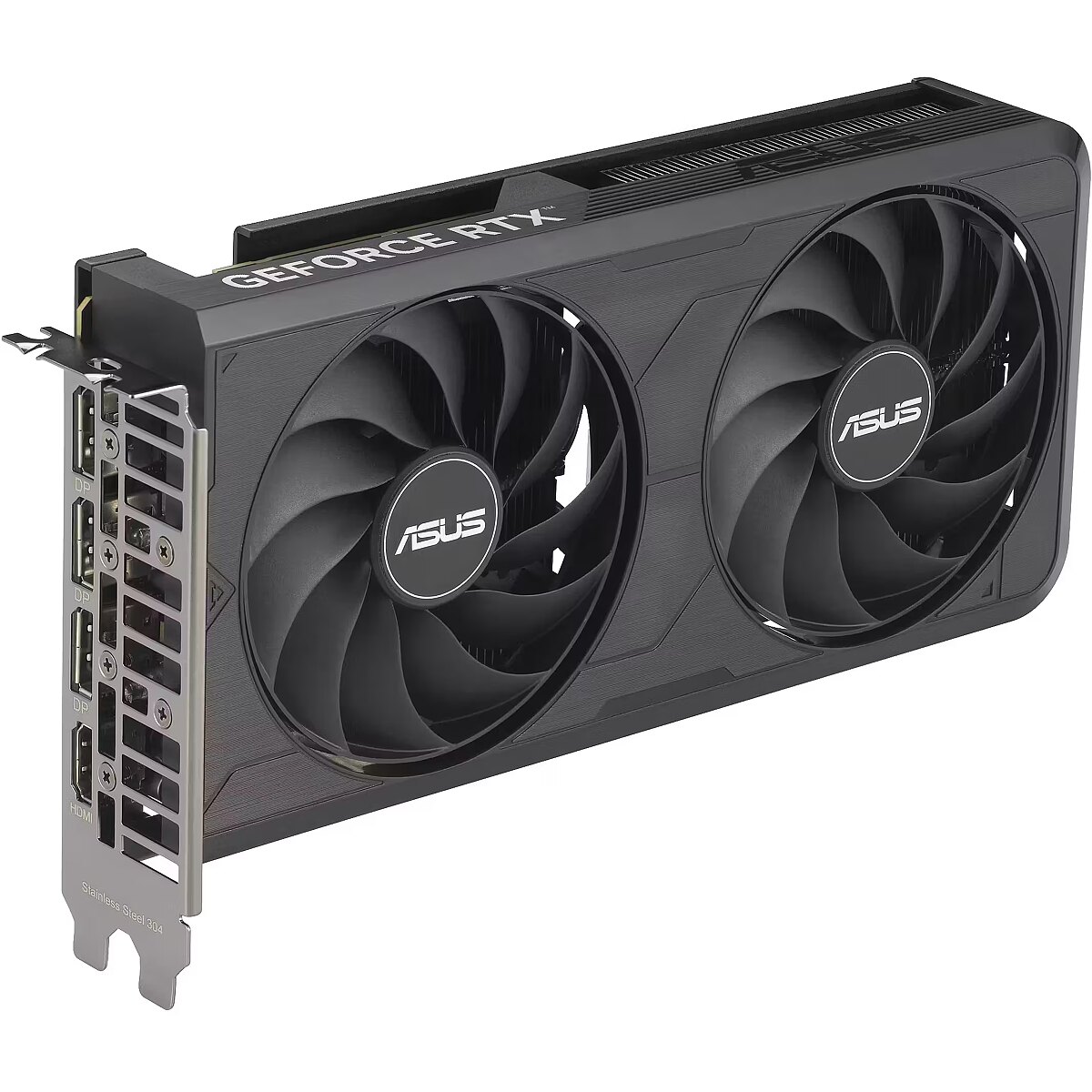

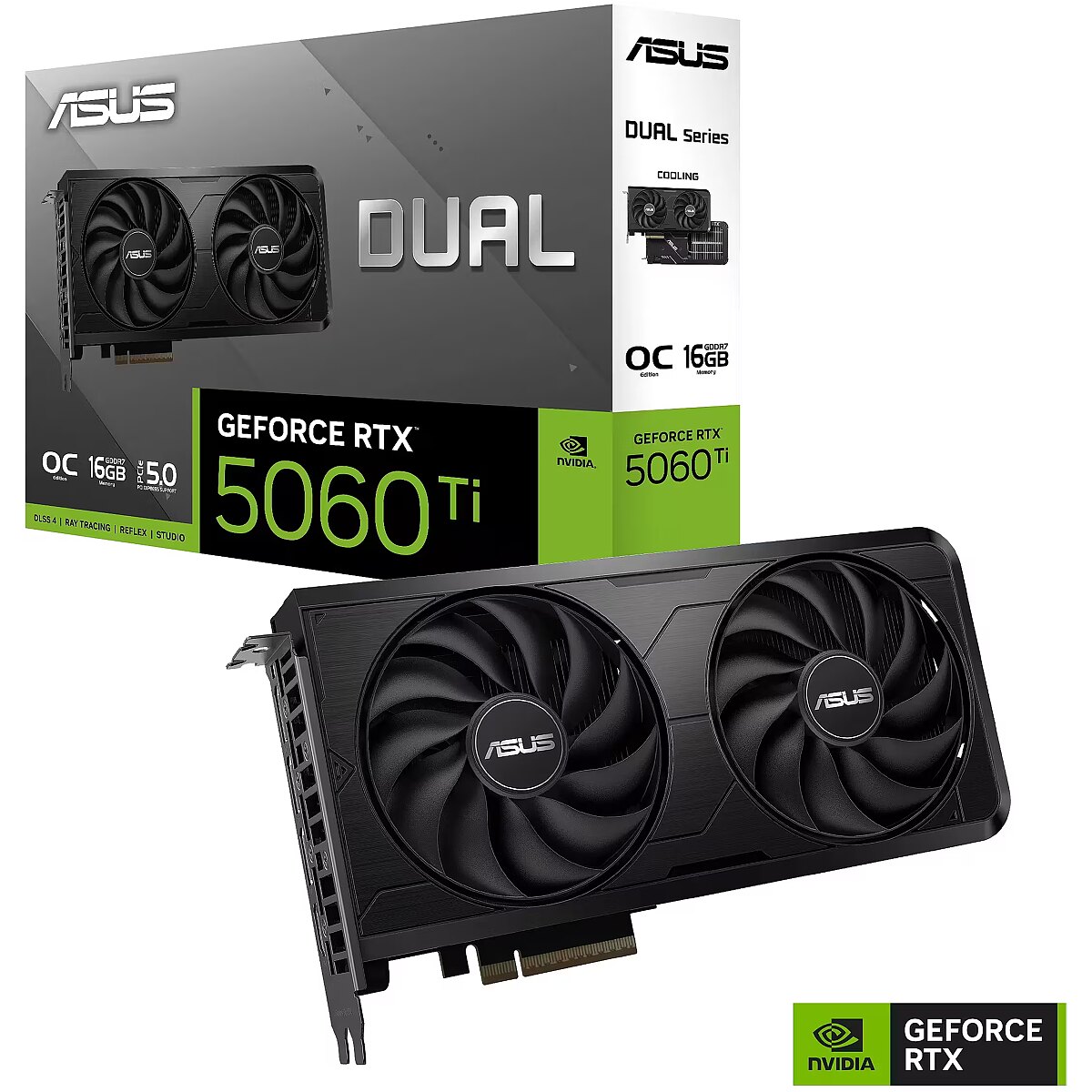

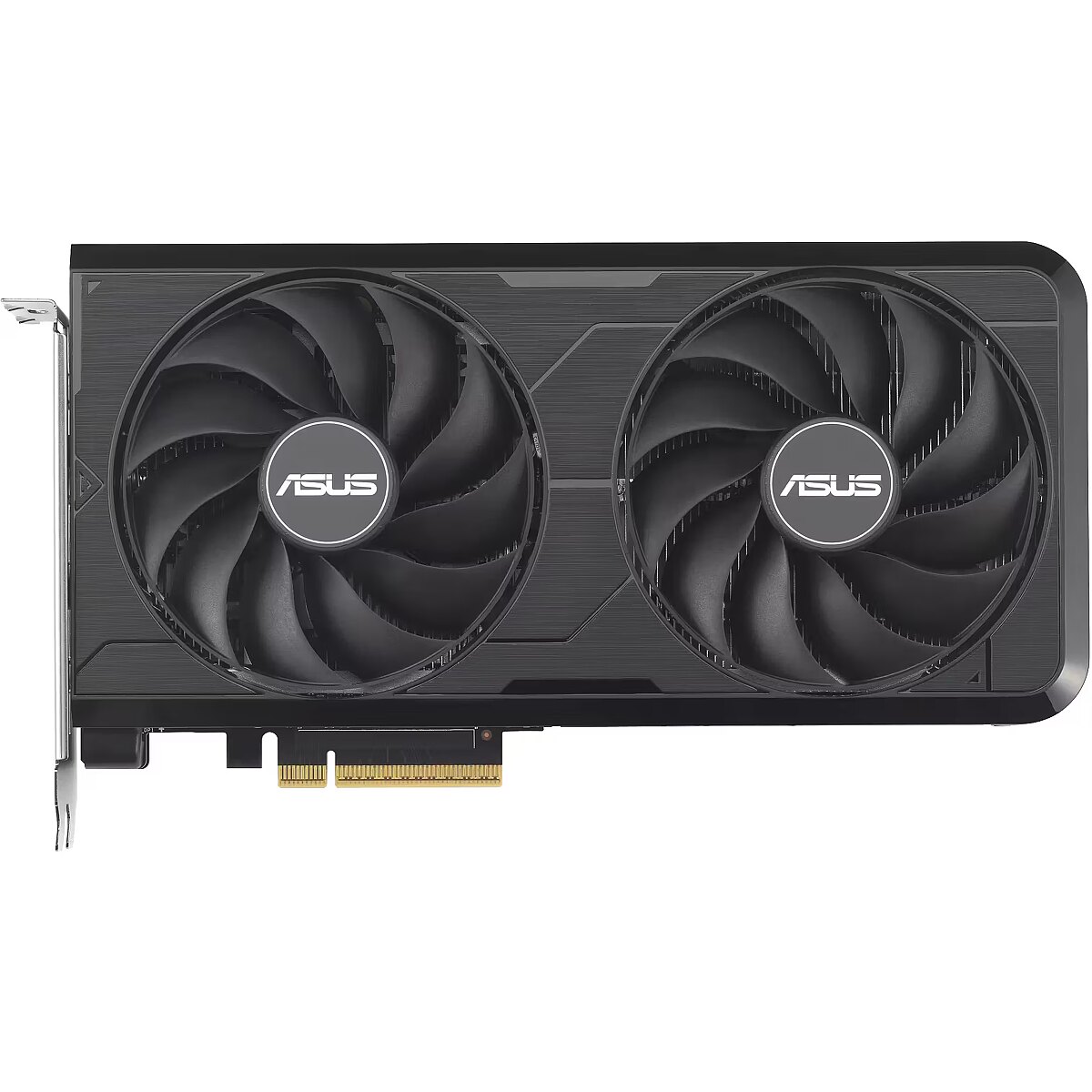

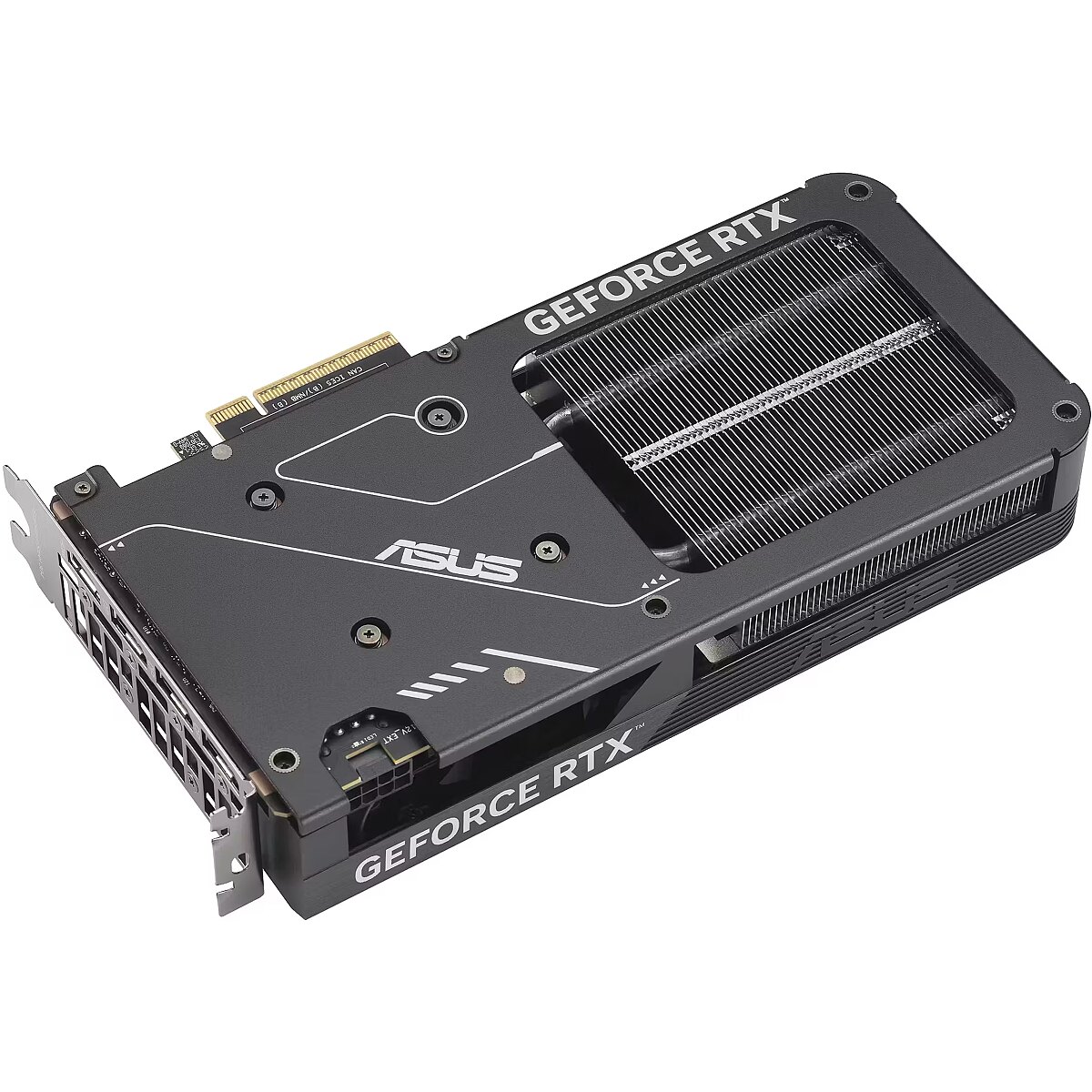

Asus GeForce RTX 5060 Ti, 16GB GDDR7, Dual EVO OC (DLSS 4)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- GPU model: GeForce RTX 5060 Ti (16GB)
- GPU core frequency: 2632 MHz
- Power sockets: 1x 8-pin
- RAM: 16 GB
- Memory type: GDDR7
- Cooling: Standard Cooler
Description
We offer to buy the graphics card Asus GeForce RTX 5060 Ti (16GB) with 16 GB GDDR7 RAM.
Virtual reality
The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.
Basic information
GPU tips
GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Asus Dual
GPU model
GeForce RTX 5060 Ti (16GB)
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2632 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 2
Length (mm)
: 225
Stream processors / CUDA Cores
: 4608
PCI-E version
: 5.0 x8
Power consumption (TDP)
: 180 W
Minimum power supply output
: 550 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
16 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR7
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 28000 MHz
Bus width
128 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
Standard Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No
Ports and equipment

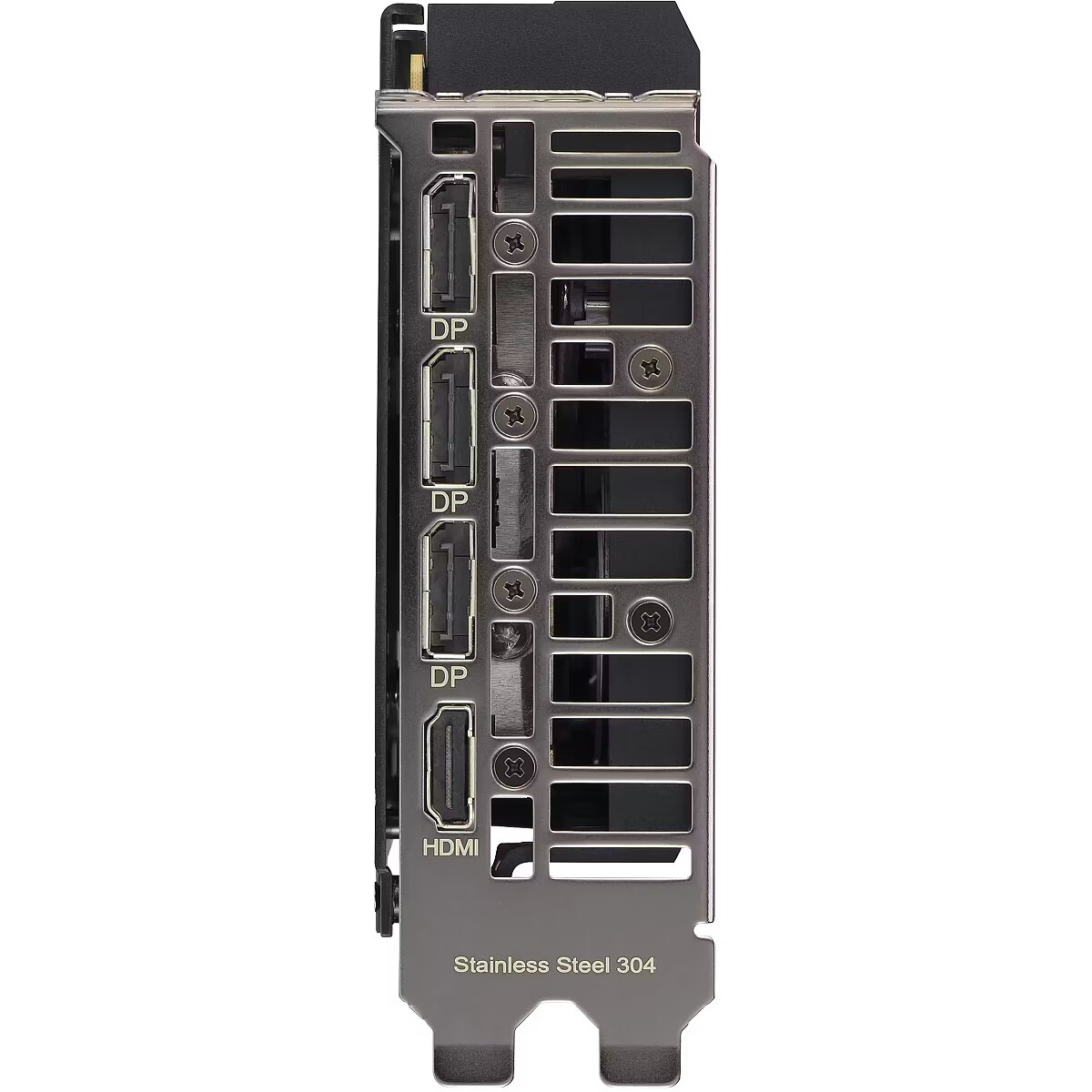

HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
3
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
Brand - ASUS
BrandPartCode - 90YV0NQ0-M0NB00
Category - Graphics Cards
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.1
Design - Product colour - Black
dimensionalWeight - 792
GTIN - 4711636296519
LongDesc - Dual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 Ti EVO combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.1-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
LongProductName - Dual GeForce RTX 5060 Ti EVO OC Edition 16GB GDDR7
LongSummaryDescription - ASUS Dual GeForce RTX 5060 Ti EVO OC Edition. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 128 bit
Packaging content - Manual - Yes
Packaging data - Package type - Box
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NPU performance up to - 759 TOPs
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 4608
Processor - Graphics processor - GeForce RTX 5060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2602 MHz
Processor - Processor frequency (OC mode) - 2632 MHz
producerCode - 90YV0NQ0-M0NB00
productName - ASUS Dual GeForce RTX 5060 Ti EVO OC Edition NVIDIA 16 GB GDDR7
ProductName - GeForce RTX 5060 Ti EVO OC Edition
productSize - Normal
ShortSummaryDescription - ASUS Dual GeForce RTX 5060 Ti EVO OC Edition, GeForce RTX 5060 Ti, 16 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 110
sizeY - 240
sizeZ - 150
Title - ASUS Dual GeForce RTX 5060 Ti EVO OC Edition NVIDIA 16 GB GDDR7
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060ti-o16g-evo/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 515
Weight & dimensions - Depth - 42 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 225 mm
