ID: 1230646
Product code: GV-R9060XTGAMING OC-16GD
In stock 27 units
Warranty: 3 years

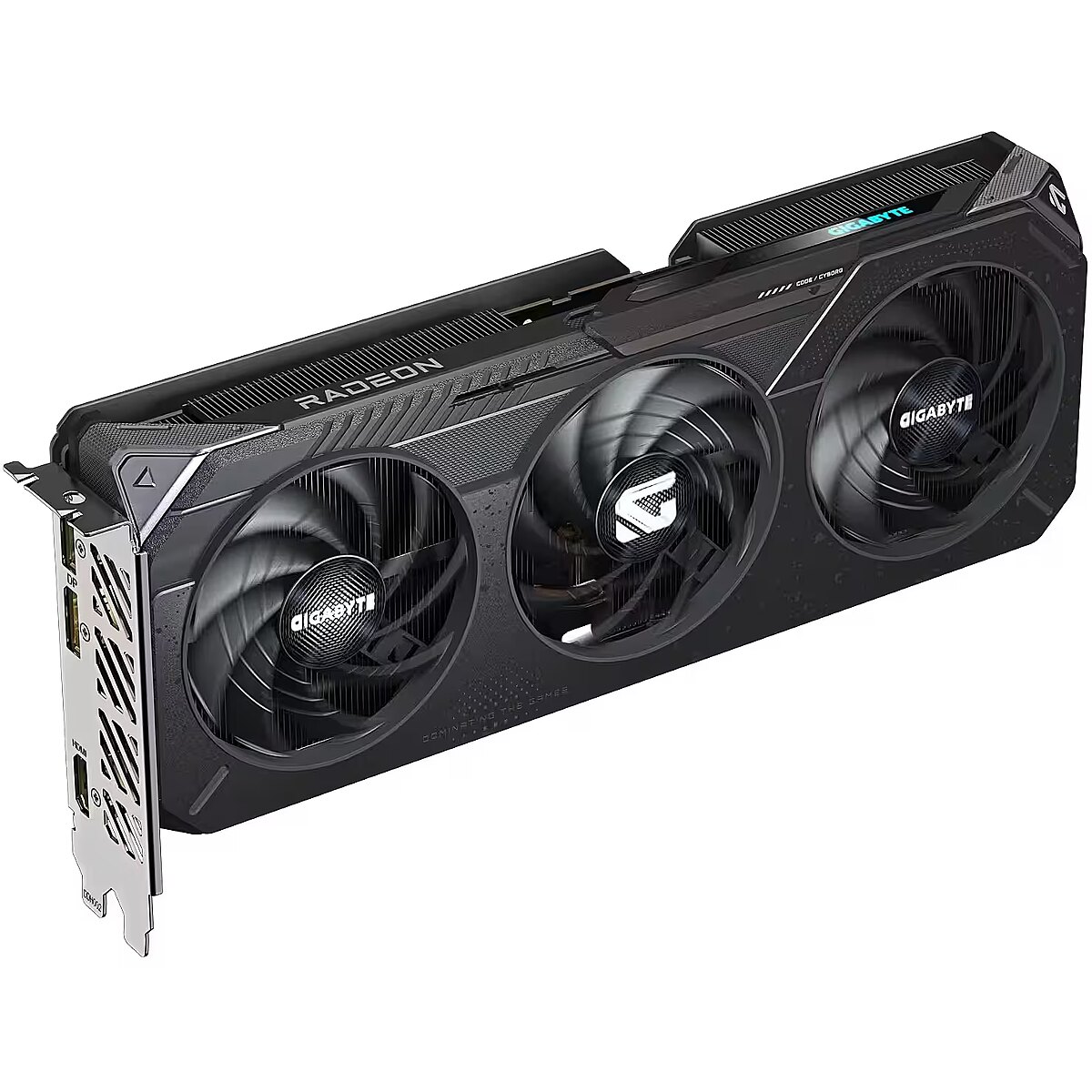

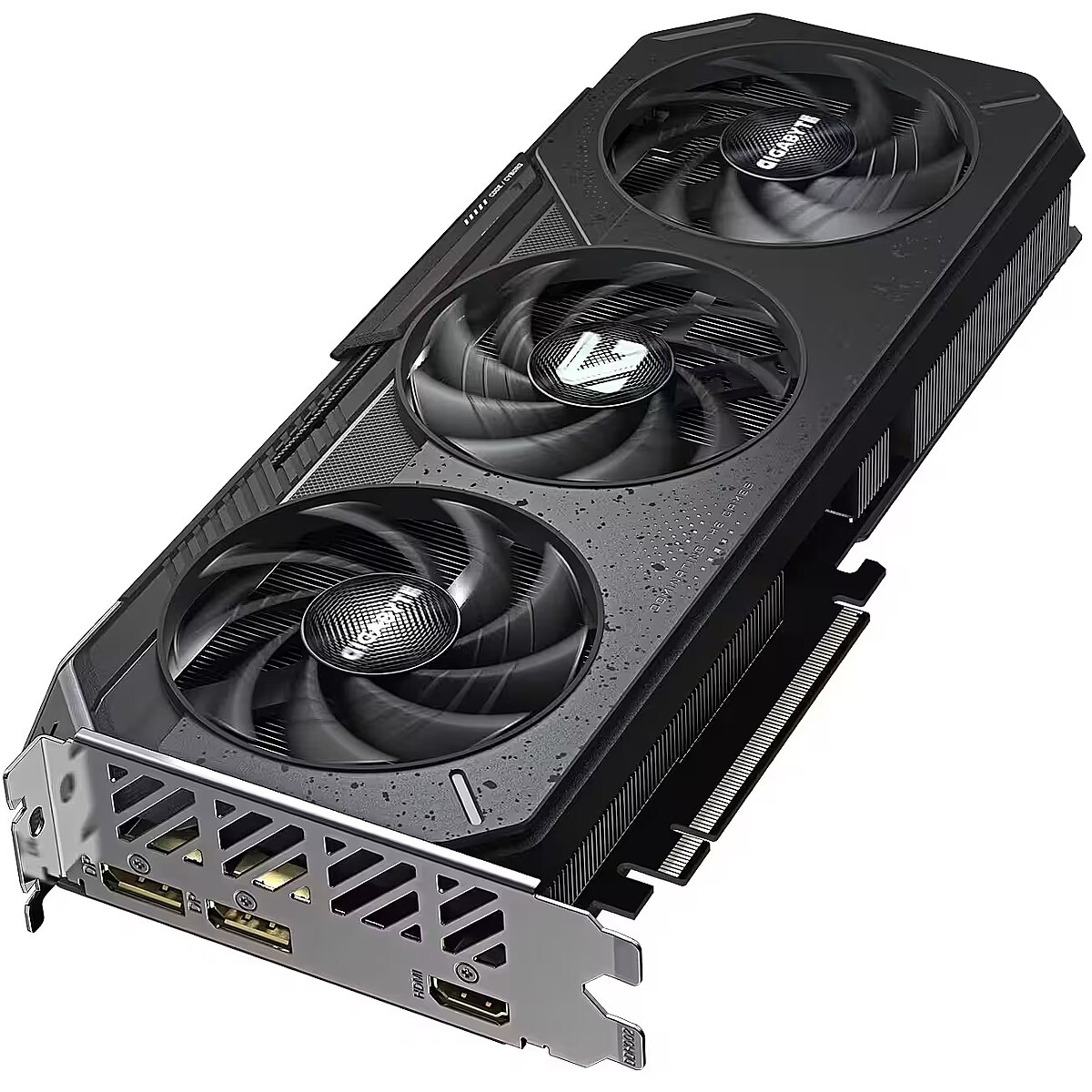

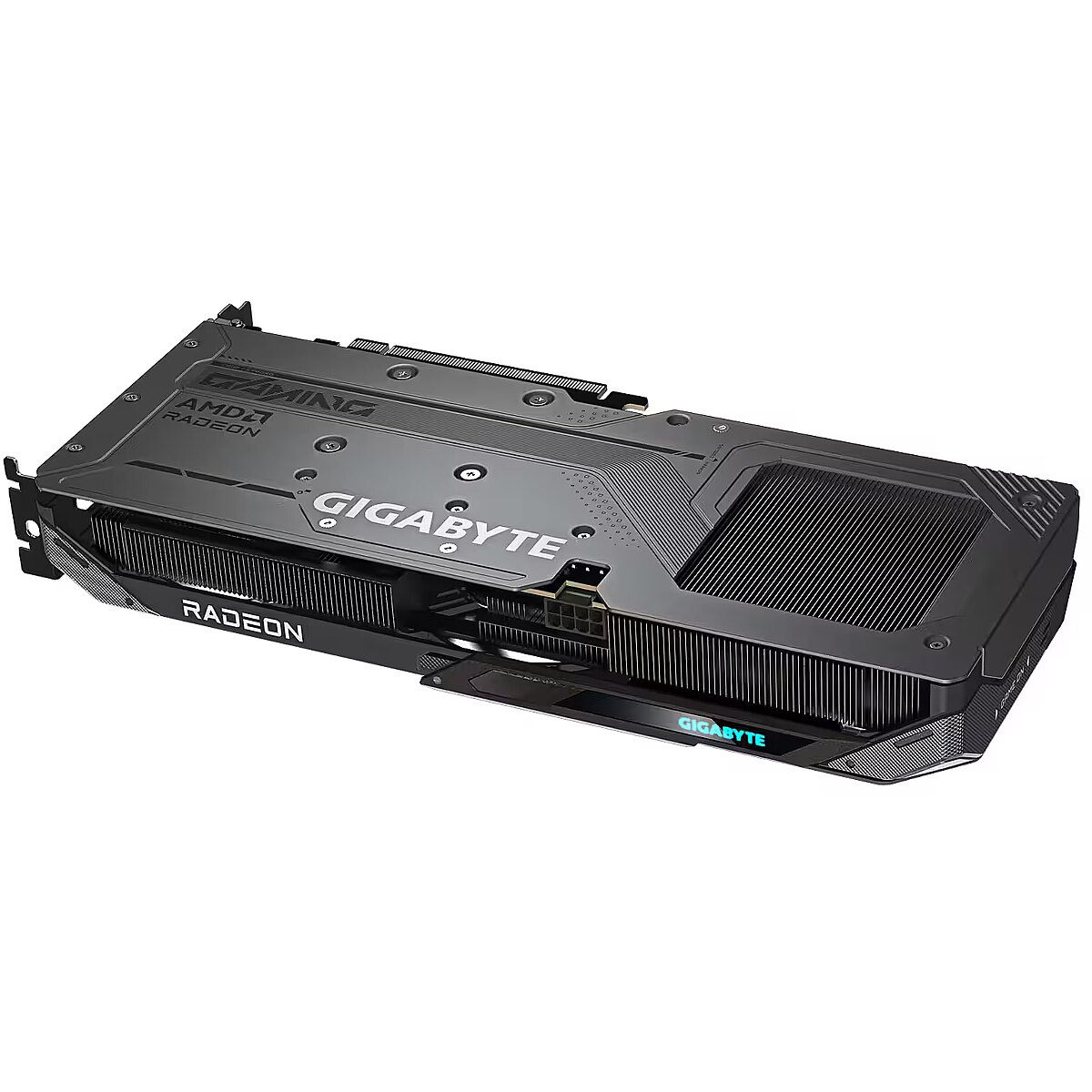

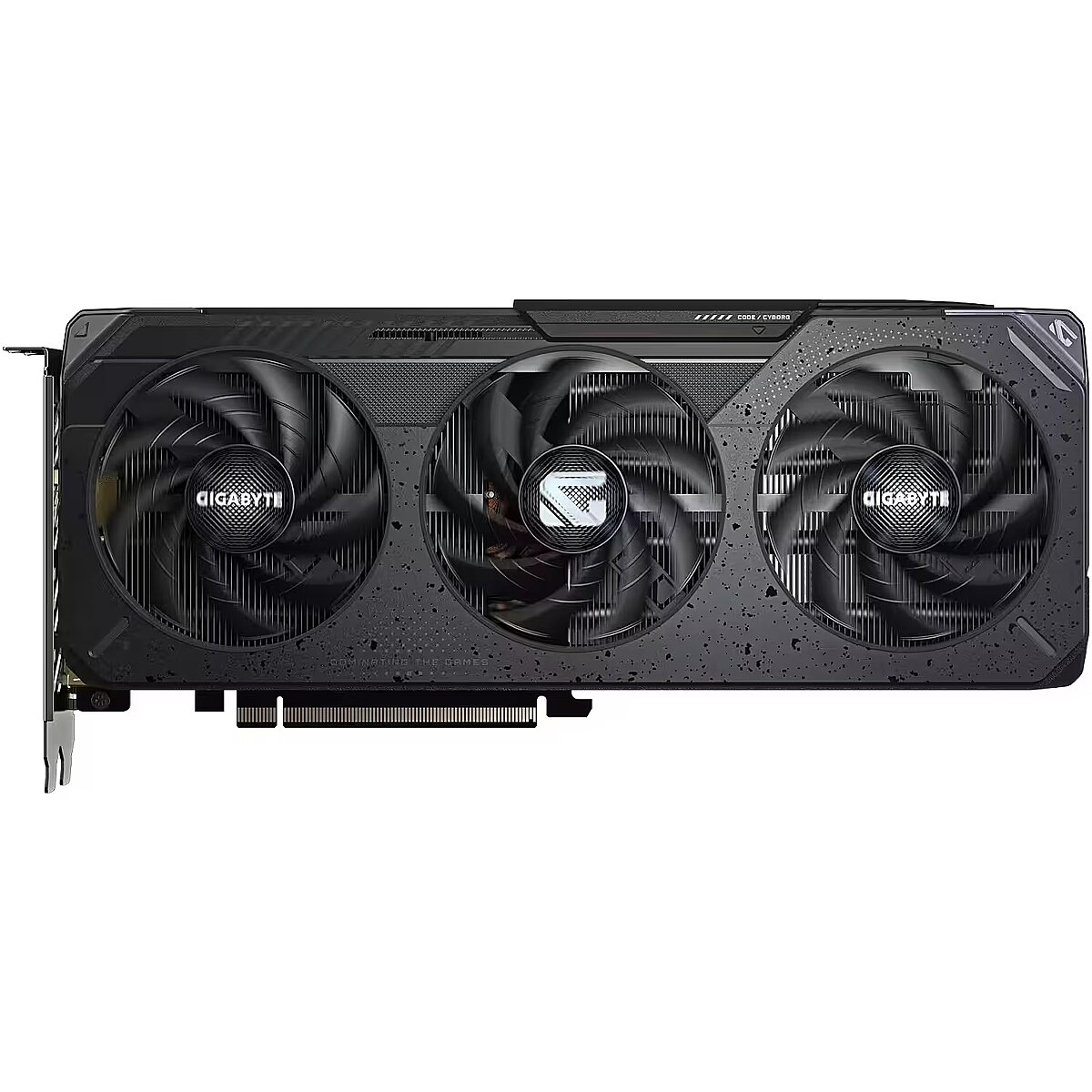

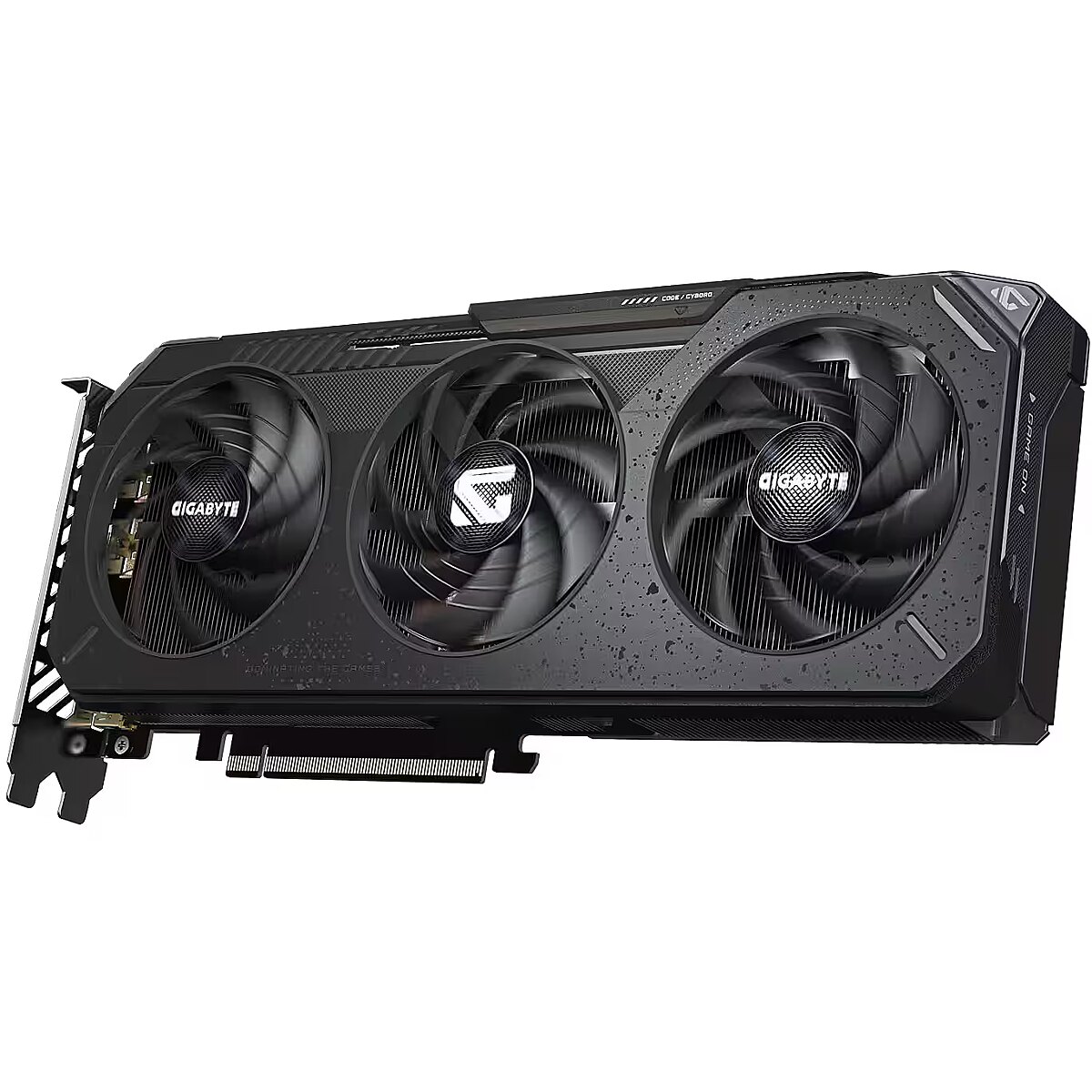

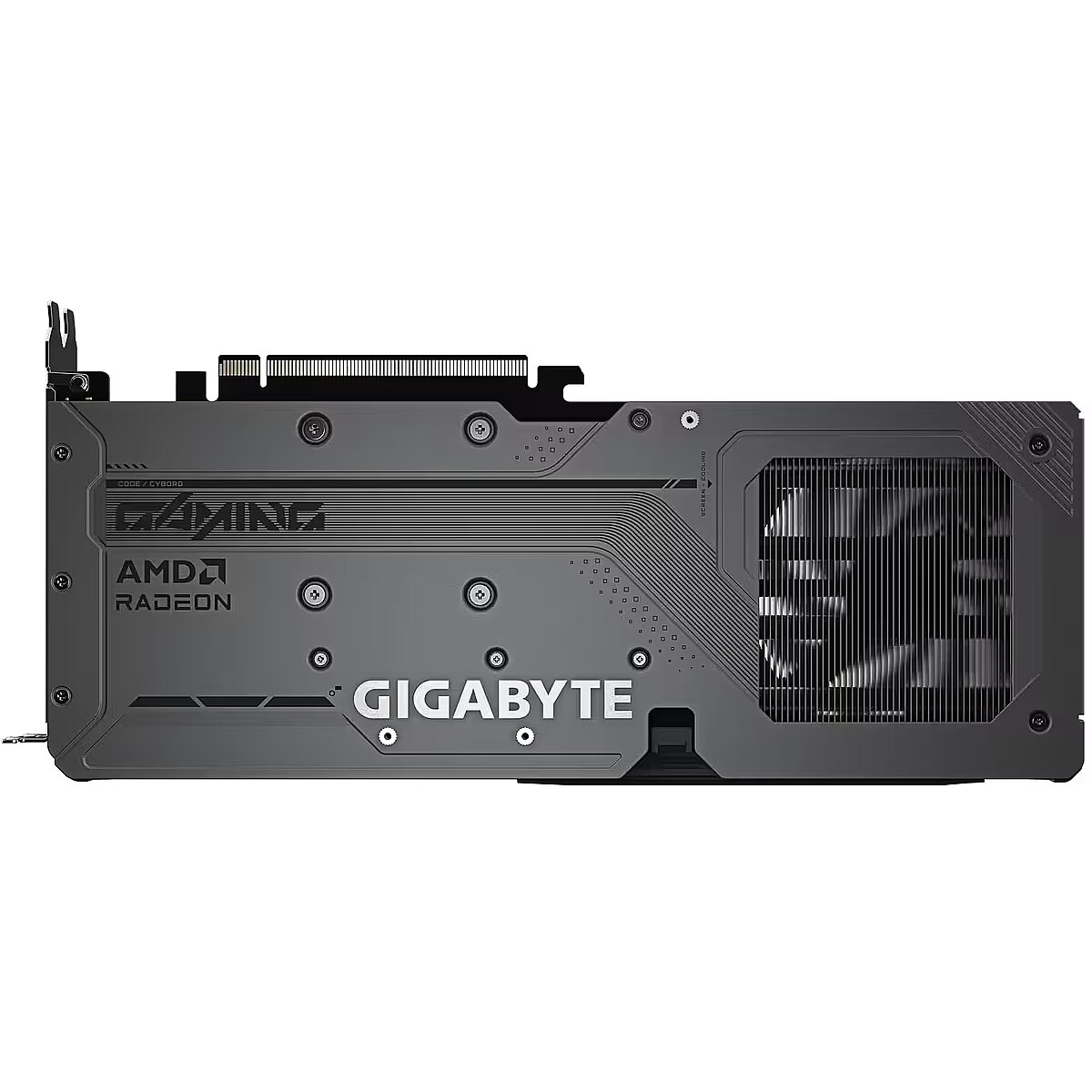

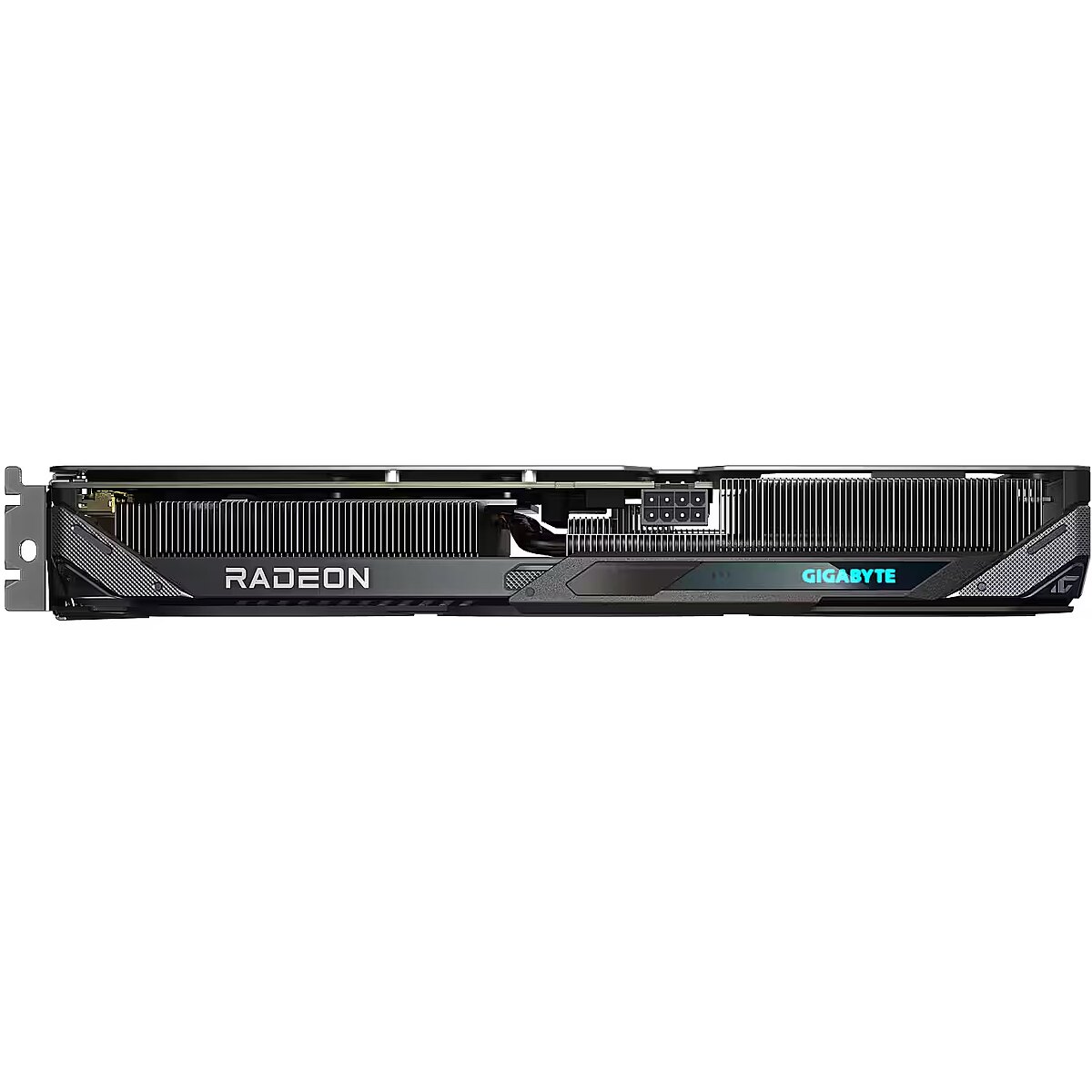

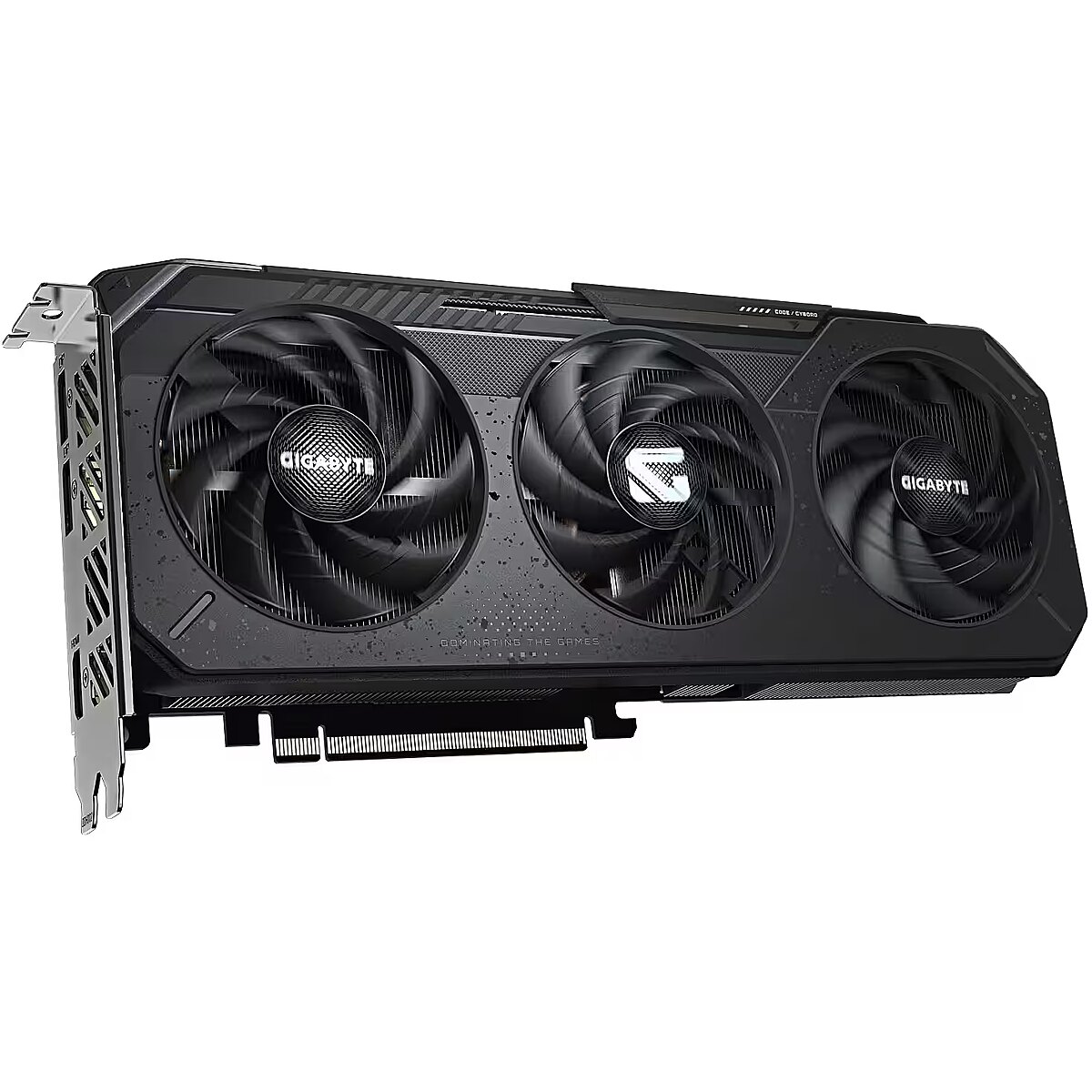

Gigabyte Radeon RX 9060 XT, 16GB GDDR6, GAMING OC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- GPU model: Radeon RX 9060 XT (16GB)
- GPU core frequency: Not specified
- Power sockets: 1x 8-pin
- RAM: 16 GB
- Memory type: GDDR6
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Gigabyte Radeon RX 9060 XT (16GB) with 16 GB GDDR6 RAM.
Basic information
GPU tips
Radeon
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Gigabyte Gaming
GPU model
Radeon RX 9060 XT (16GB)
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
Not specified
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 281
Stream processors / CUDA Cores
: 2048
PCI-E version
: 5.0 x16
Power consumption (TDP)
: 160 W
Minimum power supply output
: 450 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
16 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 20000 MHz
Bus width
128 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: RGB
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No

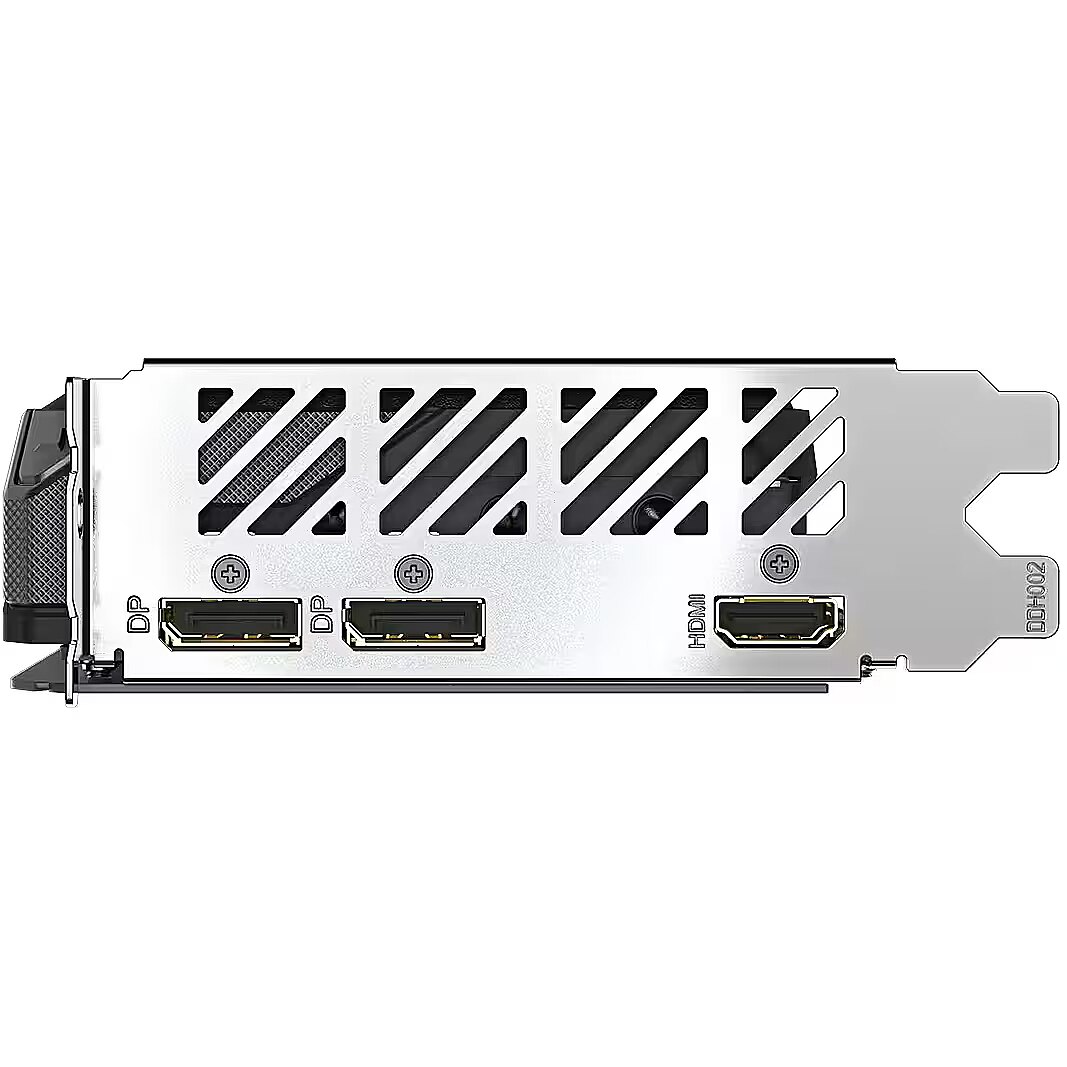

Ports and equipment
HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
2
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 3
More detailed specification
Brand - GIGABYTE
BrandPartCode - GV-R9060XTGAMING OC-16GD
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
category_en - Computers & Components > Computer components > AMD graphics cards
category_lv - Datortehnika > Datoru komponentes > AMD grafiskās kartes
category_ru - Datortehnika > Datoru komponentes > AMD grafiskās kartes
Chipset - Radeon RX 9060 XT
Chipset manufacturer - AMD
Code - GV-R9060XTGAMING OC-16GD
code - GV-R9060XTGAMING OC-16GD
Cooling - Active
Cooling technology Design - GIGABYTE WINDFORCE 3X
Cooling type Design - Active
Core Boost frequency - 3320 MHz
Core frequency - 2780 MHz
CUDA Processor - No
Dane techniczne: Długość - 28.1 cm
Dane techniczne: Grupa produktowa - Karty graficzne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - czarny
Dane techniczne: Liczba wentylatorów - 3 szt.
Dane techniczne: Model chipsetu - Radeon RX 9060 XT
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Gigabyte
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Przepustowość pamięci - 320 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 11.8 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 20000 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 16 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 4 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 450 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 40 mm
Desc - Mikroshēmu tips: AMD Radeon RX 9060 XT, Takts frekvence: 2780 MHz, Atmiņas apjoms: 16 GB, Atmiņas veids: GDDR6, Biti: 128 Bit, Takts frekvence atmiņai: 20000 MHz, Interfeisa tips: PCI-Express 5.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 1, Display Port: 2, Garantija: 2 gadi
Description - Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.Powered by Radeon RX 9060 XTIntegrated with 16GB GDDR6 128bit memory interfaceWINDFORCE cooling systemRGB LightingDual BIOS (Performance / Silent)Reinforced structure
Description - System chłodzenia WINDFORCE zapewnia wyjątkową wydajność termiczną dzięki połączeniu nowoczesnych technologii. Zawiera serwerowej klasy żel termoprzewodzący, innowacyjne wentylatory Hawk z naprzemiennym kierunkiem obrotu, kompozytowe rurki cieplne z miedzi, miedzianą płytkę, wentylatory 3D Active oraz chłodzenie ekranowe. Napędzana przez Radeon RX 9060 XT Zintegrowana pamięć 16 GB GDDR6, magistrala 128-bitowa System chłodzenia WINDFORCE Wentylatory Hawk Żel termoprzewodzący klasy serwerowej Podświetlenie RGB Wzmocniona konstrukcja
description_en - The Gigabyte Radeon RX 9060 XT GAMING OC 16GB Graphics Card is an advanced solution for gamers and content creators who refuse to compromise. Built on a next-generation AMD architecture, this graphics card delivers outstanding performance, allowing you to enjoy games at 1440p and even 4K resolutions with high settings and frame rates.
Equipped with a massive 16GB of high-speed memory, this graphics card easily handles the most demanding games with ultra textures and complex visual effects. The large VRAM capacity also makes it an ideal choice for professional work, from high-resolution video editing to 3D modeling. Gigabyte's signature WINDFORCE cooling system, with multiple fans and a massive heatsink, efficiently dissipates heat, ensuring stable performance even under maximum load. The factory overclock (OC) guarantees enhanced performance right out of the box. An elegant design with customizable RGB lighting and a durable backplate makes it not only a powerful component but also a stylish addition to your gaming setup.
description_lv - Gigabyte Radeon RX 9060 XT GAMING OC 16GB Grafiskā karte ir moderns risinājums spēlētājiem un satura veidotājiem, kuri atsakās no kompromisiem. Izgatavota uz nākamās paaudzes AMD arhitektūras bāzes, šī grafiskā karte nodrošina izcilu veiktspēju, ļaujot jums baudīt spēles 1440p un pat 4K izšķirtspējā ar augstiem iestatījumiem un kadru ātrumu.
Aprīkota ar milzīgu 16 GB liela ātruma atmiņu, šī grafiskā karte viegli tiek galā ar visprasīgākajām spēlēm ar ultra tekstūrām un sarežģītiem vizuālajiem efektiem. Lielais VRAM apjoms padara to par ideālu izvēli arī profesionālam darbam, sākot no augstas izšķirtspējas video rediģēšanas līdz 3D modelēšanai. Gigabyte patentētā WINDFORCE dzesēšanas sistēma ar vairākiem ventilatoriem un masīvu radiatoru efektīvi novada siltumu, nodrošinot stabilu darbību pat pie maksimālas slodzes. Rūpnīcas "overclock" (OC) garantē uzlabotu veiktspēju jau no iepakojuma. Elegants dizains ar pielāgojamu RGB apgaismojumu un izturīgu aizmugures plati padara to ne tikai par jaudīgu komponentu, bet arī par stilīgu papildinājumu jūsu spēļu sistēmai.
description_ru - Видеокарта Gigabyte Radeon RX 9060 XT GAMING OC 16GB это передовое решение для геймеров и создателей контента, которые не готовы идти на компромиссы. Созданная на основе архитектуры нового поколения AMD, эта видеокарта обеспечивает выдающуюся производительность, позволяя вам наслаждаться играми в разрешении 1440p и даже 4K с высокими настройками и частотой кадров.
Оснащенная огромным объемом 16GB высокоскоростной памяти, эта видеокарта легко справляется с самыми требовательными играми с ультра-текстурами и сложными визуальными эффектами. Большой объем видеопамяти также делает ее идеальным выбором для профессиональной работы — от редактирования видео в высоком разрешении до 3D-моделирования. Фирменная система охлаждения WINDFORCE от Gigabyte с несколькими вентиляторами и массивным радиатором эффективно отводит тепло, обеспечивая стабильную работу даже при максимальной нагрузке. Заводской разгон (OC) гарантирует повышенную производительность прямо из коробки. Элегантный дизайн с настраиваемой подсветкой и прочной задней пластиной делает ее не только мощным компонентом, но и стильным дополнением к вашей игровой системе.
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 365 mm
dimension height - 185 mm
Dimensions - 281 x 118 x 40 mm
dimension weight - 1207 g
dimension width - 80 mm
DirectX version Performance - 12.0
Discrete graphics card memory Memory - 16 GB
DisplayPorts quantity Ports & interfaces - 2
Dual Link DVI Performance - No
EAN - 4719331356248
ean - 4719331356248
Eans - 4719331356248
EAN_code - 4719331356248
Form factor Design - Full-Height/Full-Length (FH/FL)
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9060 XT
Gross Weight Kg - 1,6
gross_weight - 1.3 kg
GTIN - 4719331356248
guarantee - 36
guarantee_type - normal
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 118 mm
Illumination colour Design - Multi
Illumination Design - Yes
Interface type Ports & interfaces - PCI Express x16 5.0
LargeDescHTML -
Length Weight & dimensions - 281 mm
Link - https://www.gigabyte.com/Graphics-Card/GV-R9060XTGAMING-OC-16GD
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
LongProductName - Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
LongSummaryDescription - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-R9060XTGAMING OC-16GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-R9060XTGAMING OC-16GD
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 20000 MHz
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6
Memory bus - 128-bit
Memory bus Memory - 128 bit
Memory clock speed Memory - 20000 MHz
Memory frequency - 20 Gbps
Memory type - DDR6
Minimum system power supply Power - 450 W
Model - AMD Radeon RX 9060 XT
Model - GV-R9060XTGAMING OC-16GD
Model - Radeon RX 9060 XT
MPN - GV-R9060XTGAMING OC-16GD
Name - Gigabyte Radeon RX 9060 XT GAMING 16GB OC
Name - GIGABYTE Radeon RX 9060 XT GAMING OC 16GB, graphics card
name - Gigabyte Radeon RX 9060 XT Gaming OC 16G Grafikkarte, 16384 MB GDDR6
Name - Gigabyte Radeon RX 9060 XT GAMING OC 16G | AMD | 16 GB | Radeon RX 9060 XT | GDDR6 | HDMI ports quantity 1 | PCI-E 5.0
name - Radeon RX 9060 XT GAMING OC 16G
Name - RX 9060 XT 16GB Gigabyte Radeon Gaming OC GDDR6 3 Fan
Name - Videokarte Gigabyte Radeon RX 9060 XT GAMING OC 16G
Number of fans Design - 3 fan(s)
OpenGL version Performance - 4.6
Other information -
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 354 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 281.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 118.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 651 pc(s)
Package features > Paper/Pasteboard - 38.40 g
Package features > Plastic (No PET) - 9.60 g
Package features > Tare weight (kg) - 0.05 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 75 mm
Package type Packaging data - Box
Package weight Packaging data - 1290 g
Package width Packaging data - 182.5 mm
Packaging data - Package depth - 354 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.29 kg
Packaging data - Package width - 182.5 mm
Parallel processing technology support Processor - Not supported
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI-E 5.0
Power - Minimum system power supply - 450 W
Power - Supplementary power connectors - 1x 8-pin
Power - Thermal Design Power (TDP) - 151 W
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 3320 MHz
Processor - Processor boost clock speed (Gaming mode) - 2780 MHz
Processor - Stream processors - 2048
Processor > Graphics processor - Radeon RX 9060 XT
Processor > Graphics processor family - AMD
Processor boost clock speed (Gaming mode) Processor - 2780 MHz
Processor boost clock speed Processor - 3320 MHz
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GV-R9060XTGAMING OC-16GD
Product colour Design - Black
ProductName - Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
Product Net Weight - 0.8 kg
Products per shipping (inner) case Logistics data - 1 pc(s)
ShortDescription - Chipset AMD 9060 XT | 16GB
Short description - GIGA VGA 16GB Radeon RX9060XT GAMING OC-16GD 2xDP/2xHDMI GV-R9060XTGAMING OC-16GD
ShortSummaryDescription - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD, Radeon RX 9060 XT, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x16 5.0
Stream processors Processor - 2048
Summary - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Supplementary power connectors Power - 1x 8-pin
Supported standards - DirectX 12 API
Supported standards - OpenGL 4.6
Technical details > Gross weight - 0.61 kg
Technical details > Net weight - 0.56 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - Radeon RX 9060 XT GAMING OC 16G
Thermal Design Power (TDP) Power - 151 W
Title - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
title_en - Gigabyte AMD Radeon RX 9060 XT Graphics Card 16GB
title_lv - Gigabyte AMD Radeon RX 9060 XT Videokarte 16GB
title_ru - Gigabyte AMD Radeon RX 9060 XT Видеокарта 16GB
TV tuner integrated Performance - No
Unit Box Height - 0.08
Unit Box Length - 0.361
Unit Box Width - 0.187
Unit Calculated Volume - 0.00692 cubm
Unit Calculated Weight - 1.31 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
Vendor Homepage - https://www.gigabyte.com/
vendpn - GV-R9060XTGAMING OC-16GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Performance - 3 year(s)
weight - 0.9 kg
Weight - 1,20
Weight - 1.142
Weight & dimensions - Depth - 40 mm
Weight & dimensions - Height - 118 mm
Weight & dimensions - Length - 281 mm
Weight & dimensions - Weight - 840 g
Weight Weight & dimensions - 840 g
BrandPartCode - GV-R9060XTGAMING OC-16GD
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
category_en - Computers & Components > Computer components > AMD graphics cards
category_lv - Datortehnika > Datoru komponentes > AMD grafiskās kartes
category_ru - Datortehnika > Datoru komponentes > AMD grafiskās kartes
Chipset - Radeon RX 9060 XT
Chipset manufacturer - AMD
Code - GV-R9060XTGAMING OC-16GD
code - GV-R9060XTGAMING OC-16GD
Cooling - Active
Cooling technology Design - GIGABYTE WINDFORCE 3X
Cooling type Design - Active
Core Boost frequency - 3320 MHz
Core frequency - 2780 MHz
CUDA Processor - No
Dane techniczne: Długość - 28.1 cm
Dane techniczne: Grupa produktowa - Karty graficzne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - czarny
Dane techniczne: Liczba wentylatorów - 3 szt.
Dane techniczne: Model chipsetu - Radeon RX 9060 XT
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Gigabyte
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Przepustowość pamięci - 320 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 11.8 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 20000 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 16 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 4 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 450 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 40 mm
Desc - Mikroshēmu tips: AMD Radeon RX 9060 XT, Takts frekvence: 2780 MHz, Atmiņas apjoms: 16 GB, Atmiņas veids: GDDR6, Biti: 128 Bit, Takts frekvence atmiņai: 20000 MHz, Interfeisa tips: PCI-Express 5.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 1, Display Port: 2, Garantija: 2 gadi
Description - Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.Powered by Radeon RX 9060 XTIntegrated with 16GB GDDR6 128bit memory interfaceWINDFORCE cooling systemRGB LightingDual BIOS (Performance / Silent)Reinforced structure
Description - System chłodzenia WINDFORCE zapewnia wyjątkową wydajność termiczną dzięki połączeniu nowoczesnych technologii. Zawiera serwerowej klasy żel termoprzewodzący, innowacyjne wentylatory Hawk z naprzemiennym kierunkiem obrotu, kompozytowe rurki cieplne z miedzi, miedzianą płytkę, wentylatory 3D Active oraz chłodzenie ekranowe. Napędzana przez Radeon RX 9060 XT Zintegrowana pamięć 16 GB GDDR6, magistrala 128-bitowa System chłodzenia WINDFORCE Wentylatory Hawk Żel termoprzewodzący klasy serwerowej Podświetlenie RGB Wzmocniona konstrukcja
description_en - The Gigabyte Radeon RX 9060 XT GAMING OC 16GB Graphics Card is an advanced solution for gamers and content creators who refuse to compromise. Built on a next-generation AMD architecture, this graphics card delivers outstanding performance, allowing you to enjoy games at 1440p and even 4K resolutions with high settings and frame rates.
Equipped with a massive 16GB of high-speed memory, this graphics card easily handles the most demanding games with ultra textures and complex visual effects. The large VRAM capacity also makes it an ideal choice for professional work, from high-resolution video editing to 3D modeling. Gigabyte's signature WINDFORCE cooling system, with multiple fans and a massive heatsink, efficiently dissipates heat, ensuring stable performance even under maximum load. The factory overclock (OC) guarantees enhanced performance right out of the box. An elegant design with customizable RGB lighting and a durable backplate makes it not only a powerful component but also a stylish addition to your gaming setup.
description_lv - Gigabyte Radeon RX 9060 XT GAMING OC 16GB Grafiskā karte ir moderns risinājums spēlētājiem un satura veidotājiem, kuri atsakās no kompromisiem. Izgatavota uz nākamās paaudzes AMD arhitektūras bāzes, šī grafiskā karte nodrošina izcilu veiktspēju, ļaujot jums baudīt spēles 1440p un pat 4K izšķirtspējā ar augstiem iestatījumiem un kadru ātrumu.
Aprīkota ar milzīgu 16 GB liela ātruma atmiņu, šī grafiskā karte viegli tiek galā ar visprasīgākajām spēlēm ar ultra tekstūrām un sarežģītiem vizuālajiem efektiem. Lielais VRAM apjoms padara to par ideālu izvēli arī profesionālam darbam, sākot no augstas izšķirtspējas video rediģēšanas līdz 3D modelēšanai. Gigabyte patentētā WINDFORCE dzesēšanas sistēma ar vairākiem ventilatoriem un masīvu radiatoru efektīvi novada siltumu, nodrošinot stabilu darbību pat pie maksimālas slodzes. Rūpnīcas "overclock" (OC) garantē uzlabotu veiktspēju jau no iepakojuma. Elegants dizains ar pielāgojamu RGB apgaismojumu un izturīgu aizmugures plati padara to ne tikai par jaudīgu komponentu, bet arī par stilīgu papildinājumu jūsu spēļu sistēmai.
description_ru - Видеокарта Gigabyte Radeon RX 9060 XT GAMING OC 16GB это передовое решение для геймеров и создателей контента, которые не готовы идти на компромиссы. Созданная на основе архитектуры нового поколения AMD, эта видеокарта обеспечивает выдающуюся производительность, позволяя вам наслаждаться играми в разрешении 1440p и даже 4K с высокими настройками и частотой кадров.
Оснащенная огромным объемом 16GB высокоскоростной памяти, эта видеокарта легко справляется с самыми требовательными играми с ультра-текстурами и сложными визуальными эффектами. Большой объем видеопамяти также делает ее идеальным выбором для профессиональной работы — от редактирования видео в высоком разрешении до 3D-моделирования. Фирменная система охлаждения WINDFORCE от Gigabyte с несколькими вентиляторами и массивным радиатором эффективно отводит тепло, обеспечивая стабильную работу даже при максимальной нагрузке. Заводской разгон (OC) гарантирует повышенную производительность прямо из коробки. Элегантный дизайн с настраиваемой подсветкой и прочной задней пластиной делает ее не только мощным компонентом, но и стильным дополнением к вашей игровой системе.
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 365 mm
dimension height - 185 mm
Dimensions - 281 x 118 x 40 mm
dimension weight - 1207 g
dimension width - 80 mm
DirectX version Performance - 12.0
Discrete graphics card memory Memory - 16 GB
DisplayPorts quantity Ports & interfaces - 2
Dual Link DVI Performance - No
EAN - 4719331356248
ean - 4719331356248
Eans - 4719331356248
EAN_code - 4719331356248
Form factor Design - Full-Height/Full-Length (FH/FL)
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9060 XT
Gross Weight Kg - 1,6
gross_weight - 1.3 kg
GTIN - 4719331356248
guarantee - 36
guarantee_type - normal
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 118 mm
Illumination colour Design - Multi
Illumination Design - Yes
Interface type Ports & interfaces - PCI Express x16 5.0
LargeDescHTML -
Length Weight & dimensions - 281 mm
Link - https://www.gigabyte.com/Graphics-Card/GV-R9060XTGAMING-OC-16GD
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
LongProductName - Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
LongSummaryDescription - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-R9060XTGAMING OC-16GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-R9060XTGAMING OC-16GD
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 20000 MHz
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6
Memory bus - 128-bit
Memory bus Memory - 128 bit
Memory clock speed Memory - 20000 MHz
Memory frequency - 20 Gbps
Memory type - DDR6
Minimum system power supply Power - 450 W
Model - AMD Radeon RX 9060 XT
Model - GV-R9060XTGAMING OC-16GD
Model - Radeon RX 9060 XT
MPN - GV-R9060XTGAMING OC-16GD
Name - Gigabyte Radeon RX 9060 XT GAMING 16GB OC
Name - GIGABYTE Radeon RX 9060 XT GAMING OC 16GB, graphics card
name - Gigabyte Radeon RX 9060 XT Gaming OC 16G Grafikkarte, 16384 MB GDDR6
Name - Gigabyte Radeon RX 9060 XT GAMING OC 16G | AMD | 16 GB | Radeon RX 9060 XT | GDDR6 | HDMI ports quantity 1 | PCI-E 5.0
name - Radeon RX 9060 XT GAMING OC 16G
Name - RX 9060 XT 16GB Gigabyte Radeon Gaming OC GDDR6 3 Fan
Name - Videokarte Gigabyte Radeon RX 9060 XT GAMING OC 16G
Number of fans Design - 3 fan(s)
OpenGL version Performance - 4.6
Other information -
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 354 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 281.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 118.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 651 pc(s)
Package features > Paper/Pasteboard - 38.40 g
Package features > Plastic (No PET) - 9.60 g
Package features > Tare weight (kg) - 0.05 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 75 mm
Package type Packaging data - Box
Package weight Packaging data - 1290 g
Package width Packaging data - 182.5 mm
Packaging data - Package depth - 354 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.29 kg
Packaging data - Package width - 182.5 mm
Parallel processing technology support Processor - Not supported
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI-E 5.0
Power - Minimum system power supply - 450 W
Power - Supplementary power connectors - 1x 8-pin
Power - Thermal Design Power (TDP) - 151 W
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 3320 MHz
Processor - Processor boost clock speed (Gaming mode) - 2780 MHz
Processor - Stream processors - 2048
Processor > Graphics processor - Radeon RX 9060 XT
Processor > Graphics processor family - AMD
Processor boost clock speed (Gaming mode) Processor - 2780 MHz
Processor boost clock speed Processor - 3320 MHz
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GV-R9060XTGAMING OC-16GD
Product colour Design - Black
ProductName - Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
Product Net Weight - 0.8 kg
Products per shipping (inner) case Logistics data - 1 pc(s)
ShortDescription - Chipset AMD 9060 XT | 16GB
Short description - GIGA VGA 16GB Radeon RX9060XT GAMING OC-16GD 2xDP/2xHDMI GV-R9060XTGAMING OC-16GD
ShortSummaryDescription - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD, Radeon RX 9060 XT, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x16 5.0
Stream processors Processor - 2048
Summary - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Supplementary power connectors Power - 1x 8-pin
Supported standards - DirectX 12 API
Supported standards - OpenGL 4.6
Technical details > Gross weight - 0.61 kg
Technical details > Net weight - 0.56 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - Radeon RX 9060 XT GAMING OC 16G
Thermal Design Power (TDP) Power - 151 W
Title - GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-16GD
title_en - Gigabyte AMD Radeon RX 9060 XT Graphics Card 16GB
title_lv - Gigabyte AMD Radeon RX 9060 XT Videokarte 16GB
title_ru - Gigabyte AMD Radeon RX 9060 XT Видеокарта 16GB
TV tuner integrated Performance - No
Unit Box Height - 0.08
Unit Box Length - 0.361
Unit Box Width - 0.187
Unit Calculated Volume - 0.00692 cubm
Unit Calculated Weight - 1.31 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
Vendor Homepage - https://www.gigabyte.com/
vendpn - GV-R9060XTGAMING OC-16GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Performance - 3 year(s)
weight - 0.9 kg
Weight - 1,20
Weight - 1.142
Weight & dimensions - Depth - 40 mm
Weight & dimensions - Height - 118 mm
Weight & dimensions - Length - 281 mm
Weight & dimensions - Weight - 840 g
Weight Weight & dimensions - 840 g
