ID: 1198517
Product code: 11349-02-20G
In stock 32 units
Warranty: 3 years

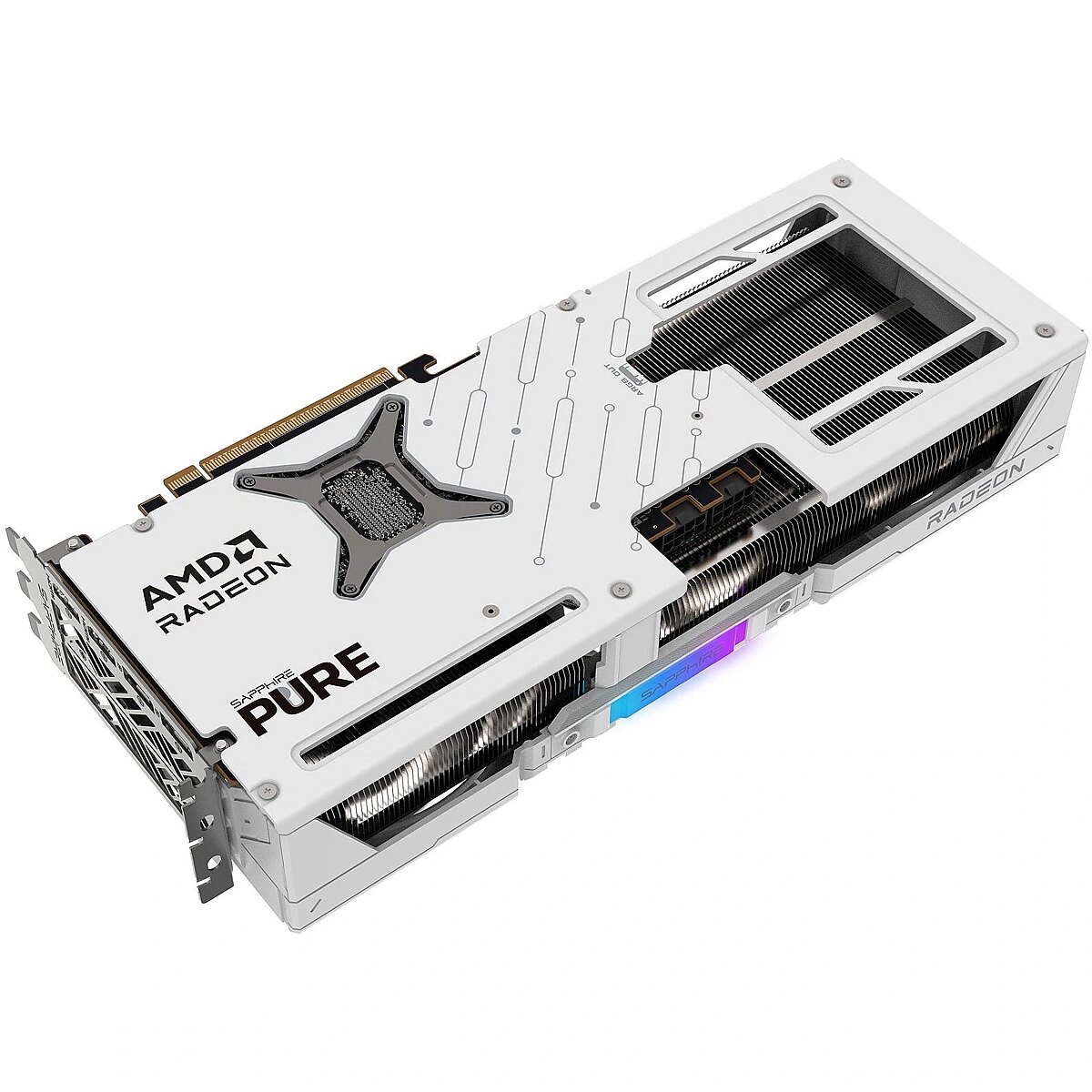

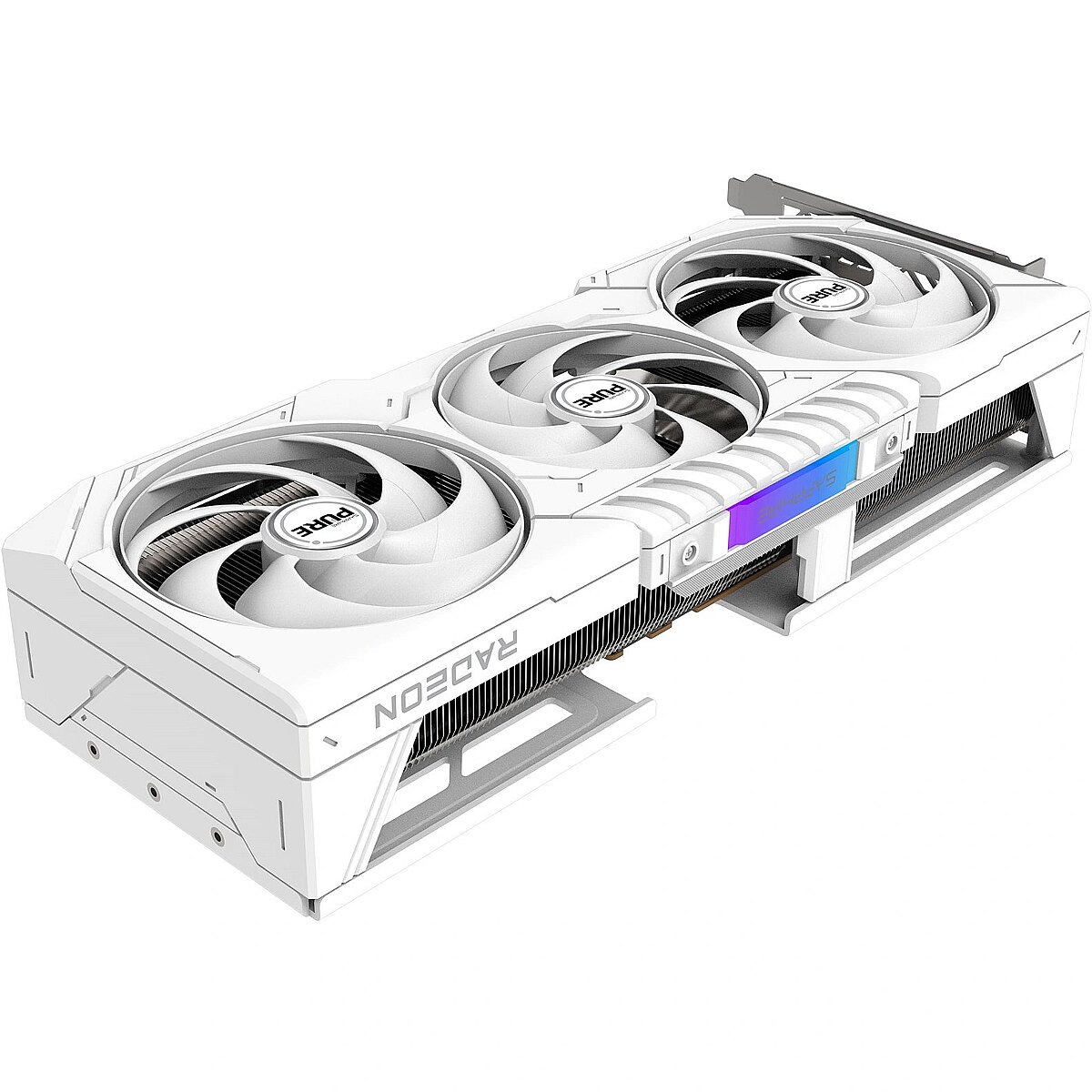

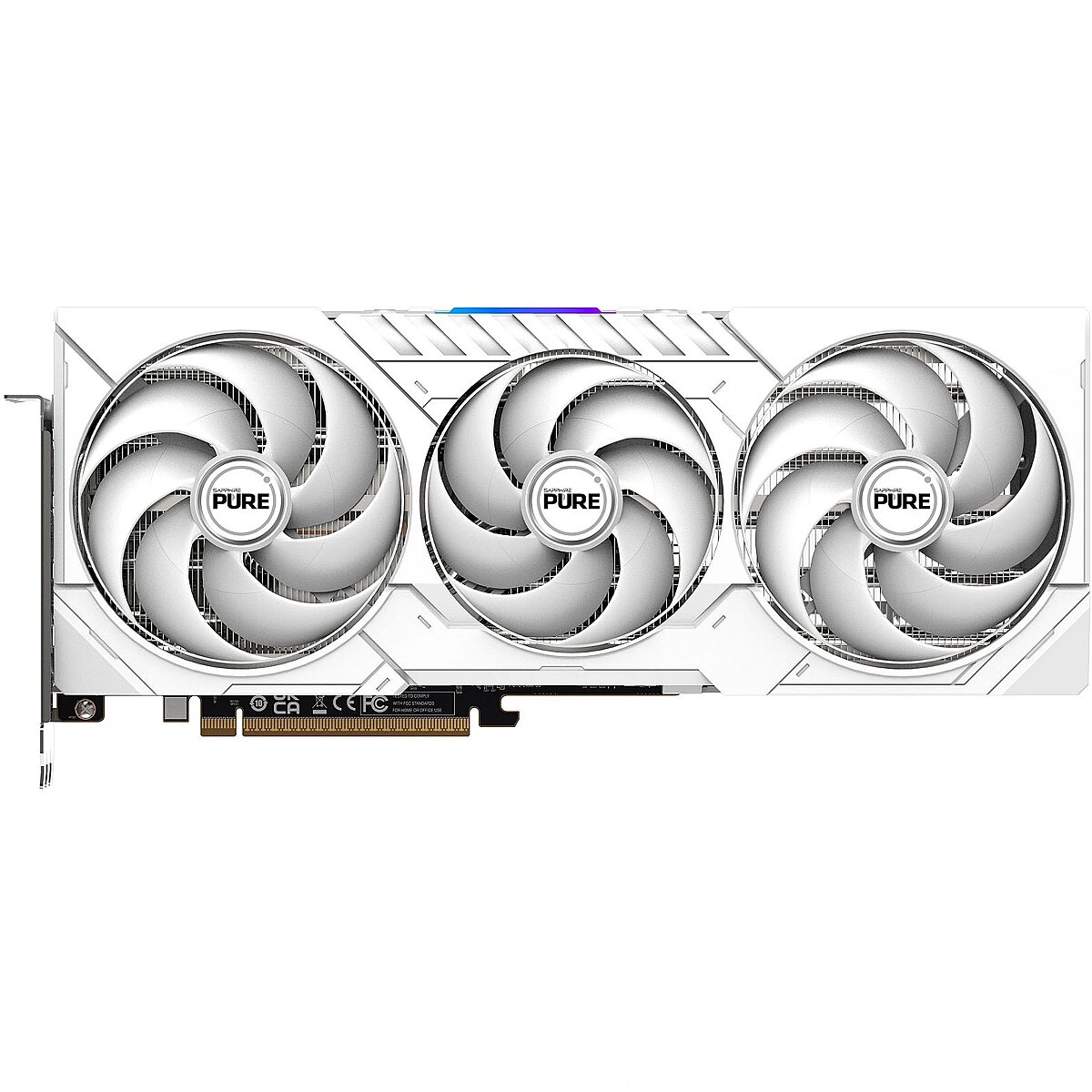

Sapphire Radeon RX 9070, 16GB GDDR6, PURE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- GPU model: Radeon RX 9070
- GPU core frequency: 2700 MHz
- Power sockets: 2x 8-pin
- RAM: 16 GB
- Memory type: GDDR6
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Sapphire Radeon RX 9070 with 16 GB GDDR6 RAM.
Basic information
GPU tips
Radeon
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Sapphire Pure
GPU model
Radeon RX 9070
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2700 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 320
Stream processors / CUDA Cores
: 3584
PCI-E version
: 5.0 x16
Power consumption (TDP)
: 245 W
Minimum power supply output
: 650 W
Power sockets
: 2x 8-pin
Random-access memory (RAM)
RAM
16 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 20000 MHz
Bus width
256 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No
Ports and equipment
HDMI port
2
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
2
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
2D/3D Features - AMD Radeon Chill AMD FreeSync AMD Radeon Enhanced Sync AMD Radeon Image Sharpening AMD Radeon Boost AMD FidelityFX AMD Radeon Anti-Lag AMD Smart Access Memory AMD Software: Adrenalin Edition AMD Noise Suppressi
Accessories included -
AI accelerators Processor - 112
AMD FreeSync Performance - Yes
API Supports - DirectX 12.0 OpenGL 4.6
Augstums (mm) - 61.6 milimetrs
Bracket height Design - Full-Height (FH)
Card Slot Width - 3 slots
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Chipset - Radeon RX 9070
Chipset manufacturer - AMD
Compute units Processor - 56
Compute Units Quantity - 56
Cooling - Active
Cooling System Type - VGA Cooler
Cooling technology Design - Sapphire Tri-X
Cooling type Design - Active
Core Boost frequency - 2700 MHz
Core frequency - 2210 MHz
CUDA Processor - No
Dane techniczne: Długość - 32 cm
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - biały
Dane techniczne: Liczba wentylatorów - 3 szt.
Dane techniczne: Liczba zajmowanych slotów - 3
Dane techniczne: Maks. taktowanie rdzenia - 2700 MHz
Dane techniczne: Model chipsetu - Radeon RX 9070
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Sapphire
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Rodzaje wyjść/wejść - 2 x wyjście HDMI
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 12 cm
Dane techniczne: Szyna danych pamięci - 256 bit
Dane techniczne: Taktowanie rdzenia - 2210 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 16 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 6.1 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 650 W
Dane techniczne: Złącze zasilania - 8 + 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 61.6 mm
Description -
Description - Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics. Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads. AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications. Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation. Integrated Cooling Module
Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use. L-Shape Graphics Card Supporter
The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance. ARGB LED SAPPHIRE Logo
The newly integrated ARGB LED SAPPHIRE Logo grants customization opportunities for a more personalized aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution. Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module. FrameDefense
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance. Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation. High TG Copper PCB
The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation. External ARGB Control Sync
Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control. Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiencyGPU: Boost Clock: Up to 2700 MHzGPU: Game Clock: Up to 2210 MHzMemory: 16GB/256 bit DDR6. 20 Gbps EffectiveStream Processors: 3584AMD RDNA™ 4 ArchitectureRay Accelerator: 56
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - Sapphire Tri-X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 1960
dimension depth - 90 mm
dimension height - 430 mm
Dimensions - 61,6 x 120,25 x 320 mm
dimension weight - 1870 g
dimension width - 240 mm
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 16 GB
DisplayPort Interface Quantity - 2
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 2.1a
Dual Link DVI Performance - No
Dziļums (mm) - 320 milimetrs
ean - 4895106295957
EAN - 4895106295957
EAN kods - 4895106295957
Eans - 4895106295957
External Power - 2 x 8 pin
Fill Rate (pixels) - 322.6 Gigapikseļi sekundē
Fill Rate (textures) - 564.5 Gigatekseļi sekundē
Form factor Design - Full-Height/Full-Length (FH/FL)
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 36 mēnesis(-i)
GPU Core Name - Navi 48 XL
GPU Core Speed Boost - 2700 megahercs
GPU Quantity - 1
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9070
Gross Weight Kg - 2,3
guarantee - 36
guarantee_type - normal
HDMI Interface Connector Type - HDMI (Type A)
HDMI Interface Quantity - 2
HDMI ports quantity Ports & interfaces - 2
Height Weight & dimensions - 120.25 mm
Iekļauti aksesuāri - Ātrā lietošanas pamācība
Iepakojuma augstums (mm) - 90 milimetrs
Iepakojuma garums (mm) - 430 milimetrs
Iepakojuma platums (mm) - 242 milimetrs
Iepakojuma svars Brutto (kg) - 1.87 kilograms
Iepakojuma svars Netto (kg) - 1.23 kilograms
Iepakojuma tips - Mazumtirdzniecība
Iepakojums kastē - 8
Illumination colour Design - Multi
Illumination Design - Yes
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140009991579.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010025047.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010061769.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010154909.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010214558.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010255211.jpg
Infinity cache Processor - 64 MB
Installed Video Memory Storage Capacity - 1 x 16 gigabaits
Interface type Ports & interfaces - PCI Express x16 5.0
Kastes augstums (mm) - 455 milimetrs
Kastes garums (mm) - 500 milimetrs
Kastes platums (mm) - 380 milimetrs
Kastes svars Brutto (kg) - 16.14 kilograms
Length Weight & dimensions - 320 mm
Linux operating systems supported System requirements - Yes
Manufacturer - Sapphire
Manufacturer Code - 11349-02-20G
Manufacturer Name - Sapphire
Max. Monitors Supports - 4
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory Bandwidth - 1 x 640 Gigabaits sekundē
Memory bus - 256-bit
Memory Bus Bandwidth - 1 x 256 bits
Memory bus Memory - 256 bit
Memory frequency - 20 Gbps
Memory Type - GDDR6 SDRAM
Memory type - DDR6
Minimum RAM System requirements - 8192 MB
Minimum system power supply Power - 650 W
Model - 11349-02-20G
Model - Radeon RX 9070
MPN - 11349-02-20G
name - Graphics card Radeon RX 9070 PULSE 16GB GDDR6 256bit 2DP/2HDMI
Name - RX 9070 16GB Sapphire Pure Radeon OC GDDR6 3 Fan white
Name - Sapphire Radeon RX 9070 Pure 16GB GDDR6
Number of fans - 3
Number of fans Design - 3 fan(s)
Number of slots Design - 3
Other features -
Other information -
Package type Packaging data - Box
Packaging data - Package type - Box
Parallel processing technology support Processor - Not supported
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - TV tuner integrated - No
Platums (mm) - 120.25 milimetrs
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 2x 8-pin
Power - Thermal Design Power (TDP) - 245 W
Power Consumption Operational - 245 Vats
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9070
Processor - Graphics processor family - AMD
Processor - Infinity cache - 64 MB
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2700 MHz
Processor - Ray accelerators - 56
Processor - Stream processors - 3584
Processor boost clock speed (Gaming mode) Processor - 2210 MHz
Processor boost clock speed Processor - 2700 MHz
Producent: Nazwa producenta / importera - Sapphire24hour-ARVan Nelleweg 1, 3044 BC Rotterdam, The Netherlands3044 BC RotterdamNetherlandsEmail: info@24hour-ar.com
Producer - Sapphire
producer - Sapphire Technology
producerCode - 11349-02-20G
ProducerCode - 11349-02-20G
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=241231071416974267&THEME=asbis&LANG=lv
ProductCategory - Video kartes
ProductCode - 11349-02-20G
Product colour Design - White
ProductDescription - SAPPHIRE PURE AMD RADEON RX 9070 GAMING OC 16GB DUAL HDMI / DUAL DP
productName - Sapphire PURE Radeon RX 9070 AMD 16 GB GDDR6
Product Net Weight - 0.7 kg
productSize - Normal
ProductType - Video Card
PSU Output Power Required - 650 Vats
Ray-tracing Cores Quantity - 1 x 56
Ray accelerators Processor - 56
Render Output Units Quantity (ROP) - 1 x 128
Requires Expansion Slot Standard - PCI Express 5.0 x16
ShortDescription - Chipset AMD 9070 | 16GB
Short description - Sapphire VGA 16GB RX9070 PURE GAMING OC 2xHDMI/2xDP PURE AMD RADEON RX 9070 GAMING OC 16GB
sizeX - 240
sizeY - 430
sizeZ - 95
Stream processors Processor - 3584
Stream Processors Quantity - 1 x 3584
Summary - Sapphire PURE Radeon RX 9070. Graphics processor family: AMD, Graphics processor: Radeon RX 9070. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Supplementary power connectors Power - 2x 8-pin
Supported standards - DirectX 12 Ultimate
System requirements - Linux operating systems supported - Yes
System requirements - Minimum RAM - 8192 MB
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 11 x64
Texture Mapping Unit Quantity - 1 x 244
Thermal Design Power (TDP) Power - 245 W
TV tuner integrated Performance - No
Unit Box Height - 0.09
Unit Box Length - 0.43
Unit Box Width - 0.24
Unit Calculated Volume - 0.01114 cubm
Unit Calculated Weight - 2.02 kg
Units per Shipping Box - 8
Vendor - SAPPHIRE
Vendor Homepage - https://www.sapphiretech.com/en/consumer/pure-radeon-rx-9070-16g-gddr6
vendpn - 11349-02-20G
Version - Box
Video Card Features - RGB LED
Video Chipset - AMD Radeon RX 9070
Video Memory Speed - 20 gigabits sekundē
Video Memory Type - Video Controller Memory
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 16 GB
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.88
weight - 1870
Weight & dimensions - Depth - 61.6 mm
Weight & dimensions - Height - 120.2 mm
Weight & dimensions - Length - 320 mm
Windows operating systems supported System requirements - Windows 10 x64/Windows 11 x64
Accessories included -
AI accelerators Processor - 112
AMD FreeSync Performance - Yes
API Supports - DirectX 12.0 OpenGL 4.6
Augstums (mm) - 61.6 milimetrs
Bracket height Design - Full-Height (FH)
Card Slot Width - 3 slots
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Chipset - Radeon RX 9070
Chipset manufacturer - AMD
Compute units Processor - 56
Compute Units Quantity - 56
Cooling - Active
Cooling System Type - VGA Cooler
Cooling technology Design - Sapphire Tri-X
Cooling type Design - Active
Core Boost frequency - 2700 MHz
Core frequency - 2210 MHz
CUDA Processor - No
Dane techniczne: Długość - 32 cm
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - biały
Dane techniczne: Liczba wentylatorów - 3 szt.
Dane techniczne: Liczba zajmowanych slotów - 3
Dane techniczne: Maks. taktowanie rdzenia - 2700 MHz
Dane techniczne: Model chipsetu - Radeon RX 9070
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Sapphire
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Rodzaje wyjść/wejść - 2 x wyjście HDMI
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 12 cm
Dane techniczne: Szyna danych pamięci - 256 bit
Dane techniczne: Taktowanie rdzenia - 2210 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 16 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 6.1 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 650 W
Dane techniczne: Złącze zasilania - 8 + 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 61.6 mm
Description -
Description - Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics. Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads. AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications. Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation. Integrated Cooling Module
Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use. L-Shape Graphics Card Supporter
The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance. ARGB LED SAPPHIRE Logo
The newly integrated ARGB LED SAPPHIRE Logo grants customization opportunities for a more personalized aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution. Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module. FrameDefense
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance. Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation. High TG Copper PCB
The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation. External ARGB Control Sync
Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control. Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiencyGPU: Boost Clock: Up to 2700 MHzGPU: Game Clock: Up to 2210 MHzMemory: 16GB/256 bit DDR6. 20 Gbps EffectiveStream Processors: 3584AMD RDNA™ 4 ArchitectureRay Accelerator: 56
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - Sapphire Tri-X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 1960
dimension depth - 90 mm
dimension height - 430 mm
Dimensions - 61,6 x 120,25 x 320 mm
dimension weight - 1870 g
dimension width - 240 mm
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 16 GB
DisplayPort Interface Quantity - 2
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 2.1a
Dual Link DVI Performance - No
Dziļums (mm) - 320 milimetrs
ean - 4895106295957
EAN - 4895106295957
EAN kods - 4895106295957
Eans - 4895106295957
External Power - 2 x 8 pin
Fill Rate (pixels) - 322.6 Gigapikseļi sekundē
Fill Rate (textures) - 564.5 Gigatekseļi sekundē
Form factor Design - Full-Height/Full-Length (FH/FL)
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 36 mēnesis(-i)
GPU Core Name - Navi 48 XL
GPU Core Speed Boost - 2700 megahercs
GPU Quantity - 1
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9070
Gross Weight Kg - 2,3
guarantee - 36
guarantee_type - normal
HDMI Interface Connector Type - HDMI (Type A)
HDMI Interface Quantity - 2
HDMI ports quantity Ports & interfaces - 2
Height Weight & dimensions - 120.25 mm
Iekļauti aksesuāri - Ātrā lietošanas pamācība
Iepakojuma augstums (mm) - 90 milimetrs
Iepakojuma garums (mm) - 430 milimetrs
Iepakojuma platums (mm) - 242 milimetrs
Iepakojuma svars Brutto (kg) - 1.87 kilograms
Iepakojuma svars Netto (kg) - 1.23 kilograms
Iepakojuma tips - Mazumtirdzniecība
Iepakojums kastē - 8
Illumination colour Design - Multi
Illumination Design - Yes
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140009991579.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010025047.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010061769.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010154909.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010214558.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250811140010255211.jpg
Infinity cache Processor - 64 MB
Installed Video Memory Storage Capacity - 1 x 16 gigabaits
Interface type Ports & interfaces - PCI Express x16 5.0
Kastes augstums (mm) - 455 milimetrs
Kastes garums (mm) - 500 milimetrs
Kastes platums (mm) - 380 milimetrs
Kastes svars Brutto (kg) - 16.14 kilograms
Length Weight & dimensions - 320 mm
Linux operating systems supported System requirements - Yes
Manufacturer - Sapphire
Manufacturer Code - 11349-02-20G
Manufacturer Name - Sapphire
Max. Monitors Supports - 4
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory Bandwidth - 1 x 640 Gigabaits sekundē
Memory bus - 256-bit
Memory Bus Bandwidth - 1 x 256 bits
Memory bus Memory - 256 bit
Memory frequency - 20 Gbps
Memory Type - GDDR6 SDRAM
Memory type - DDR6
Minimum RAM System requirements - 8192 MB
Minimum system power supply Power - 650 W
Model - 11349-02-20G
Model - Radeon RX 9070
MPN - 11349-02-20G
name - Graphics card Radeon RX 9070 PULSE 16GB GDDR6 256bit 2DP/2HDMI
Name - RX 9070 16GB Sapphire Pure Radeon OC GDDR6 3 Fan white
Name - Sapphire Radeon RX 9070 Pure 16GB GDDR6
Number of fans - 3
Number of fans Design - 3 fan(s)
Number of slots Design - 3
Other features -
Other information -
Package type Packaging data - Box
Packaging data - Package type - Box
Parallel processing technology support Processor - Not supported
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - TV tuner integrated - No
Platums (mm) - 120.25 milimetrs
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 2x 8-pin
Power - Thermal Design Power (TDP) - 245 W
Power Consumption Operational - 245 Vats
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9070
Processor - Graphics processor family - AMD
Processor - Infinity cache - 64 MB
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2700 MHz
Processor - Ray accelerators - 56
Processor - Stream processors - 3584
Processor boost clock speed (Gaming mode) Processor - 2210 MHz
Processor boost clock speed Processor - 2700 MHz
Producent: Nazwa producenta / importera - Sapphire24hour-ARVan Nelleweg 1, 3044 BC Rotterdam, The Netherlands3044 BC RotterdamNetherlandsEmail: info@24hour-ar.com
Producer - Sapphire
producer - Sapphire Technology
producerCode - 11349-02-20G
ProducerCode - 11349-02-20G
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=241231071416974267&THEME=asbis&LANG=lv
ProductCategory - Video kartes
ProductCode - 11349-02-20G
Product colour Design - White
ProductDescription - SAPPHIRE PURE AMD RADEON RX 9070 GAMING OC 16GB DUAL HDMI / DUAL DP
productName - Sapphire PURE Radeon RX 9070 AMD 16 GB GDDR6
Product Net Weight - 0.7 kg
productSize - Normal
ProductType - Video Card
PSU Output Power Required - 650 Vats
Ray-tracing Cores Quantity - 1 x 56
Ray accelerators Processor - 56
Render Output Units Quantity (ROP) - 1 x 128
Requires Expansion Slot Standard - PCI Express 5.0 x16
ShortDescription - Chipset AMD 9070 | 16GB
Short description - Sapphire VGA 16GB RX9070 PURE GAMING OC 2xHDMI/2xDP PURE AMD RADEON RX 9070 GAMING OC 16GB
sizeX - 240
sizeY - 430
sizeZ - 95
Stream processors Processor - 3584
Stream Processors Quantity - 1 x 3584
Summary - Sapphire PURE Radeon RX 9070. Graphics processor family: AMD, Graphics processor: Radeon RX 9070. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Supplementary power connectors Power - 2x 8-pin
Supported standards - DirectX 12 Ultimate
System requirements - Linux operating systems supported - Yes
System requirements - Minimum RAM - 8192 MB
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 11 x64
Texture Mapping Unit Quantity - 1 x 244
Thermal Design Power (TDP) Power - 245 W
TV tuner integrated Performance - No
Unit Box Height - 0.09
Unit Box Length - 0.43
Unit Box Width - 0.24
Unit Calculated Volume - 0.01114 cubm
Unit Calculated Weight - 2.02 kg
Units per Shipping Box - 8
Vendor - SAPPHIRE
Vendor Homepage - https://www.sapphiretech.com/en/consumer/pure-radeon-rx-9070-16g-gddr6
vendpn - 11349-02-20G
Version - Box
Video Card Features - RGB LED
Video Chipset - AMD Radeon RX 9070
Video Memory Speed - 20 gigabits sekundē
Video Memory Type - Video Controller Memory
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 16 GB
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.88
weight - 1870
Weight & dimensions - Depth - 61.6 mm
Weight & dimensions - Height - 120.2 mm
Weight & dimensions - Length - 320 mm
Windows operating systems supported System requirements - Windows 10 x64/Windows 11 x64
