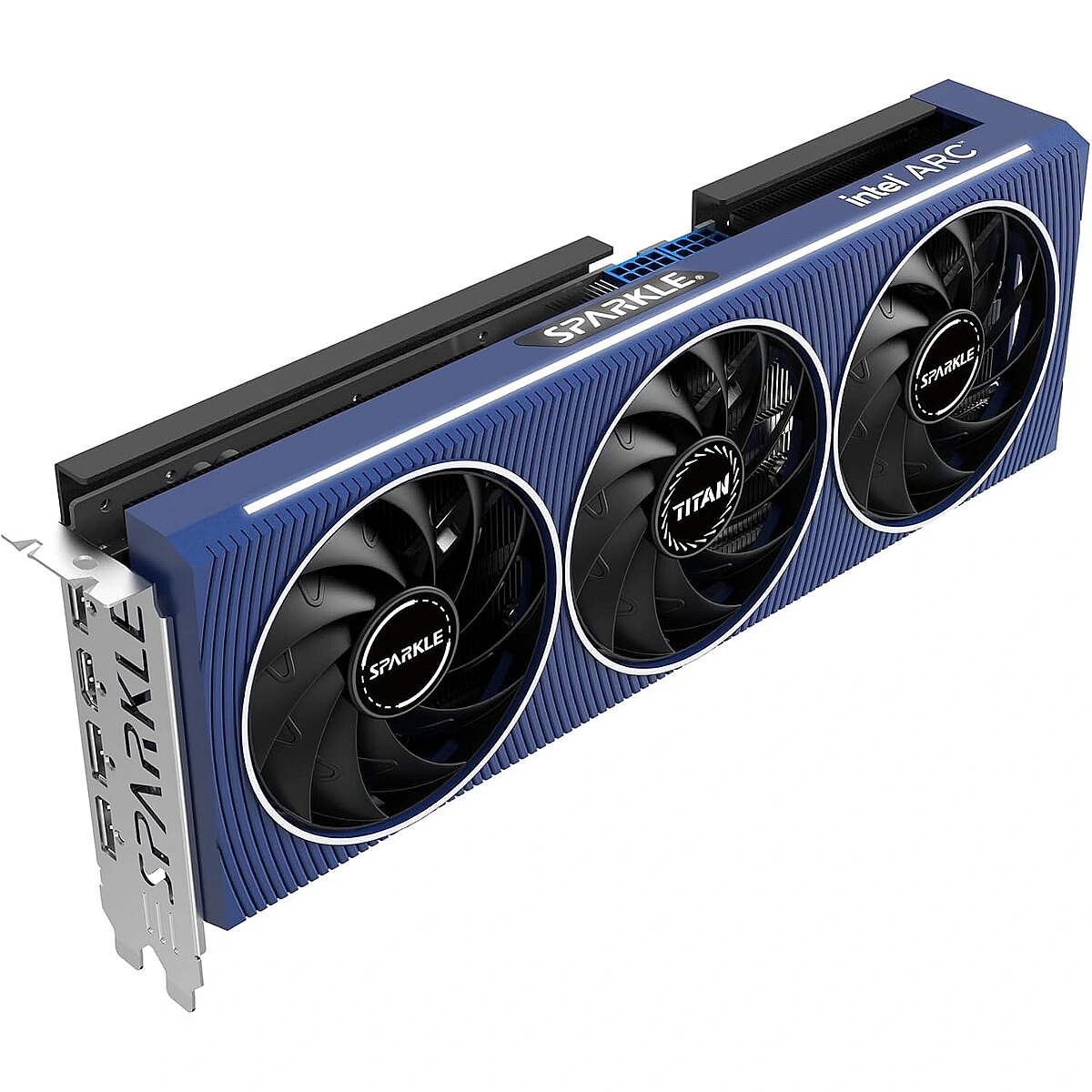

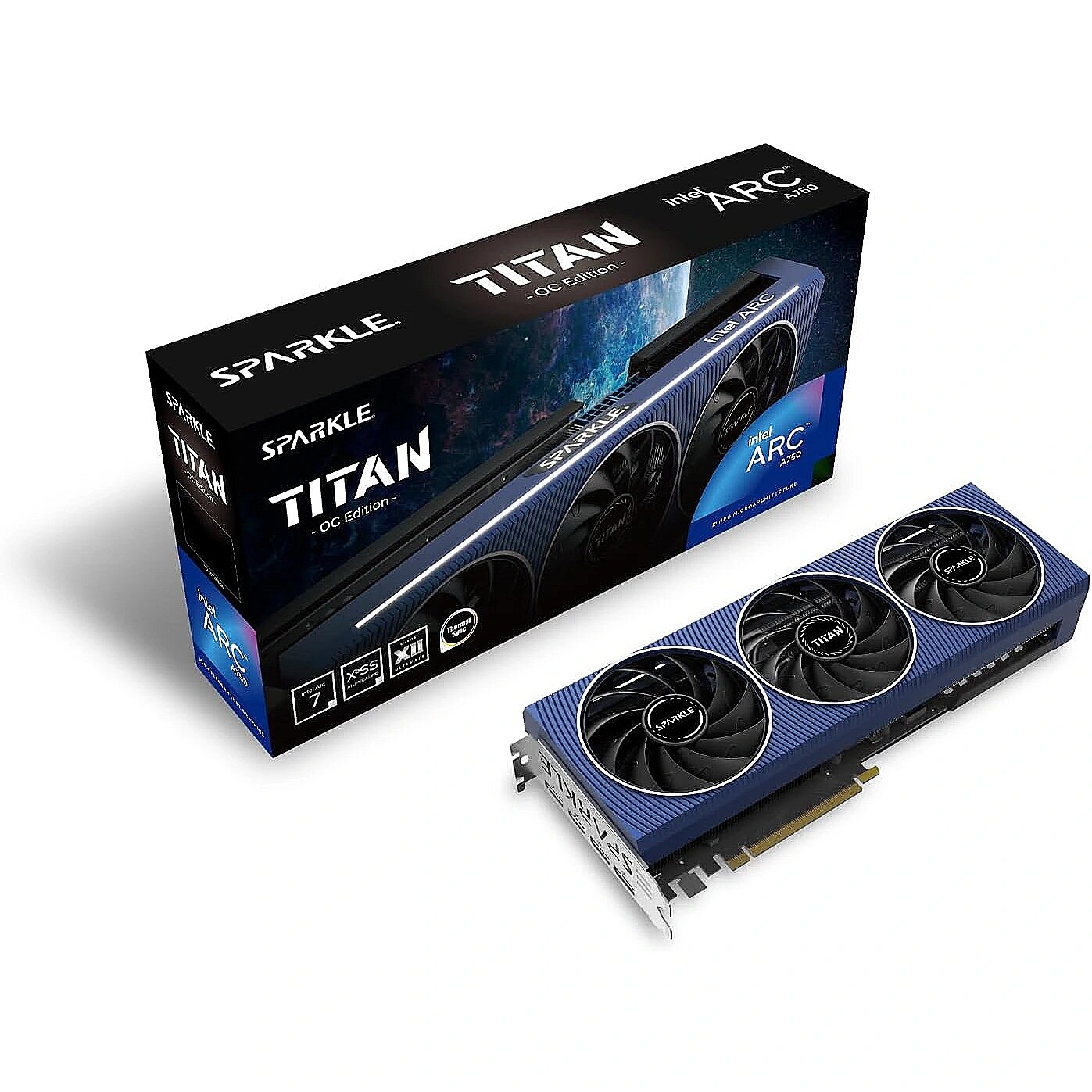

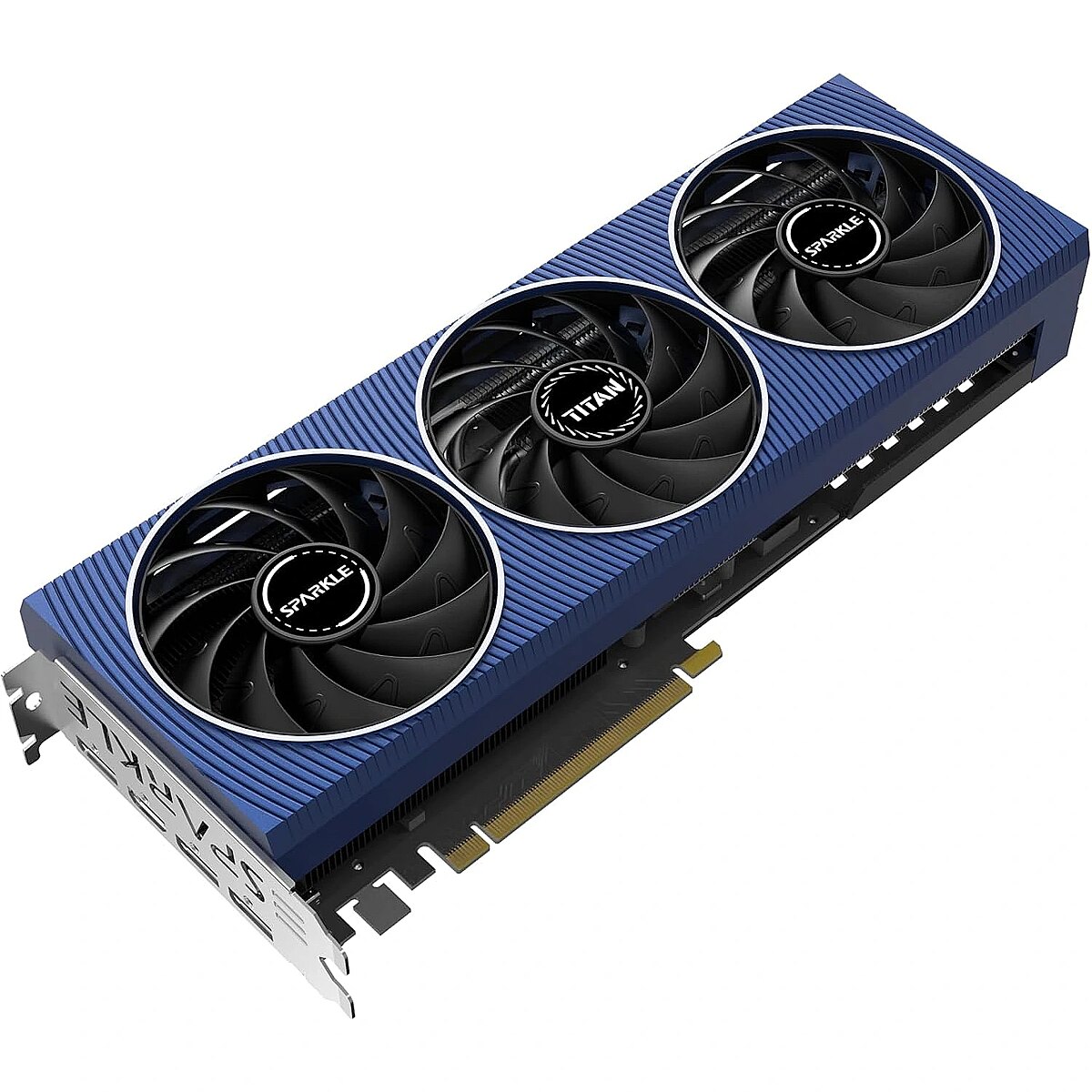

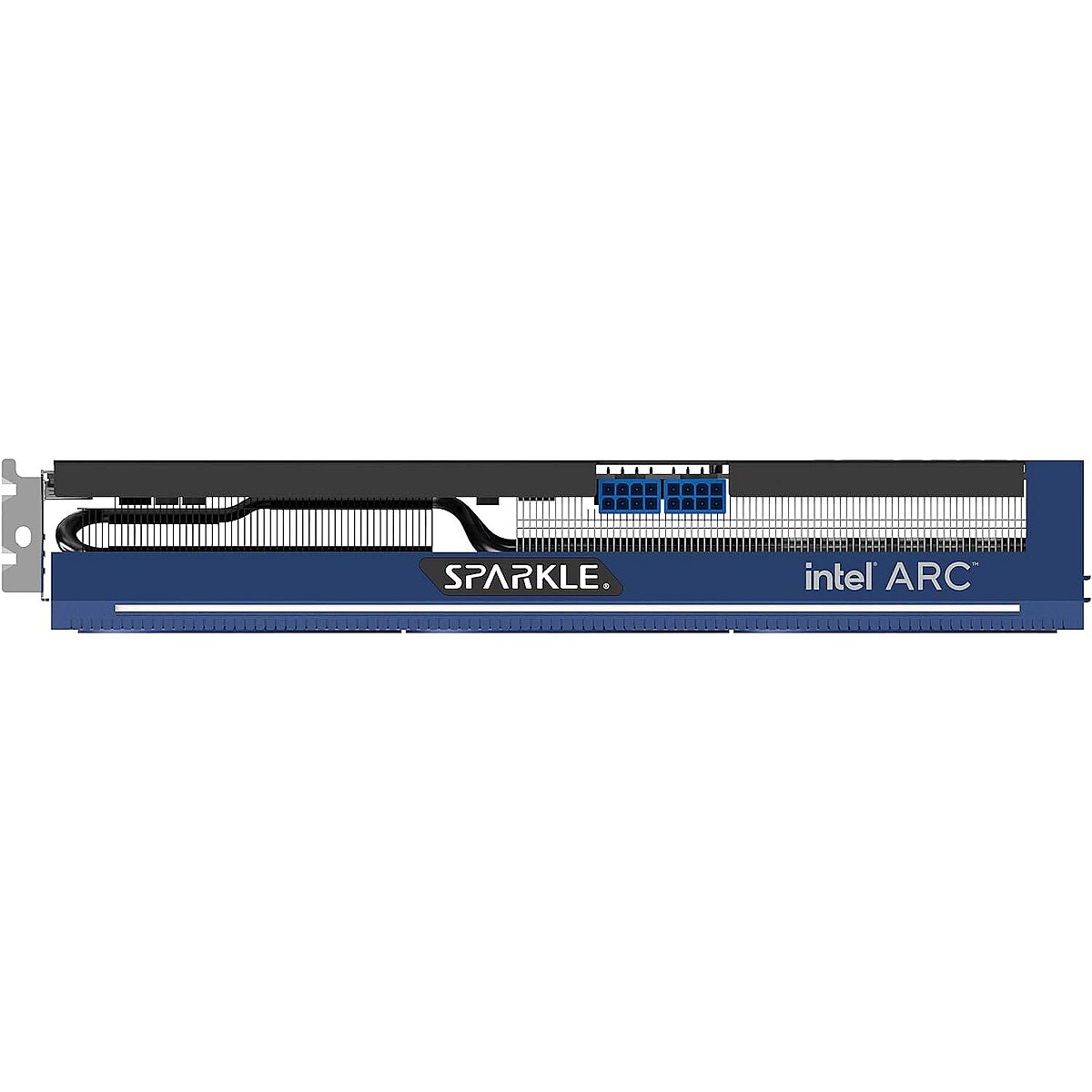

Sparkle Intel Arc A750, 8GB GDDR6, Titan OC Edition
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- GPU model: Intel Arc A750
- GPU core frequency: 2200 MHz
- Power sockets: 2x 8-pin
- RAM: 8 GB
- Memory type: GDDR6
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Sparkle Intel Arc A750 with 8 GB GDDR6 RAM.
Basic information
GPU tips
Intel Arc
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Sparkle TITAN
GPU model
Intel Arc A750
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2200 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 306
Stream processors / CUDA Cores
: 3584
PCI-E version
: 4.0 x16
Power consumption (TDP)
: 225 W
Minimum power supply output
: 650 W
Power sockets
: 2x 8-pin
Random-access memory (RAM)
RAM
8 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 16000 MHz
Bus width
256 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No
Ports and equipment
HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
3
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
Category 1 - Grafikkarten
Category 2 - Intel PCI-Express Grafikkarten
Category Code - VGP
Cooling type Design - Active
Description - SPARKLE TORN COOLING The SPARKLE Intel Arc™ graphics card comes with the TORN cooling solution featuring customized AXL Fan. The fan blades are designed with stripe structures and polished surfaces on the bottom side, enhancing its cooling perfomrance even further. READY FOR THE NEXT Support the new generation of 8K video output, providing an ultimate visual experience. Supercharge your gaming. Dive into immersive, high-performance gaming with AI‑enhanced XᵉSS upscaling and full support for DirectX* 12 Ultimate Experience immersive high‑performance gaming. Conquer the latest AAA games at high resolutions and high refresh rates. Unleash your creativity. Experience cutting‑edge AI‑accelerated content creation. With industry‑first AV1 hardware encode and the advanced Intel® Xᵉ Media Engine, the most comprehensive media capabilities are at your fingertips. Take center stage. With industry‑first AV1 hardware encode and the advanced Intel® Xᵉ Media Engine, the most comprehensive media capabilities are at your fingertips. Elevate your gaming experience. Refine your gaming experience with Intel® Arc™ Control in an intuitive and modern layout. Get seamless driver updates and optimize many of your favorite games. Maximize your Intel® system. Enhance your creation, gaming and streaming experiences with Intel® Deep Link Technology features by pairing compatible Intel® Core™ processors with Intel® Arc™ graphics
Design - Cooling type - Active
Design - LED backlight - Yes
Design - Minimum system power supply - 650 W
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Blue
Design - Rear panel material - Metal
dimensionalWeight - 1587
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 2.0
Dual Link DVI Performance - No
EAN - 4711342290115
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - Intel
Graphics processor Processor - Arc A750
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.0
Height Weight & dimensions - 103.4 mm
Interface type Ports & interfaces - PCI Express 4.0
Length Weight & dimensions - 305.5 mm
Linux operating systems supported System requirements - Yes
Manufacturer - Sparkle
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 16 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 512 GB/s
Memory - Memory bus - 256 bit
Memory bandwidth (max) Memory - 512 GB/s
Memory bus Memory - 256 bit
Minimum system power supply Power - 650 W
MPN - SA750T-8GOC
Name - A750 8GB Sparkle Intel Arc Titan OC GDDR6 3 Fan
Number of fans Design - 3 fan(s)
Number of slots Design - 2.5
OpenCL version Performance - 3.0
OpenGL version Performance - 4.6
Performance - 8k support - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenCL version - 3.0
Performance - OpenGL version - 4.6
Performance - ThermalSync™ - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.0
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Interface type - PCI Express x16 4.0
Power consumption (typical) Power - 225 W
Processor - CUDA - No
Processor - Graphics processor - Arc A750 TITAN OC Edition
Processor - Graphics processor family - Intel
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor cores - 28
Processor - Processor frequency - 2200 MHz
Processor - Ray Tracing - Y
Processor - Refresh rate - 60 Hz
Processor boost clock speed Processor - 2200 MHz
Processor frequency Processor - 2050 MHz
producerCode - SA750T-8GOC
Product colour Design - Black/Blue
productName - Sparkle Intel Arc A750 TITAN OC Edition 8 GB GDDR6 graphics card
Product Net Weight - 1.094 kg
productSize - Normal
sizeX - 420
sizeY - 210
sizeZ - 90
Summary - Sparkle Technology Intel Arc A750 TITAN OC Edition. Graphics processor family: Intel, Graphics processor: Arc A750, Processor frequency: 2050 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
TV tuner integrated Performance - No
Unit Box Height - 0.21
Unit Box Length - 0.42
Unit Box Width - 0.095
Unit Calculated Volume - 0.009306 cubm
Unit Calculated Weight - 1.75 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://www.sparkle.com.tw/en/ARC/A750_TITAN
Video formats supported Performance - H.264/HEVC/H.265/VP9
Warranty - 24 months
warrantyLength - 36
warrantyType - G
Weight - 1.6
weight - 1600
Weight & dimensions - Depth - 103.4 mm
Weight & dimensions - Height - 50.4 mm
Weight & dimensions - Weight - 1,094 kg
Weight & dimensions - Width - 305.5 mm
Windows operating systems supported System requirements - Windows 10/Windows 11
Xe-cores Performance - 28
Category 2 - Intel PCI-Express Grafikkarten
Category Code - VGP
Cooling type Design - Active
Description - SPARKLE TORN COOLING The SPARKLE Intel Arc™ graphics card comes with the TORN cooling solution featuring customized AXL Fan. The fan blades are designed with stripe structures and polished surfaces on the bottom side, enhancing its cooling perfomrance even further. READY FOR THE NEXT Support the new generation of 8K video output, providing an ultimate visual experience. Supercharge your gaming. Dive into immersive, high-performance gaming with AI‑enhanced XᵉSS upscaling and full support for DirectX* 12 Ultimate Experience immersive high‑performance gaming. Conquer the latest AAA games at high resolutions and high refresh rates. Unleash your creativity. Experience cutting‑edge AI‑accelerated content creation. With industry‑first AV1 hardware encode and the advanced Intel® Xᵉ Media Engine, the most comprehensive media capabilities are at your fingertips. Take center stage. With industry‑first AV1 hardware encode and the advanced Intel® Xᵉ Media Engine, the most comprehensive media capabilities are at your fingertips. Elevate your gaming experience. Refine your gaming experience with Intel® Arc™ Control in an intuitive and modern layout. Get seamless driver updates and optimize many of your favorite games. Maximize your Intel® system. Enhance your creation, gaming and streaming experiences with Intel® Deep Link Technology features by pairing compatible Intel® Core™ processors with Intel® Arc™ graphics
Design - Cooling type - Active
Design - LED backlight - Yes
Design - Minimum system power supply - 650 W
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Blue
Design - Rear panel material - Metal
dimensionalWeight - 1587
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 2.0
Dual Link DVI Performance - No
EAN - 4711342290115
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - Intel
Graphics processor Processor - Arc A750
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.0
Height Weight & dimensions - 103.4 mm
Interface type Ports & interfaces - PCI Express 4.0
Length Weight & dimensions - 305.5 mm
Linux operating systems supported System requirements - Yes
Manufacturer - Sparkle
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 16 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 512 GB/s
Memory - Memory bus - 256 bit
Memory bandwidth (max) Memory - 512 GB/s
Memory bus Memory - 256 bit
Minimum system power supply Power - 650 W
MPN - SA750T-8GOC
Name - A750 8GB Sparkle Intel Arc Titan OC GDDR6 3 Fan
Number of fans Design - 3 fan(s)
Number of slots Design - 2.5
OpenCL version Performance - 3.0
OpenGL version Performance - 4.6
Performance - 8k support - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenCL version - 3.0
Performance - OpenGL version - 4.6
Performance - ThermalSync™ - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.0
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Interface type - PCI Express x16 4.0
Power consumption (typical) Power - 225 W
Processor - CUDA - No
Processor - Graphics processor - Arc A750 TITAN OC Edition
Processor - Graphics processor family - Intel
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor cores - 28
Processor - Processor frequency - 2200 MHz
Processor - Ray Tracing - Y
Processor - Refresh rate - 60 Hz
Processor boost clock speed Processor - 2200 MHz
Processor frequency Processor - 2050 MHz
producerCode - SA750T-8GOC
Product colour Design - Black/Blue
productName - Sparkle Intel Arc A750 TITAN OC Edition 8 GB GDDR6 graphics card
Product Net Weight - 1.094 kg
productSize - Normal
sizeX - 420
sizeY - 210
sizeZ - 90
Summary - Sparkle Technology Intel Arc A750 TITAN OC Edition. Graphics processor family: Intel, Graphics processor: Arc A750, Processor frequency: 2050 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
TV tuner integrated Performance - No
Unit Box Height - 0.21
Unit Box Length - 0.42
Unit Box Width - 0.095
Unit Calculated Volume - 0.009306 cubm
Unit Calculated Weight - 1.75 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://www.sparkle.com.tw/en/ARC/A750_TITAN
Video formats supported Performance - H.264/HEVC/H.265/VP9
Warranty - 24 months
warrantyLength - 36
warrantyType - G
Weight - 1.6
weight - 1600
Weight & dimensions - Depth - 103.4 mm
Weight & dimensions - Height - 50.4 mm
Weight & dimensions - Weight - 1,094 kg
Weight & dimensions - Width - 305.5 mm
Windows operating systems supported System requirements - Windows 10/Windows 11
Xe-cores Performance - 28
