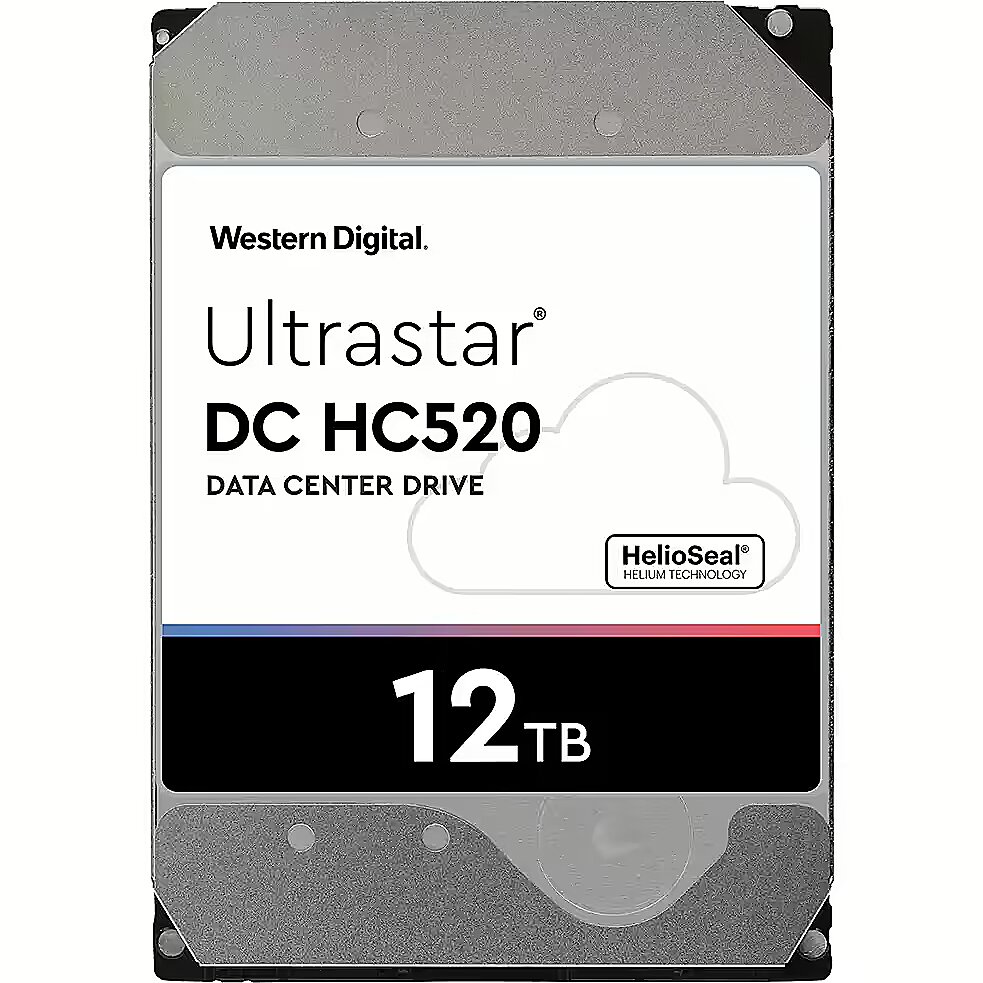

Western Digital 12TB, 7200rpm, 356MB, SATAIII, Ultrastar DC HC520, SE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 156573 Product code: 0F30146
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Capacity: 12 TB
  • Data Interface: SATA III
  • Spindle rotation speed: 7200 rpm
  • Data buffer: 356 MB
Similar Products
This product Western Digital 12TB, 7200rpm, 356MB, SATAIII, Ultrastar DC HC520, SE
Western Digital 8TB, 7200rpm, 256MB, SATA III, Ultrastar DC HA340
Western Digital 20TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC560, SE
Western Digital 20TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC555, SE
Western Digital 12TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC555, SE
Show similar specs. Hide similar specs.
419.39 €
313.81 €
697.86 €
575.63 €
436.63 €
Capacity 12 TB 8 TB 20 TB 20 TB 12 TB
Use Server Server Server Server Server
Data Interface SATA III SATA III SATA III SATA III SATA III
Spindle rotation speed 7200 rpm 7200 rpm 7200 rpm 7200 rpm 7200 rpm
Data buffer 356 MB 256 MB 512 MB 512 MB 512 MB
Description
Dateks offers to buy the Hitachi hard disc with 12 TB data capacity, SATA III connection, 7200 rpm rotation speed and 256 MB cache memory.

This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.

Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity 12 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use : Server
Data Interface SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed 7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer 356 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
Additional information in manufacturers website Western Digital 12TB, 7200rpm, 356MB, SATAIII, Ultrastar DC HC520, SE
Augstums (mm) - 26.1 milimetrs
Average Rotational Delay - 4.12 milisekunde
Average Seek Time - 8 milisekunde
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
dimensionalWeight - 82
Dziļums (mm) - 147 milimetrs
EAN - 0829686005204
EAN - 8717306638999
EAN_code - 0829686005204
External Data Bit Rate - 6 gigabits sekundē
Features - Average latency - 4.16 ms
Features - Bytes per sector - 512
Features - HDD capacity - 12 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - Mean time between failures (MTBF) - 2500000 h
Features - Read seek time - 8 ms
Features - Storage drive buffer size - 256 MB
Features - Write seek time - 8.6 ms
Formas faktors - 3.5"
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 60 mēnesis(-i)
Gross Weight Kg - 0,65
Hard Drive Features - 24/7HelioSeal Technology
Iepakojuma svars Brutto (kg) - 0.66 kilograms
Iepakojuma svars Netto (kg) - 0 kilograms
Iepakojuma tips - Kaste
Iepakojums kastē - 20
Ierīces atrašanās vieta - Internal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220504160015350687.jpg
Installed Cache Memory Storage Capacity - 256 megabaits
Kastes svars Brutto (kg) - 13.2 kilograms
Maksimālā darba vides temperatūra - 60 Celsija grāds
Manufacturer - Western Digital
Manufacturer Code - 0F30146
Manufacturer Name - Western Digital
Manufacturer_code - 0F30146
Maximum Power Consumption - 7.2 Vats
Maximum Seek Time - 8.6 milisekunde
Maximum Supply Voltage - 12 volts
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0 kilograms
Mean Time Between Failures - 2500000 stunda
Minimum Power Consumption - 5.3 Vats
Minimum Supply Voltage - 5 volts
Minimālā darba vides temperatūra - 5 Celsija grāds
MPN - 0F30146
Name - 12TB WD Ultrastar HUH721212ALE604 7200RPM 256MB Ent.
Name - 12TB WD Ultrastar HUH721212ALE604 Ent. *Bring-In-Warranty*
Name - WD Ultrastar DC HC520 12 TB - SATA - 3.5
Nominal Supply Voltage - 5 volts
Nominālais svars - 0.66 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 300 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Storage drive adapter included - No
Platums (mm) - 101.6 milimetrs
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.3 W
Power - Power consumption (typical) - 7.2 W
producerCode - 0F30146
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=170530061938430168&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - HUH721212ALE604
ProductDescription - Western Digital Ultrastar DC HDD Server HE12 (3.5’’, 12TB, 256MB, 7200 RPM, SATA 6Gb/s, 512E SE) SKU: 0F30146
productName - Western Digital Ultrastar He12 3.5" 12000 GB Serial ATA III
productSize - Normal
ProductType - HDD Server
Rotational Speed - 7200 apgriezieni minūtē
SATA III - 1
Short description - WD HD3.5" SATA3-Raid 12TB HUH721212ALE604 (Di)
sizeX - 145
sizeY - 27
sizeZ - 105
Storage Capacity - 12 terabaits
Supports Data Channel - SATA III-600
Typical Operating Noise Level - 36 decibelu
Vendor - WESTERN DIGITAL
warrantyLength - 60
warrantyType - G
Weight - 0,64
Weight - 0.64
Weight - 0.677
weight - 660
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 660 g
Weight & dimensions - Width - 101.6 mm
