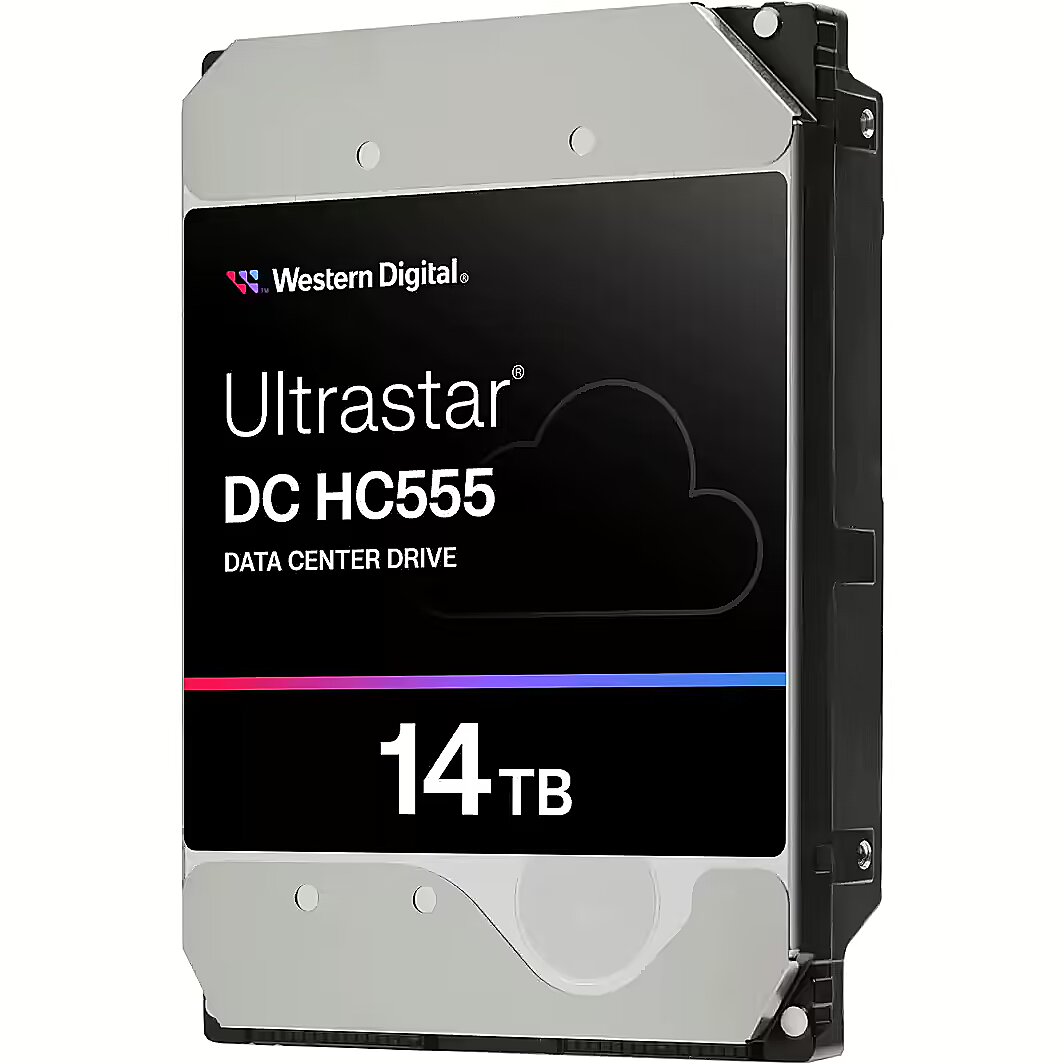

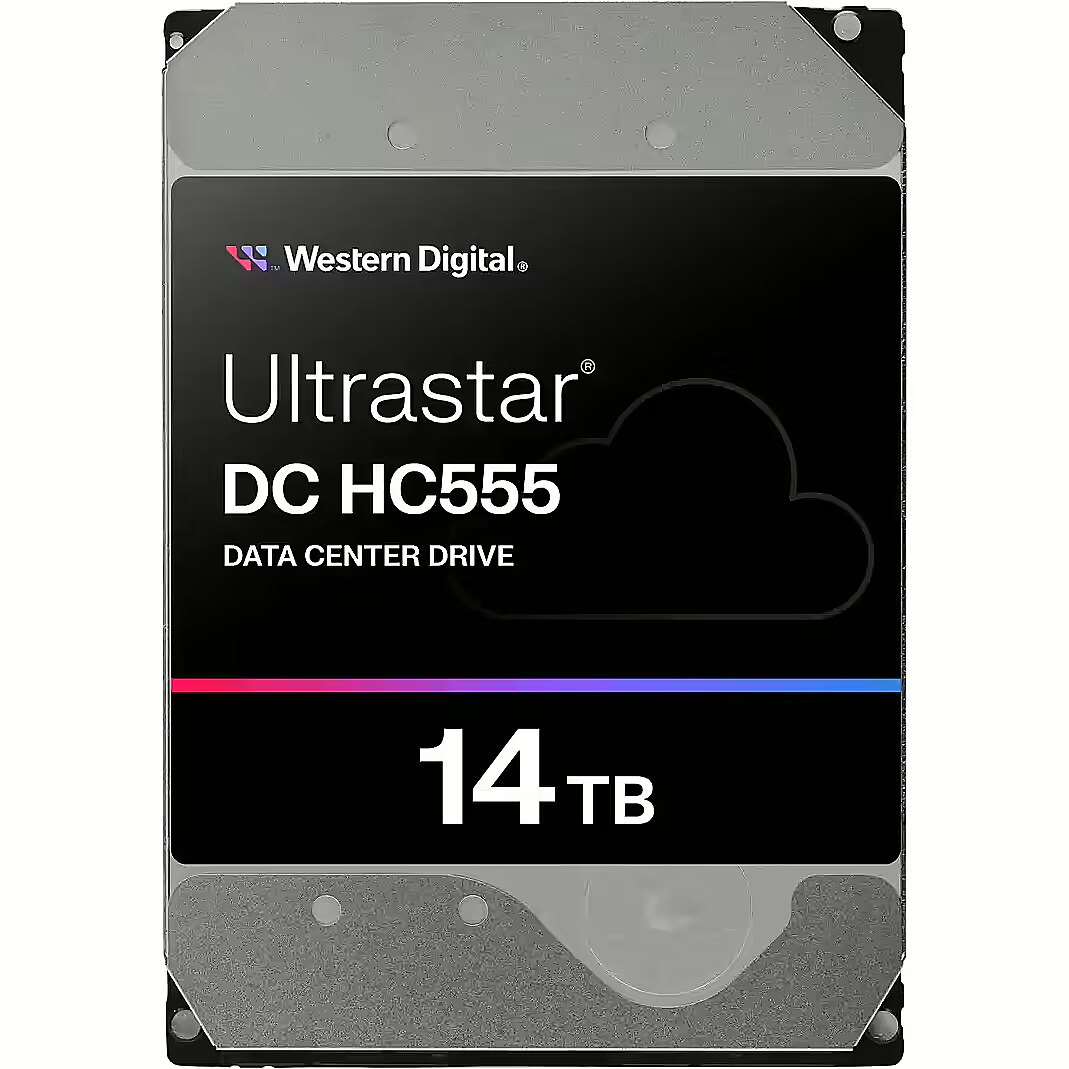

Western Digital 14TB, 7200rpm, 512MB, SAS, Ultrastar HC555, SE, EAMR

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1178051 Product code: 0B47743
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 3 years
341.70 €
Ready for dispatch
04.06.2025
starting from 6.99 €
Delivery options
  • Itella parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Capacity: 14 TB
  • Data Interface: SAS
  • Spindle rotation speed: 7200 rpm
  • Data buffer: 512 MB
Description
Dateks offers to buy the Western Digital hard disc with 14 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.

This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.

Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity 14 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use : Archive
Data Interface SAS
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed 7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer 512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
dimensionalWeight - 87
Features - 24/7 operation - Yes
Features - Average latency - 4.16 ms
Features - Component for - Server/workstation
Features - HDD average transfer rate - 269 MB/s
Features - HDD capacity - 14 TB
Features - HDD interface transfer rate - 12 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 257 MiB/s
Features - Hot-swap - No
Features - Interface - SAS3
Features - Mean time between failures (MTBF) - 2500000 h
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Operational conditions - Non-operating shock - 250 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 50 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Warranty period - 5 year(s)
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.4 W
Power - Power consumption (typical) - 8.8 W
producerCode - 0B47743
productName - Western Digital Ultrastar DC HC555 internal hard drive 14 TB 7200 RPM 512 MB 3.5" SAS3
productSize - Normal
Safety warning - Warnings - Avoid exposure to extreme temperatures.
Safety warning - Warnings - Do not dispose of in normal waste, special disposal.
Safety warning - Warnings - Store away from water and moisture.
sizeX - 145
sizeY - 100
sizeZ - 30
warrantyLength - 60
warrantyType - G
weight - 650
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 679 g
Weight & dimensions - Width - 101.6 mm
341.70 €
Western Digital 14TB, 7200rpm, 512MB, SAS, Ultrastar HC555, SE, EAMR
