Brand - ADATA
BrandPartCode - AD5U560016G-S
Buffered memory type Features - Unregistered (unbuffered)
CAS Latency - CL46
CAS latency Features - 46
Category - Memory Modules
Category1 - Memory
Category Code - MEM
Category_1 - Computer Memory
Category_2 - DDR5
Component for Features - PC
Description - Higher Frequencies
The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz). More Energy-Efficient
This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability. Capacity Doubled
This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities. Improved Stability
With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers. QuikTips: DDR5 vs DDR4 - Appearance

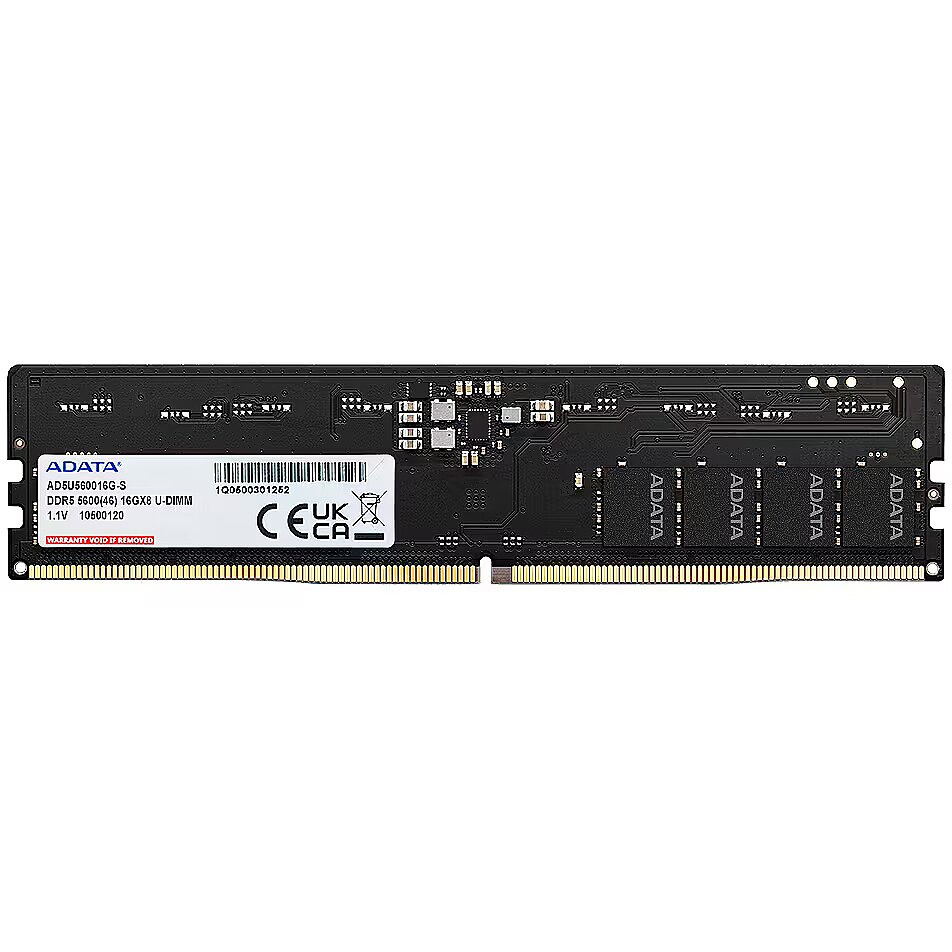

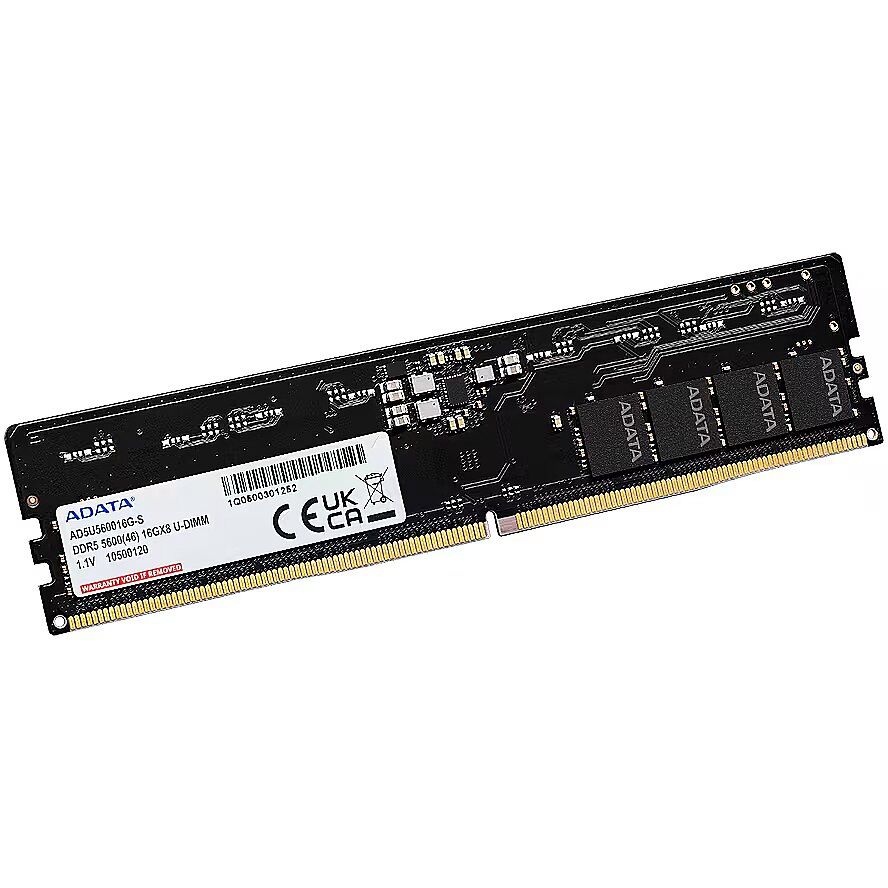

DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center. QuikTips: DDR5 vs DDR4 - Chip Architecture
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology. QuikTips: DDR5 vs DDR4 - Performance
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.Higher FrequenciesBuilt-in Power Management ICHigher CapacitiesOn-Die Error Correcting CodeWorks with the latest AMD and Intel platforms
Description - Premier DDR5 The future of DRAM memory lies in the ADATA DDR5-5600 U-DIMM module. Compared to its predecessors, this module delivers significant speed increases, higher efficiency, reduced power consumption, and increased bandwidth per processor core.
Description1 - ADATA RAM AD5U560016G-S - 16 GB - DDR5 5600 UDIMM CL46
Description2 - Higher FrequenciesThe DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).More Energy-EfficientThis next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.Capacity DoubledThis memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.Improved StabilityWith error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.QuikTips: DDR5 vs DDR4 - AppearanceDDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.QuikTips: DDR5 vs DDR4 - Chip ArchitectureDDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.QuikTips: DDR5 vs DDR4 - PerformanceThe biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.
Designation - CE+WEEE
dimensionalWeight - 18
dimension depth - 10 mm
dimension height - 170 mm
dimension weight - 35 g
dimension width - 55 mm
ean - 4711085939234
EAN - 4711085939234
EAN_code - 4711085939234
ECC support - On-die ECC
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 46
Features - Component for - PC
Features - Internal memory - 16 GB
Features - Internal memory type - DDR5
Features - Memory clock speed - 5600 MHz
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 16 GB
Features - Memory voltage - 1.1 V
Features - Module configuration - 2048M x 8
Features - On-Die ECC - Yes
GTIN - 4711085939234
guarantee - 0
guarantee_type - perpetual
Internal memory Features - 16 GB
Internal memory type Features - DDR5
LongDesc - Higher FrequenciesThe DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).More Energy-EfficientThis next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.Capacity DoubledThis memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.Improved StabilityWith error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.QuikTips: DDR5 vs DDR4 - AppearanceDDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.QuikTips: DDR5 vs DDR4 - Chip ArchitectureDDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.QuikTips: DDR5 vs DDR4 - PerformanceThe biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.
LongProductName - 16 GB, DDR5, 5600 MHz, 288-pin, U-DIMM, 1.1 V
LongSummaryDescription - ADATA Premier . Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46
Manufacturer - ADATA
Manufacturer - Adata
ManufacturerID - AD5U560016G-S
Manufacturer_code - AD5U560016G-S
Memory bus frequency - 5600 MHz
Memory clock speed Features - 5600 MHz
Memory form factor Features - 288-pin DIMM
Memory layout (modules x size) Features - 1 x 16 GB
Memory type - DDR5
Memory voltage Features - 1.1 V
Model - AD5U560016G-S
Module configuration Features - 2048M x 8
Name - ADATA DDR5 16GB - 5600 - CL - 46 -Single-Kit - DIMM - AD5U560016G-S, Premier Tray, XMP
Name - MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA
name - Memory Premier DDR5 5600 DIMM 16GB Single Tray
Number of memory cards in set - 1
On-Die ECC Features - Yes
Operating temperature (T-T) Operational conditions - 0 - 85 °C
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
PackageHeight - 10
PackageLength - 170
Package type Packaging data - Tray
PackageWeight - 50
PackageWidth - 55
Packaging data - Package type - Tray
producer - Adata
producerCode - AD5U560016G-S
productName - ADATA Premier memory module 16 GB 1 x 16 GB DDR5 288-pin DIMM
ProductName - Premier
Product Net Weight ELKO Verified Logistics Data - 0.03 kg
productSize - Normal
Radiator - No
Shipping Box Depth ELKO Internal Logistics Data - 13 cm
Shipping Box Height ELKO Internal Logistics Data - 2 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.2 kg
Shipping Box Width ELKO Internal Logistics Data - 4 cm
ShortSummaryDescription - ADATA Premier , 16 GB, 1 x 16 GB, DDR5, 5600 MHz, 288-pin DIMM
sizeX - 10
sizeY - 55
sizeZ - 170
Summary - ADATA Premier . Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46
Title - ADATA Premier memory module 16 GB 1 x 16 GB DDR5 288-pin DIMM
Total memory capacity - 16 GB
Unit Box Height - 0.02
Unit Box Length - 0.13
Unit Box Width - 0.04
Unit Calculated Volume ELKO Internal Logistics Data - 0.000104 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.2 kg
Unit Depth ELKO Verified Logistics Data - 13 cm
Unit Height ELKO Verified Logistics Data - 2 cm
Units per Shipping Box ELKO Verified Logistics Data - 1
Unit Width ELKO Verified Logistics Data - 4 cm
URL - https://www.adata.com/en/consumer/dram-module-ddr5-5600-u-dimm?tab=description
Vendor Homepage - https://www.adata.com/en/consumer/dram-module-ddr5-5600-u-dimm?tab=description
vendpn - AD5U560016G-S
Warranty - X months
WarrantyInfo - Limited lifetime
warrantyType - W
WEEE - DE83654239
Weight - 0,03
weight - 25
