Teltonika TSW304, 4x1Gb

10G support Network - No
Accessories included - TSW304 Quick start guide
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 4
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - CE REACH RoHS WEEE UKCA FCC IC CB RCM EN IEC 62368-1:2020+A11:2020
Certification Certificates - CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Chassis type - Desktop
Chassis type - Rack
CnCode - 85176200
Console port - No
Dane techniczne: Akcesoria - zintegrowany uchwyt na szynę DIN
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Bufor pamięci - 128 KB
Dane techniczne: Dodatkowe informacje - Switch przeznaczony do montażu na szynie DIN lub wolnostojący (desktop), Przemysłowy - aluminiowa obudowa, May, kompaktowy rozmiar2-pinowe przemysłowe gniazdo prądu stałego, Zakres napięcia wejściowego od 7-57 V DC, 9-40 V AC
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Głębokość - 81.5 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 4 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.3az
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Producent - Teltonika
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 8 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 2000
Dane techniczne: Szerokość - 102 mm
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Waga - 0.21 kg
Dane techniczne: Warstwa przełączania - 2
Dane techniczne: Wysokość - 25 mm
DC input voltage Power - 7 - 57 V
Depth Weight & dimensions - 81.5 mm
Description - DIN RAIL SWITCH

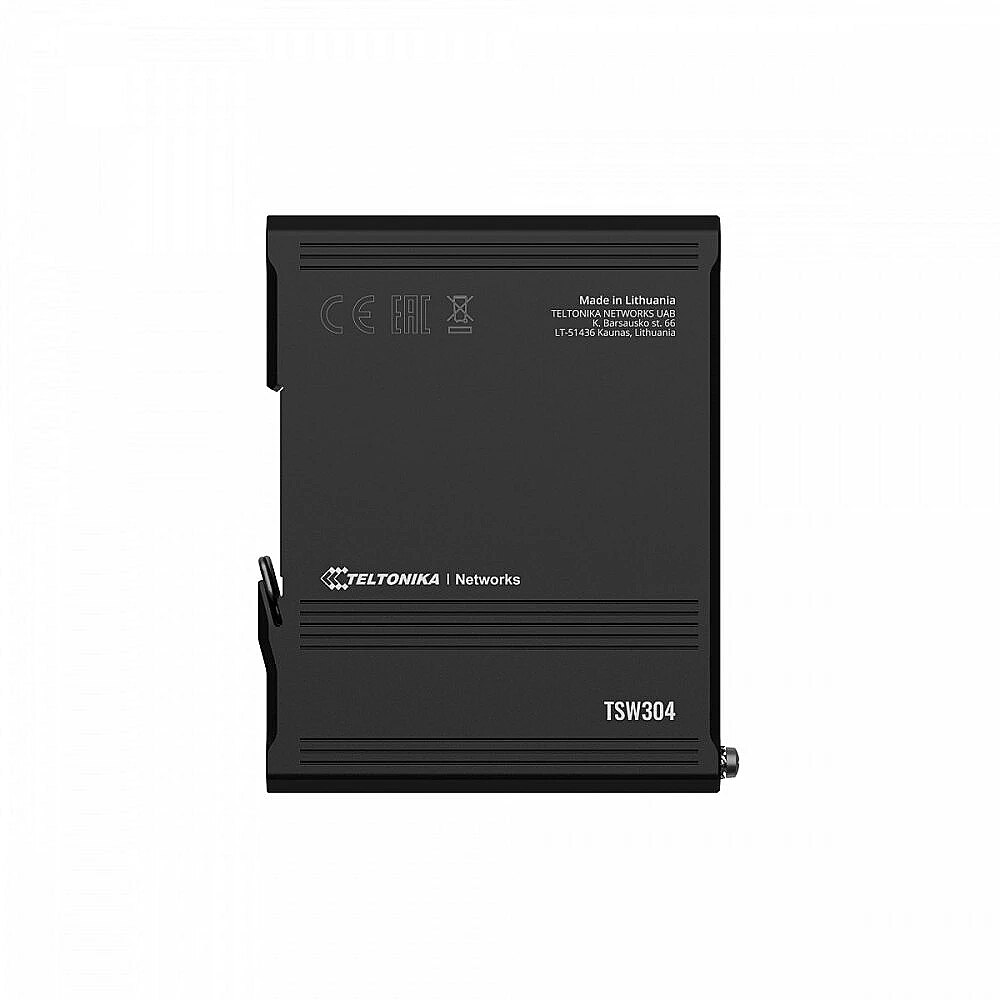

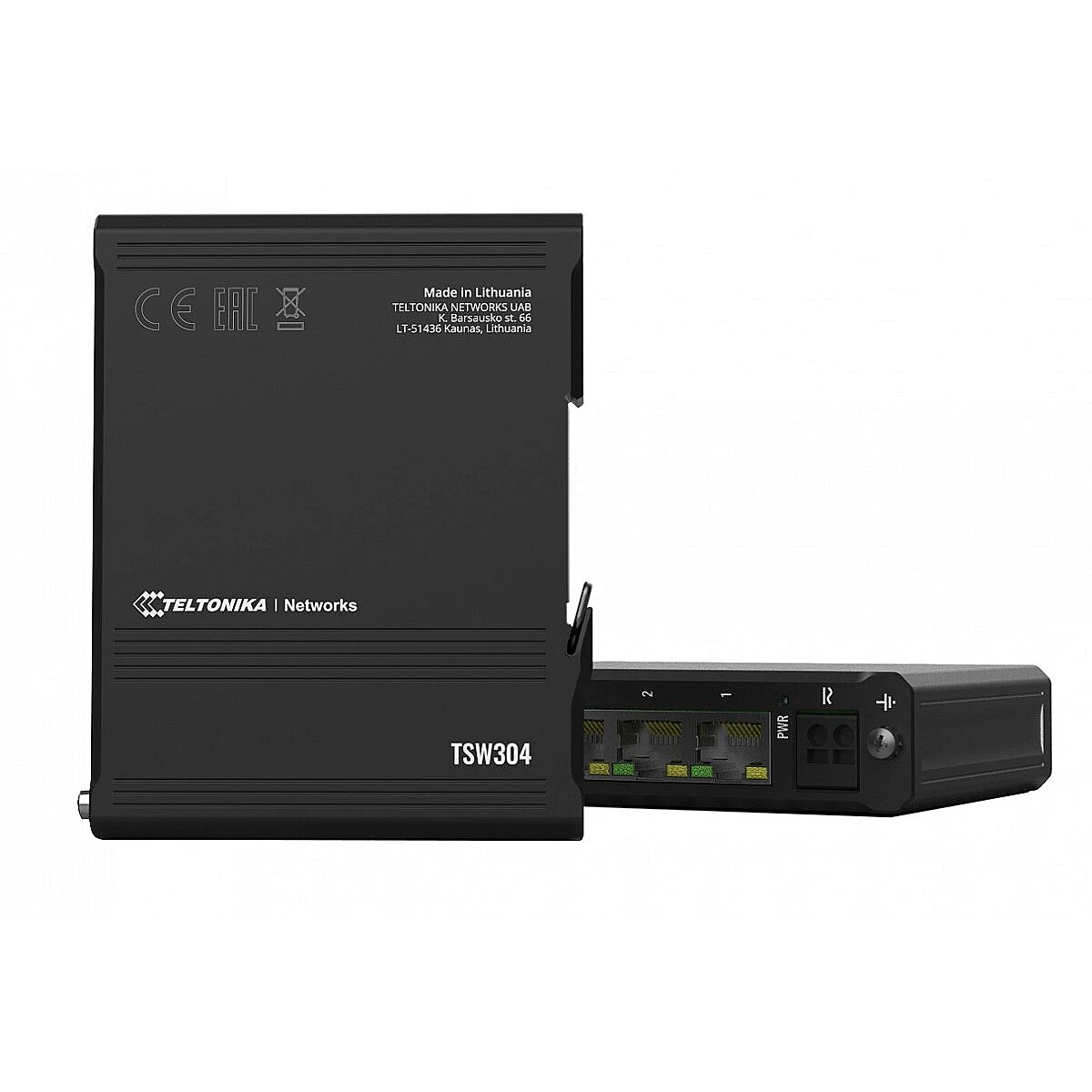

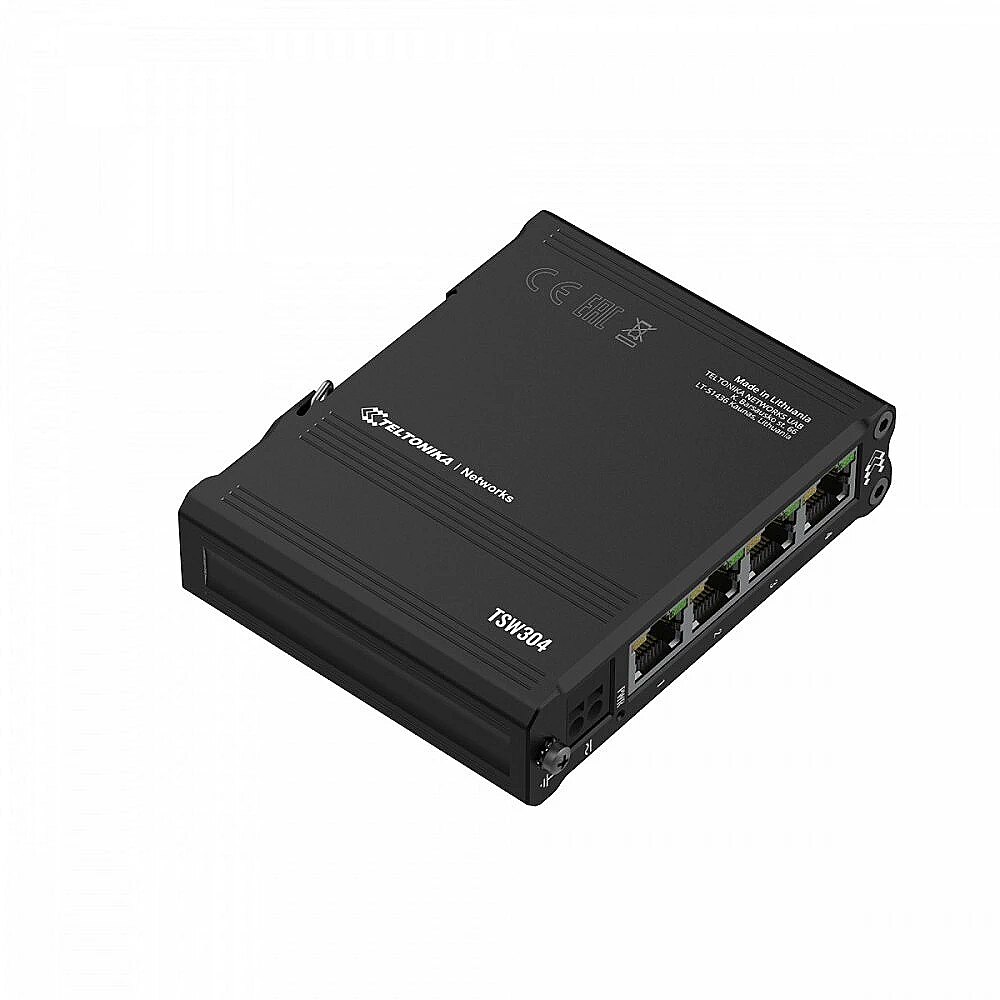

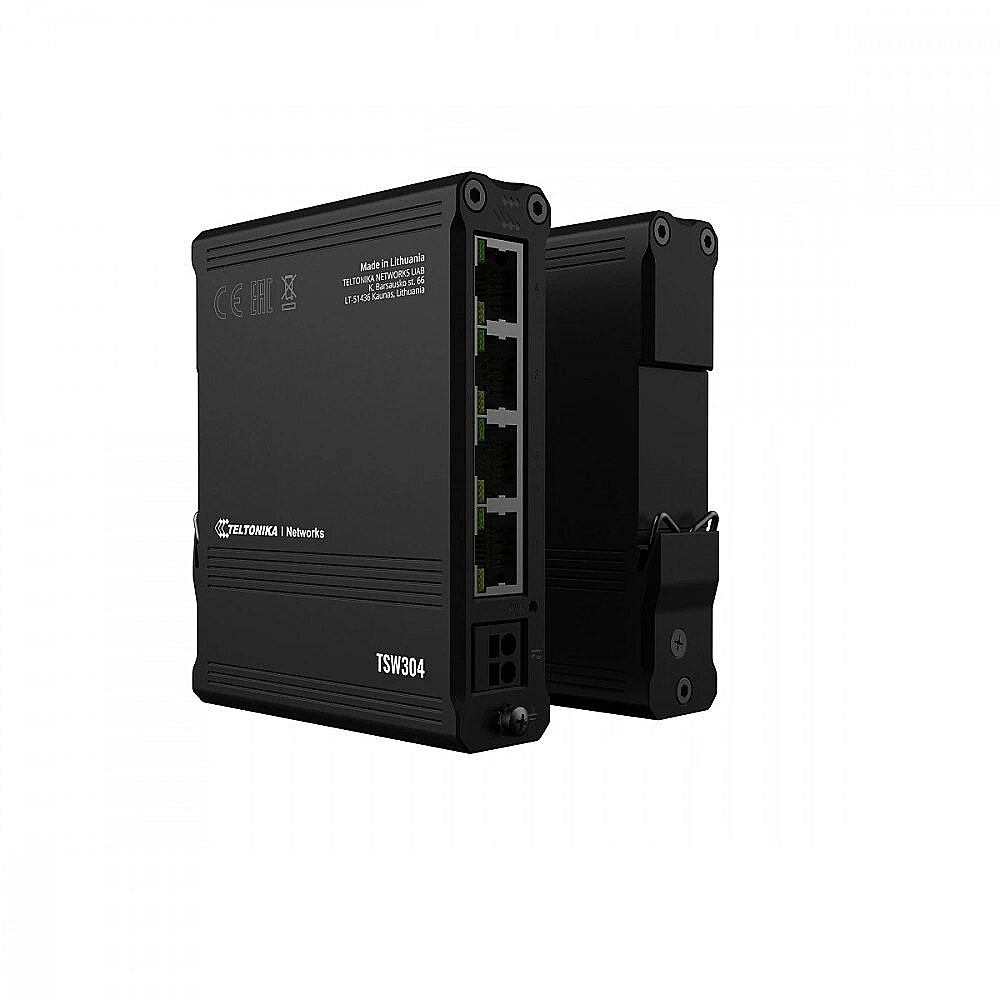

TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING

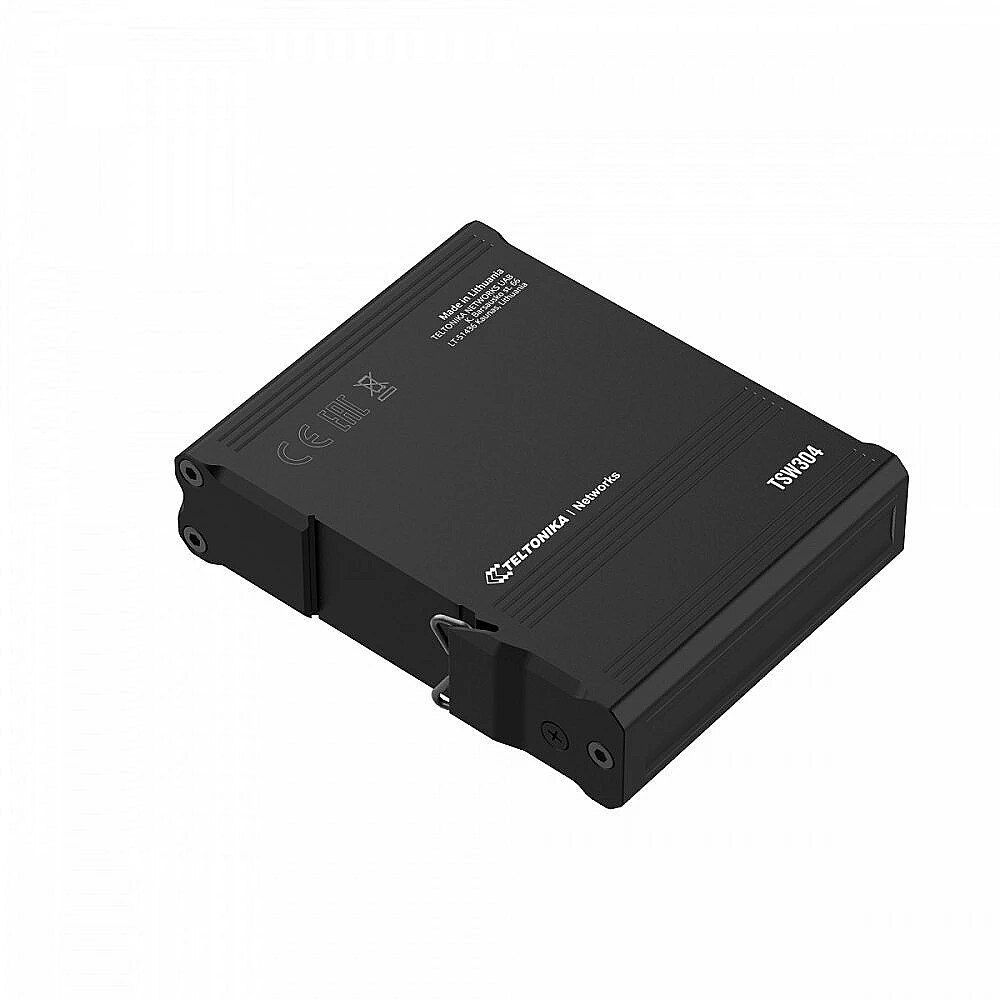

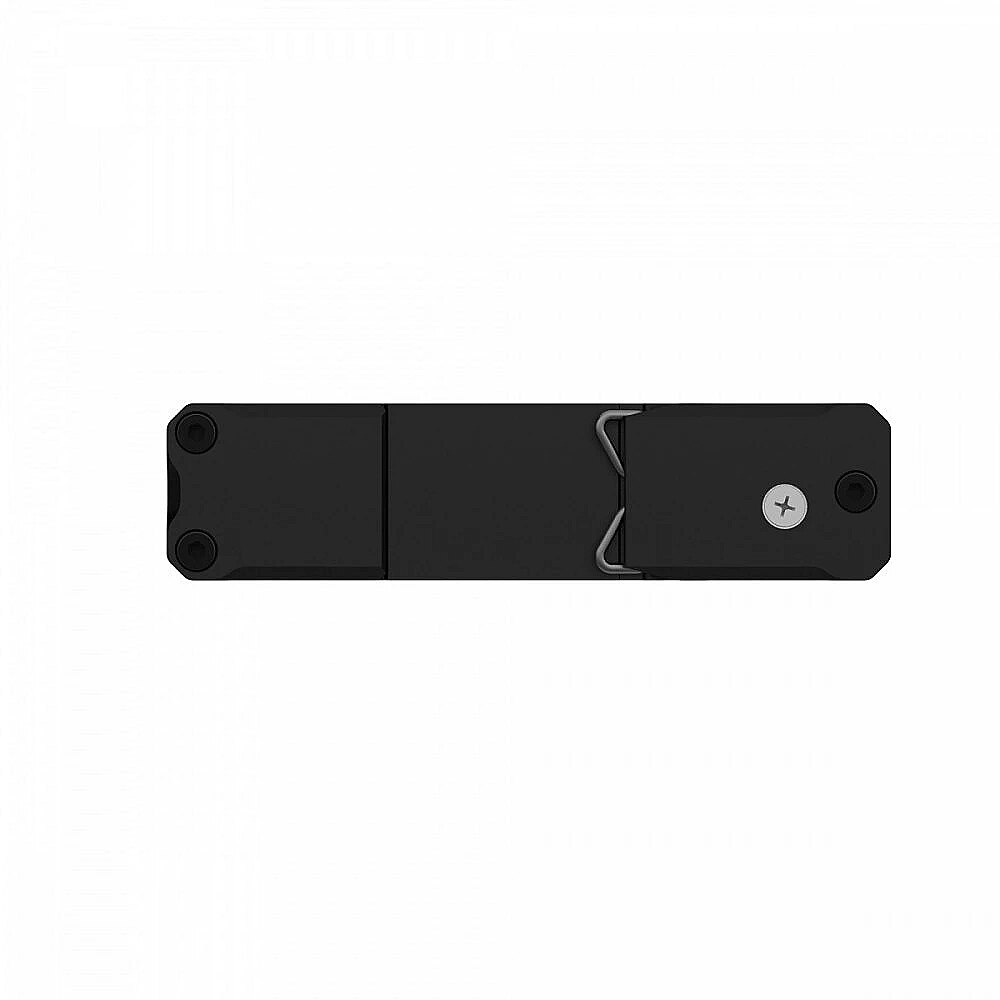

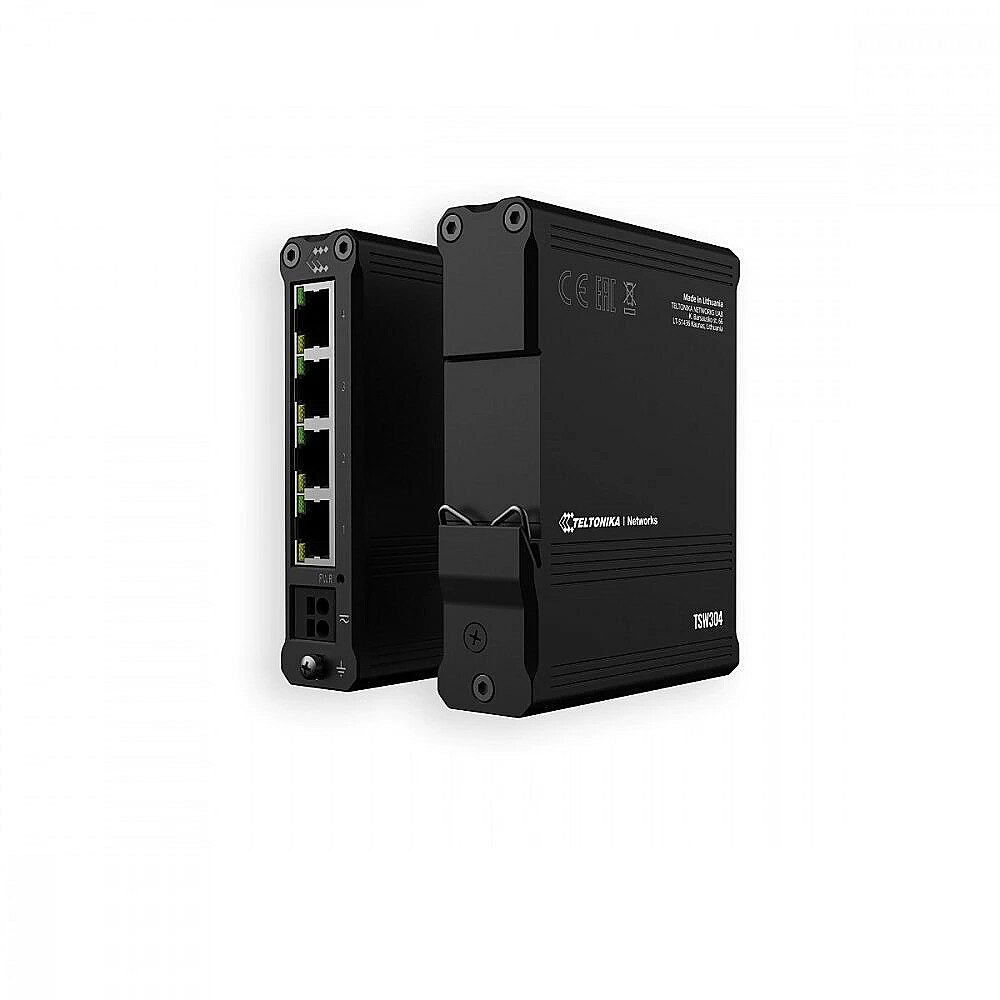

Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET

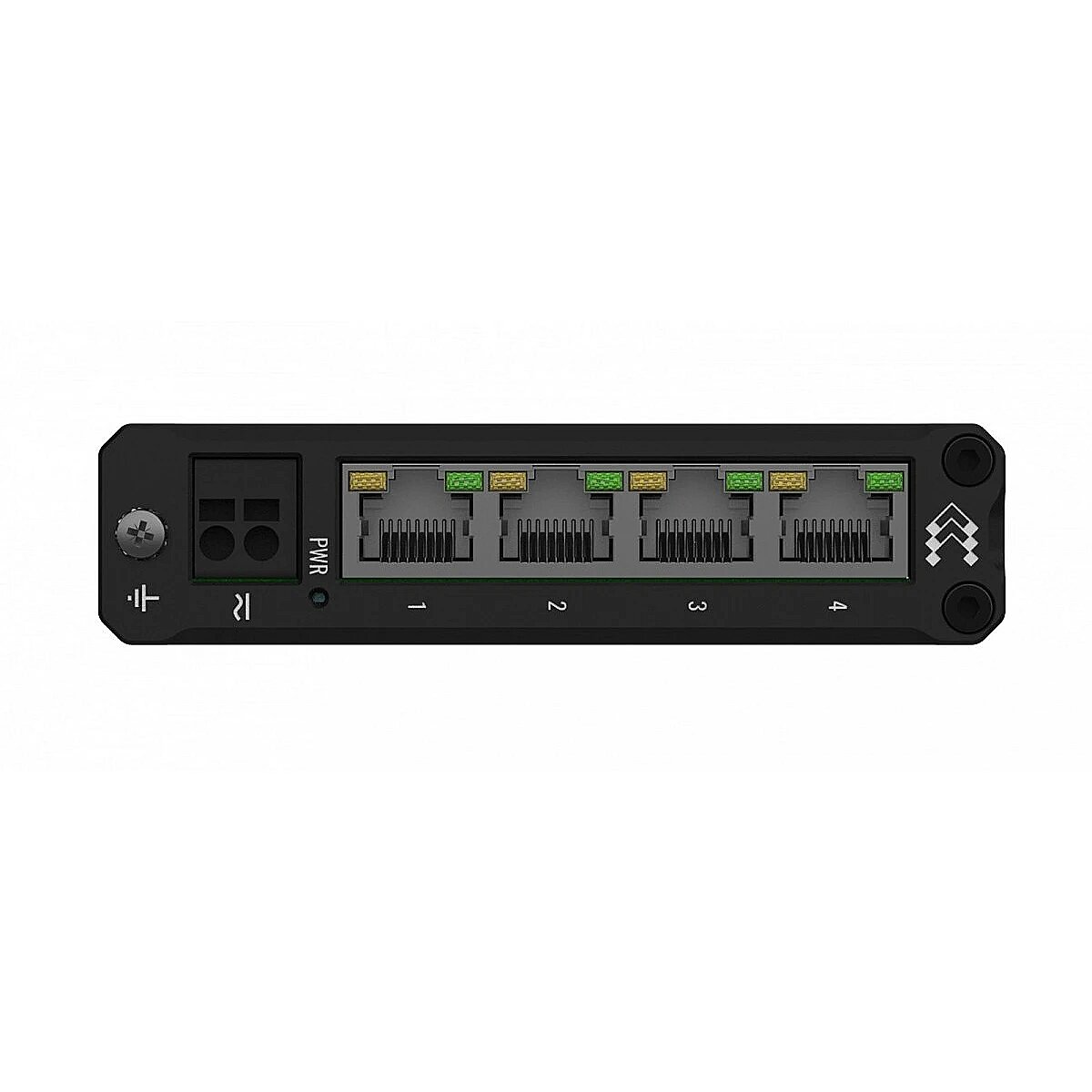

4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages
Description - TELTONIKA TSW304 IOT SWITCH 4X10/100/1000
Description - TSW304 switch TSW304 is the smallest switch in the Teltonika Networks offer, designed for industrial applications. This very small device is equipped with an integrated DIN rail mounting option and will easily find its place in any server rack. The rugged design and shock-resistant housing make it ideal for even the most demanding industrial environments. It is equipped with 4 x Gigabit Ethernet (up to 1000 Mbps) and a wide range of supply voltages 9-57 V.
Designation - CE+WEEE
dimension depth - 35 mm
dimension height - 175 mm
Dimensions - 102 x 25 x 81.5 mm
dimension weight - 269 g
dimension width - 150 mm
DIN rail mounting Design - Yes
ean - 4779051840144
Eans - 4779051840144
Environment requirements - Operating temperature: -40°C to 75°C Humidity during operation: 10% to 90% non-condensing
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Fan - No
guarantee - 24
guarantee_type - normal
Height - 30.000000
Height Weight & dimensions - 25 mm
Housing material Design - Aluminium
Input voltage Power - 9 - 40 V
International Protection (IP) code Design - IP30
Jumbo frames Data transmission - 9216
Jumbo frame size - 9.216 KB
Jumbo frames support Data transmission - Yes
L2 features -
L3 features -
LED indicators Design - Power, Status
Length - 107.000000
MAC address table Data transmission - 2000 entries
MAC address table size - 2000
Management, monitoring, configuration -
Manufacturer - Teltonika
ManufacturerPartNumber - TSW304000010
Model - TSW304
Model name - TSW304
name - Switch TSW304 4 x RJ45 ports
Name - Teltonika TSW304
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Number of 10/100/1000 Mbps ports - 4
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -40 - 75 °C
Other features - Protection: IP30
Other functions -
Packet buffer - 128 KB
Packet buffer memory Data transmission - 0.128 MB
PeriodofWarranty - 2 Y
Power consumption - 1.44 W
Power consumption (max) Power - 1.44 W
Power consumption (typical) Power - 0.26 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) type supported Power over Ethernet (PoE) - Passive PoE
Power source Power - AC/DC
Power supply - 2-pin socket, 7 - 57 VDC / 9 - 40 VAC
Producent: Nazwa producenta / importera - Teltonika
Teltonika Networks
K. Baršausko st. 66
LT-51436 Kaunas

producer - TELTONIKA
Producer - Teltonika
ProducerCode - TSW304
Product colour Design - Black
QoS -
Security -
ShortDescription - Teltonika TSW304 Kompaktowy, przemysłowy switch 4x Gigabit RJ45, aluminiowa obudowa, montaż na szynie DIN lub desktop
Stackability - No
Summary - Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable
Supported protocols and standards - IEEE 802.3 IEEE 802.3u IEEE 802.3az
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switching capacity Data transmission - 8 Gbit/s
Throughput - 8 Gb/s
Unit Box Height - 0.03
Unit Box Length - 0.1
Unit Box Width - 0.11
Unit Calculated Volume - 0.00033 cubm
Unit Calculated Weight - 0.23 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://teltonika-networks.com/products/switches/tsw304
vendpn - TSW304 000000
VLAN -
Wall mountable Design - Yes
Warranty - 24 months
Weight - 0.230000
Weight - 210 g
Weight Weight & dimensions - 210 g
Width - 100.000000
Width Weight & dimensions - 102 mm
