10/100/1000/2500 Mbps ports - None
Accessories included - Switch FS108D Charger Instruction
Application - Home and small office
Brand - Cudy
BrandPartCode - FS108D
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Console port - No
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 52.3 mm
Dane techniczne: Liczba portów LAN 10/100 - 8 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Producent - Cudy
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 1.6 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 2000
Dane techniczne: Szerokość - 130.7 mm
Dane techniczne: Szybkość przekierowań pakietów - 20 mpps
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Waga - 0.191 kg
Dane techniczne: Wysokość - 20 mm
Data Act - Link
Data transmission - Forwarding rate - 1.1904 Mpps
Data transmission - MAC address table - 512 entries
Data transmission - Packet buffer memory - 0.448 MB
Data transmission - Switching capacity - 1.6 Gbit/s
Description - FS108D 8-Port 10/100Mbps Desktop Switch 8 auto-negotiation 10/100Mbps RJ45 ports supporting Auto-MDI/MDIX Compliance with standards IEEE802.3,IEEE802.3i, IEEE 802.3u, IEEE802.3x,IEEE802.3az Supports automatic remembering and renewing of MAC addresses Plug&Play
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 85 mm
dimension height - 152 mm
Dimensions - 130.7 x 52.3 x 20 mm
dimension weight - 177 g
dimension width - 62 mm
ean - 6971690790042
EAN - 6971690790042
Eans - 6971690790042
Environment requirements - Working Temperature: 0~45C Storage Temperature: -40~70C Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 1.19 Mpps
GTIN - 6971690790042
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
Logistics data - Country of origin - China
LongDesc - 10/100 Mbps SpeedConnect PC, cameras, AP, and TV for stable wired connectivityCompact and Modern DesignPlace it in a distribution box or cable box without assigning extra space.Power-Efficient ChipsetSuper power-efficient with 0.75W maximum and 0.4W standby power consumptions.Wall MountingSave spaces by mount the switch on the wall.Flexible USB-C PoweringNo Sockets Nearby? No WorriesNo power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.A Moving Network HubDo maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day witha 10,000 mAh power bank.Suitable for Business and Home UsersConnect Office Computers to Wired NetworkBoost Home Devices with Stable EthernetA 8-FE switch with USB-C power input designed for wired network expansion in home and office environments.
LongProductName - 8-Port 10/100 Mbps Desktop Switch
LongSummaryDescription - Cudy FS108D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 512 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
MAC address table size - 1000
Management, monitoring, configuration -
Management features - Switch type - Unmanaged
Manufacturer - Cudy
MPN - FS108D
Name - 8P Cudy FS108D
Name - Cudy FS108D
name - Switch FS108D 8xFE
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat5
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network architecture - FastEthernet
Number of 10/100 Mbps ports - 8
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Data transfer rate: Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex)
Other features - Warranty period - 1 year(s)
Other functions -

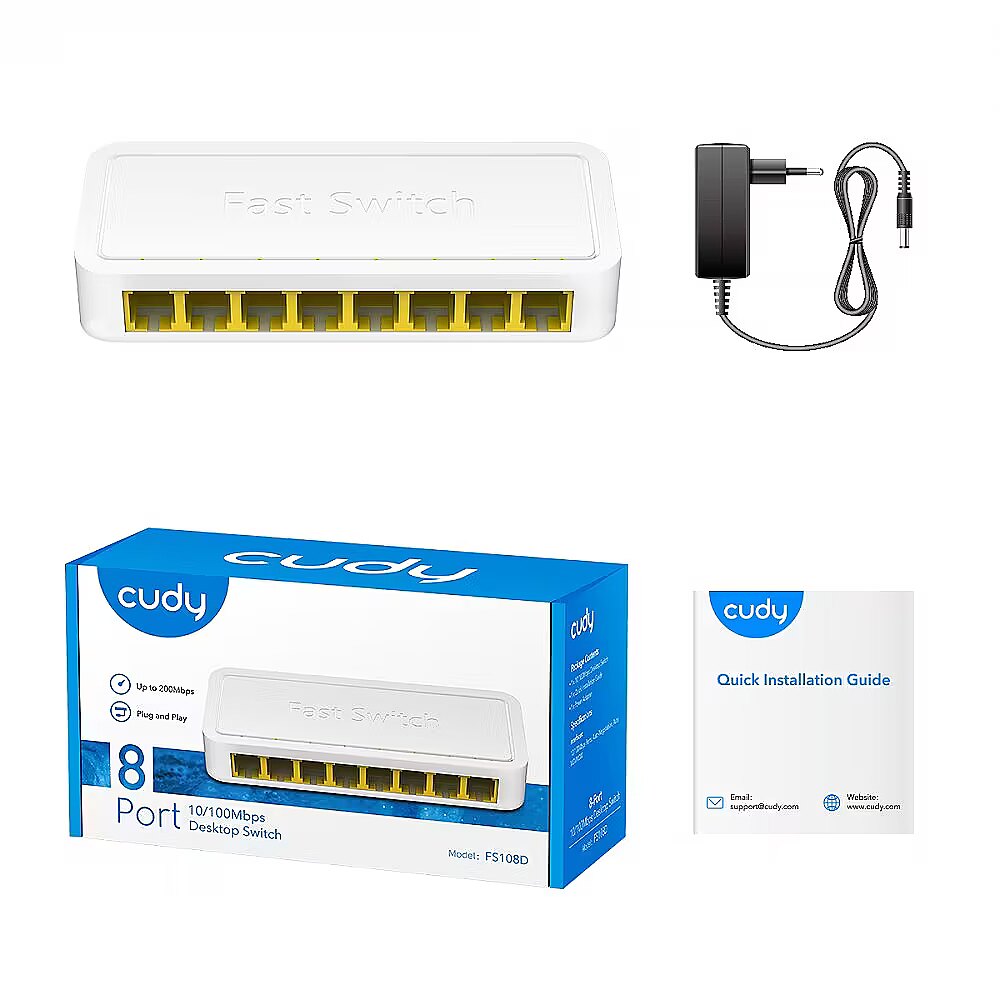

Packaging content - Cables included - DC
Packaging content - Manual - Yes
Packaging data - Package depth - 89 mm
Packaging data - Package height - 32 mm
Packaging data - Package weight - 138.4 g
Packaging data - Package width - 143 mm
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Power connector - DC-in jack
Power - DC input voltage - 5 V
Power - Input current - 0.55 A
Power - Power source - DC
Power - Power supply included - Yes
Power consumption - 1.7 W
Power supply - DC 5V 0.5A
Power supply - External
Producent: Nazwa producenta / importera - Cudy
Cudy Polska Sp. z o.o.
Nowogrodzka 50/54/515
00-650 Warszawa
producer - Cudy
Producer - Cudy
ProducerCode - FS108D
ProductName - FS108D
QoS -
Security -
ShortDescription -
ShortSummaryDescription - Cudy FS108D, Unmanaged, Fast Ethernet (10/100), Full duplex
Stackability - No
Supported protocols and standards - IEEE802.3 IEEE802.3i IEEE 802.3u IEEE802.3x IEEE802.3az
Support for Jumbo frames - No
Switch class - Unmanaged
Throughput - 1.6 Gb/s
Title - Cudy FS108D network switch Unmanaged Fast Ethernet (10/100) White
URL - https://www.cudy.com/products/fs108d-5-0#features
vendpn - FS108D
VLAN -
WarrantyInfo -
Weight - 0.208
Weight - 191 g
Weight & dimensions - Depth - 61.5 mm
Weight & dimensions - Height - 24 mm
Weight & dimensions - Weight - 191 g
Weight & dimensions - Width - 138 mm
