ARTIKEL1 - 8-P POE MULTI-GIG UNMGD SWITCH
ARTIKEL2 - POE++ ULTRA60
Brand - NETGEAR
BrandPartCode - MS108UP-100EUS
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CB, CSA, CCC, BSMI, RCM
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 3.593 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Packet forwarding rate (1 Gbps) - 1488000 pps
Data transmission - Switching capacity - 40 Gbit/s
Design - Electromagnetic compatibility - CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Design - Housing material - Metal
Design - LED indicators - Activity, Link, PoE, Power
Design - Number of fans - 0 fan(s)
Design - Rack mounting - No
Design - Wall mountable - Yes
EAN - 0606449156874
EANCode - 0606449156874
EAN_code - 0606449156874
Gewicht - 2.64
Gross Weight Kg - 1,58
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0606449156874
GTIN - 606449156874
HERSTELLER - NETGEAR
HSTNUMMER - MS108UP-100EUS
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - NETGEAR brings the first UnmanagedMulti-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-playinstallation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless accesspoints and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

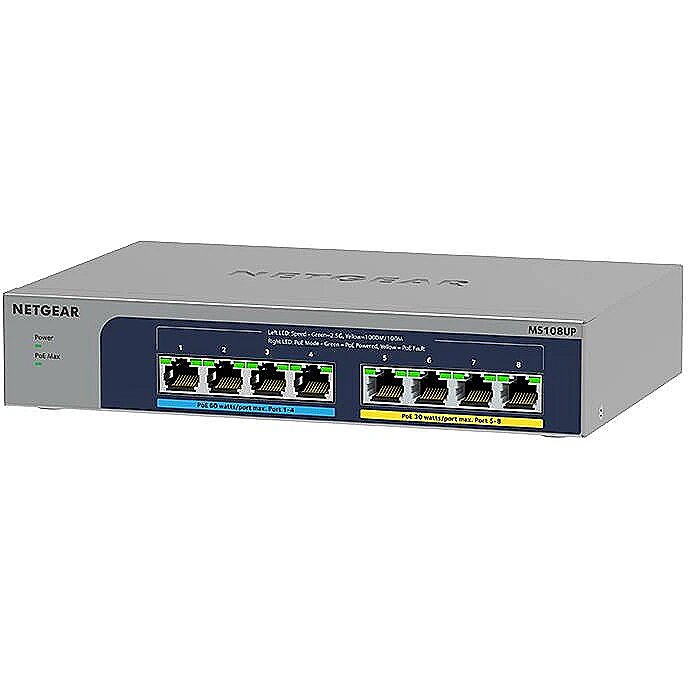

LongProductName - MS108UP - 8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch
LongSummaryDescription - NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Manufacturer - Netgear
Manufacturer - NETGEAR
Manufacturer Code - MS108UP-100EUS
Manufacturer Name - Netgear
Manufacturer_code - MS108UP-100EUS
MPN - MS108UP-100EUS
Name - Netgar MS108UP 8-Port Ultra 60, switch
Name - NETGEAR Switch 8x 2.5GE MS108UP-100EUS unmanaged
Network - 10G support - No
Network - Auto-sensing - Yes
Network - Auto MDI/MDI-X - Yes
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 64
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 923.49 BTU/h
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Performance - Fanless - Yes
Performance - Mean time between failures (MTBF) - 373643.7 h
Ports & interfaces - 2.5G Ethernet (copper) ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)

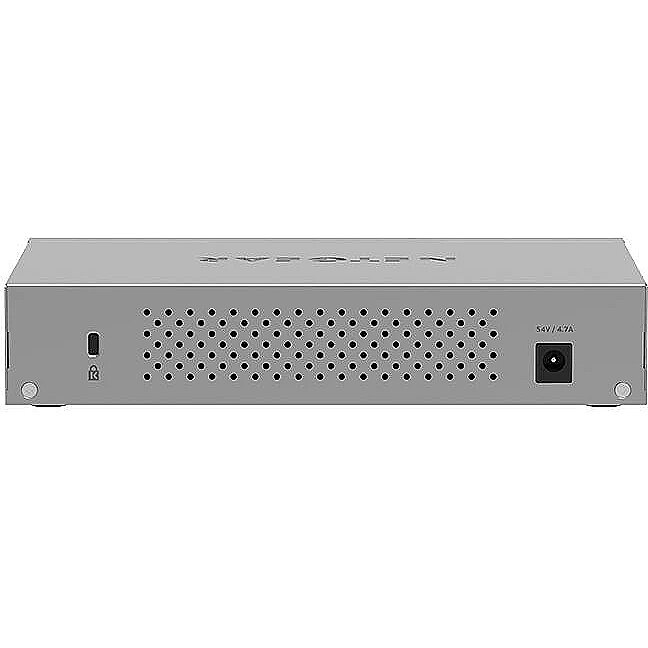

Power - DC input voltage - 54 V
Power - Input current - 4.7 A
Power - Power source - DC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 230 W
ProductName - MS108UP
Short description - Netgear 8Port Switch 100/1000/2500 MS108UP 8-Port Ultra60 PoE++ Multi-Gig unmgd Switch
ShortSummaryDescription - NETGEAR MS108UP, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Wall mountable
Stck_Kart - 6
Stck_Pal - 6
Storno - Y
Title - NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
URL - https://www.netgear.com/business/wired/switches/unmanaged/ms108up/
WarrantyInfo -
Weight - 2,62
Weight - 2.64
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 900 g
Weight & dimensions - Width - 210 mm
