10/100/1000/2500 Mbps ports - None

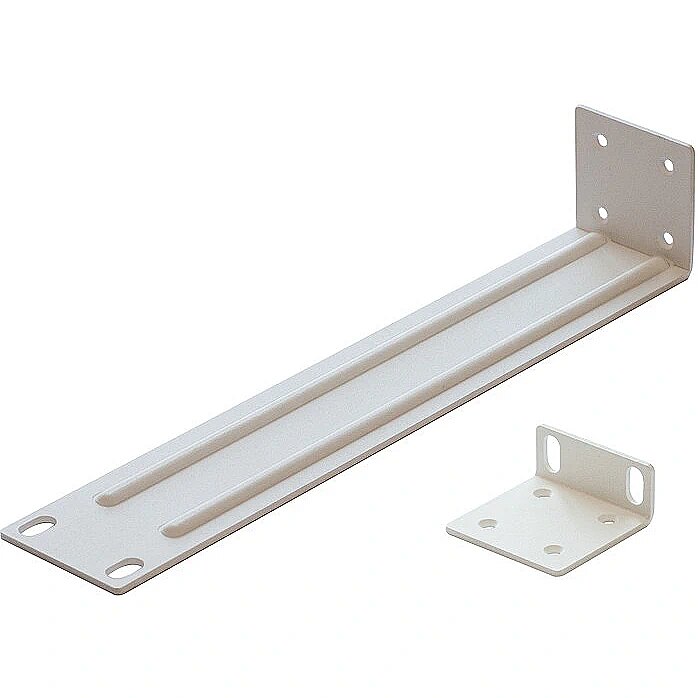

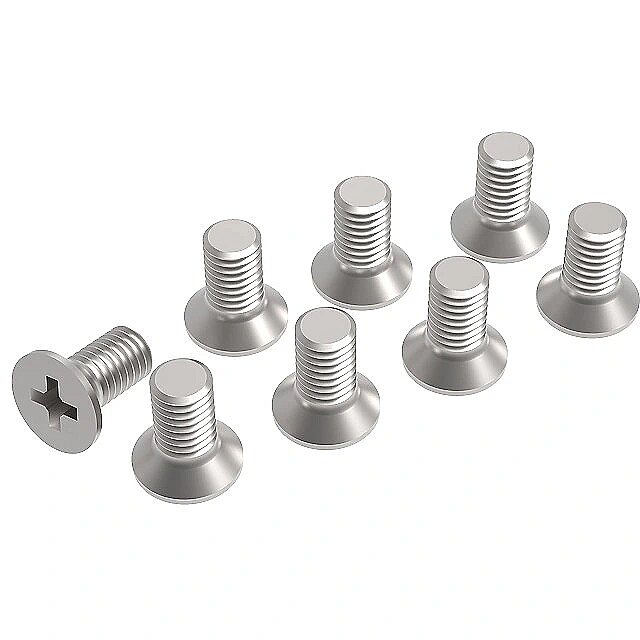

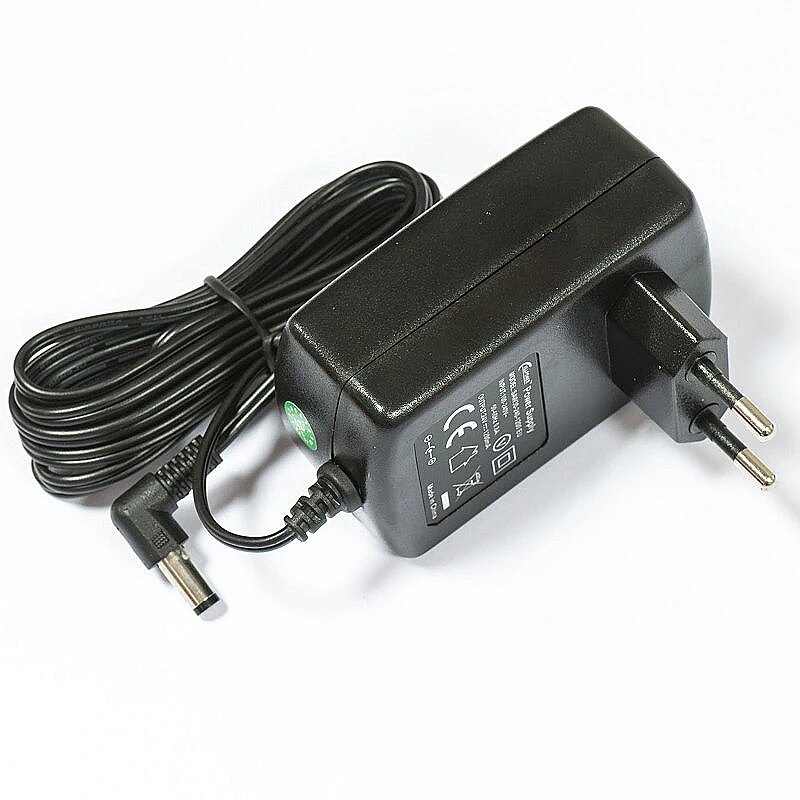

Accessories included - Fastening set K-48 Brackets Power supply 24V 1.2A
Application - Home and small office
brand - MikroTik
Built-in management - Yes
category - Mājas un biroju tīkli > Komutatori > SFP komutatori
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CRS310-1G-5S-4S+IN
Console port - No

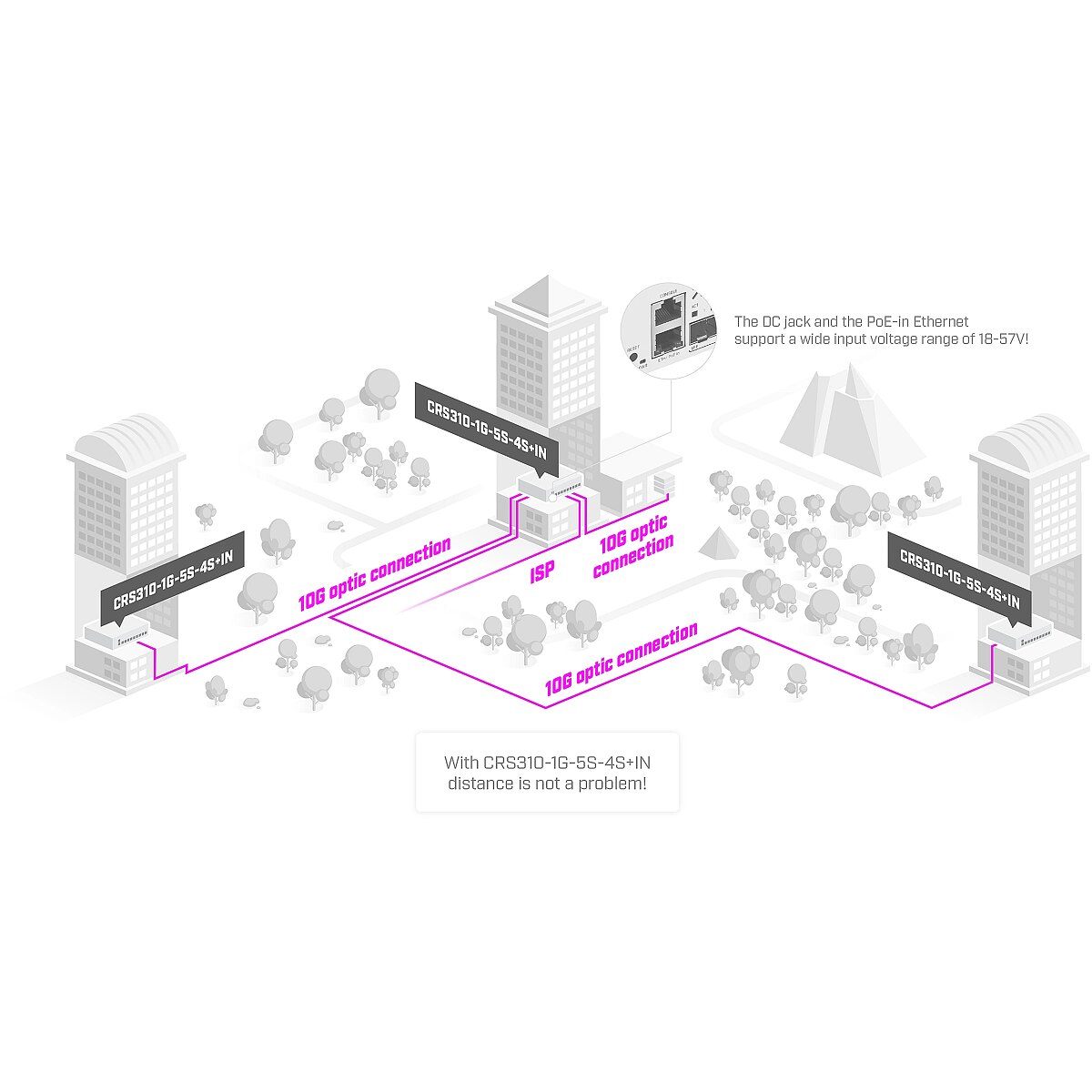

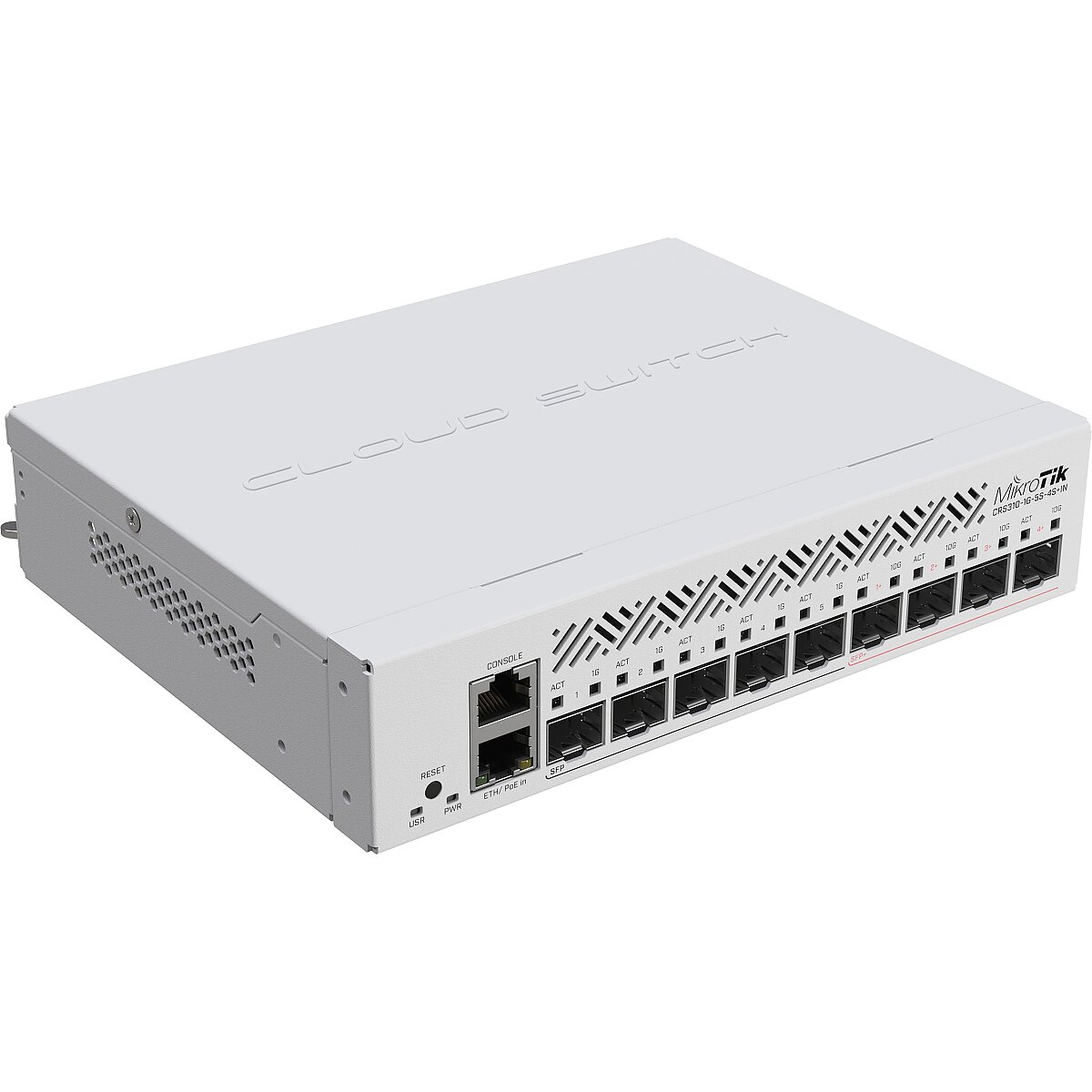

Description - 10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget! This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table! The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots. You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing. CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Description - This switch is an internal variation of the well-known netFiber 9 switch - used by many small and medium-sized ISPs for reliable 10 Gigabit fibre connections over 100 metres. With five 1G SFP ports, four 10G SFP+ ports and an additional Gigabit Ethernet port, this is an ideal upgrade for existing CRS212 configurations. You get a modern ARM v7 processor, 256MB of RAM and improved cooling. The new Marvell switch chips bring phenomenal performance to the table! The Gigabit Ethernet port has a direct connection to the switch chip - so you can enjoy full Gigabit speeds. It supports PoE-in, providing an additional power option in difficult locations. You can mount this switch in a standard 1U rack to keep everything tidy. And it has all the power you'd expect from a rack-mounted device: the CRS310 supports hardware VLAN filtering. And it even offloads Layer 3 routing to some devices. The CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with internal connections over 100 metres, keeping data loss and pings low. Fibre can be a great alternative to copper if you are concerned about electromagnetic interference, sabotage or eavesdropping.
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 320 mm
Dimensions - 200 x 166 x 45 mm
dimension weight - 930 g
dimension width - 200 mm
EAN - 4752224007827
ean - 4752224007827
Fan - Yes
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Forwarding mode - Store-and-forward
Forwarding rate - 1264 Mpps
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 16 MB
height - 0.07 m

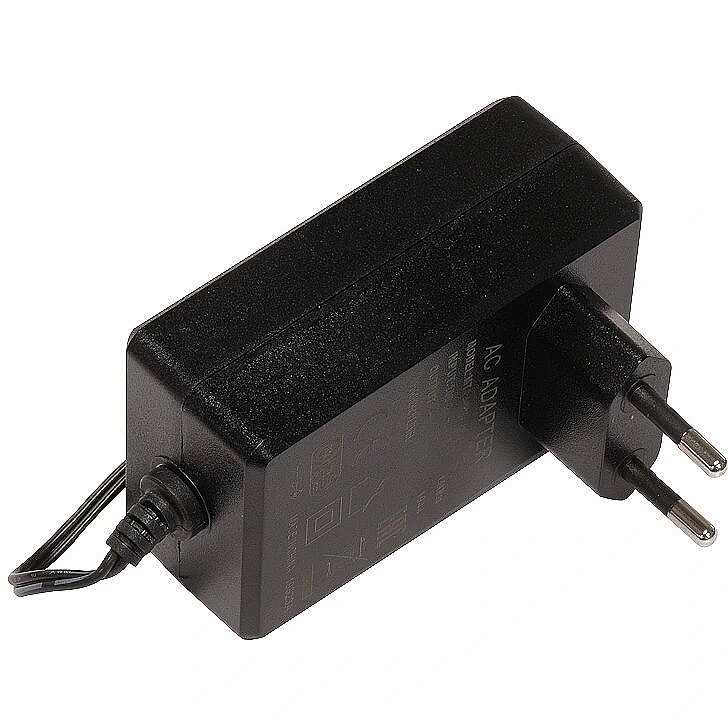

Included Accessories - 24V 1.2A power adapter, Rackmount Ears
L2 features -
L3 features -
length - 0.32 m
Link - https://help.mikrotik.com/docs/pages/viewpage.action?pageId=96403459
Management, monitoring, configuration -
Management features > Switch type - Managed L3
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h

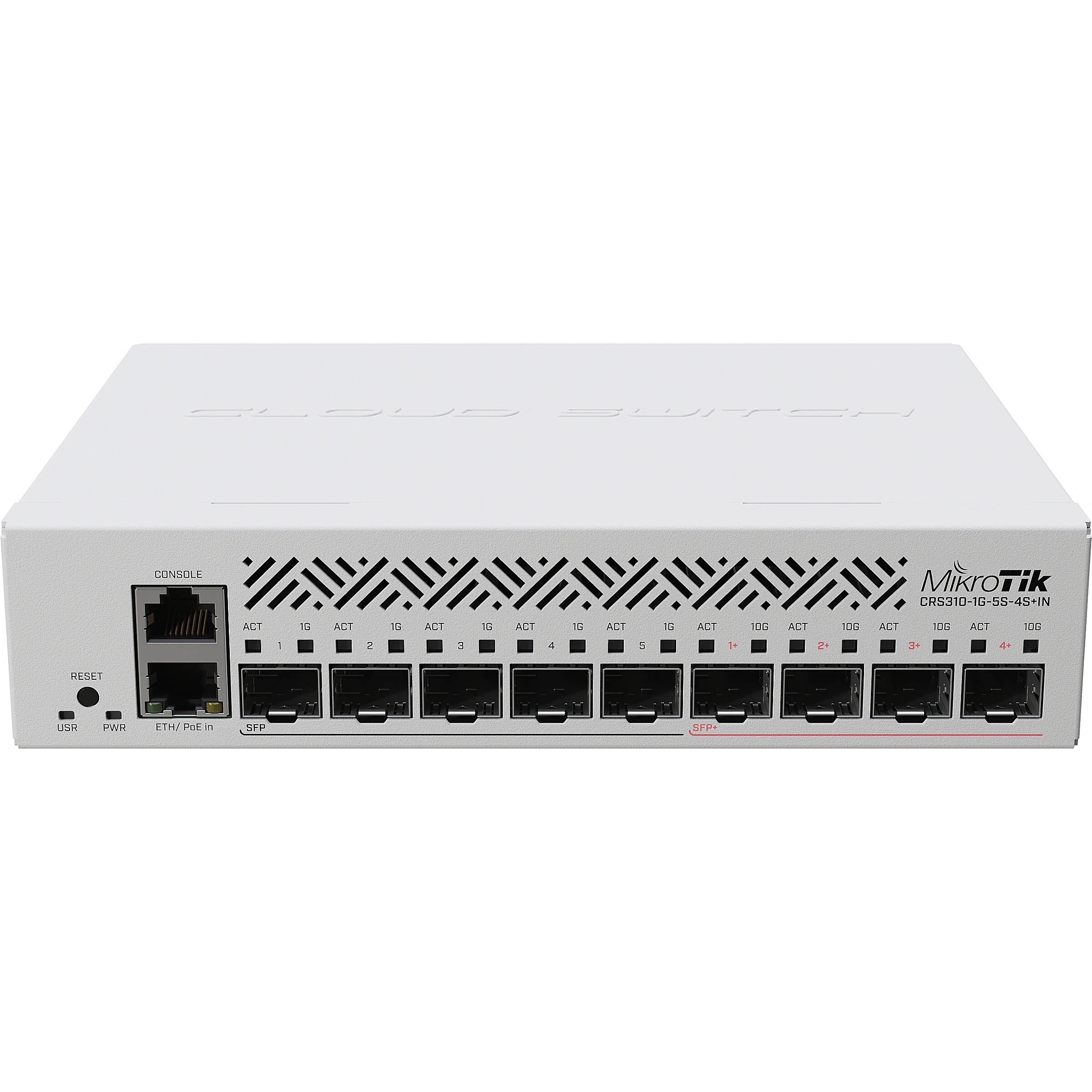

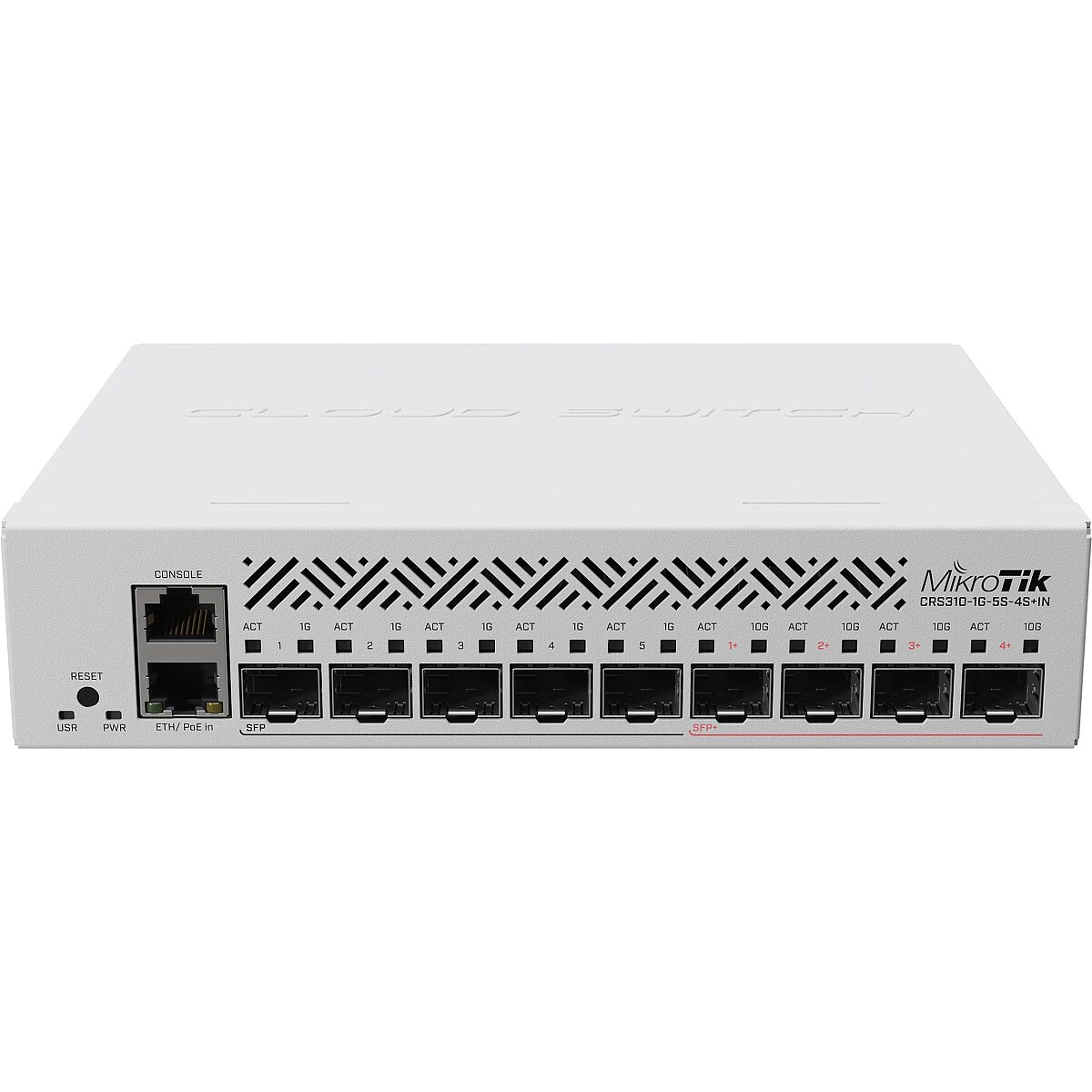

Model name - CRS310-1G-5S-4S+IN
mpn - CRS310-1G-5S-4S+IN
MPN - CRS310-1G-5S-4S+IN
Name - 10P Mikrotik CRS310-1G-5S-4S+IN SFP+ POE+ RM
Name - MikroTik | Cloud Router Switch | CRS310-1G-5S-4S+IN | Managed L3 | Rackmountable | Mesh Support No | MU-MiMO No | SFP ports quantity 5 | No mobile broadband | SFP+ ports quantity 4
name - Switch 1xGbE 5xSFP CRS310-1G-5S-4S+I
Network architecture - GigabitEthernet
Networking > CPU frequency - 800 MHz
Networking > PoE in - 802.3af/at
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 1
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 1
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP ports - 5
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C

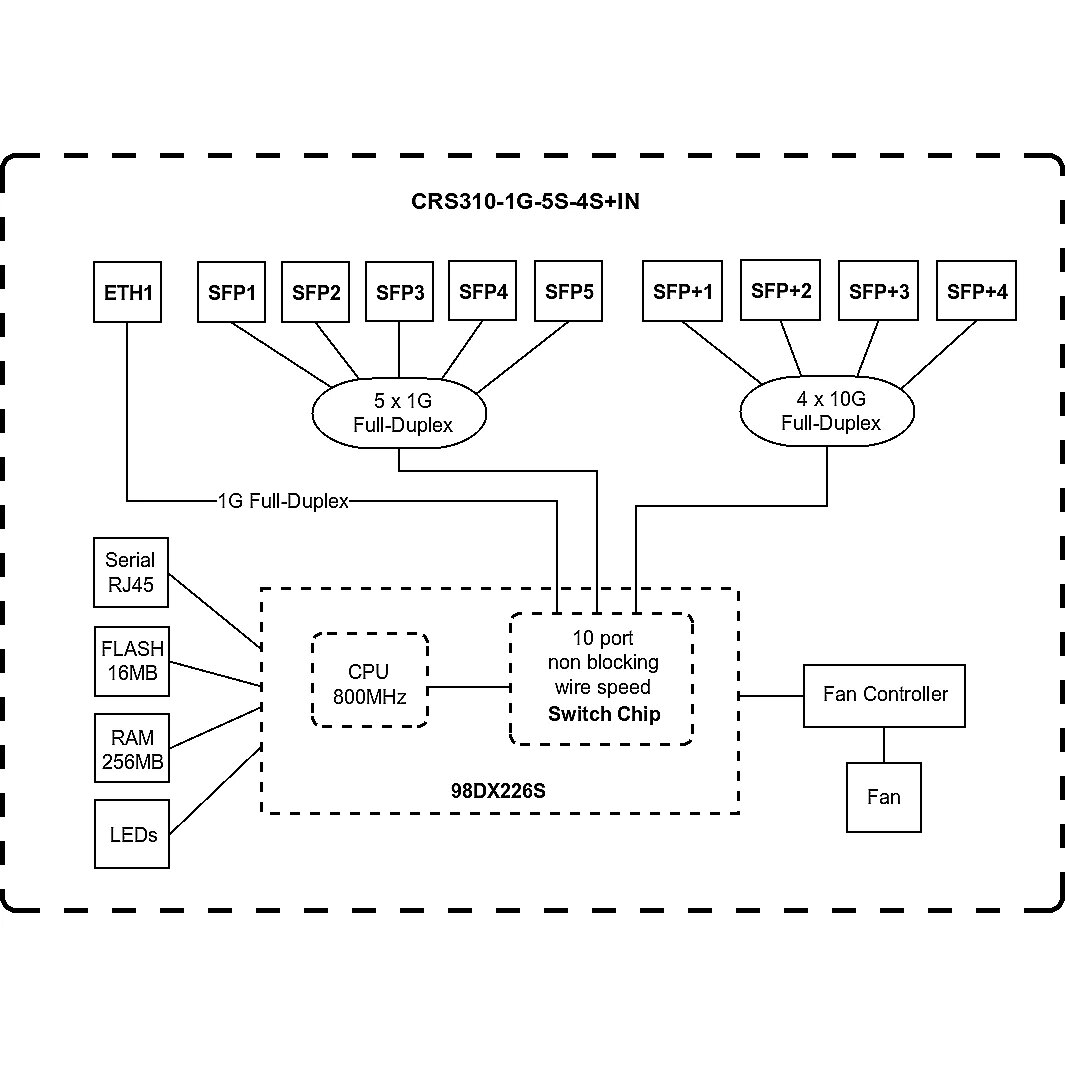

Other features - ARM 32-bit architecture Processor 98DX226S Number of processor cores 1 Processor rated frequency 800 MHz RouterOS 5 licence RouterOS operating system RAM size 256 MB Memory size 16 MB Type of memory FLASH Tested ambient temperature -40°C to 70°C
Other features > Ethernet LAN (RJ-45) ports - 1
Other functions - Processor temperature monitor PCB temperature monitor Voltage monitor
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 320.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 188 pc(s)
Package features > Paper/Pasteboard - 427.00 g
Package features > Plastic (No PET) - 48.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/2/4/3/2/6/3/7d658e5f4c74d75de85538a6fabb2cb7/original.pdf
PDF - https://www.blobs.lt/products/2/4/3/2/6/3/90d250192a043d6c2fe79c5c8a52fe5b/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
PoE ports - 1
Ports & interfaces > POE - PoE passive
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 4
Ports & interfaces > SFP ports quantity - 5
Power > Power consumption (max) - 20 W
Power > Voltage - 18-57 V
Power consumption - 20 W

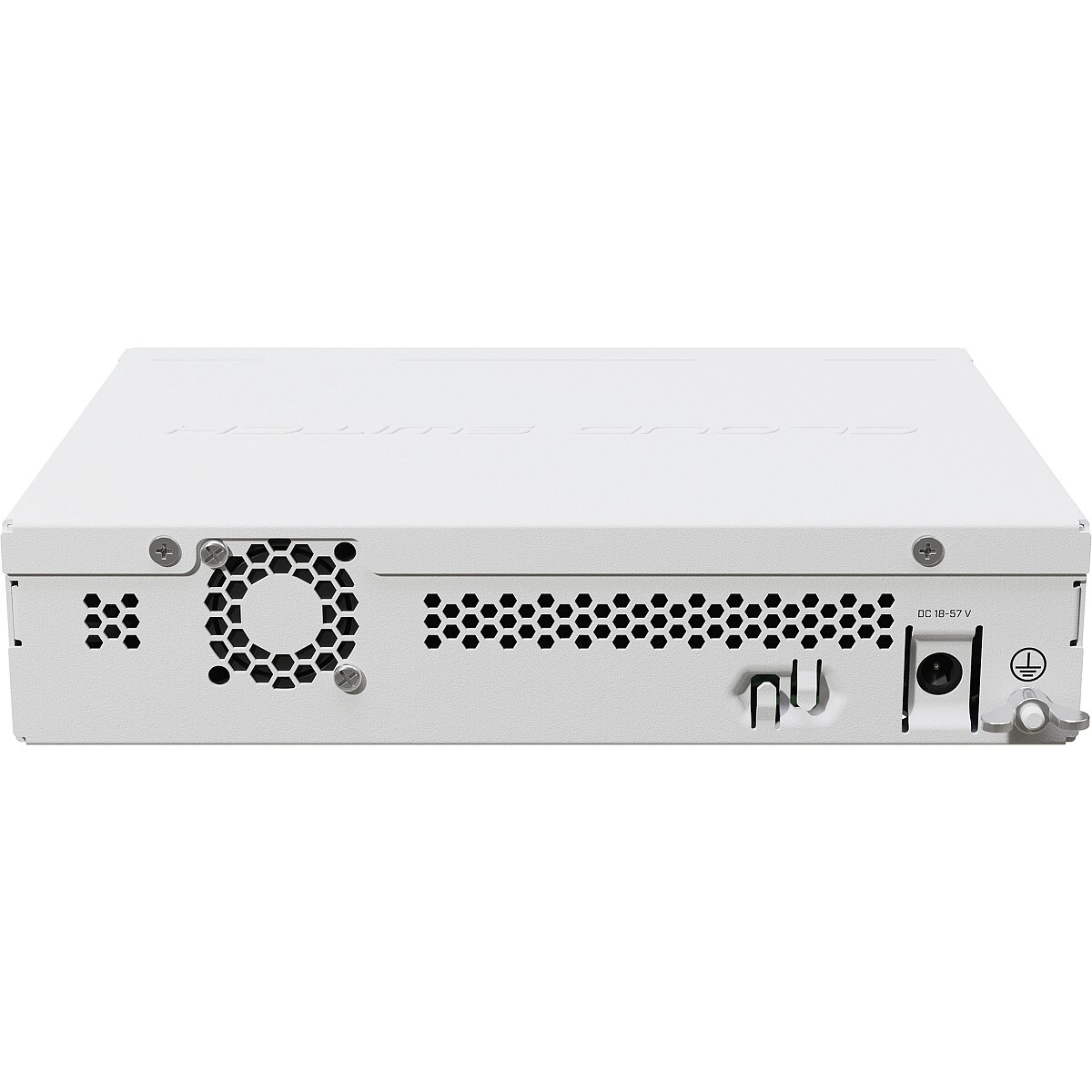

Power supply - DC socket input: Voltage 18-57 V Maximum power consumption: 20 W Maximum power consumption without caps: 8 W Input voltage: PoE 18-57 V
Power supply - External
Power supply - Internal
Primary port count - 9
Processor > Processor model - 98DX226S
producer - MikroTik
Producer product family - Cloud Router Switch
Producer product name - CRS310-1G-5S-4S+IN
Product Net Weight - 0.9 kg
QoS -
RJ45 Ports - 2
Security -
SFP+ Ports - 4
SFP Ports - 5
Software > Operating system installed - RouterOS
Software included - RouterOS level 5
Stackability - No
Supported protocols and standards - IP20 Certifications: CE EAC ROHS
Support for Jumbo frames - No
Switch class - Unmanaged
Switching capacity - 92 Gbps
Switch type - L3
Technical details > Gross weight - 1.68 kg
Technical details > Net weight - 1.20 kg
Technical details > Other features - This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table! The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots. You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing. CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS
title - MikroTik CRS310-1G-5S-4S+IN
Unit Box Height - 0.06
Unit Box Length - 0.315
Unit Box Width - 0.2
Unit Calculated Volume - 0.00372 cubm
Unit Calculated Weight - 1.04 kg
Units per Shipping Box - 1
Vendor Homepage - mikrotik.com/product/crs310_1g_5s_4s_in
vendpn - CRS310-1G-5S-4S+IN
VLAN -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 1.1
weight - 1.2 kg
width - 0.2 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
