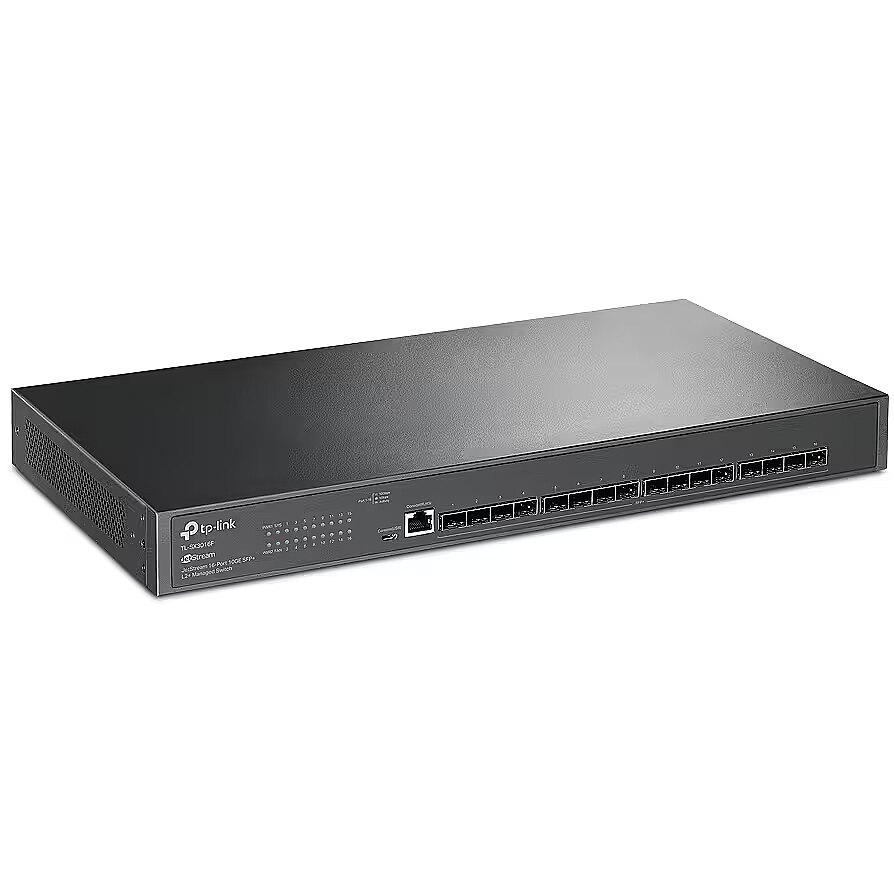

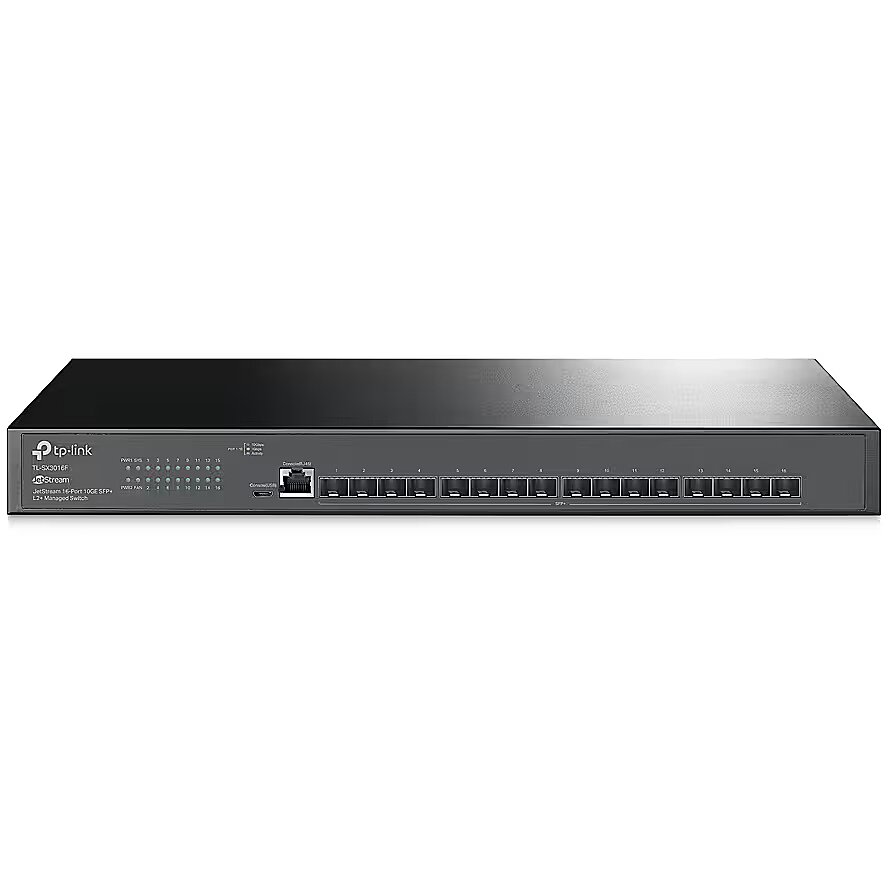

TP-LINK TL-SX3016F, 16-PORT 10G SFP+

10/100/1000/2500 Mbps ports - None
10G support Network - Yes
Access Control List (ACL) Security - Yes
Accessories included - TL-SX3016F Switch 2 Power Cords Quick Installation Guide Rack Mounting Kit Rubber feet
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Application - Home and small office
ARP inspection Management features - Yes
ARTIKEL1 - 16-PORT 10G SFP+ MANAGED SWITCH
ARTIKEL2 - 16 10G SFP+ SLOTS
Authentication Security - Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type Security - AAA, TACACS+
Basic switching RJ-45 Ethernet ports type Ports & interfaces - No
BPDU filtering/protection Security - Yes
Brand - TP-Link
BrandPartCode - SX3016F
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Chassis type - Rack
Cloud-managed Management features - Yes
Configuring Location Settings (CLI) Management features - Yes
Console port - Yes
Console port Ports & interfaces - RJ-45/Micro-USB
Dane techniczne: Grupa produktowa - Przełączniki TP-Link
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 220 mm
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Port konsolowy - 2 szt. (RJ45 | microUSB)
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 320 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 32000
Dane techniczne: Sloty SFP+ 10G - 16 szt.
Dane techniczne: Szerokość - 440 mm
Dane techniczne: Szybkość przekierowań pakietów - 238 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Warstwa przełączania - 3
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Zarządzalność - tak
Data transmission - Forwarding rate - 238.08 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 24 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 320 Gbit/s
Depth Weight & dimensions - 220 mm
Description - JetStream L2+ Managed Switch, 16 SFP+ 10 GE Slots 16 10GE SFP+ Slots: Ultra-fast, fully 10Gbps SFP+ slots provide high-bandwidth connections and device switching capabilities up to 320Gbps. Reliable L2 and L2+ Features: Support for a complete line of L2 and L2+ features including Static Router, industry-class QoS, IGMP Snooping and more. Strong security strategies: Provides LAN security based on IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication and more. Dual Redundant Power Supplies: Two power supplies supporting each other is an ideal choice for a stable network architecture. Centralized Cloud Management: Integration with Omada SND enables cloud-based access and remote management. Self-management: Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities.
Description - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.16× 10 Gbps SFP+ slots320 Gbps switching capacityTwo power supply modules back each other upCentralized cloud management via the web or the Omada app†Standalone management via web, CLI, SNMP, and RMONStatic Routing helps route internal traffic for higher efficiencyVLAN, ACL, QoS, IGMP Snooping, OAM, and DDMERPS supports rapid protection and recovery in a ring topologyDurable metal casing and rack-mountable design
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
DHCP features Security - DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
dimensionalWeight - 3551
dimension depth - 100 mm
dimension height - 340 mm
Dimensions - 440 × 220 × 44 mm
dimension weight - 4000 g
dimension width - 530 mm
ean - 6935364006433
EAN - 6935364006433
EANCode - 1210002611718
Eans - 6935364006433
EAN_code - 6935364006433
Flow control support Network - Yes
Forwarding rate - 238.08 Mpps
Forwarding rate Data transmission - 238.08 Mpps
Gross Weight Kg - 4,29
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 1210002611718
GTIN - 6935364006433
guarantee - 60
guarantee_type - normal
Head-of-line (HOL) blocking Network - Yes
Heat dissipation Operational conditions - 111.71 BTU/h
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
HSTNUMMER - SX3016F
IGMP snooping Security - Yes
IP-MAC-Port binding Security - Yes
IP routing Network - Yes
IPv4 & IPv6 features Protocols - IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames Data transmission - 9000
Jumbo frame size - 9 KB
Jumbo frames support Data transmission - Yes
L2 features - IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping: MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static group configuration Restricted IP Multicast Forwarding Multicast Filtering: 256 profiles and 16 entries per profile
L3 features - 16 IPv4/IPv6 interfaces Static routing: 48 static routes Static ARP entries: 128 static entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay
LED indicators Design - Yes
Link aggregation Network - Yes
LongDesc - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
LongProductName - 16× 10G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 320 Gbps, 32 K MAC, 9 KB Jumbo, 440×220×44 mm
LongSummaryDescription - TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Rack mounting
Loop protection Security - Yes
MAC address filtering Security - Yes
MAC address table Data transmission - 32000 entries
MAC address table size - 32000
Management, monitoring, configuration - GUI graphical interface Command line interface CLI via console port, Telnet SNMP v1/v2c/v3: Trap/Inform RMON (groups 1,2,3,9) SDM template DHCP/BOOTP client LLDP/LLDP-MED 802.1ab Automatic DHCP installation Dual Image, Dual Configuration CPU usage monitoring Cable diagnostics EEE Password recovery SNTP System logs
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+/L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Management protocols Protocols - SNMPv1/v2c/v3, SNTP
Manual Packaging content - Yes
Manufacturer - TP-Link
Manufacturer Code - SX3016F
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SX3016F
MIB support Management features - RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Model - TL-SX3016F
Model name - Omada 16-Port 10GE SFP+ L2+ Managed Switch
MPN - SX3016F
Multicast features - Multicast Listener Discovery (MLD) snooping - Y
Multicast features - Multicast support - Yes
Multicast Listener Discovery (MLD) snooping Multicast features - Y
Multicast support Multicast features - Yes
Name - 16P TP-LINK Omada SX3016F M RM
Name - TP-Link TL-SX3016F
Name - TP-Link TL-SX3016F, switch
name - Verwalteter Switch SX3016F 16xSFP+
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Private VLAN
Network - Virtual LAN features - Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Network - Virtual LAN features - Protocol-based VLAN
Network - Virtual LAN features - Tagged VLAN
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 1
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of queues Data transmission - 8
Number of SFP+ ports - 16
Number of SFP ports - None
Number of VLANs Network - 4000
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 45 °C
Operational conditions - Heat dissipation - 111.71 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Package type Packaging data - Box
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package type - Box
Packet buffer memory Data transmission - 24 MB
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Console port - RJ-45/Micro-USB
Ports & interfaces - Console port - RJ-45/micro-USB
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 16
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 32.74 W
Power - Power source - AC
Power - Power supply included - Yes
Power connector Ports & interfaces - DC-in jack
Power consumption (max) Power - 32.74 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - AC
Power supply - 100-240 V AC~50/60 Hz
Power supply included Power - Yes
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
producerCode - TL-SX3016F
ProducerCode - TL-SX3016F
Product colour Design - Black
ProductName - Omada 16-Port 10GE SFP+ L2+ Managed Switch
productName - TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
productSize - Normal
Protocols - IPv4 & IPv6 features - IPv6 ping
Protocols - IPv4 & IPv6 features - IPv6 Telnet
Protocols - IPv4 & IPv6 features - IPv6 Telnet, IPv6 ping, IPv6 tracert
Protocols - IPv4 & IPv6 features - IPv6 tracert
Protocols - Management protocols - SNMPv1/v2c/v3, SNTP
QoS -
Quality of Service (QoS) support Management features - Yes
Queue scheduling algorithms Security - SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide Packaging content - Yes
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Rate limiting Network - Yes
Security - IP, MAC, and port binding: 512 entries DHCP Snooping ARP inspection IPv4 source address protection: 100 entries IPv6 address, MAC, and port binding: 512 entries DHCPv6 Snooping ND Detection IPv6 source address protection: 100 entries Protection against DoS attacks Port protection through static/dynamic port configuration Up to 64 MAC addresses per port Storm Control Broadcast/Multicast/Unicast: control mode (kbps/indicator) 802.1X Authentication: Port-based authentication MAC address-based authentication VLAN allocation MAB Guest VLAN Radius Authentication and Authorization AAA (including TACACS+) Port isolation Secure web-based management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv1/SSHv2 encryption Access control based on IP/port/MAC
Security - Access Control List (ACL) - Yes
Security - Authentication - Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Security - Authentication type - AAA, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP relay
Security - DHCP features - DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security - DHCP features - DHCP server
Security - DHCP features - DHCP snooping
Security - DHCP features - DHCPv6 client
Security - DHCP features - DHCPv6 snooping
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Queue scheduling algorithms - SP
Security - Queue scheduling algorithms - SP, WRR+SP, Weighted Round Robin (WRR)
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
Security - Queue scheduling algorithms - WRR+SP
Security - Security algorithms - HTTPS
Security - Security algorithms - HTTPS, SSH, SSH-2, SSL/TLS
Security - Security algorithms - SSH
Security - Security algorithms - SSH-2
Security - Security algorithms - SSL/TLS
Security - SSH/SSL support - Yes
Security - Static port security - Yes
Security algorithms Security - HTTPS, SSH, SSH-2, SSL/TLS
SFP+ module slots quantity Ports & interfaces - 16
ShortDescription -
Short description - TP-LINK Switch SX3016F 16xSFP+ Managed
ShortSummaryDescription - TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch, Managed, L2+/L3, Rack mounting
sizeX - 530
sizeY - 100
sizeZ - 335
Spanning tree protocol Network - Yes
SSH/SSL support Security - Yes
Static port security Security - Yes
Static route Data transmission - Yes
Stck_Kart - 1
Stck_Pal - 3
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Rack mounting
Supported protocols and standards - Spanning Tree Protocol (STP): STP 802.1d RSTP 802.1w MSTP 802.1s
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity Data transmission - 320 Gbit/s
Switch layer - L2
Switch layer - L2+
Switch layer Management features - L2+/L3
Switch type Management features - Managed
System event log Management features - Yes
Throughput - 320 GB/s
Title - TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
Traffic classification Management features - Yes
Unit Box Height - 0.1
Unit Box Length - 0.53
Unit Box Width - 0.34
Unit Calculated Volume - 0.01802 cubm
Unit Calculated Weight - 3.98 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3016f/
Vendor Homepage - https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3016f/
vendpn - SX3016F
Virtual LAN features Network - Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
VLAN - VLAN groups: Max 4K VLAN groups 802.1Q VLAN Tagging VLAN MAC Address: 30 entries VLAN Protocol Private VLAN GVRP VLAN VPN (QinQ): Port-based QinQ, Selective QinQ Voice VLAN
VLAN support Network - Yes
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Web-based management Management features - Yes
Weight - 3.96
Weight - 4,00
weight - 3940
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
Width Weight & dimensions - 440 mm
