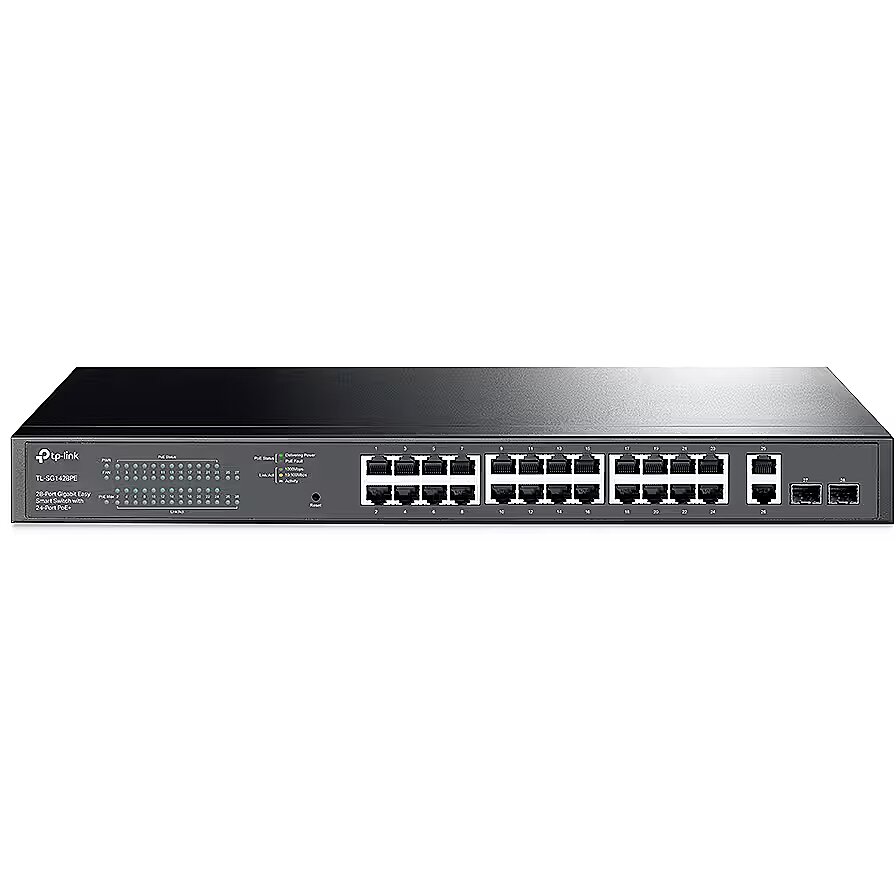

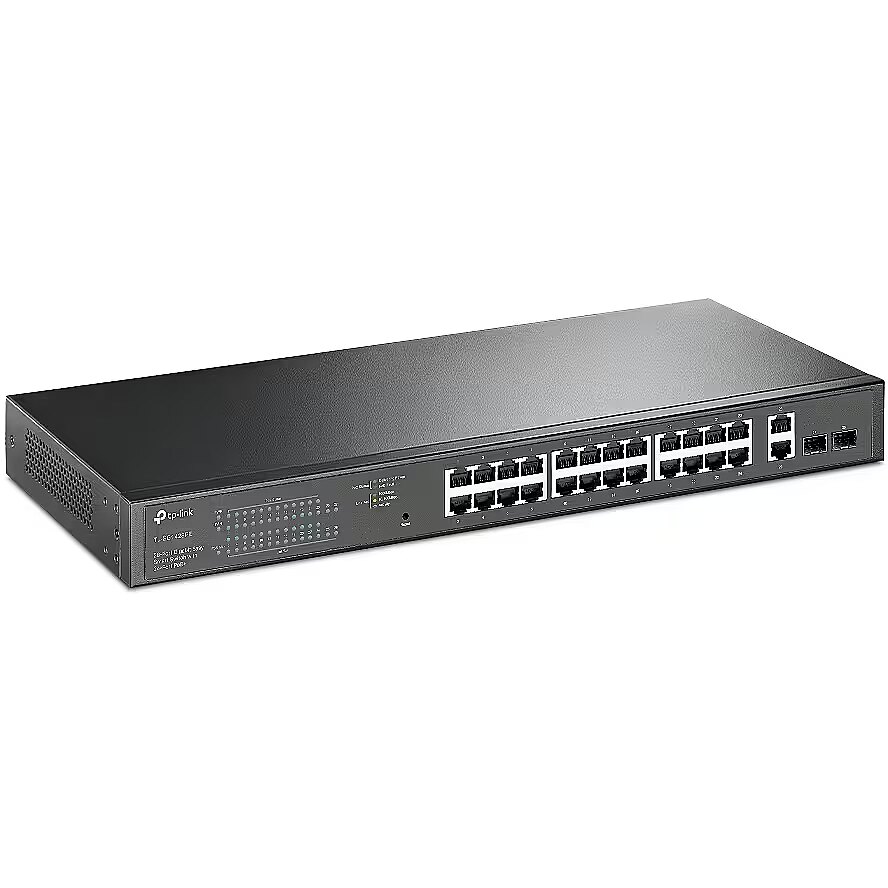

TP-LINK TL-SG1428PE, 28-PORT 24-PORT POE+

10G support Network - No
Accessories included -
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Application - Medium and large companies
ARTIKEL1 - 28-PORT EASY SMART POE SWITCH
ARTIKEL2 - WITH 24-PORT POE+
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 26
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1428PE
Breite - 0.34
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e, Cat6
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Chassis type - Desktop
CnCode - 85176200
Code - TL-SG1428PE
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX, 1000BASE-T
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Grupa produktowa - Przełączniki TP-Link
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 220 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 26 szt.
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.1p
Dane techniczne: Obsługiwane protokoły - IEEE 802.1Q
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ab
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ae
Dane techniczne: Obsługiwane protokoły - IEEE 802.3af
Dane techniczne: Obsługiwane protokoły - IEEE 802.3at
Dane techniczne: Obsługiwane protokoły - IEEE 802.3i
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Porty PoE - 24 szt.
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 56 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 8000
Dane techniczne: Sloty SFP 1000 Mb/s - 2 szt.
Dane techniczne: Szerokość - 440 mm
Dane techniczne: Szybkość przekierowań pakietów - 41.7 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Wysokość - 44 mm
Data transmission - Forwarding rate - 41.7 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Number of queues - 4
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 56 Gbit/s
Depth Weight & dimensions - 220 mm
Description - Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance Multiple Application Scenarios

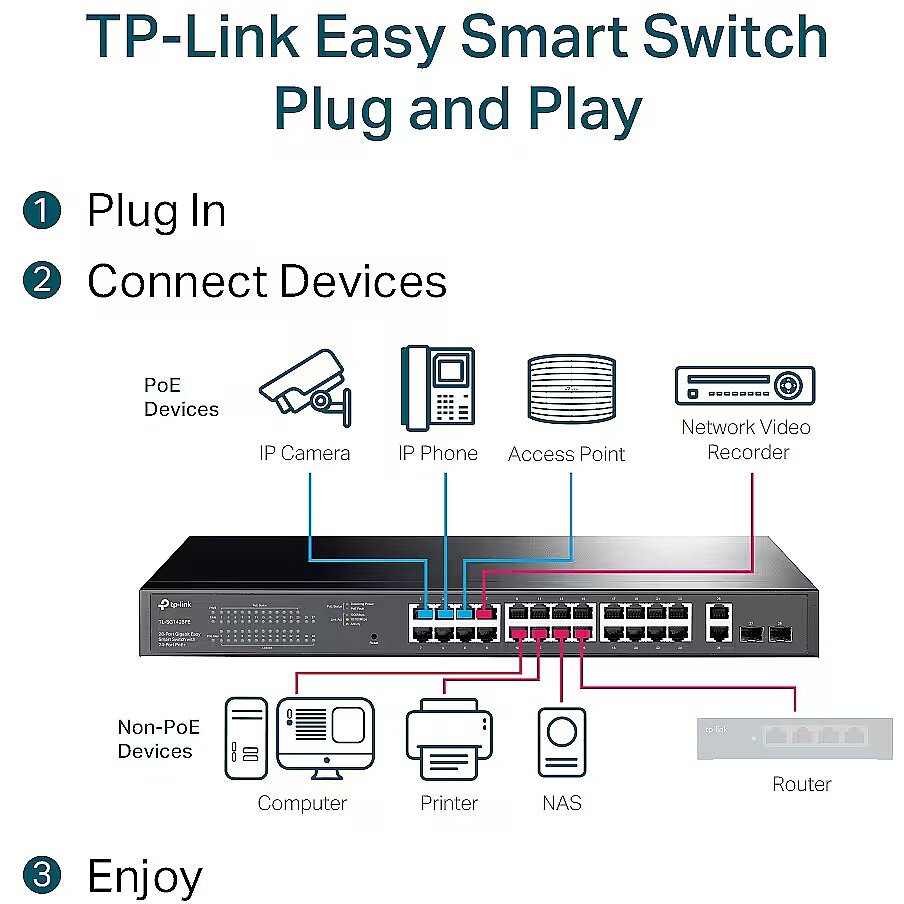

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. Easy to Use Value-Added Features Bring Unexpected Experiences QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video. IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups. Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Multiple Factors Guarantee Stable Operation System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation. Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP SlotsPoE power budget is up to 250 W, making it ideal for small to medium business surveillance systemsPriority Mode helps to guarantee the quality of sensitive application like video monitoringPoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devicesQoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTVIntelligent power management can protect the switch from overload
Description - Przełącznik Easy Smart PoE+, 28 portów gigabitowych, w tym 24 porty PoE+.
Design - Form factor - 1U
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimensionalWeight - 3712
dimension depth - 100 mm
dimension height - 340 mm
Dimensions - 440 × 220 × 44 mm
dimension weight - 4000 g
dimension width - 530 mm
EAN - 6935364072209
ean - 6935364072209
EANCode - 1210002617123
Eans - 6935364072209
EAN_code - 6935364072209
Fan - Yes
Fiber ethernet cabling technology Optical fiber - 1000BASE-X
Flow control support Network - Yes
Form factor Design - 1U
Forwarding mode - Store-and-forward
Forwarding rate - 41.66 Mpps
Forwarding rate Data transmission - 41.7 Mpps
Gewicht - 3.87
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 26
Gross Weight Kg - 4
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0845973040482
GTIN - 845973040482
GTIN - 1210002617123
GTIN - 1210002617130
GTIN - 6935364072209
GTIN - 6935364072216
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
Hoehe - 0.1
HSTNUMMER - TL-SG1428PE
IGMP snooping Security - Yes
Jumbo frames Data transmission - 10000
Jumbo frame size - 10 KB
Jumbo frames support Data transmission - Yes
L2 features - Link Aggregation - Static link aggregation - Up to 8 aggregation groups and up to 4 ports per group Loopback Detection Port Statistics Cable Test Flow Control Mirroring - Port Mirroring - Ingress/Egress/Both PoE Auto Recovery
L3 features -
Laenge - 0.54
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1428pe/
Link aggregation Network - Yes
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+Easy to Use, Multi-Purpose PoE Switch with Powerful PerformanceMultiple Application ScenariosThe TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.Dedicated 24 PoE+ Ports (250 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.Easy to UseValue-Added Features Bring Unexpected ExperiencesQoS for a Lag-Free ExperienceEnsures smooth traffic for latency-sensitive applications, such as voice and video. IGMP Snooping for Multicast OptimizationEnsures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for SecurityHelps to create a network with higher security and better overall performance by dividing the network into smaller groups.Making Management EasyTL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.Multiple Factors Guarantee Stable OperationSystem Self-Healing with PoE Auto RecoveryThe switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.Intelligent Power Management to Prevent Power OverloadAutomatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.Great Compatibility with PD DetectionAutomatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.Wide Operating Temperature with Good Heat DissipationDurable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
LongProductName - 26 x 10/100/1000 Mbps RJ45 Ports, 2 x Gigabit SFP Ports, 2 x PoE+, 440 × 220 × 44 mm
LongSummaryDescription - TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address table Data transmission - 8000 entries
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Management features > Switch type - Web managed
Manufacturer - TP-Link
Manufacturer Code - TL-SG1428PE
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SG1428PE
Material > Case material - Steel
Model - TL-SG1428PE
Model name - 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
MPN - TL-SG1428PE
Multicast features - Multicast support - Yes
Multicast support Multicast features - Yes
name - SG1428PE switch 24xGb-PoE+ 2xGb 2xSFP
Name - TP-Link Switch 28x GE TL-SG1428PE (davon 24xPOE+)
Name - TP-Link TL-SG1428PE
Name - TP-Link TL-SG1428PE, switch
Name - TP-LINK | Switch | TL-SG1428PE | Web managed | Rackmountable | SFP ports quantity 2 | PoE+ ports quantity 24 | Power supply type 100-240VAC, 50-60Hz voltage
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 32
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Virtual LAN features - Port-based VLAN
Network - Virtual LAN features - Port-based VLAN, Tagged VLAN
Network - Virtual LAN features - Tagged VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of 10/100/1000 Mbps ports - 26
Number of fans Design - 2 fan(s)
Number of PoE ports (PoE & PoE+) - 24
Number of queues Data transmission - 4
Number of SFP ports - 2
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Fiber ethernet cabling technology - 1000BASE-X
Other features -
Other features > Ethernet LAN data rates - 26x10/100/1000 Mbit/s
Other features > Power supply type - 100-240VAC, 50-60Hz voltage
Other functions -
Package depth Packaging data - 528 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 525 mm
Package features > Gross height (mm) - 340 mm
Package features > Gross weight - 3.9 kg
Package features > Gross width (mm) - 100 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 48 pc(s)
Package features > Paper/Pasteboard - 512.00 g
Package features > Plastic (No PET) - 128.00 g
Package features > Tare weight (kg) - 0.64 kg
Package features > Volume (m3) - 0.01785 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 100 mm
Package weight Packaging data - 3.94 kg
Package width Packaging data - 336 mm
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 528 mm
Packaging data - Package height - 100 mm
Packaging data - Package weight - 3.94 kg
Packaging data - Package width - 336 mm
Packet buffer - 4.1 MB
Packet buffer memory Data transmission - 4.1 MB
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 26
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 26
Ports & interfaces - SFP module slots quantity - 2
Ports & interfaces > POE - PoE 802.3 af and PoE+ 802.3 at
Ports & interfaces > PoE+ ports quantity - 24
Ports & interfaces > SFP ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 1039.03 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption (max) Power - 1039.03 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 250 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 24
Power source Power - AC
Power supply -
Power supply included Power - Yes
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
producerCode - TL-SG1428PE
ProducerCode - TL-SG1428PE
Producer product family - Switch
Producer product name - TL-SG1428PE
Product colour Design - Black
ProductName - 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
productName - TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
productSize - Normal
QoS - Port Based, 802.1p Based, 802.1p QoS/ DSCP priority Bandwidth Controln Ingress Rate/Egress Rate/Both Storm Control Broadcast/Multicast/Unknown-Unicast Control
Quality of Service (QoS) support Management features - Yes
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Rate limiting Network - Yes
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Security -
Security - IGMP snooping - Yes
Security - Security algorithms - SNMP
Security - Security algorithms - SNMP, SNMPv2, SNMPv3
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security algorithms Security - SNMP, SNMPv2, SNMPv3
SFP module slots quantity Ports & interfaces - 2
ShortDescription -
Short description - TP-LINK Switch TL-SG1428PE 24xGBit PoE+ (250W)/2xGBit/2xSFP Unmanaged/Easy Smart PoE Switch
ShortSummaryDescription - TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
sizeX - 530
sizeY - 340
sizeZ - 103
Stck_Kart - 4
Stck_Pal - 4
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - SMART
Switching capacity Data transmission - 56 Gbit/s
Switch layer - L2
Switch layer Management features - L2
Switch type Management features - Managed
Technical details > Net weight - 3.26 kg
Technical details > Producer - TP-LINK
Throughput - 56 GB/s
Title - TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 250 W
Unit Box Height - 0.1
Unit Box Length - 0.53
Unit Box Width - 0.34
Unit Calculated Volume - 0.01802 cubm
Unit Calculated Weight - 3.98 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1428pe/
User guide Packaging content - Yes
Vendor Homepage - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1428pe/
vendpn - TL-SG1428PE
Virtual LAN features Network - Port-based VLAN, Tagged VLAN
VLAN - 802.1Q VLAN Port Based VLAN MTU VLAN
VLAN support Network - Yes
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - F
Web-based management Management features - Yes
Weight - 3,94
Weight - 3.88
weight - 4033
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
Width Weight & dimensions - 440 mm
