ARTIKEL1 - CBS220 SMART 24-PORT GE 4X1G
ARTIKEL2 - SFP
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Forwarding rate - 41.66 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8192 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Switching capacity - 56 Gbit/s
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - White
Design - Rack mounting - Yes
Design - Reset button - Yes
dimensionalWeight - 3561
EAN - 0889728344807
EANCode - 0889728344807
GRUPPE1 - Network
GRUPPE2 - Switches Managed
HERSTELLER - CISCO
HSTNUMMER - CBS220-24T-4G-EU
Logistics data - Harmonized System (HS) code - 85176990
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - Cisco
MPN - CBS220-24T-4G-EU
Multicast features - Multicast MAC address table - 8192 entries
Multicast features - Multicast support - Yes

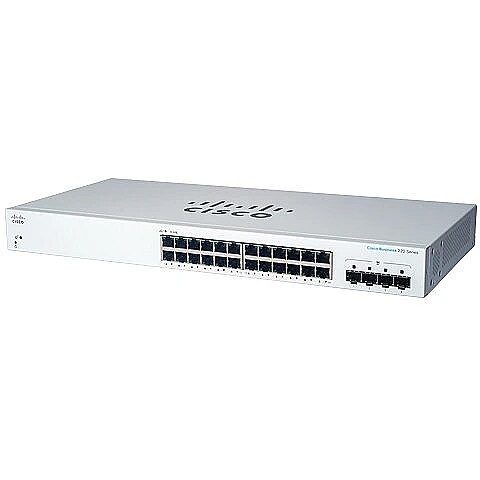

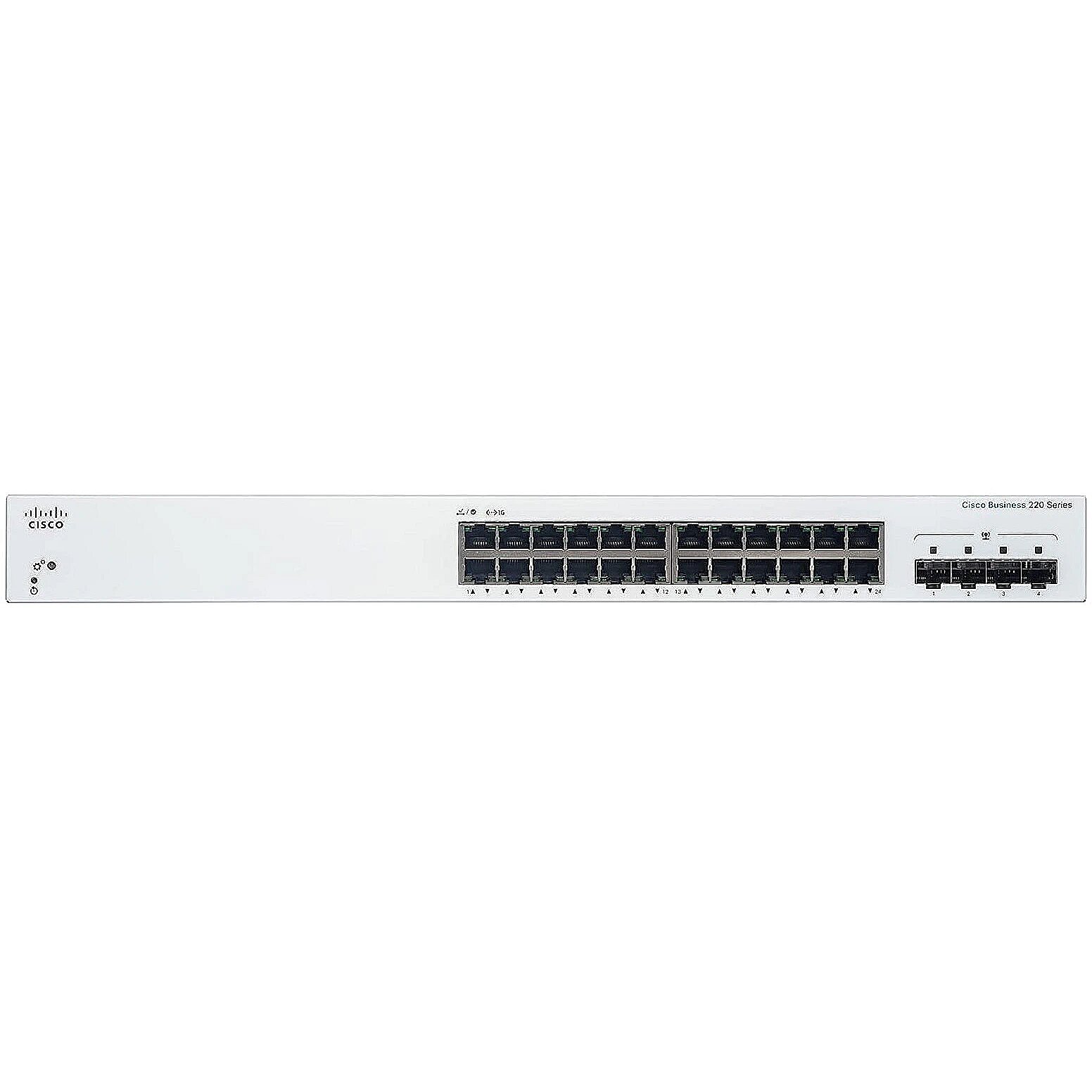

Name - Cisco CBS220 SMART 24-PORT GE 4X1G
Network - 10G support - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network - Number of VLANs - 256
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 61.42 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Performance - Built-in processor - Yes
Performance - Firmware upgradeable - Yes
Performance - Flash memory - 64 MB
Performance - Internal memory - 256 MB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
producerCode - CBS220-24T-4G-EU
productName - Cisco Business 220 Series CBS220-24T-4
productSize - Normal
Protocols - Management protocols - SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Security - Access Control List (ACL) - Yes
Security - Authentication type - IEEE 802.1x, RADIUS
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security - SSH/SSL support - Yes
sizeX - 530
sizeY - 105
sizeZ - 320
Stck_Kart - 2
Stck_Pal - 28
Storno - Y
warrantyLength - 12
warrantyType - G
Weight - 4.32
weight - 4390
Weight & dimensions - Depth - 203 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 2.75 kg
Weight & dimensions - Width - 440 mm
