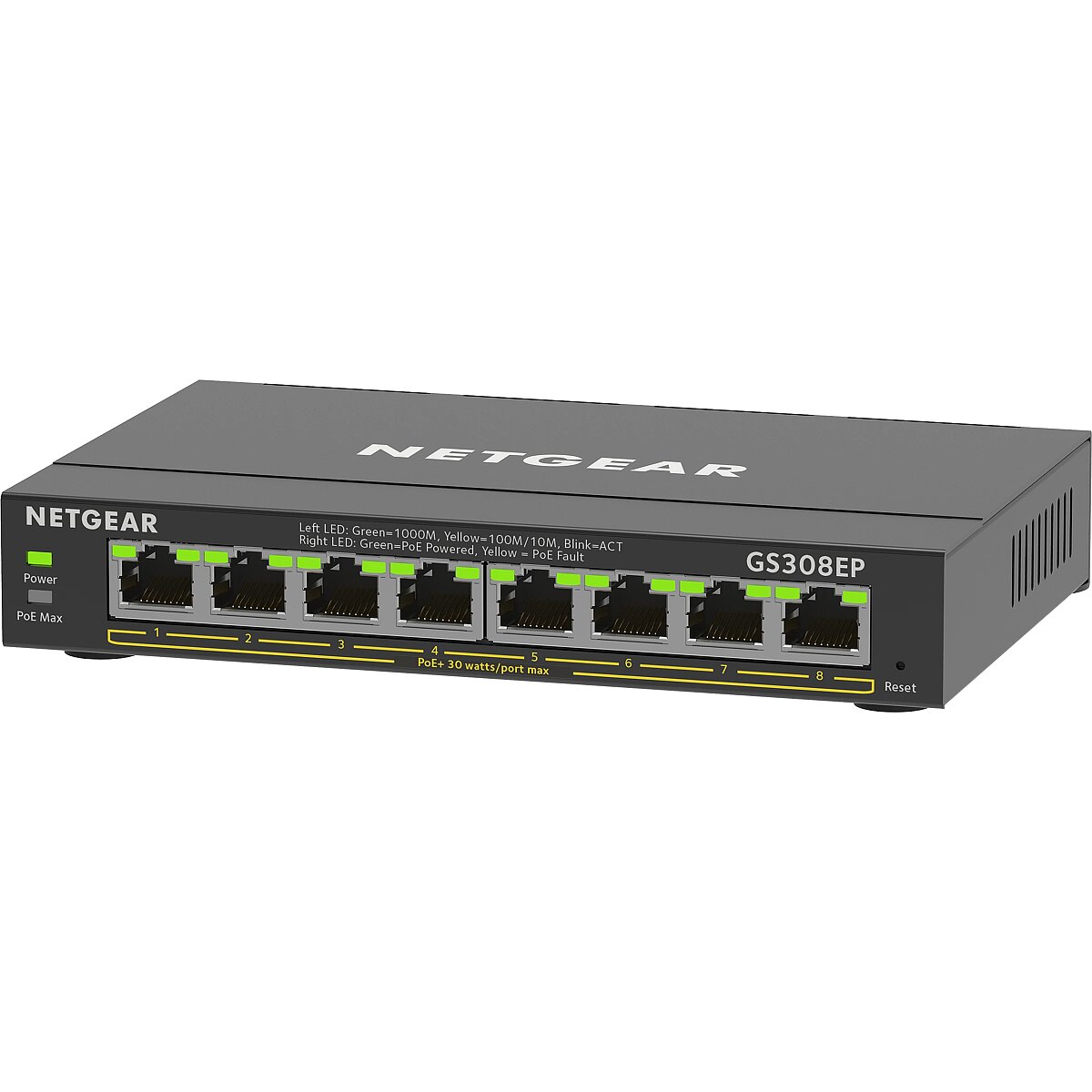

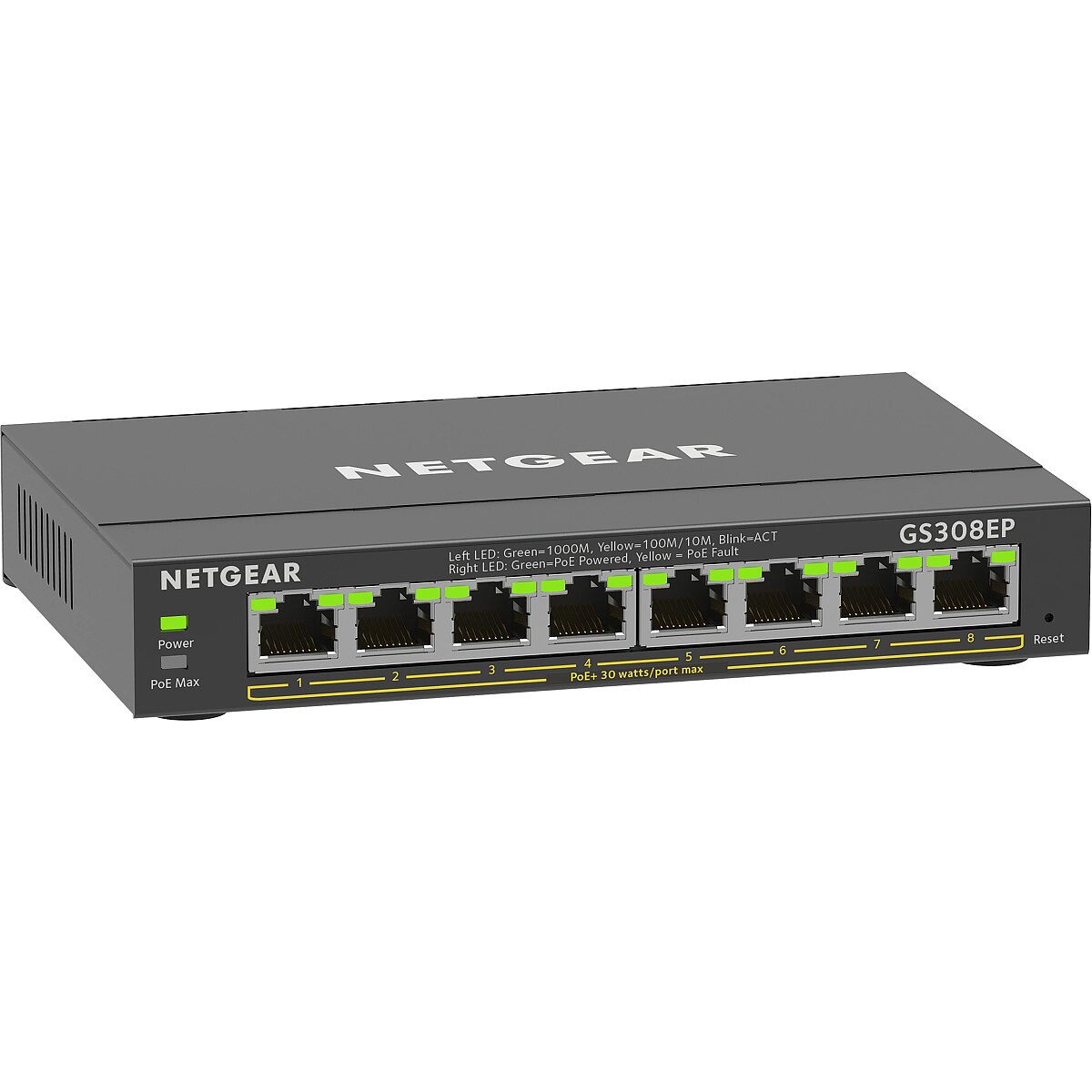

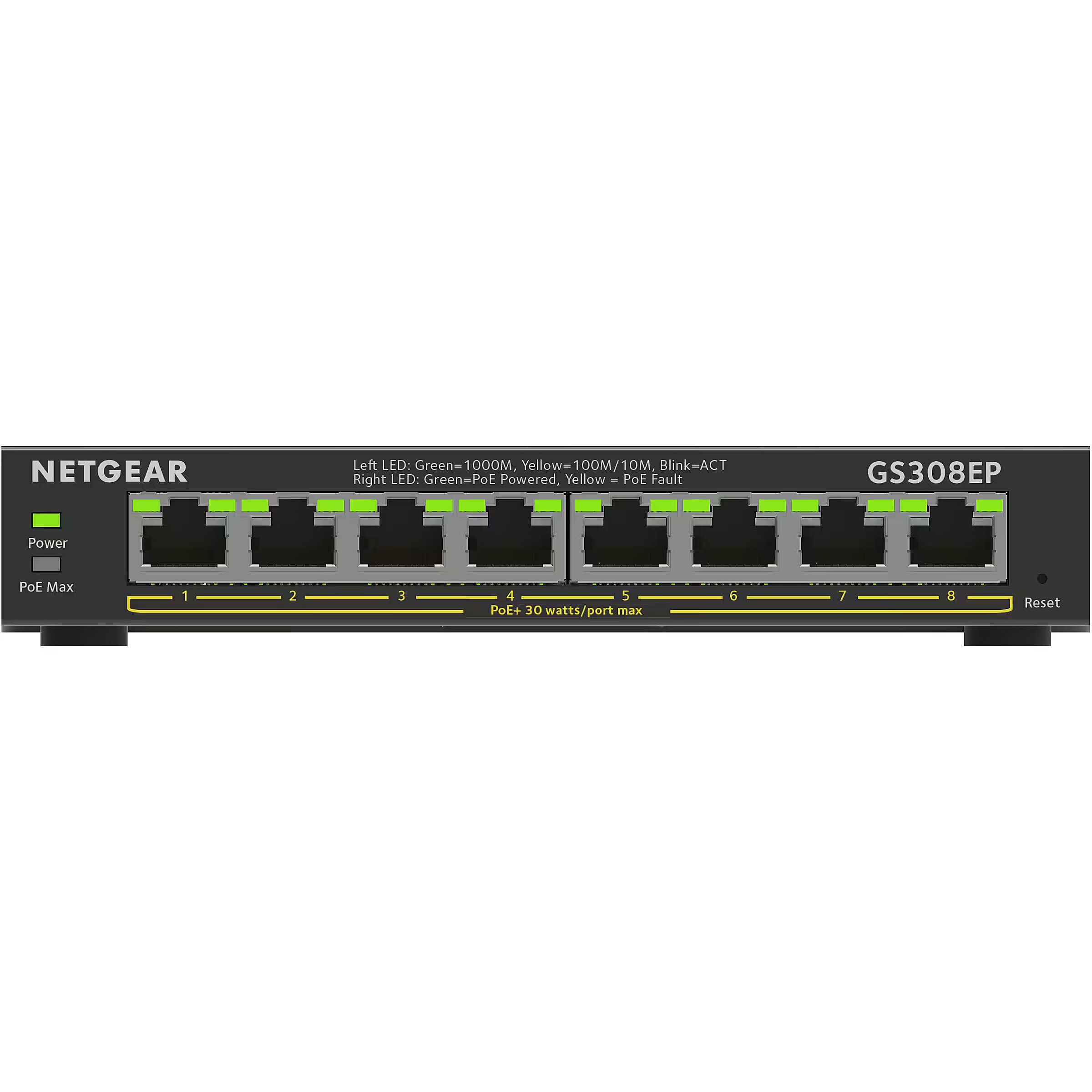

Netgear GS308EP-100PES, 8X 1G POE+ SMART MANAGED PLUS

Accessories included - Przełącznik NETGEAR Plus Zasilacz (kabel zasilający zależy od regionu) Zestaw do montażu na ścianie Gumowe nóżki Instrukcja instalacji
Application - Home and small office
ARTIKEL1 - 8-PORT 1G POE+ SWITCH 62 W
ARTIKEL2 - SMART MANAGED PLUS
Brand - NETGEAR
BrandPartCode - GS308EP-100PES
Breite - 0.17
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category1 - Network
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Dane techniczne: Bufor pamięci - 192 KB
Dane techniczne: Grupa produktowa - Przełączniki Netgear
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 101 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 8 szt.
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.1p
Dane techniczne: Obsługiwane protokoły - IEEE 802.3at
Dane techniczne: Obsługiwane protokoły - IEEE 802.3az
Dane techniczne: Obsługiwane protokoły - IEEE 802.3i
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Porty PoE - 8 szt.
Dane techniczne: Producent - Netgear
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 16 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 4000
Dane techniczne: Szerokość - 158 mm
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Waga - 0.49 kg
Dane techniczne: Warstwa przełączania - 3
Dane techniczne: Wysokość - 27 mm
Data Act - Link
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 4000 entries
Data transmission - Switching capacity - 16 Gbit/s
Description - Przełączniki NETGEAR Plus z PoE zaspokajają rosnące potrzeby sieci biznesowych, zapewniając podstawowe funkcje sieciowe, takie jak uproszczone sieci VLAN, Konfiguracja QoS i IGMP Snooping, które pomogą zoptymalizować wydajność sieci biznesowych. Przełączniki Plus to idealne ulepszenie niezarządzanego przełącznika plug-and-play, zapewniające podstawowe funkcje sieciowe w bardzo przystępnej cenie.
Description1 - NETGEAR Plus GS308EP - switch - 8 ports - smart
Description2 - The NETGEAR Plus GS308EP switch is designed to meet the demands of modern network environments, offering a blend of performance, reliability, and advanced features. With 8 PoE+ ports and a total power budget of 62 W, it can power devices such as IP cameras, VoIP phones, and wireless access points directly through network cables, simplifying installations and reducing clutter. The switch supports a bandwidth of 16 Gbps, ensuring that high-speed data transfers are handled efficiently, making it suitable for businesses with demanding data needs.Advanced features such as VLAN support, Quality of Service (QoS), and port mirroring allow for enhanced control over network traffic, ensuring that data flows smoothly and securely. The fanless design not only ensures silent operation but also increases the reliability of the switch by eliminating moving parts that could fail. With its robust performance, comprehensive feature set, and flexible installation options, the NETGEAR Plus GS308EP is an excellent choice for businesses looking to upgrade their network infrastructure.
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 743
dimension depth - 95 mm
dimension height - 165 mm
Dimensions - 158 x 101 x 27 mm
dimension weight - 1205 g
dimension width - 265 mm
ean - 606449153040
EAN - 606449153040
EAN - 0606449153040
EANCode - 0606449153040
Eans - 606449153040
Fan - No
Forwarding mode - Store-and-forward
Gewicht - 1.18
Gross Weight Kg - 0,75
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0606449153040
GTIN - 606449153040
GTIN - 10606449153047
guarantee - 60
guarantee_type - normal
HERSTELLER - NETGEAR
Hoehe - 0.09
HSTNUMMER - GS308EP-100PES
Jumbo frame size - 9 KB
L2 features -
L3 features -
Laenge - 0.26
Logistics data - Harmonized System (HS) code - 85176990
LongSummaryDescription - NETGEAR GS308EP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af. Power over Ethernet (PoE)
MAC address table size - 4000
Management, monitoring, configuration -
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - NETGEAR
Manufacturer - Netgear
Manufacturer Code - GS308EP-100PES
ManufacturerID - GS308EP-100PES
Manufacturer Name - Netgear
Mean time between failures (MTBF) - 859.126 h
MPN - GS308EP-100PES
Multicast features - Multicast support - Yes
Name - 8P NETGEAR GS308EP PoE+ M
name - GS308EP Switch 8xGE PoE+
Name - Netgear GS308EP-100PES
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 8
Number of PoE ports (PoE & PoE+) - 8
Number of VLAN groups - 64
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
Other features - Warranty period - 5 year(s)
Other functions -
PackageHeight - 89
PackageLength - 262
PackageWeight - 1100
PackageWidth - 164
Packaging content - Cables included - AC
Packaging data - Cables included - AC
Packet buffer - 192 KB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)

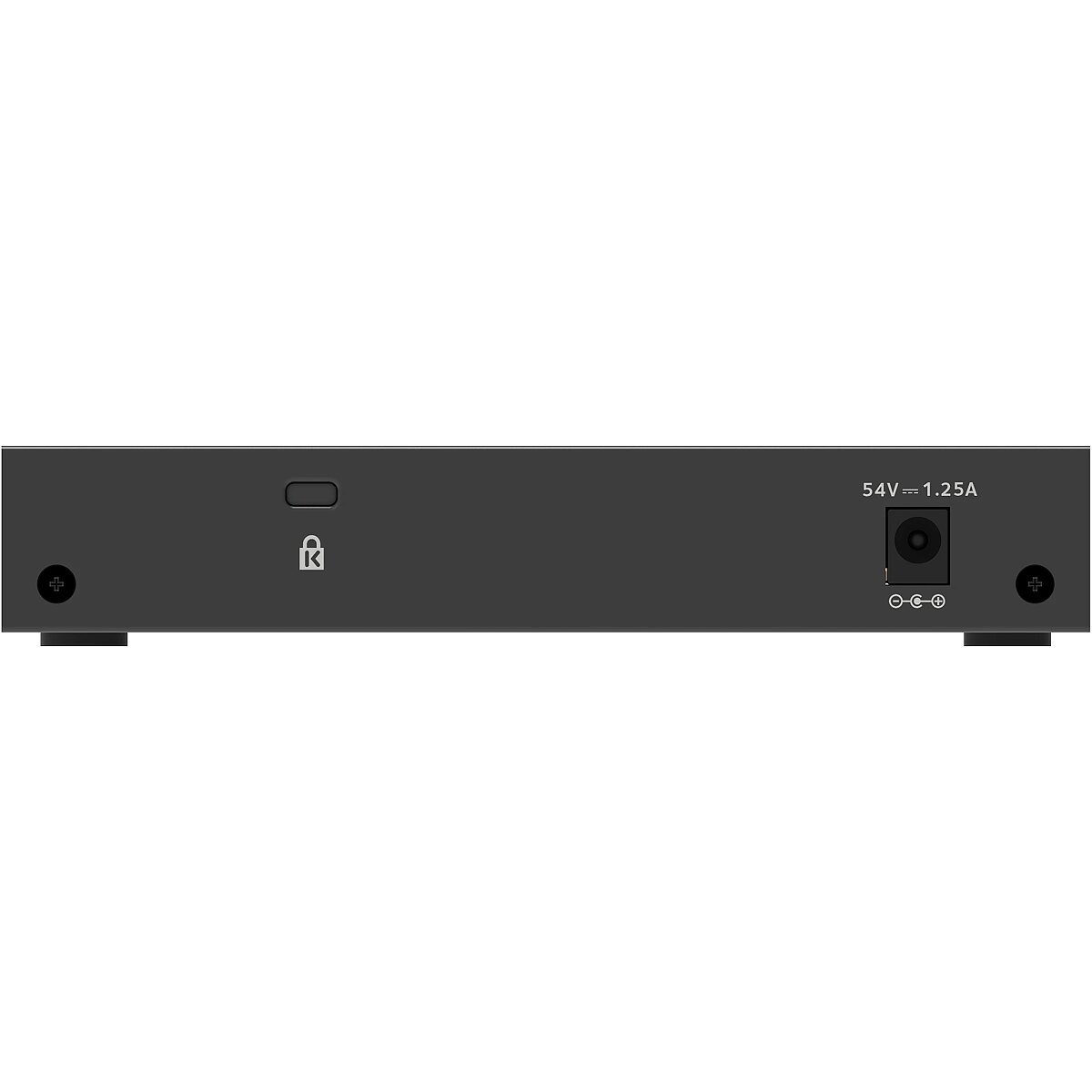

Power - Power source - DC
Power - Power supply included - Yes
Power consumption - 62 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power supply -
Power supply - Internal
Producent: Nazwa producenta / importera - Netgear
NETGEAR
6th Floor, Penrose Two, Penrose Dock
T23 YY09 Cork

producer - Netgear
Producer - Netgear
producerCode - GS308EP-100PES
ProducerCode - GS308EP-100PES
ProductName - GS308EP
productName - NETGEAR 8-Port Gigabit Ethernet PoE+ Plus Switch (GS308EP) Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
QoS -
Security -
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
ShortDescription -
Short description - Netgear 8Port Switch 10/100/1000 GS308EP
ShortSummaryDescription - NETGEAR GS308EP, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
sizeX - 265
sizeY - 85
sizeZ - 165
Stackability - No
Stck_Kart - 1
Stck_Pal - 48
Storno - Y
Supported protocols and standards - IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-T EEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.3x Full-duplex Flow Control IEEE 802.3af PoE IEEE 802.3at PoE+
Support for Jumbo frames - Yes
Switch class - Managed
Technical details - Products per shipping (inner) case - 6 pc(s)
Technical details - Shipping (inner) case height - 30.9 cm
Technical details - Shipping (inner) case length - 27.4 cm
Technical details - Shipping (inner) case net weight - 8 kg
Technical details - Shipping (inner) case width - 35 cm
Throughput - 16 GB/s
Title - NETGEAR GS308EP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
vendpn - GS308EP-100PES
VLAN -
warrantyLength - 60
warrantyType - F
Weight - 0.49 kg
Weight - 1.184
weight - 1135
Weight & dimensions - Depth - 101 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 158 mm
