ID: 522420
Product code: USW-Flex-Mini
In stock 32 units
Warranty: 2 years
(Warranty for business entities 1 year)

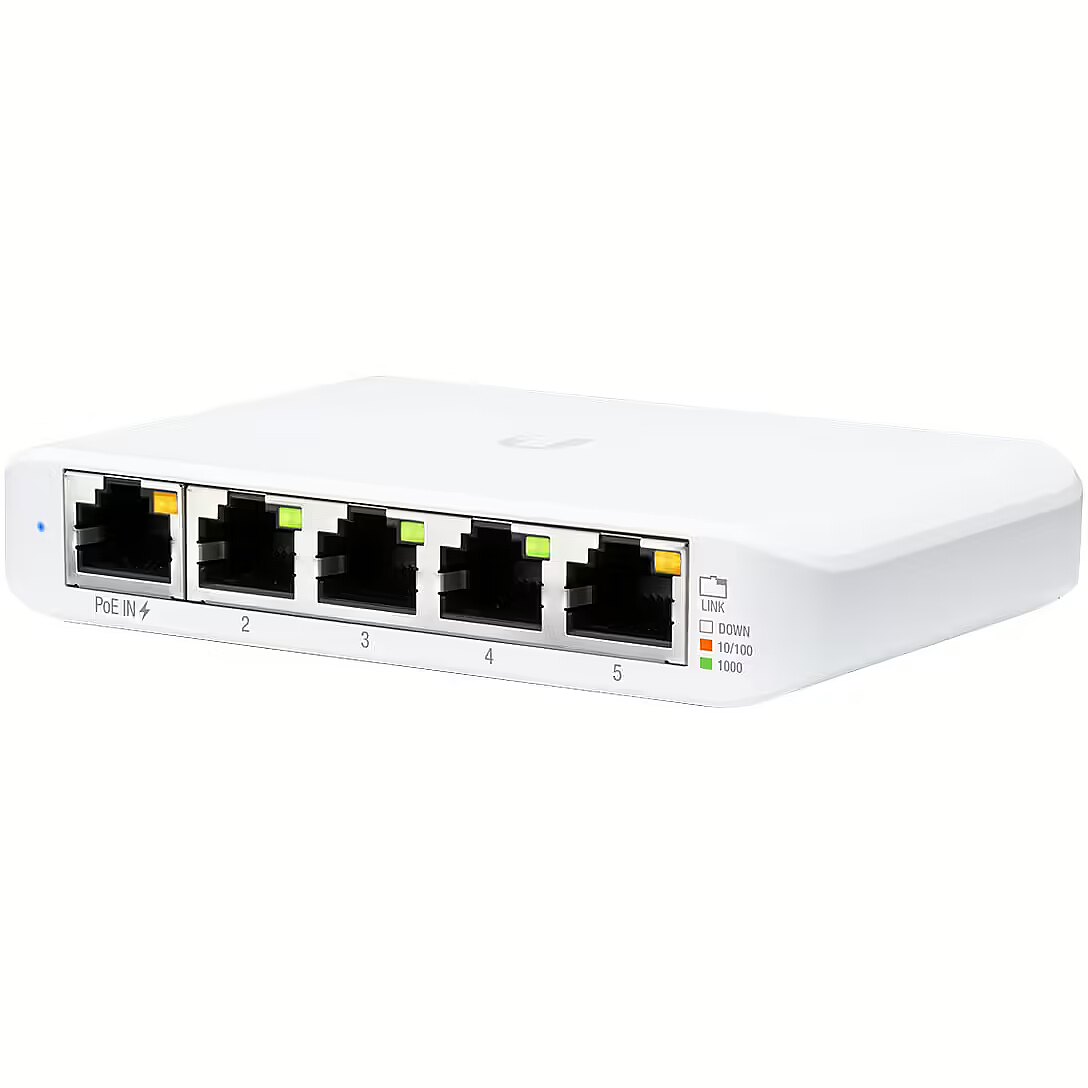

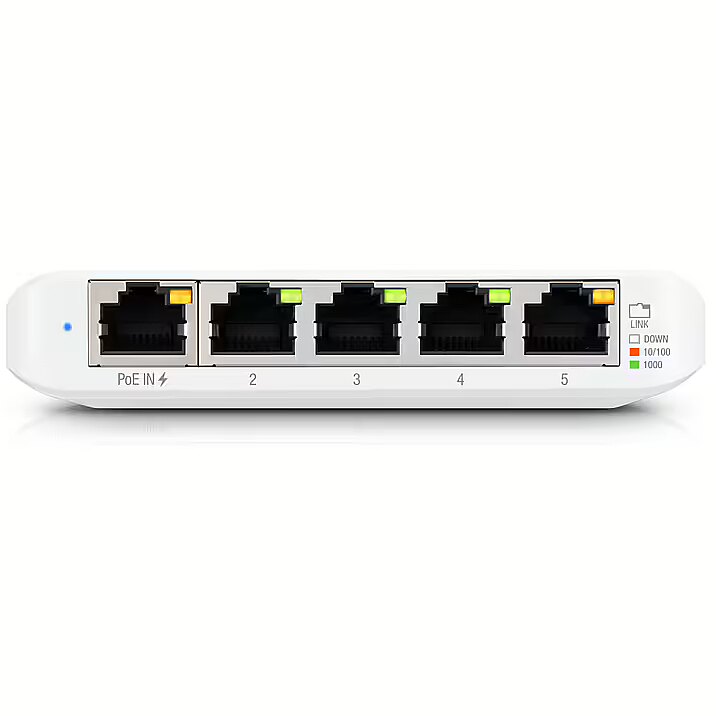

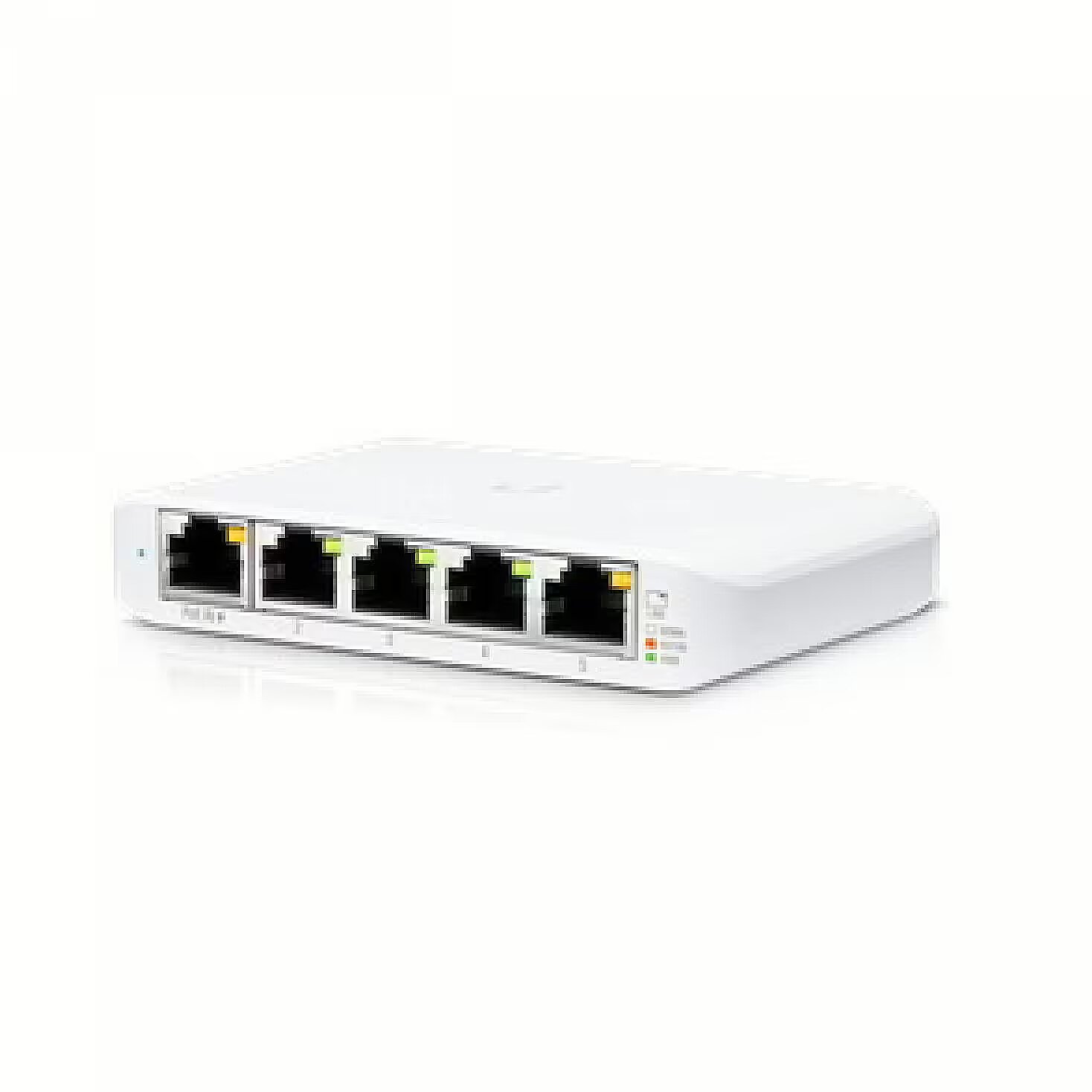

Ubiquiti UniFi Flex Mini, 5x1Gb
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 5
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: N/A
RJ-45 Ports
: 5
SFP Ports
: N/A
Specification
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: There isn't
PoE Total Power Budget
: N/A
Weight (g)
: 150 g
More detailed specification
10G support Network - No
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 5
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
brand - Ubiquiti
category - Mājas un biroju tīkli > Komutatori > 1G komutatori
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certification Certificates - CE, FCC, IC
Code - USW-Flex-Mini
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Głębokość - 70.15 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 5 szt.
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Producent - Ubiquiti
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 10 Gb/s
Dane techniczne: Szerokość - 104.16 mm
Dane techniczne: Szybkość przekierowań pakietów - 7.44 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Waga - 0.15 kg
Dane techniczne: Wysokość - 21.17 mm
Dane techniczne: Zarządzalność - tak
Depth Weight & dimensions - 70.2 mm
Description - 5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.Manage Your Networks from a Single Control PlaneIntuitive and Robust Configuration, Control and MonitoringRemote Firmware UpgradeUsers and GuestsGuest Portal/Hotspot Support
EAN - 817882029698
EAN - 0817882029698
Eans - 817882029698
Flow control support Network - Yes
Forwarding rate Data transmission - 7.44 Mpps
Gross Weight Kg - 0,3
Harmonized System (HS) code Logistics data - 85176990
height - 0.06 m
Height Weight & dimensions - 21.2 mm
LED indicators Design - Activity, Link, Speed, Status
length - 0.19 m
Manufacturer - Ubiquiti
Manufacturer Code - USW-FLEX-MINI
Manufacturer Name - Ubiquiti Networks
Model name - USW-Flex-Mini
mpn - USW-Flex-Mini
MPN - USW-FLEX-MINI
Name - 5P Ubiquiti UniFi USW-Flex-Mini
Name - UBIQUITI USW-FLEX-MINI
Name - Ubiquiti USW-Flex Indoor/outdoor 5Port Poe Gigabit Switch | Ubiquiti
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -5 - 45 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 185 mm
Package features > Gross depth master carton - 385 mm
Package features > Gross height (mm) - 115 mm
Package features > Gross height master carton - 382 mm
Package features > Gross width (mm) - 47 mm
Package features > Gross width master carton - 260 mm
Package features > Net weight master carton - 7.14 kg
Package features > Packing quantity - 30 pc(s)
Package features > Palette Qty - 1350 pc(s)
Package features > Paper/Pasteboard - 92 g
Package features > Plastic (No PET) - 1 g
Package features > Tare weight (kg) - 0.093 kg
Package features > Tare weight master carton - 0.382 kg
Package features > Volume (m3) - 0.000999925 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/4/2/0/4/9/2/85428c7b387de61c3e898b4a95a1c1df/original.pdf
Power consumption (max) Power - 2.5 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 1
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power supply included Power - Yes
Producent: Nazwa producenta / importera - Ubiquiti
BATNA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Olgi Boznańskiej 3e
42-202 Producer - Ubiquiti
ProducerCode - USW-FLEX-MINI
Product colour Design - White
ShortDescription -
Short description - Ubiquiti Switch UniFi 5xRJ45 GBit Compact (inkl. NT) Powered by 802.3af/at PoE or USB Type C, Fanless
Summary - Ubiquiti UniFi USW Flex Mini. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE)
Switching capacity Data transmission - 10 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
Technical details > Gross weight - 0.238 kg
Technical details > Net weight - 0.145 kg
Technical details > Producer - Ubiquiti
Throughput Data transmission - 5 Gbit/s
title - Ubiquiti UniFi Switch Flex Mini
Unit Box Height - 0.115
Unit Box Length - 0.185
Unit Box Width - 0.05
Unit Calculated Volume - 0.001318 cubm
Unit Calculated Weight - 0.267 kg
Units per Pallet - 0
Units per Shipping Box - 30
Vendor Homepage - https://eu.store.ui.com/products/usw-flex-mini?_pos=1&_sid=96db740f8&_ss=r
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 0.3 kg
Weight - 0.24
Weight Weight & dimensions - 150 g
width - 0.12 m
Width Weight & dimensions - 107.2 mm
