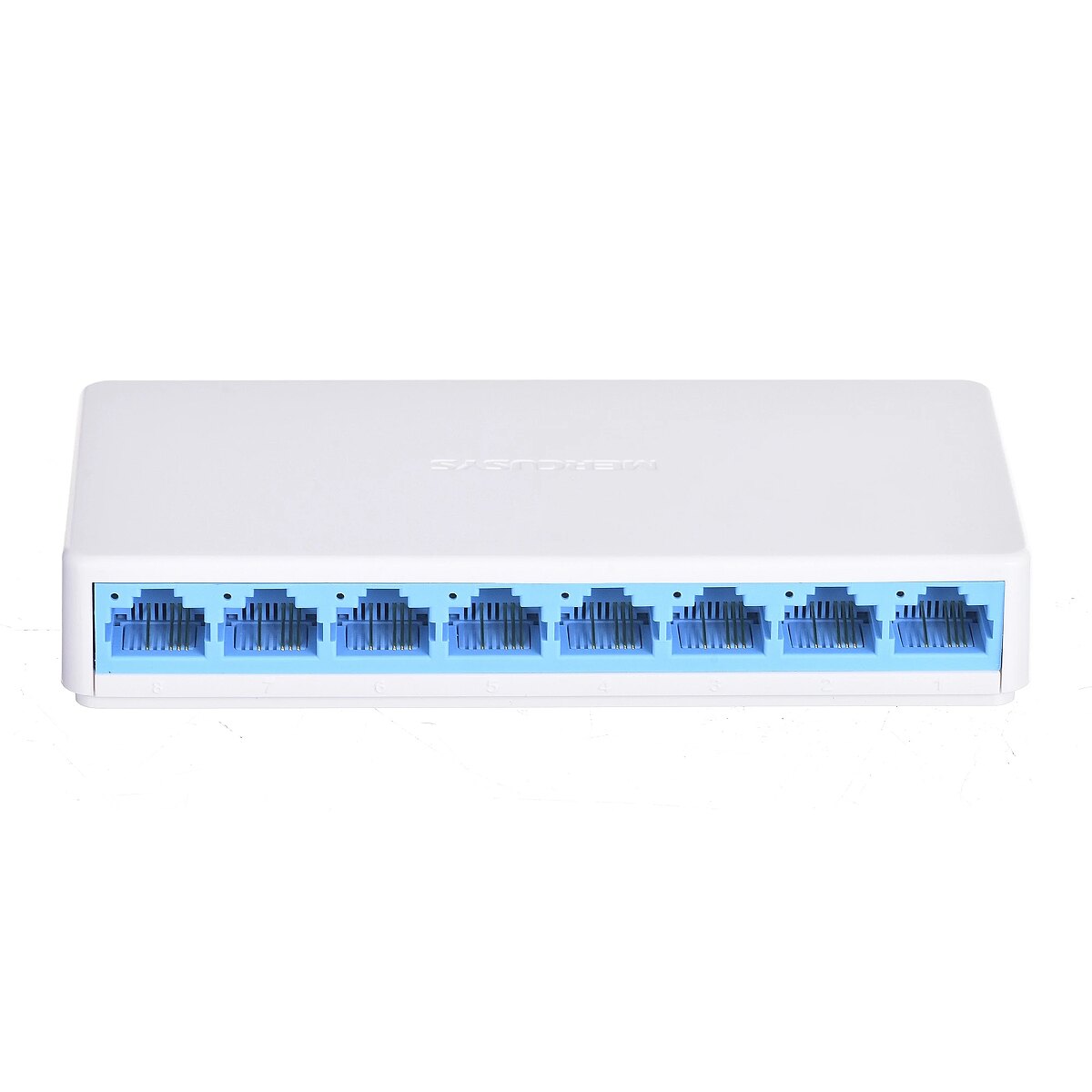

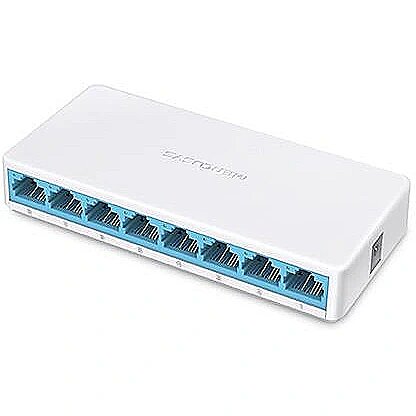

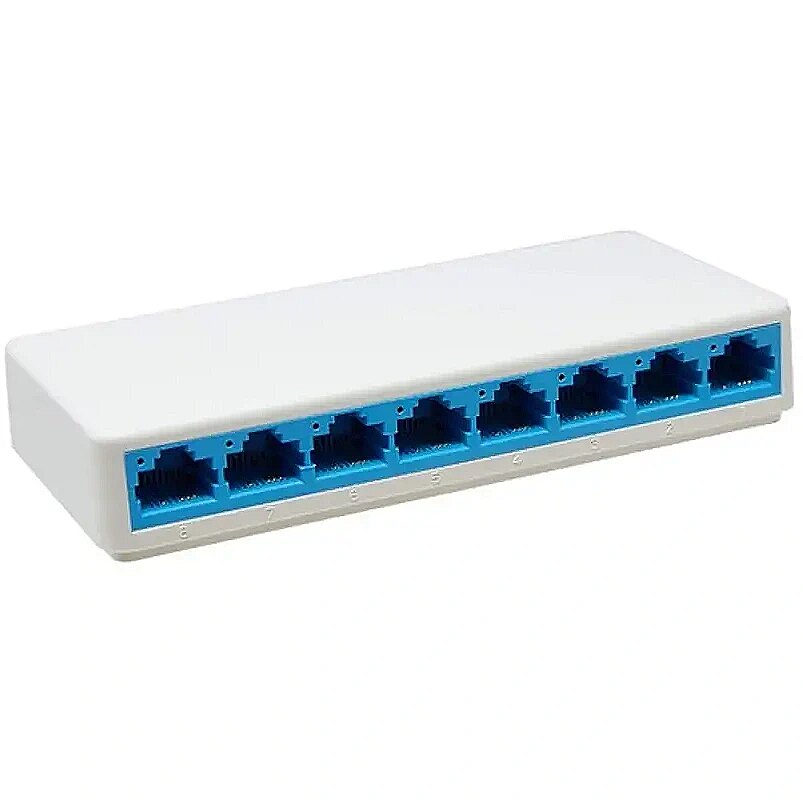

Mercusys MS108, 8x100Mb

Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 8
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Fast Ethernet (10/100)
Category - Root/Electronics/Networks and communication/Switchers
Category - Tīkla produkti, Gudrā māja :: Komutatori (Switch)
Category Code - SWI
Certification Certificates - RoHS
CE
Code - MS108
Dane techniczne: Akcesoria - zasilacz
Dane techniczne: Algorytm przełączania - Full-/half-duplex autonegotiation and flow control
Dane techniczne: Bufor pamięci - 768 KB
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Głębokość - 60 mm
Dane techniczne: Liczba portów LAN 10/100 - 8 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Producent - Mercusys
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Prędkość magistrali wew. - 1.6 Gb/s
Dane techniczne: Szerokość - 127 mm
Dane techniczne: Szybkość przekierowań pakietów - 200 mpps
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Wysokość - 22 mm
Depth Weight & dimensions - 60.2 mm
Desc - Portu skaits: 8, Portu ātrums: 10/100 Mb/s, Garantija: 2 gadi
Description - Easy Wired
Network Expansion
8-Port 10/100Mbps Desktop Switch
MS108 Sleek,Ultra-Compact Design
About the same size as a smartphone, the MS108 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running. Expand Ethernet Network
With eight 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS108 is flexible and is fully compatible with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for home, small
office, and even dormitory environments. Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required. Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology,
the MS108 provides up to 1.6Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS108 will provide reliable, uninterrupted connections
for years to come.Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supportedEasily wired network expansionCompact design for flexible arrangementPlug and play setup, no configuration required
Design > Form factor - Desktop
EAN -
EAN - 6957939000387
Eans - 6957939000387
Full duplex Network - Yes
Half duplex Network - Yes
Harmonized System (HS) code Logistics data - 85176990
Height Weight & dimensions - 22 mm
Input current Power - 0.4 A
Input voltage Power - 5 V
Jumbo frames Data transmission - 2000
Jumbo frames support Data transmission - Yes
LargeDescHTML -
LED indicators Design - Activity, Power
Link - https://www.mercusys.com/en/product/details/ms108
Management features > Switch type - Unmanaged
Manual Packaging content - Yes
Material > Case material - Plastic
Name - Mercusys MS108
Name - Mercusys | Switch | MS108 | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 8 | Power supply type External
Networking standards Network - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Other features > Power supply type - External
Package depth Packaging data - 80 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 133 mm
Package features > Gross depth master carton - 425 mm
Package features > Gross height (mm) - 68 mm
Package features > Gross height master carton - 330 mm
Package features > Gross width (mm) - 84 mm
Package features > Gross width master carton - 350 mm
Package features > Net weight master carton - 10.26 kg
Package features > Packing quantity - 60 pc(s)
Package features > Palette Qty - 2100 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Tare weight master carton - 0.491 kg
Package features > Volume (m3) - 0.000759696 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 57 mm
Package weight Packaging data - 180 g
Package width Packaging data - 132 mm
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power connector Ports & interfaces - DC-in jack
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - DC
Power supply included Power - Yes
Producent: Nazwa producenta / importera - Mercusys
TP-LINK Polska Sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

Producer - Mercusys
ProducerCode - MS108
Producer product family - Switch
Producer product name - MS108
Product colour Design - White
Quick start guide Packaging content - Yes
Rack mounting Design - No
ShortDescription -
Stackable Design - No
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Summary - Mercusys 8-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Switch type Management features - Unmanaged
Technical details > Gross weight - 0.171 kg
Technical details > Net weight - 0.071 kg
Technical details > Producer - Mercusys
Unit Box Height - 0.06
Unit Box Length - 0.13
Unit Box Width - 0.09
Unit Calculated Volume - 0.0008085 cubm
Unit Calculated Weight - 0.188 kg
Units per Shipping Box - 60
Vendor Homepage - https://www.mercusys.com/uk/product/details/ms108
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
Width Weight & dimensions - 127 mm
