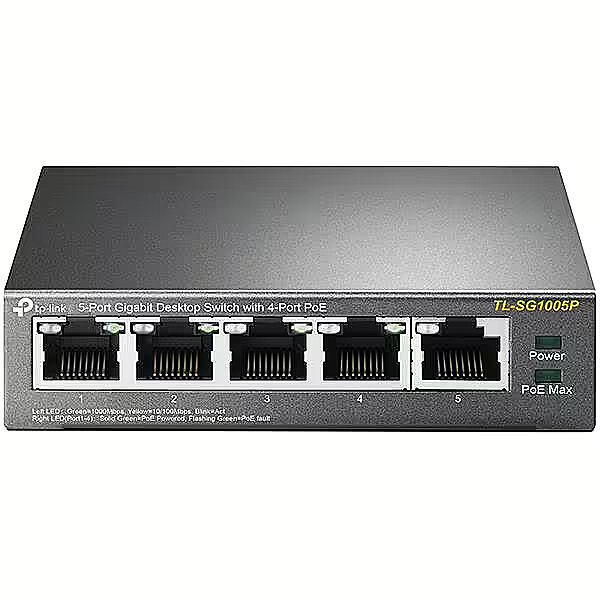

TP-LINK TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE

10G support Network - No
AC adapter included Packaging data - Yes
Accessories included - - Power Supply
- Instructions
AC input frequency Power - 50 Hz
AC input voltage Power - 100 - 220 V
Application - Home and small office
ARTIKEL1 - 5-PORT GIGABIT DESKTOP SWITCH
ARTIKEL2 - WITH 4-PORT POE
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 5
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1005P V1
Cables included Packaging content - AC
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e, Cat6
Category - Network Switches
Category - Tīkla produkti, Gudrā māja :: Tīkla produkti :: Komutatori (Switch)
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
category_en - Computers & Components > Network products > Network switches
category_lv - Datortehnika > Tīkla produkti > Tīkla komutatori
category_ru - Datortehnika > Tīkla produkti > Tīkla komutatori
Certificates - Certification - FCC, CE, RoHS
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Certification Certificates - FCC, CE, RoHS
Chassis type - Desktop
Code - TL-SG1005P
Compliance certificates Certificates - CE, Federal Communications Commission (FCC), RoHS
Console port - No
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX, 1000BASE-T
Data Act - Link
Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
DC input voltage Power - 48 V
Depth Weight & dimensions - 98 mm
Desc - Portu skaits: 5, Portu ātrums: 10/100/1000 Mbps, Garantija: 2 gadi
Description - PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.5 10/100/1000Mbps RJ45 portsWith four PoE ports, transfers data and power on one single cableWorking with IEEE 802.3af compliant PDs, expands home and office network802.1p/DSCP QoS enable smooth latency-sensitive trafficSupports PoE Power up to 15.4W for each PoE portSupports PoE Power up to 56W for all PoE portsRequires no configuration and installation
Description - Switch SG1005P
- 5 Gigabit RJ45 ports
- 4 PoE ports, data transfer and device power supply using one cable
- Compliance with the IEEE 802.3af standard
- QoS 802.1p / DSCP
- No configuration required
description_en - Manufacturer: TP-Link
Switch Type: Unmanaged
Quality of Service (QoS) support: Yes
Network standard: IEEE 802.1p,IEEE 802.3af,IEEE 802.3x
Flow control support: Yes
IGMP Interference: Yes
10G support: None
Address table size: 2000 entries
Switching capacity: 10 Gbit/s
Product color: Black
Operating temperature range (T-T): 0 - 40 °C
Storage temperature range (T-T): -40 - 70 °C
description_lv - Ražotājs: TP-Link
Slēdža tips: Nepārvaldīts
Quality of Service (QoS) atbalsts: Jā
Tīkla standarts: IEEE 802.1p,IEEE 802.3af,IEEE 802.3x
Plūsmas kontroles atbalsts: Jā
IGMP iejaukšanās: Jā
10G atbalsts: Nav
Adrešu tabulas izmērs: 2000 ieraksti
Komutācijas ietilpība: 10 Gbit/s
Produkta krāsa: Melns
Darbības temperatūras amplitūda (T-T): 0 - 40 °C
Uzglabāšanas temperatūras amplitūda (T-T): -40 - 70 °C
description_ru - Производитель: TP-LINK
Тип коммутатора: Неуправляемый
Поддержка качества обслуживания (QoS): Да
Сетевой стандарт: IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
Поддержка управления потоком: Да
Помехи IGMP: Да
Поддержка 10G: нет
Размер таблицы адресов: 2000 записей.
Коммутационная способность: 10 Гбит/с
Цвет товара: Черный
Диапазон рабочих температур (Т-Т): 0–40 °C
Диапазон температур хранения (Т-Т): -40–70 °C
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design > Form factor - Desktop
Designation - CE+WEEE
dimensionalWeight - 608
dimensionalWeight - 691
dimension depth - 120 mm
dimension height - 195 mm
Dimensions - 99,8 x 98 x 25 mm
dimension weight - 760 g
dimension width - 130 mm
ean - 1210002616607
EAN - 2188189002794
EAN - 6935364083212
EANCode - 1210002616607
EAN_code - 6935364083212
Fan - No
Fanless Performance - Yes
Flow control support Network - Yes
Forwarding mode - Store-and-forward
Forwarding rate Data transmission - 7.44 Mpps
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 5
Gross Weight Kg - 0,6
gross_weight - 0.34 kg
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0840460603928
GTIN - 840460603928
GTIN - 0845973083212
GTIN - 845973083212
GTIN - 1210002616614
GTIN - 6935364083212
GTIN - 6935364083229
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Heat dissipation Operational conditions - 219.87 BTU/h
Height Weight & dimensions - 25 mm
HERSTELLER - TP-LINK
HSTNUMMER - TL-SG1005P
IGMP snooping Security - Yes
Input current Power - 1.25 A
L2 features -
L3 features -
LargeDescHTML -
LED indicators Design - Yes
Link - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1005p/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - PoE Switches for Your Ultra Convenience5-Port Gigabit Desktop Switch with 4-Port PoEPower over Ethernet4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).Intelligent Power ManagementWhen total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.Sturdy Metal CasingSturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
LongProductName - 5x 10/100/1000Mbps RJ-45, 10 Gbps, PoE, QoS, 99.8x98x25 mm
LongSummaryDescription - TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
MAC address auto-aging supported Network - Yes
MAC address auto-learning supported Network - Yes
MAC address table Data transmission - 2000 entries
MAC address table size - 2000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manual Packaging content - Yes
Manufacturer - TP-Link
Manufacturer Code - TL-SG1005P
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SG1005P
Maximum cable length Performance - 100 m
Model - TL-SG1005P
Model name - 5-Port Gigabit Desktop PoE Switch with 4-Port
MPN - SG1005P
Name - 5P TP-Link SG1005P Metall mit 4 PoE-Ports
Name - NET SWITCH 5PORT 1000M/4P POE TL-SG1005P TP-LINK
name - SG1005P switch 5xGE (4xPoE)
Name - TP-Link TL-SG1005P, Switch
Name - TP-Link TL-SG1005P POE
Name - TP-LINK | Switch | TL-SG1005P | Unmanaged | Desktop | Gigabit Ethernet (copper) ports quantity 5 | Power over Ethernet (PoE) ports quantity 4 | Power supply type External | 36 month(s)
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of 10/100/1000 Mbps ports - 5
Number of PoE ports (PoE & PoE+) - 4
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 219.87 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - - Permissible operating temperature: 0 ~ 40 (32 ~ 104)
- Permissible storage temperature: -40 ~ 70 (-40 ~ 158)
- Permissible air humidity: 10% ~ 90%, non-condensing
- Permissible storage humidity: 5% ~ 90%, non-condensing
- Certificates: FCC, CE, RoHS
Other features > Power supply type - External
Other functions - - Compatibility with PoE (PD) powered devices operating in the IEEE 802.3af standard
- Priority of ports
- Automatic memorizing and blanking of Mac addresses
- EEE802.3x Flow Control
- 802.1p / DSCP QoS
- IGMP Snooping
Package depth Packaging data - 196 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 200 mm
Package features > Gross height (mm) - 130 mm
Package features > Gross weight - 0.76 kg
Package features > Gross width (mm) - 120 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 277 pc(s)
Package features > Paper/Pasteboard - 4 g
Package features > Plastic (No PET) - 184 g
Package features > Tare weight (kg) - 0.188 kg
Package features > Volume (m3) - 0.00312 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 121 mm
Package type Packaging data - Box
Package weight Packaging data - 761 g
Package width Packaging data - 131 mm
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package depth - 196 mm
Packaging data - Package height - 121 mm
Packaging data - Package type - Box
Packaging data - Package weight - 761 g
Packaging data - Package weight - 800 g
Packaging data - Package width - 131 mm
Performance - Fanless - Yes
Performance - Maximum cable length - 100 m
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > POE - PoE 802.3 af
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 100 - 220 V
Power - DC input voltage - 48 V
Power - Input current - 1.25 A
Power - Power consumption (max) - 64.44 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power consumption - 4.26 W
Power consumption (max) Power - 64.44 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 56 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 4
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power source Power - DC/PoE
Power supply - - External power supply (output: 48VDC / 1.25A)
- PoE
Power supply - External
Power supply included Power - Yes
producer - TP-LINK
Producer - TP-LINK
producerCode - TL-SG1005P
Producer product family - Switch
Producer product name - TL-SG1005P
Product colour Design - Black
ProductName - 5-Port Gigabit Desktop PoE Switch with 4-Port
productName - TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
Product Net Weight ELKO Logistics Data - 0.249 kg
productSize - Normal
QoS -
Quality of Service (QoS) support Management features - Yes
Quick start guide Packaging content - Yes
Rack mounting Design - No
Security -
Security - IGMP snooping - Yes
Shipping Box Depth ELKO Internal Logistics Data - 42 cm
Shipping Box Height ELKO Internal Logistics Data - 39 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.1 kg
Shipping Box Width ELKO Internal Logistics Data - 28.5 cm
Short description - TP-LINK Switch TL-SG1005P 5xGBit (4xPoE / 65W) Unmanaged
ShortSummaryDescription - TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
sizeX - 195
sizeX - 199
sizeY - 130
sizeY - 139
sizeZ - 120
sizeZ - 125
Stackable Design - No
Stck_Kart - 12
Stck_Pal - 60
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
Supported protocols and standards -
Sustainability - Sustainability compliance - Yes
Sustainability compliance Sustainability - Yes
Switch class - Unmanaged
Switching capacity Data transmission - 10 Gbit/s
Switch layer - L2
Switch type Management features - Unmanaged
Technical details > Net weight - 0.572 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Throughput - 10 GB/s
Title - TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
title_en - TP-Link TL-SG1005P Gigabit Desktop Switch 5x GB-LAN
title_lv - TP-Link TL-SG1005P Gigabit Desktop Switch 5x GB-LAN Komutatori
title_ru - TP-Link TL-SG1005P Gigabit Desktop Switch 5x GB-LAN Коммутатор
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 56 W
Unit Box Height - 0.12
Unit Box Length - 0.195
Unit Box Width - 0.13
Unit Calculated Volume ELKO Internal Logistics Data - 0.00389 cubm
Unit Calculated Weight ELKO Logistics Data - 0.842 kg
Unit Depth ELKO Logistics Data - 19.5 cm
Unit Height ELKO Logistics Data - 12 cm
Units per Shipping Box ELKO Logistics Data - 12
Unit Width ELKO Logistics Data - 13 cm
URL - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1005p/
User guide Packaging content - Yes
Vendor Homepage - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1005p/
vendpn - TL-SG1005P
VLAN -
VLAN support Network - Yes
Warranty - 60
Warranty - 60 months
WarrantyInfo -
warrantyLength - 24
warrantyLength - 60
warrantyType - G
Weight - 0,77
weight - 0.3 kg
Weight - 0.773
weight - 770
weight - 780
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 99.8 mm
Width Weight & dimensions - 99.8 mm
