ID: 1210600
Product code: DS-P7001-04(UN)
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 3 years
TP-LINK DeltaStream TL-DS-P7001-04, 4x2.5 Gbit

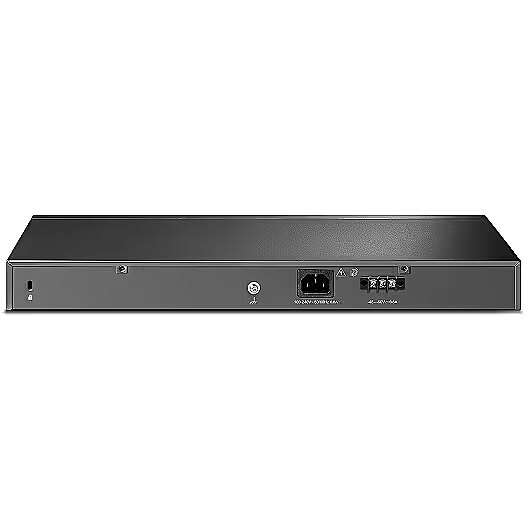

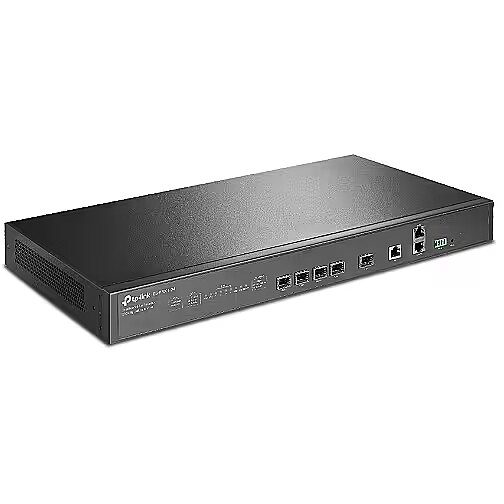

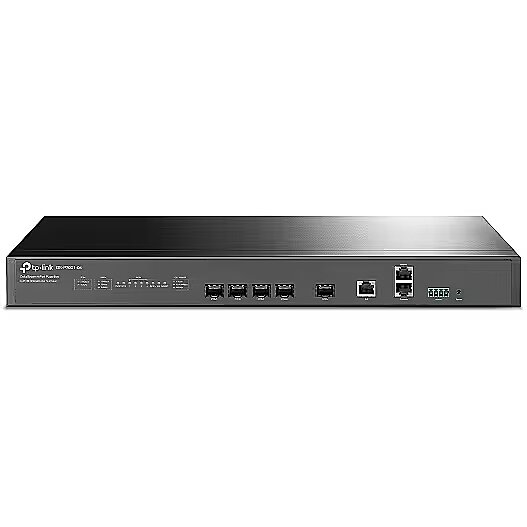

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Itella parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Base-T speed: 2,5GbE
- RJ-45 Ports: 4
Ports and equipment
Base-T speed
: 2,5GbE
PoE Ports
: N/A
RJ-45 Ports
: 4
SFP Ports
: 1
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: Nav
PoE Total Power Budget
: N/A
Weight (g)
: Nav norādīts
More detailed specification
Brand - TP-Link
BrandPartCode - DS-P7001-04
Category - Optical Line Terminals (OLTs)
Category 1 - Netzwerk
Category 2 - Switching Hubs
EAN - 4897098683163
Features - Access Control List (ACL) - Yes
Features - DHCP relay - Yes
Features - DHCP server - Yes
Features - GPON split ratio (max) - 1:128
Features - IGMP snooping - Yes
Features - Maximum operating distance (GPON) - 20000 m
Features - Multicast Listener Discovery (MLD) snooping - Y
Features - Quality of Service (QoS) support - Yes
Features - Static route - Yes
GTIN - 4897098683156
GTIN - 4897098683163
LongDesc - 4-Port GPON Optical Line Terminal4 GPON Ports,Supports 512 ONUsSupports 1:128 splitting ratio for every port—up to 512 ONTs by one device.Free Centralized ManagementVia DeltaStream PON Management System (DPMS)Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.- No Additional Expense- Improve Management Efficiency And Reduce Maintenance Costs- The Easy-to-Use Dashboard Ensures Hassle-Free ConfigurationCompact Size, Flexible DeploymentMount in a rack for flexible deployment with all your other products.Constant Reliability Through Redundant Dual Power SuppliesDual built-in AC and DC power supplies ensures carrier-class reliability.
LongProductName - 4× 2.5G PON, 1× 10 Gbps SFP+ Uplink, 1× 10/100/1000 Mbps RJ45 Uplink, 1× RJ45 Console, 1× RJ45 MGMT, 1× Alarm Port, 440 × 180 × 44 mm
LongSummaryDescription - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal. GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 180 mm, Height: 44 mm
Manufacturer - TP-Link
MPN - DS-P7001-04(UN)
Name - TP-Link DeltaStream TL-DS-P7001-04 GPON-Terminal 2.5 Gbit E.
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - GPON ports quantity - 4
Ports & interfaces - SFP/SFP+ slots quantity - 1
Ports & interfaces - Upstream ports - Gigabit Ethernet
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC voltage range - 38.4 - 72 V
Power - Power consumption (max) - 58 W
ProductName - DeltaStream 4-port Pizza-box GPON Optical Line Terminal
ShortSummaryDescription - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal, 1:128, 20000 m, Gigabit Ethernet, 100 - 240 V, 50 - 60 Hz, 38.4 - 72 V
Title - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal
URL - https://www.tp-link.com/uk/service-provider/gpon/ds-p7001-04/
WarrantyInfo - 5 Years
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
BrandPartCode - DS-P7001-04
Category - Optical Line Terminals (OLTs)
Category 1 - Netzwerk
Category 2 - Switching Hubs
EAN - 4897098683163
Features - Access Control List (ACL) - Yes
Features - DHCP relay - Yes
Features - DHCP server - Yes
Features - GPON split ratio (max) - 1:128
Features - IGMP snooping - Yes
Features - Maximum operating distance (GPON) - 20000 m
Features - Multicast Listener Discovery (MLD) snooping - Y
Features - Quality of Service (QoS) support - Yes
Features - Static route - Yes
GTIN - 4897098683156
GTIN - 4897098683163
LongDesc - 4-Port GPON Optical Line Terminal4 GPON Ports,Supports 512 ONUsSupports 1:128 splitting ratio for every port—up to 512 ONTs by one device.Free Centralized ManagementVia DeltaStream PON Management System (DPMS)Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.- No Additional Expense- Improve Management Efficiency And Reduce Maintenance Costs- The Easy-to-Use Dashboard Ensures Hassle-Free ConfigurationCompact Size, Flexible DeploymentMount in a rack for flexible deployment with all your other products.Constant Reliability Through Redundant Dual Power SuppliesDual built-in AC and DC power supplies ensures carrier-class reliability.
LongProductName - 4× 2.5G PON, 1× 10 Gbps SFP+ Uplink, 1× 10/100/1000 Mbps RJ45 Uplink, 1× RJ45 Console, 1× RJ45 MGMT, 1× Alarm Port, 440 × 180 × 44 mm
LongSummaryDescription - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal. GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 180 mm, Height: 44 mm
Manufacturer - TP-Link
MPN - DS-P7001-04(UN)
Name - TP-Link DeltaStream TL-DS-P7001-04 GPON-Terminal 2.5 Gbit E.
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - GPON ports quantity - 4
Ports & interfaces - SFP/SFP+ slots quantity - 1
Ports & interfaces - Upstream ports - Gigabit Ethernet
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC voltage range - 38.4 - 72 V
Power - Power consumption (max) - 58 W
ProductName - DeltaStream 4-port Pizza-box GPON Optical Line Terminal
ShortSummaryDescription - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal, 1:128, 20000 m, Gigabit Ethernet, 100 - 240 V, 50 - 60 Hz, 38.4 - 72 V
Title - TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal
URL - https://www.tp-link.com/uk/service-provider/gpon/ds-p7001-04/
WarrantyInfo - 5 Years
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
