10/100/1000/2500 Mbps ports - None
Accessories included - SG6428XHP Power cord RJ45 console cable Quick installation guide Rack mounting kit Rubber feet
Application - Medium and large companies
Brand - TP-Link
BrandPartCode - SG6428XHP
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates -
Chassis type - Rack
Console port - Yes
Data transmission - Forwarding rate - 95.2 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Packet buffer memory - 3 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 128 Gbit/s

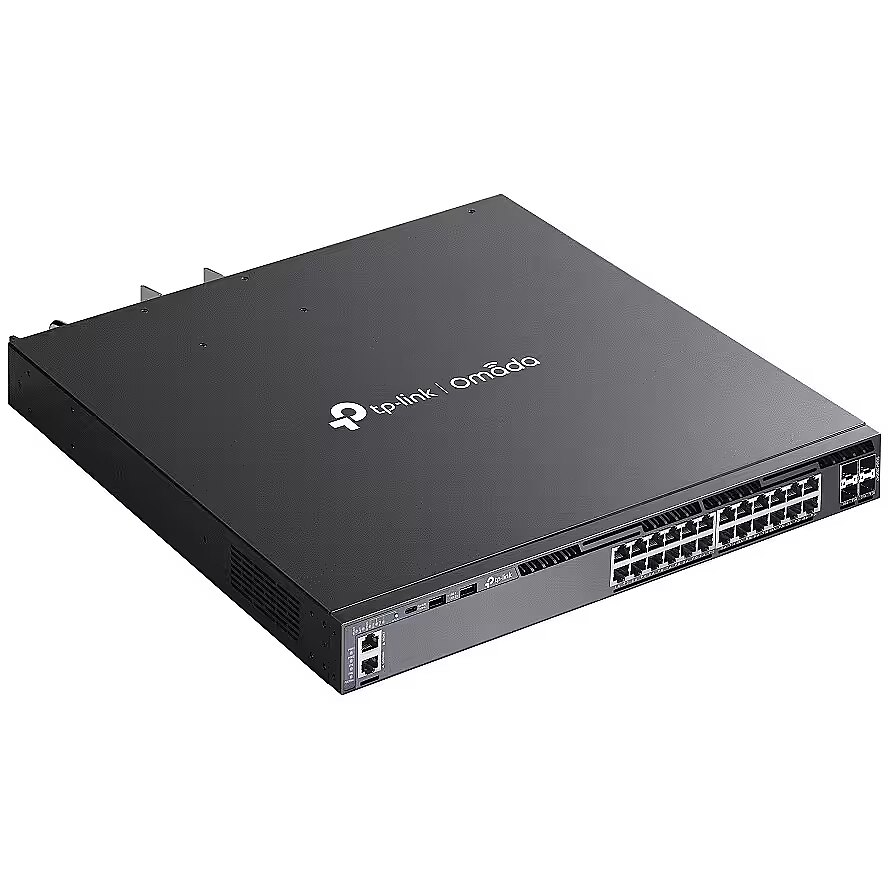

Description - Omada L3 Stackable Managed Switch, 24 Gigabit PoE+ Ports, 4 10G SFP+ Slots 24 Gigabit RJ45 PoE+ Ports 4 10Gb/s SFP+ Slots PoE Power Supply with a Total Power of Up to 720W* Physical Stacking for Redundancy and Better Performance L3 Features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Protection, 802.1X Increased Availability with Dual Power Supplies**, VRRP, and ERPS Centralized Cloud Management via the Omada SDN Controller Autonomous Management via Web Interface, CLI, SNMP, and RMON *Total available PoE power depends on the power supply modules used. **The switch ships with one PSM500-AC power module. If you wish to use a second power supply slot, you must purchase an additional power supply separately.
Product Application
The Omada SG6428XHP is a managed Layer 3 PoE+ switch that offers L3 routing, high-speed 10 Gbps wire speed, stacking, and redundant power supply to meet the needs of the convergence layer. It offers an impressive total PoE power output of up to 720 W*, 24 Gigabit RJ45 PoE+ ports, 4 SFP+ slots, and physical stacking. Centralized management, high security, and extensive management features make this switch ideal for SMB, enterprise, and ISP applications.
IEEE 802.3at/af PoE Support
The 24 IEEE 802.3at/af PoE ports provide up to 720W of combined power for 802.3at and 802.3af devices*, each capable of delivering up to 30W of power. Easily install wireless access points, surveillance cameras, IP phones, and other PoE-enabled devices without the hassle and expense of additional power cabling. Perpetual PoE ensures uninterrupted power delivery to devices, even during switch reboots. Furthermore, the switch retains PoE power settings after reboot thanks to its fast PoE functionality.
High-speed connections and efficient stacking

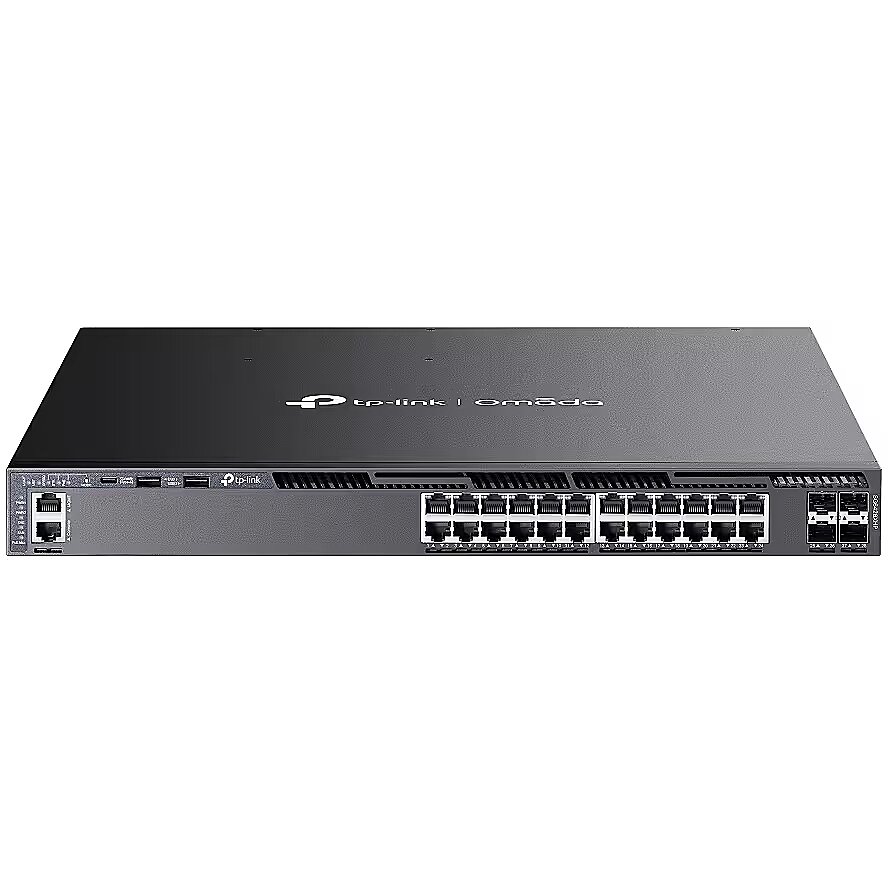

24 Gigabit RJ45 ports and four 10 Gbps SFP+ slots provide up to 128 Gbps of switching capacity per unit. Physical stacking of up to 8 units strengthens the network structure with its efficiency and built-in redundancy.
Extensive Layer 3 Capabilities
The switch is equipped with multiple Layer 3 routing protocols to support network scalability. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. The PIM-DM multicast routing protocol ensures efficient routing for multicast groups.
High Availability
Hot-swappable, redundant power supplies with VRRP are an ideal choice for a reliable network architecture**. ERPS supports rapid protection and recovery in a ring topology.
Advanced Security Features
Network protection against a wide range of threats is provided by ACLs (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell (SSH).
Omada SDN
The Omada system offers centralized cloud management and numerous management features, such as Zero-Touch Provisioning (ZTP). The Omada software-defined network infrastructure (SDN) platform integrates network devices, including access points, switches, and gateways, providing completely centralized cloud management from a single interface.
In addition to centralized management via the Omada app, the SG6428XHP switch can also be easily managed via a web configuration page or command line interface (CLI). Both methods protect traffic using SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON enable polling of the switch to obtain valuable information and send traps for unexpected events.
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Number of fans - 4 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
Designation - CE+WEEE
dimension depth - 640 mm
dimension height - 180 mm
Dimensions - 440 × 420 × 44 mm
dimension weight - 12000 g
dimension width - 615 mm
ean - 4895252501438
EAN - 4895252501438
Environment requirements - Permissible operating temperature: -5°C to 45°C at an altitude of 2000 meters -5°C to 40°C at an altitude of 3000 meters Permissible storage temperature: -40°C to 70°C
Permissible air humidity: 1090%, non-condensing
Permissible storage humidity: 590%, non-condensing
Fan - Yes
Forwarding rate - 95.2 MB/s
Gross Weight Kg - 11,8
GTIN - 0840030705960
GTIN - 840030705960
GTIN - 4895252501438
GTIN - 4895252501445
guarantee - 60
guarantee_type - normal
Jumbo frame size - 9 KB
L2 features - Link Aggregation Spanning Tree Protocol Port- and VLAN-based loopback detection 802.3x flow control Support for 2048 IGMP groups ERPS Mirroring RSPAN MAC address table PIM-DM (IPv4) Multicast IGMP snooping MLD snooping L2 multicast table Fast Leave Multicast VLAN Registration (MVR) Static IP multicast Multicast filtering
L3 features - IP Interfaces: IPv4: Maximum 256, IPv6: Maximum 256 Static Routing Maximum 1024, IPv6: Maximum 512 Host Route Table: Maximum 6100 entries RIP: Version v1/v2, Maximum 8190 OSPF: Version v2/v3; v2: Maximum 8190, v3: Maximum 4097 VRRP: Version v2/v3, Maximum 64 groups ECMP: 256 entries, Maximum 32 ECMP Nexthops per destination Static ARP: 512 static entries Dynamic ARP: 7680 dynamic entries Proxy ARP DHCP Server: Maximum 64 IP pools Maximum 1000 manual binding entries DHCP Relay: Interface Relay VLAN Relay
LongDesc - What This Product DoesOmada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts a 720 W PoE budget, 24× gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and physical stacking. With centralized management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.IEEE 802.3at/af-compliant Power over Ethernet24× IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.High-speed Connectivity and Powerful Stacking24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empower the networking structure with built-in redundancy and performance.Abundant Layer 3 CapabilitiesComes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.Highly AvailableOptional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.Enhanced Security FunctionsDefend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.Omada SDNIntegration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).‡ The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.Apart from the ability to be centrally managed via the web or the Omada app, SG6428XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
LongProductName - 24x 10/100/1000 Mbps PoE+ RJ45, 4x 10G SFP+, 2x USB 2.0, 1x RJ45, 1x USB Type-C, 1x RJ45, 128 Gbps, 32K MAC, 9 KB Jumbo, 440 x 420 x 44 mm
LongSummaryDescription - TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address table size - 32000
Management, monitoring, configuration - Graphical User Interface (GUI) Command Line Interface (CLI) via console port, Telnet SNMP v1/v2c/v3 Trap/Inform RMON (Groups 1, 2, 3, 9) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Usage Monitoring Cable Diagnostics Password Recovery SNTP System Logs EEE
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - SG6428XHP
Manufacturer Name - TP-LINK
Maximum number of units per stack - 8
MPN - SG6428XHP
Multicast features - Multicast support - Yes
Name - TP-Link Omada Switch 24x GE SG6428XHP Layer 3
name - TP-Link SG6428XHP
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - IP routing - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP56 ports - None
Number of SFP ports - None
Number of VLAN groups - 4000
Operational conditions - Heat dissipation - 3125.61 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Manual - Yes
Packet buffer - 3 MB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45/USB Type-C
Ports & interfaces - SFP+ module slots quantity - 4
Ports & interfaces - USB 2.0 ports quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 916.4 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 720 W

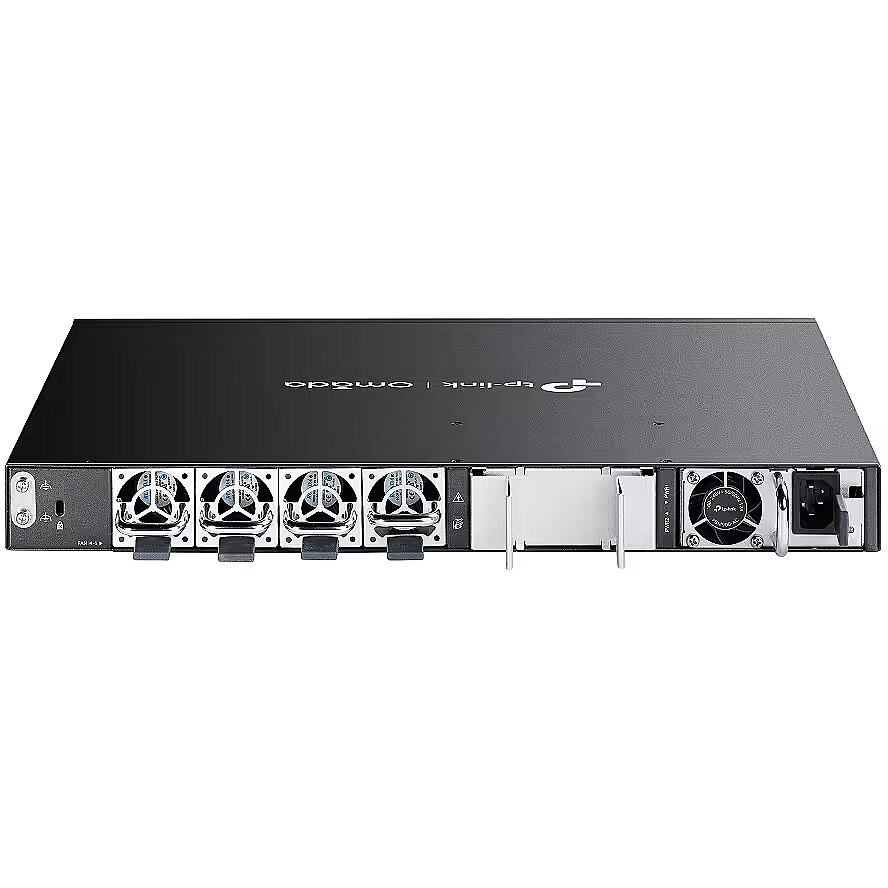

Power supply - Two hot-swappable power module slots** (100-240 VAC, 50/60 Hz)
**This unit ships with one PSM500-AC power module. A second redundant power supply must be purchased separately.
Maximum power consumption: 42.9 W (110 V/60 Hz) (Without connected PoE devices) 916.6 W (110 V/60 Hz) (With connected 720 W PoE devices and two PSM500-AC power supplies)
Power supply - External
producer - TP-LINK
ProductName - Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
QoS - Class of Service: 8 Priority Queues Port Priority IEEE 802.1p Priority DSCP Priority Minimum Queue Bandwidth Scheduling Mode (SP, WRR, SP+WRR) Bandwidth Control: Rate Limiting Storm Control Voice VLAN
User-Defined OUI
Smoother Performance
Flow Performance: QoS Remark (802.1P Remark, DSCP Remark)
Security - Port Isolation CPU Defense ARP Inspection (Dynamic ARP Inspection) DoS Attack Protection IP-MAC-Port Binding 1024 Entries DHCP Snooping ARP Inspection IPv4 Source Address Protection IPv6-MAC Port Binding 1024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Address Protection DHCP Filter Port Protection via Static/Dynamic Configuration Up to 64 MAC Addresses per Port Storm Control Broadcast/Multicast/Unknown Unicast Control Mode: Kbps/Rate 802.1X Port-Based Authentication MAC Address-Based Authentication VLAN Assignment MAB Guest VLAN Authentication and Authorization via Radius AAA (including TACACS+) Secure web management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv2 encryption IP/Port/MAC-based access control
Security - Access Control List (ACL) - Yes
Security - Authentication - Auto VLAN, MAC-based authentication, Port-based authentication
Security - Authentication type - RADIUS
Security - DHCP features - DHCP relay, DHCP snooping, DHCPv6 snooping
Security - IGMP entries - 2048
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - SSH/SSL support - Yes
Short description - TP-LINK Switch SG6428XHP 24xGBit /4x10Gbit SFP+ PoE+ Managed Layer 3 +++ Rack Mountable, Omada SDN, 4 Fans
ShortSummaryDescription - TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Stackability - Yes
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L2
Throughput - 128 GB/s
Title - TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
URL - https://www.tp-link.com/en/business-networking/omada-switch-poe/sg6428xhp/
vendpn - SG6428XHP
VLAN - Max. 4K VLAN groups (802.1q VLAN) 802.1Q VLAN tagging MAC VLAN entries: 200 Multicast VLAN Management VLAN VPN VLAN (QinQ): Max. 256 entries GVRP Protocol VLAN: Protocol template 16, Protocol VLAN 12 VPN VLAN Voice VLAN Private VLAN
WarrantyInfo -
Weight & dimensions - Depth - 420 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
